Sega Game Gear Backlight Screen LCD Mod Kit Touch Version Module Replacement, GG High-Brightness 3.5-inch 320×240 Dot by Dot Full-Screen Display Glass Screen Lens Easy Install Spare Parts Accessories

$56.25 – $58.13

& Free Shipping
SKU: 3256804161698020 Categories: , Tags: , , , , , , ,
,

Sega Game Gear Backlight Screen LCD Mod Kit Touch Version Module Replacement, GG High-Brightness 3.5-inch 320×240 Dot by Dot Full-Screen Display Glass Screen Lens Easy Install Spare Parts Accessories



  • Origin: Mainland China
  • Compatible Brand/Model: SEGA
  • Compatible Sega Model: GAME GEAR
  • Accessories Type: Motherboard
  • Model Number: SEGAGG-01



Touch Version LCD Screen For SEGA Game Gear Highlight Brightness LCD Kits For SEGA GG Console

Note: The software has been updated. It can be compatible with GG, SMS and SG-1000 games.

1. 3.5-inch a-Si TFT LCD liquid crystal screen, 320*240 resolution, point-to-point full-screen display, high refresh rate, bright colors

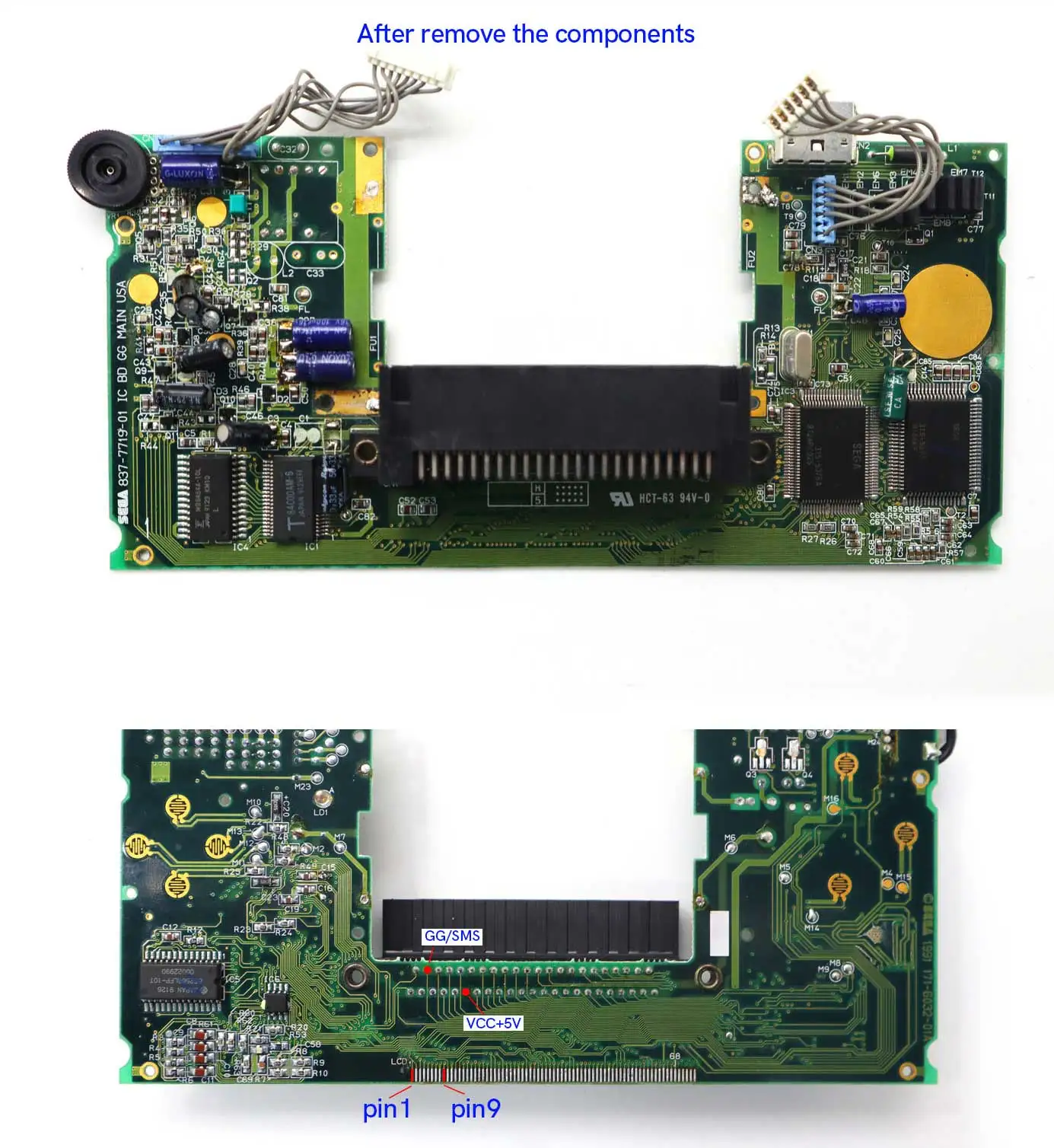

2. Support Sega single chip motherboard and dual chip motherboard:

     –Single chip motherboard:1 ASIC PCB revisions 837-9130 / 837-9024 / 837- 8560

     –Dualchip motherboard:2 ASIC PCB revisions 837-7996 / 837-7719-01 VA0/837-7398-03

NOTE：Please contact me after receiving the product, I will send the instruction manual to you.

NOTE1: Doesn’t supported: Majesco Game Gear VA4 / VA5
NOTE2: The motherboard with the “MADE IN TAIWAN” logo on the motherboard of the game console does not support.

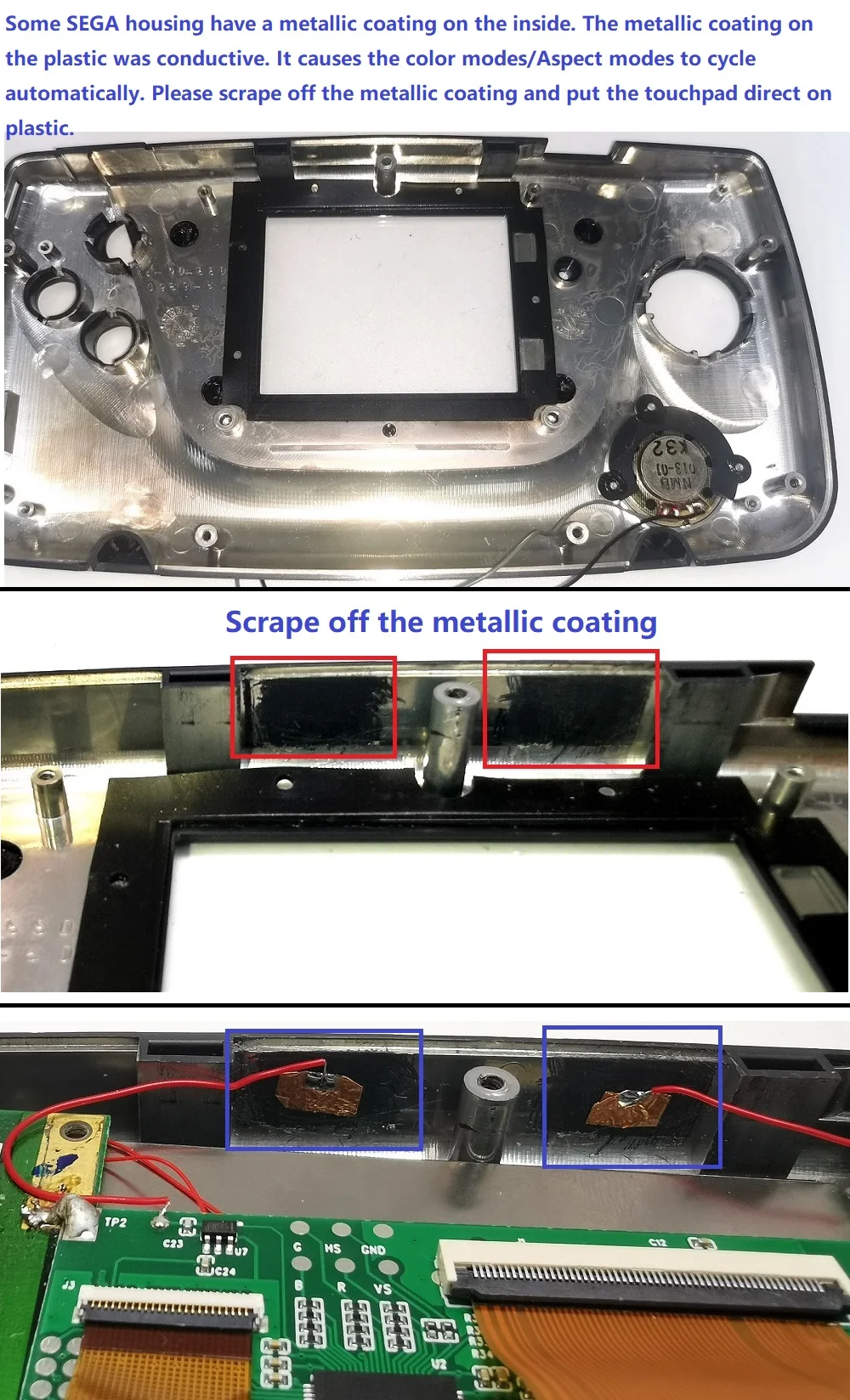

NOTE: Some SEGA housing have a metallic coating on the inside.. The metallic coating on the plastic was conductive. It causes the color modes/Aspect modes to cycle automatically. Please scrape off the metallic coating and put the touch direct on plastic.



Sega Game Gear Backlight Screen LCD Mod Kit Touch Version Module Replacement, GG High-Brightness 3.5-inch 320×240 Dot by Dot Full-Screen Display Glass Screen Lens Easy Install Spare Parts Accessories  Technical Information:


1. One chip design. More environmentally friendly. More power-saving.
2. Built-in SDRAM cache in the Chip.

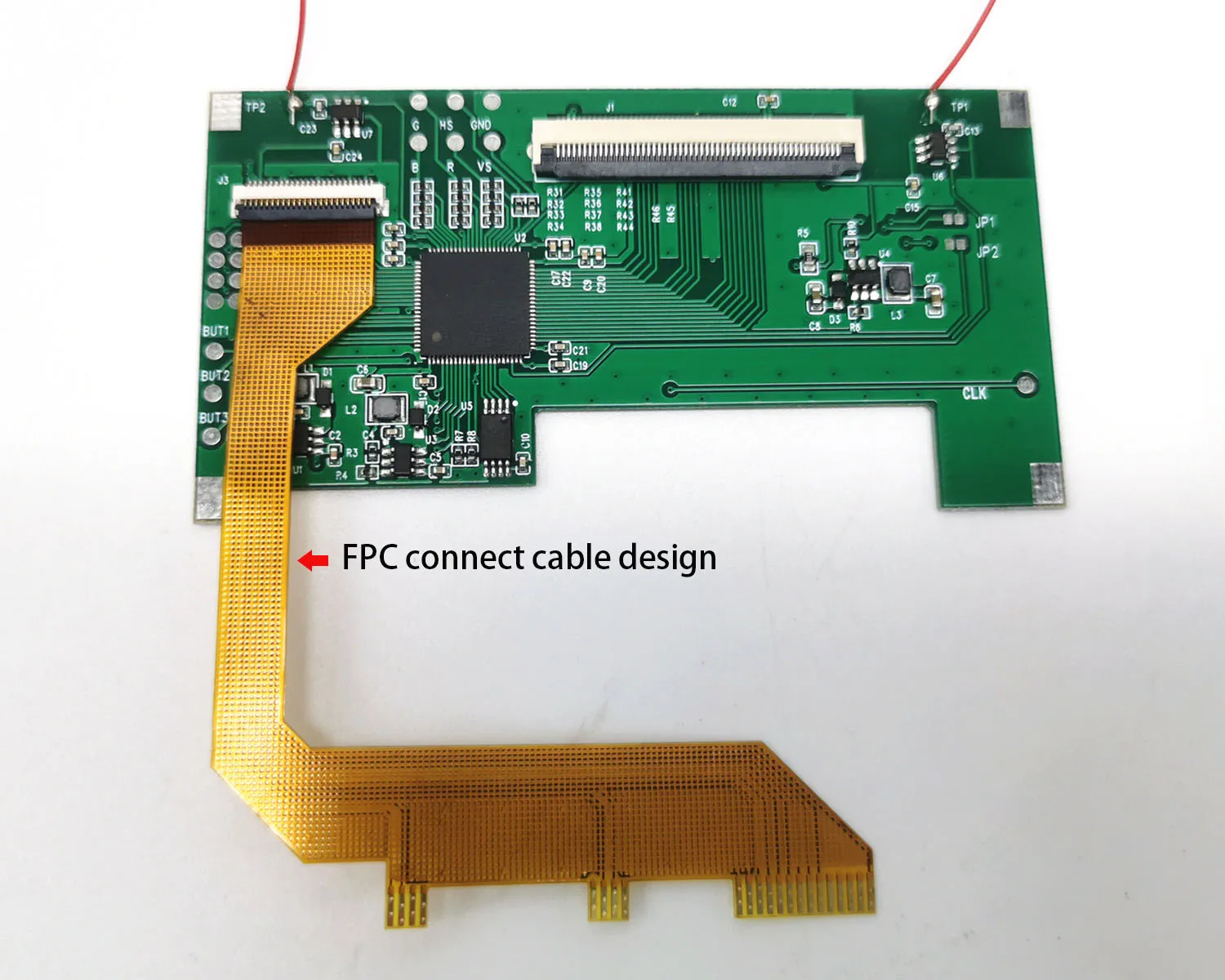

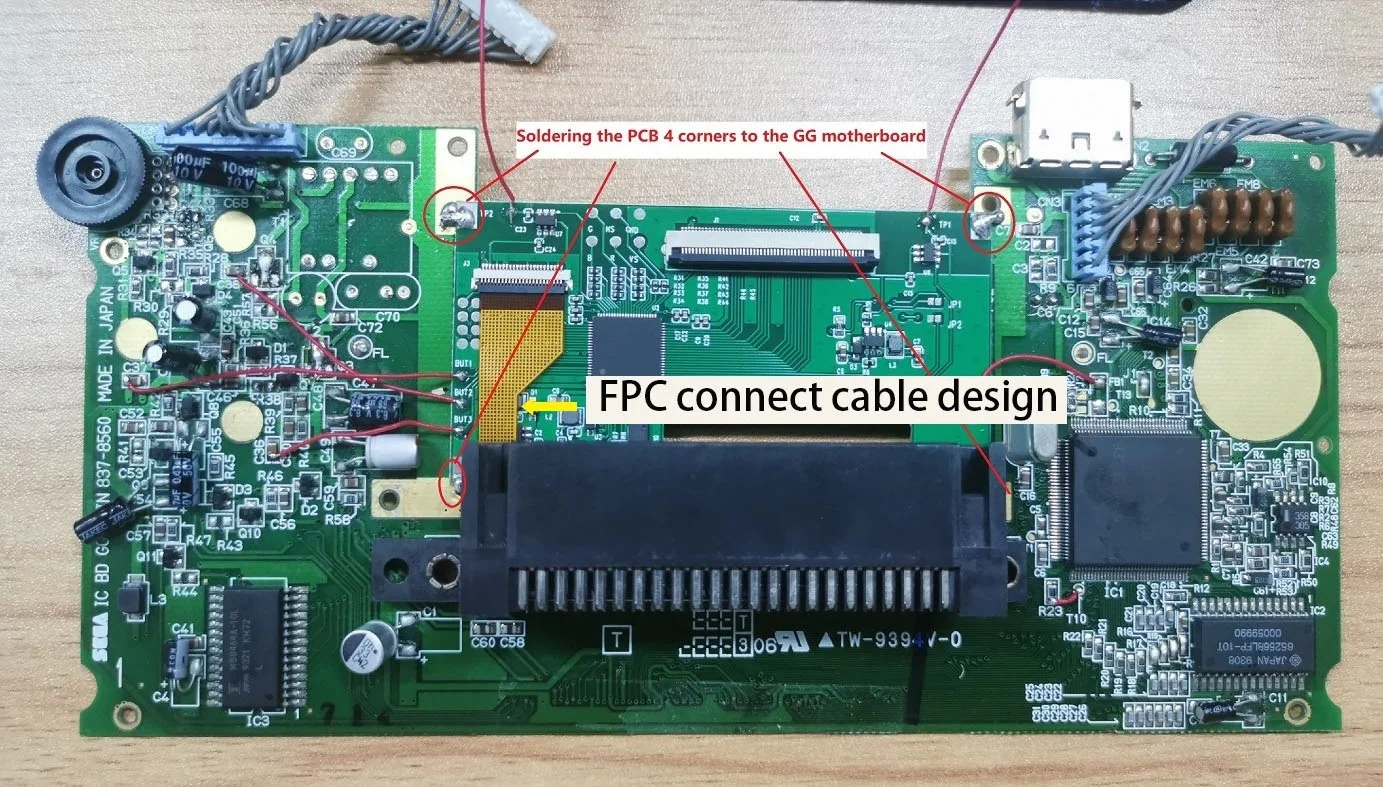

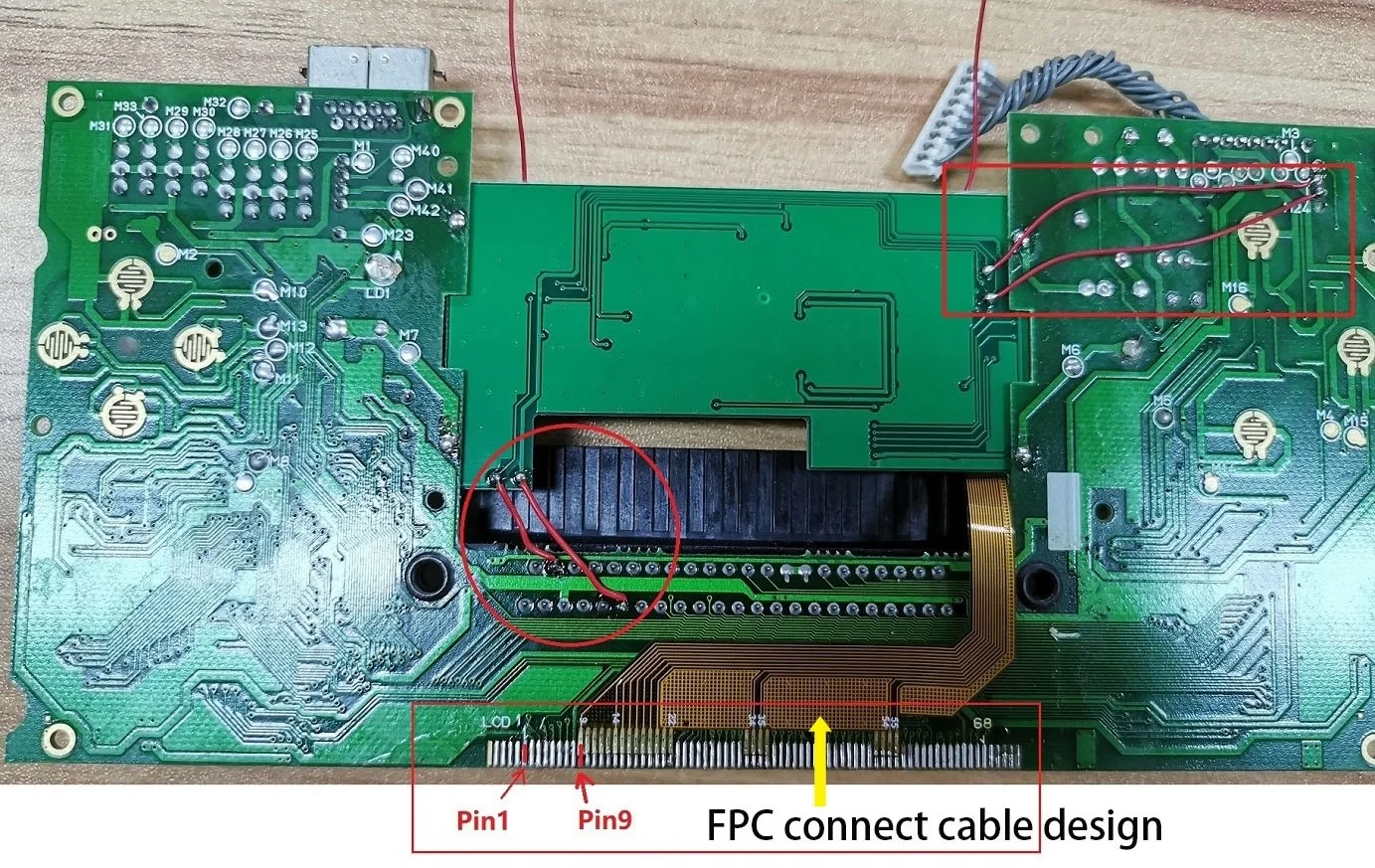

3. FPC connect cable design. Simpler wiring and easier installation.

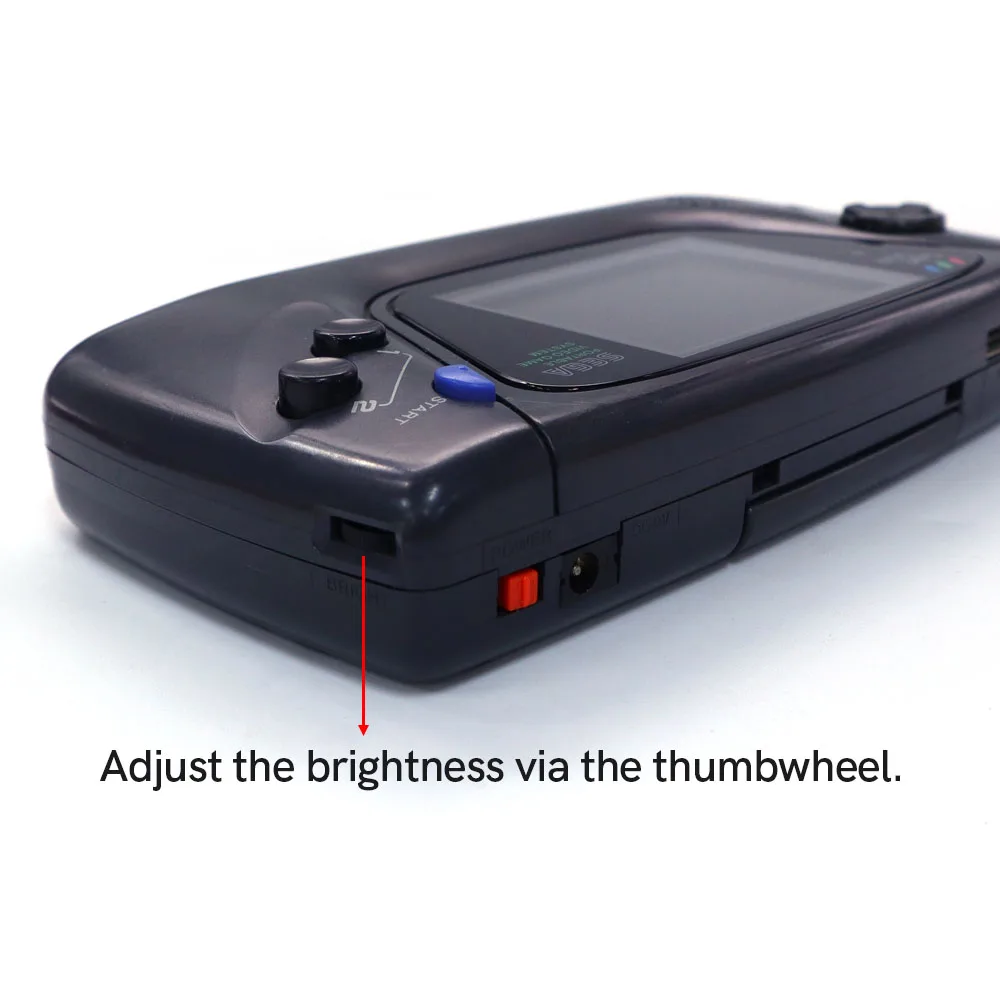

4. Adjust brightness via the thumbwheel.
5. 8 color modes.  3 Image Aspect Ratio.  Scanline.
6. 3 Image Aspect Ratio. Small, Normal, Enlarge. Note: the ‘Enlarge Aspect Ratio’not full screen.

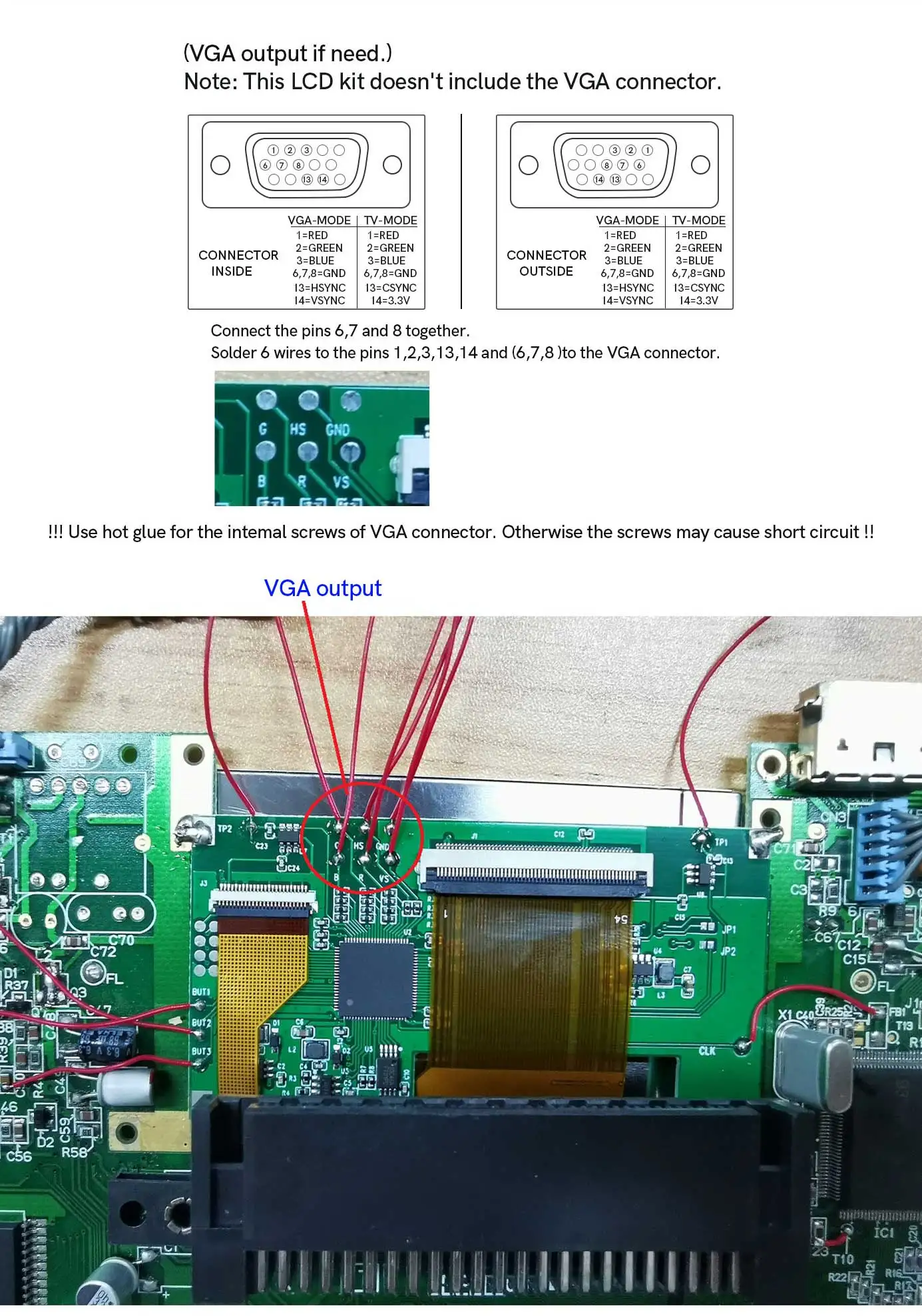

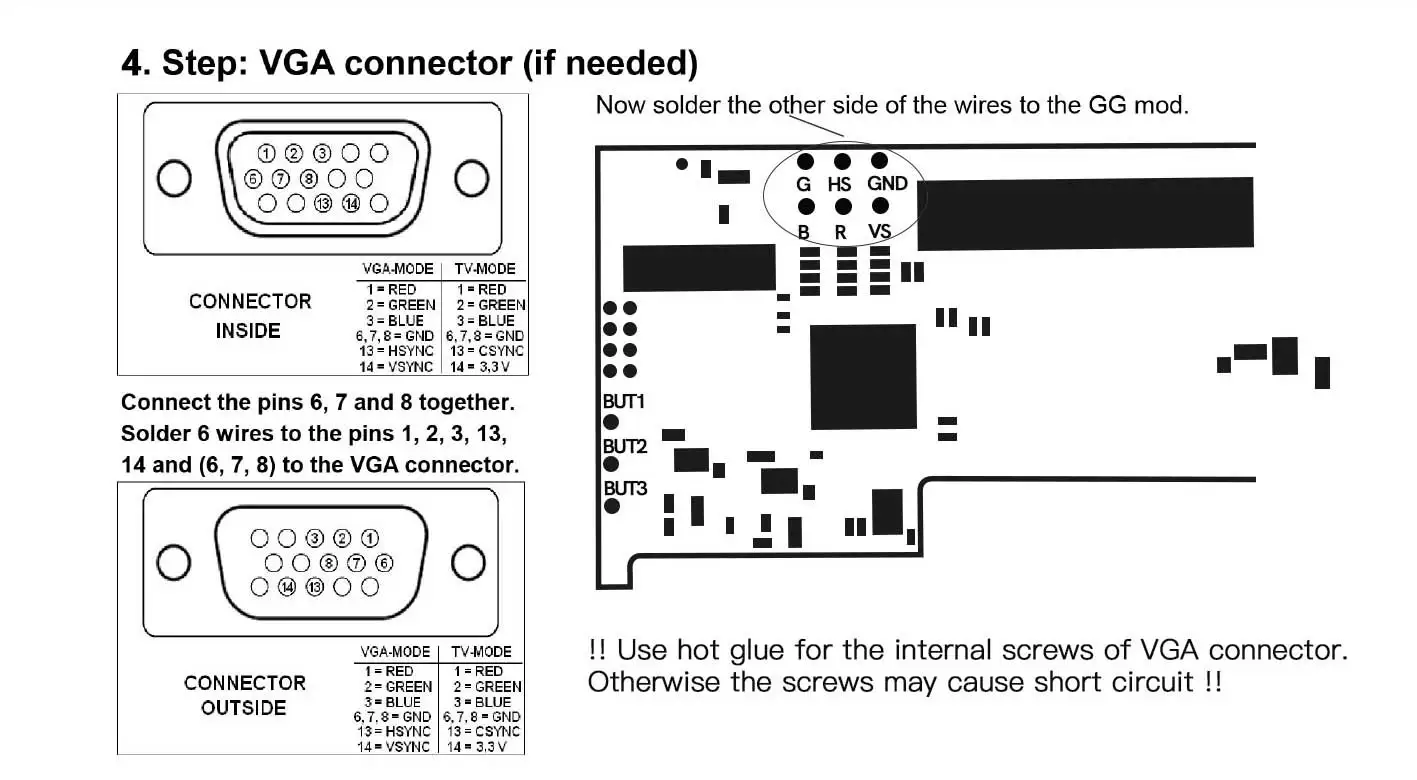

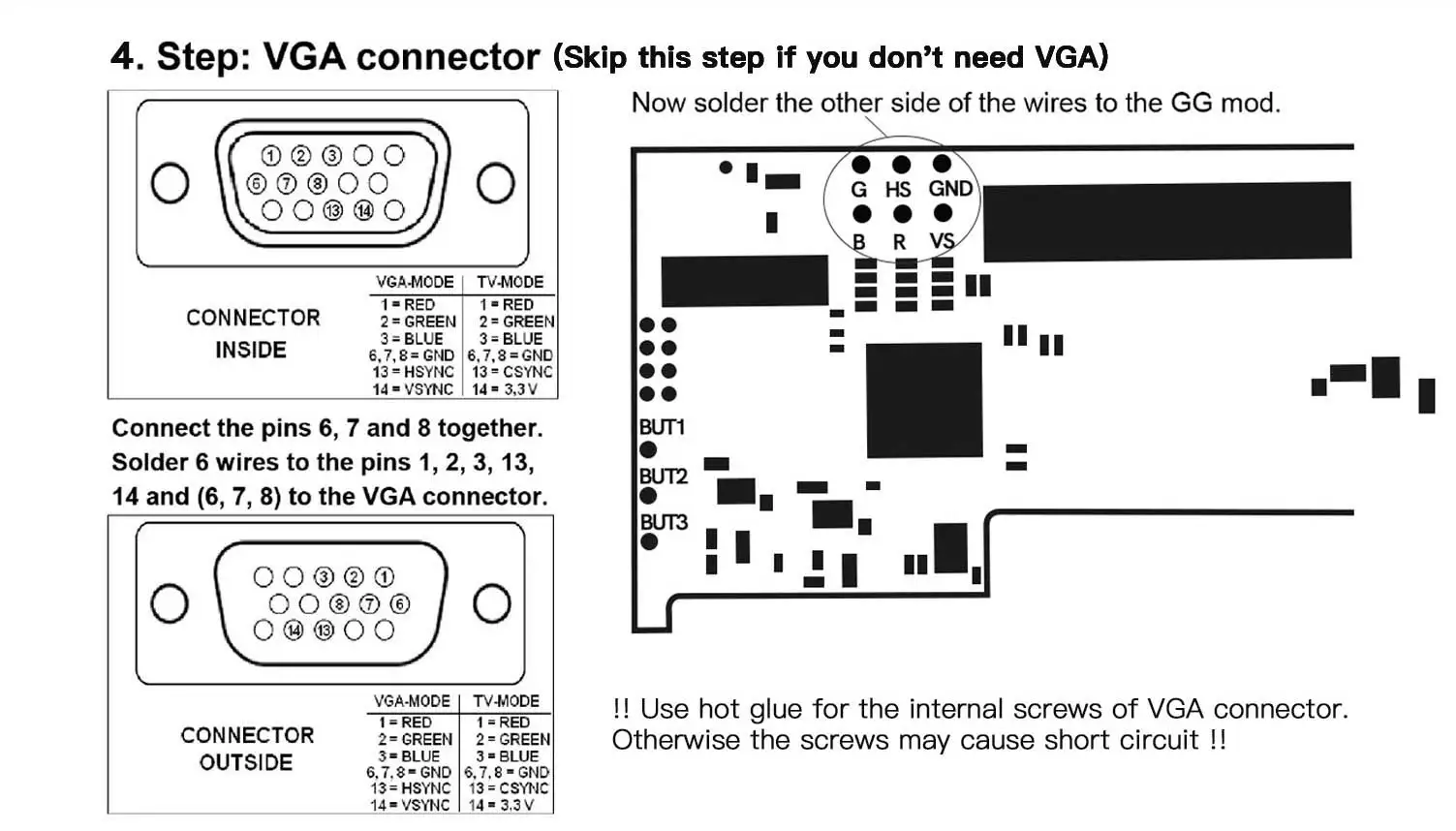

7. Support VGA output. (Doesn’t include the VGA connector)


Press ‘START+1+2’ to turn VGA output on or off.

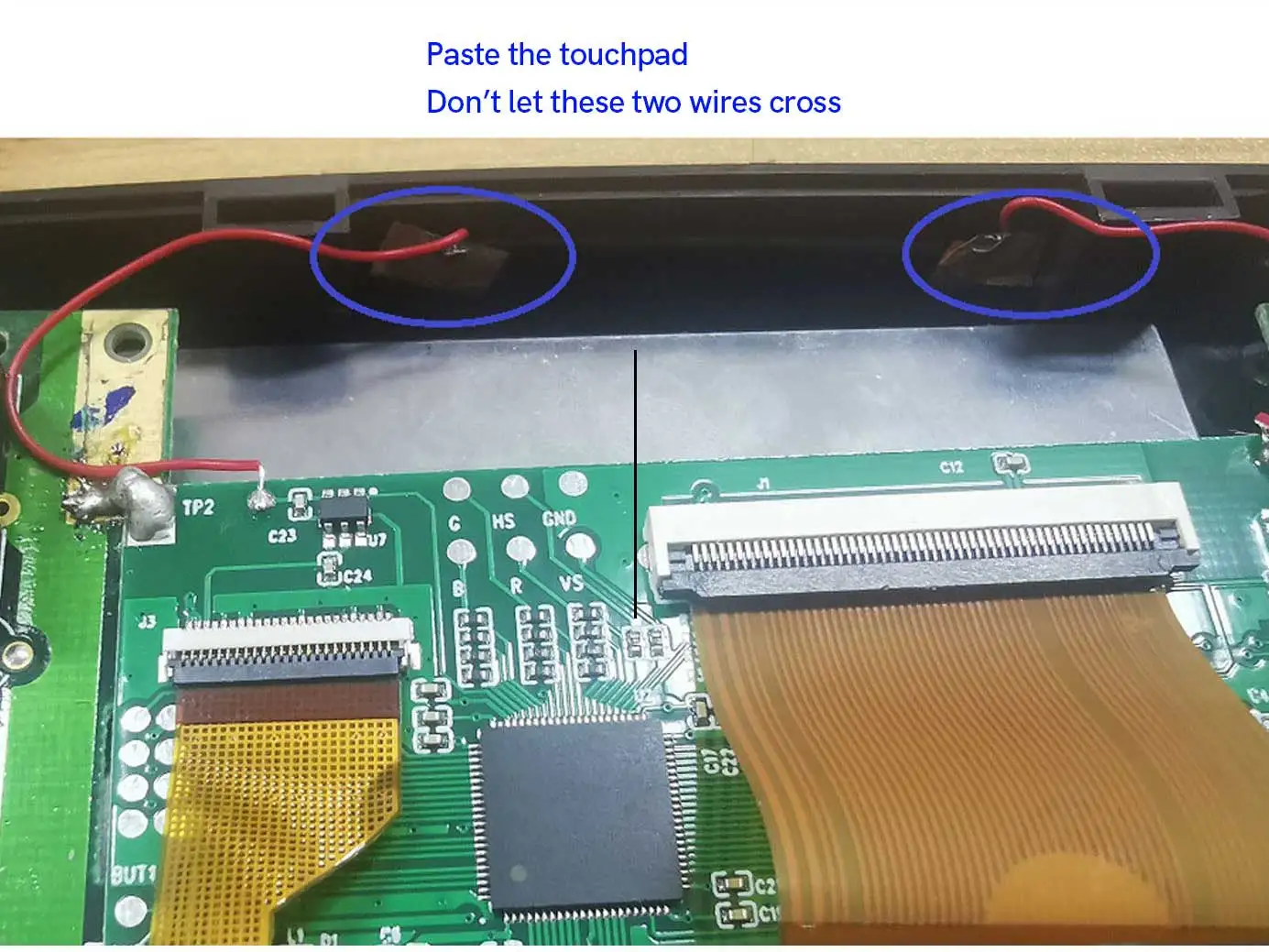

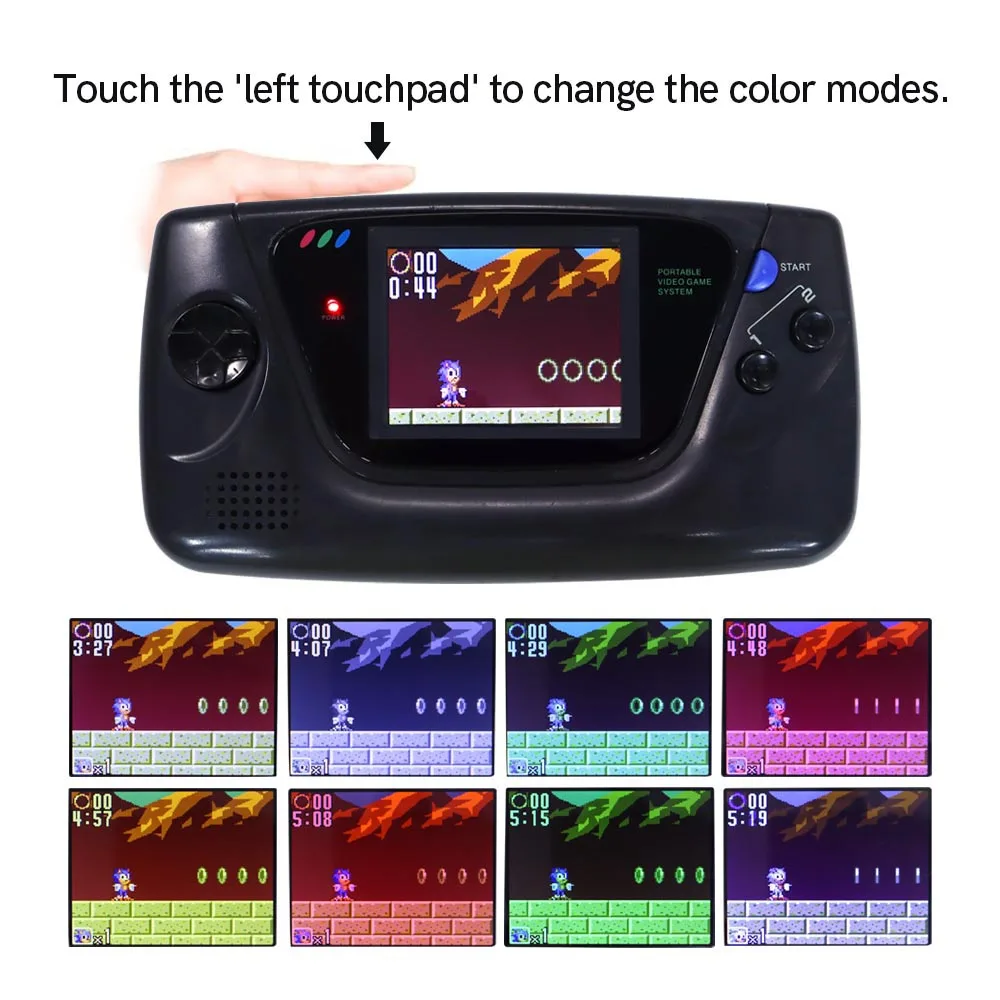

Touch the ‘left touchpad’ to change the color modes.

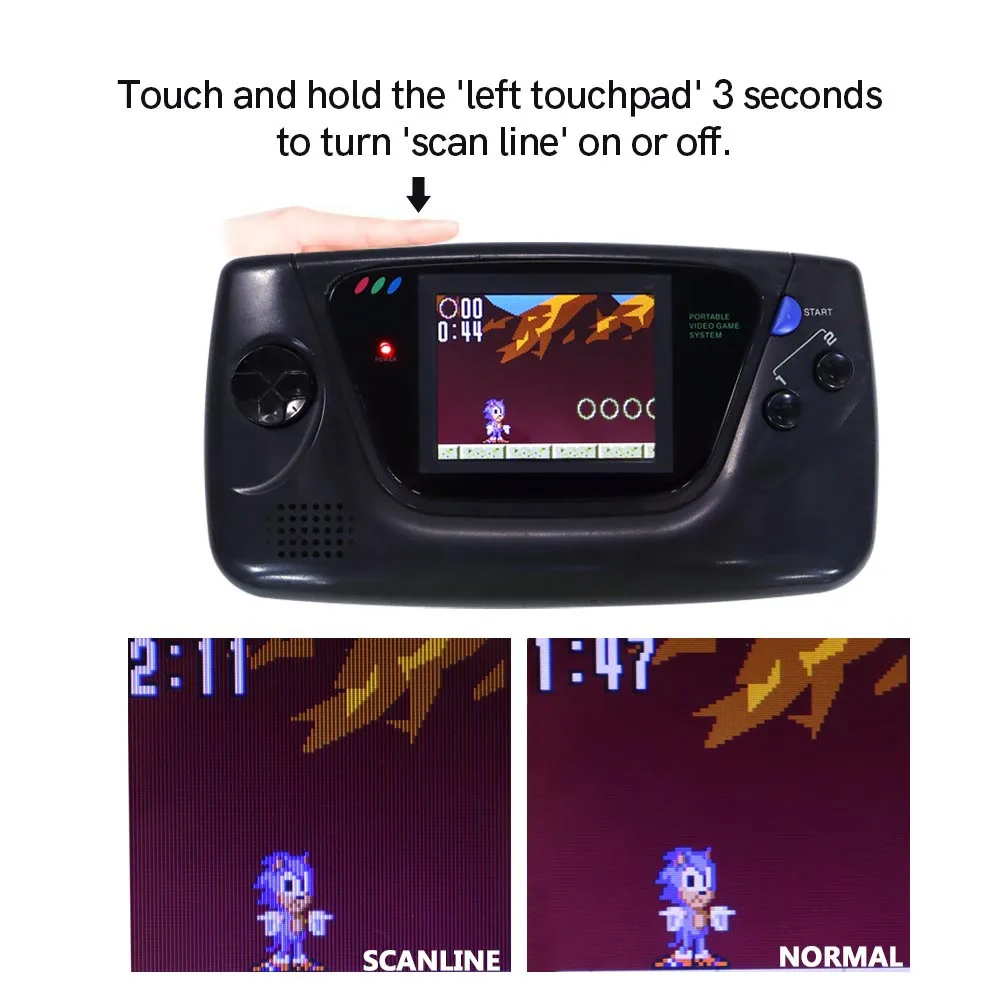

Touch and hold the ‘left touchpad’ 3 seconds to turn ‘scan line’ on or off.

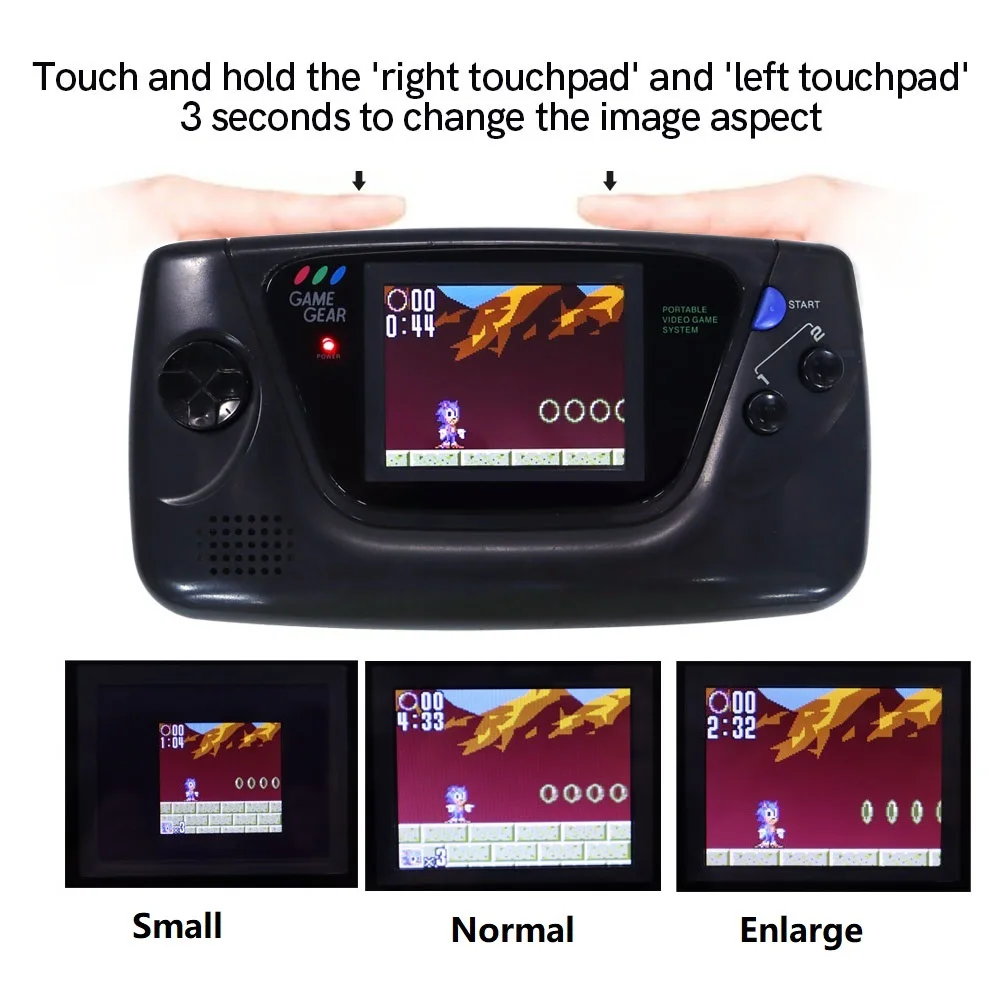

Touch and hold the ‘right touchpad’ and ‘left touchpad’ 3 seconds to change the image aspect.

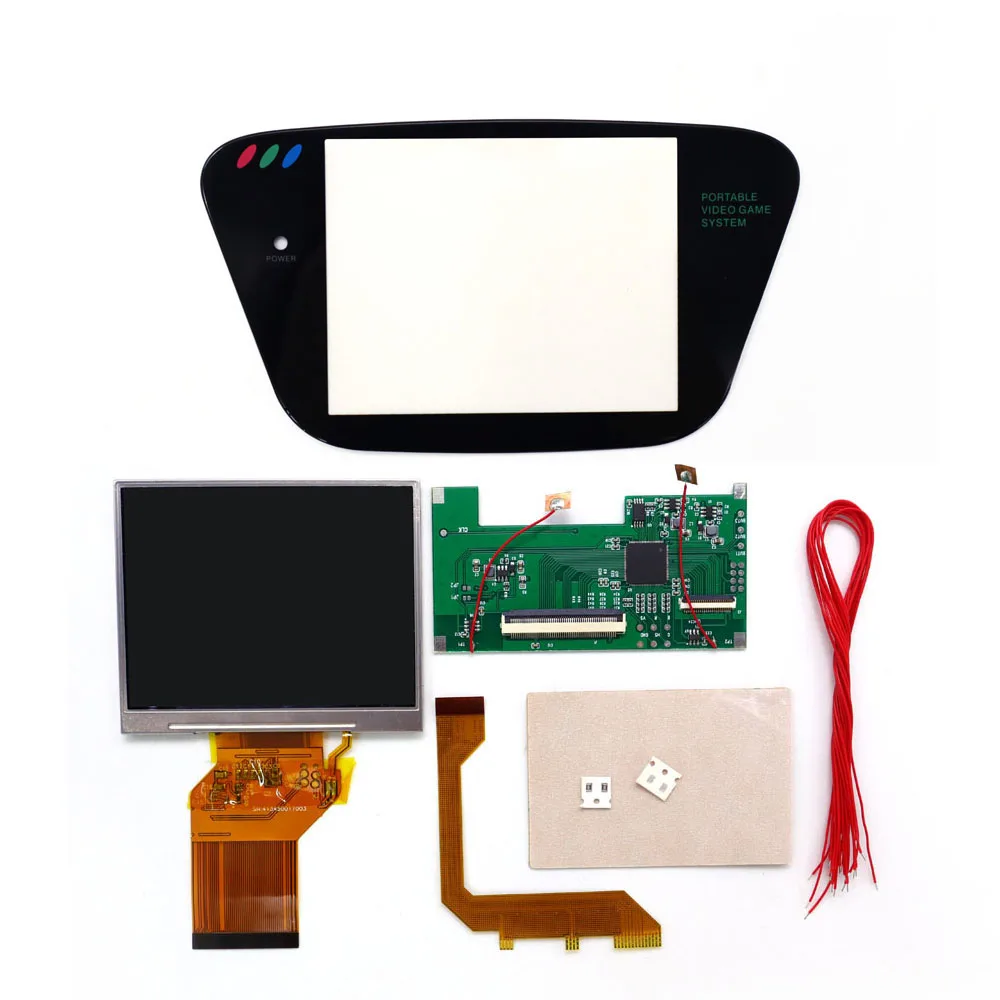

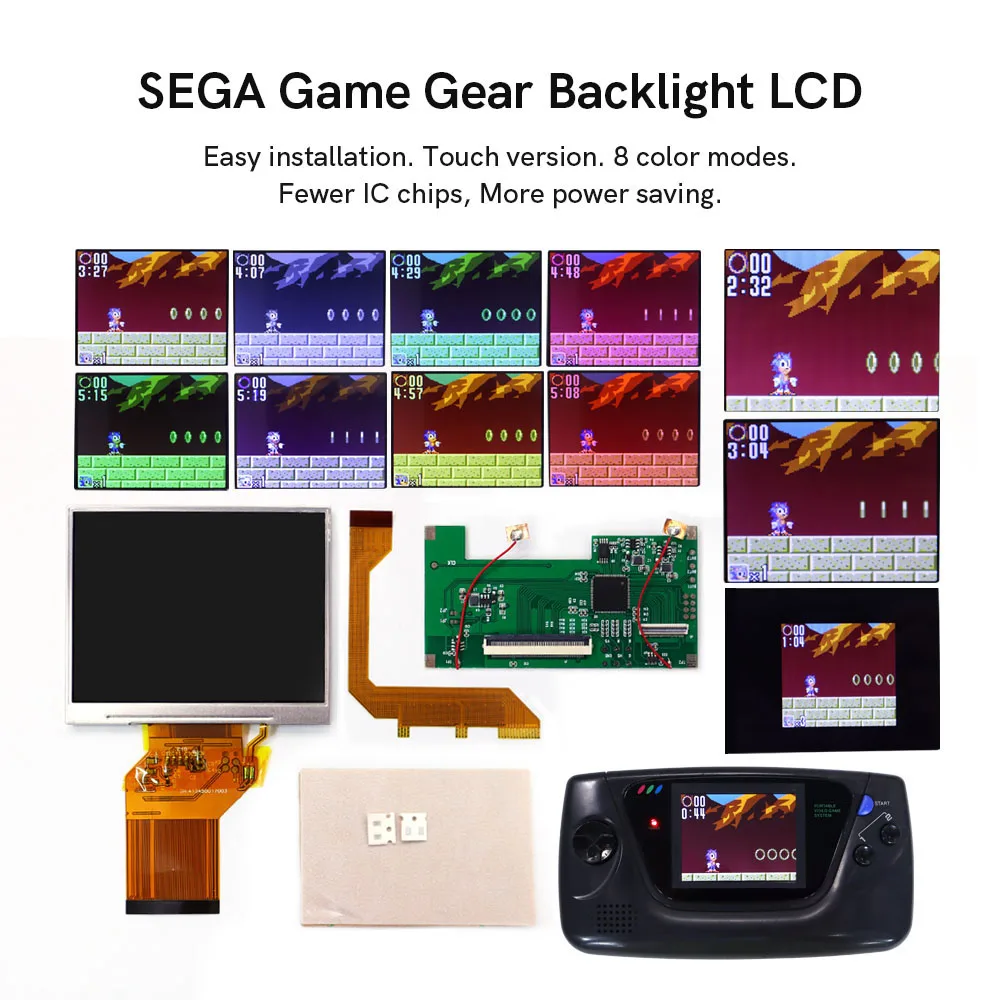

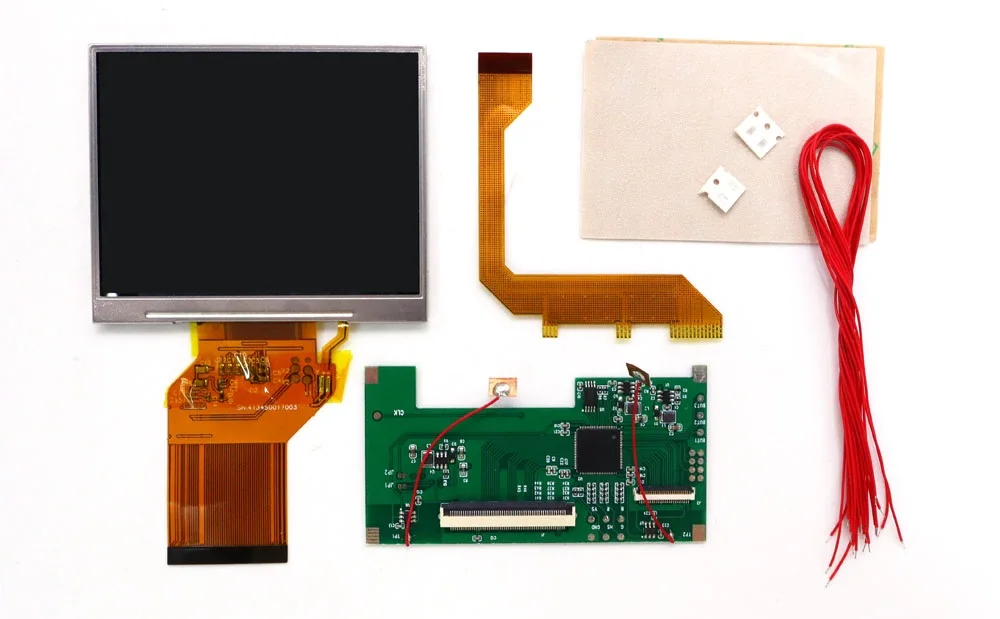

Package inclue:
  • 1x PCB.
  • 1x FPC connect cables.
  • Double-sided tape.
  • 5x 10pF capacitors.
  • 2x 200Ohm resistor
  • Red wires.
  • (If you choose the ‘LCD kit with lens’ option).
Note: Doesn’t include the VGA connector!

NOTE：Please contact me after receiving the product, I will send the instruction manual to you.



=======================

=======================

NOTE: Some SEGA housing have a metallic coating on the inside.. The metallic coating on the plastic was conductive. It causes the color modes/Aspect modes to cycle automatically. Please scrape off the metallic coating and put the touch direct on plastic.

=======================

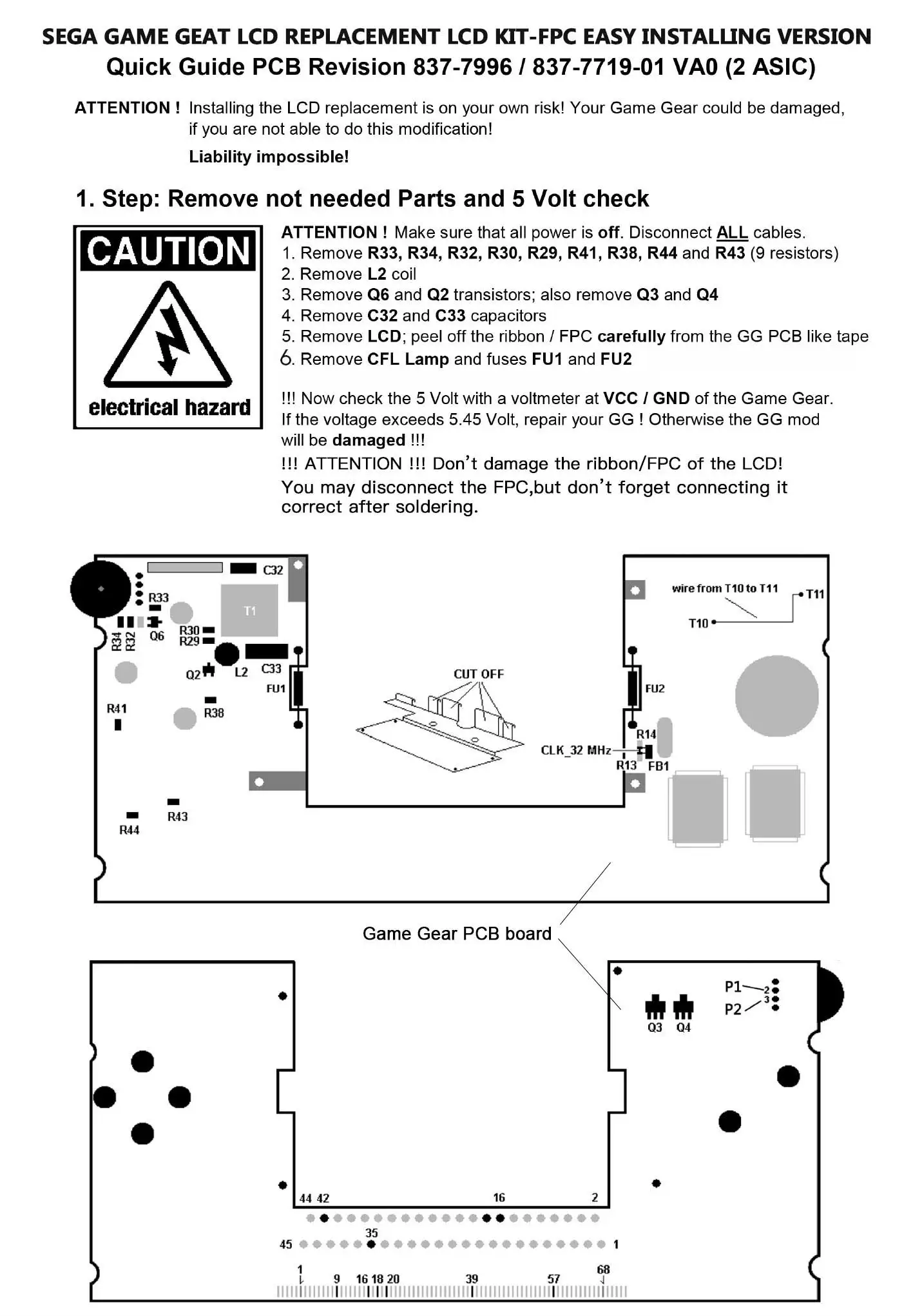

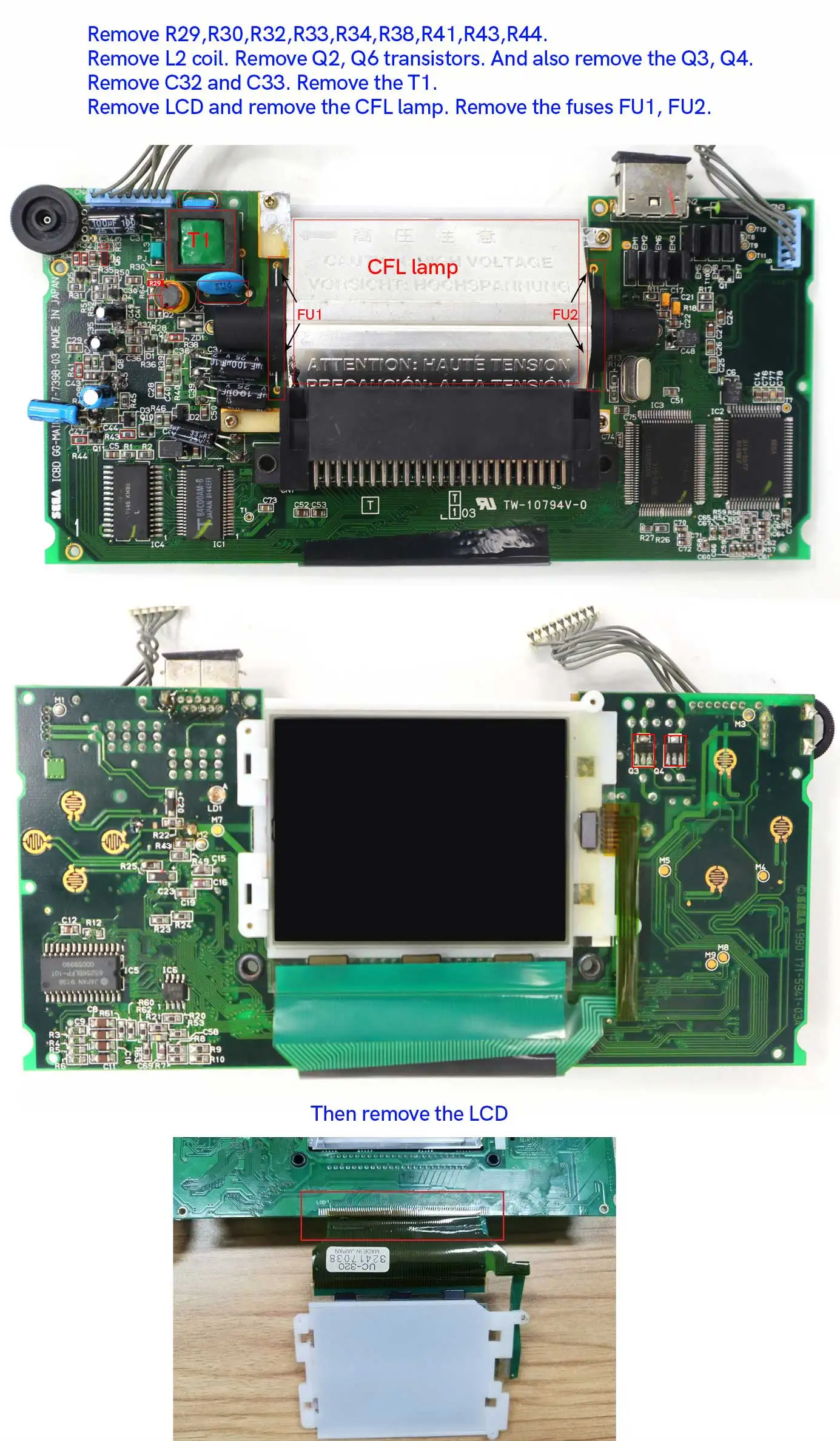

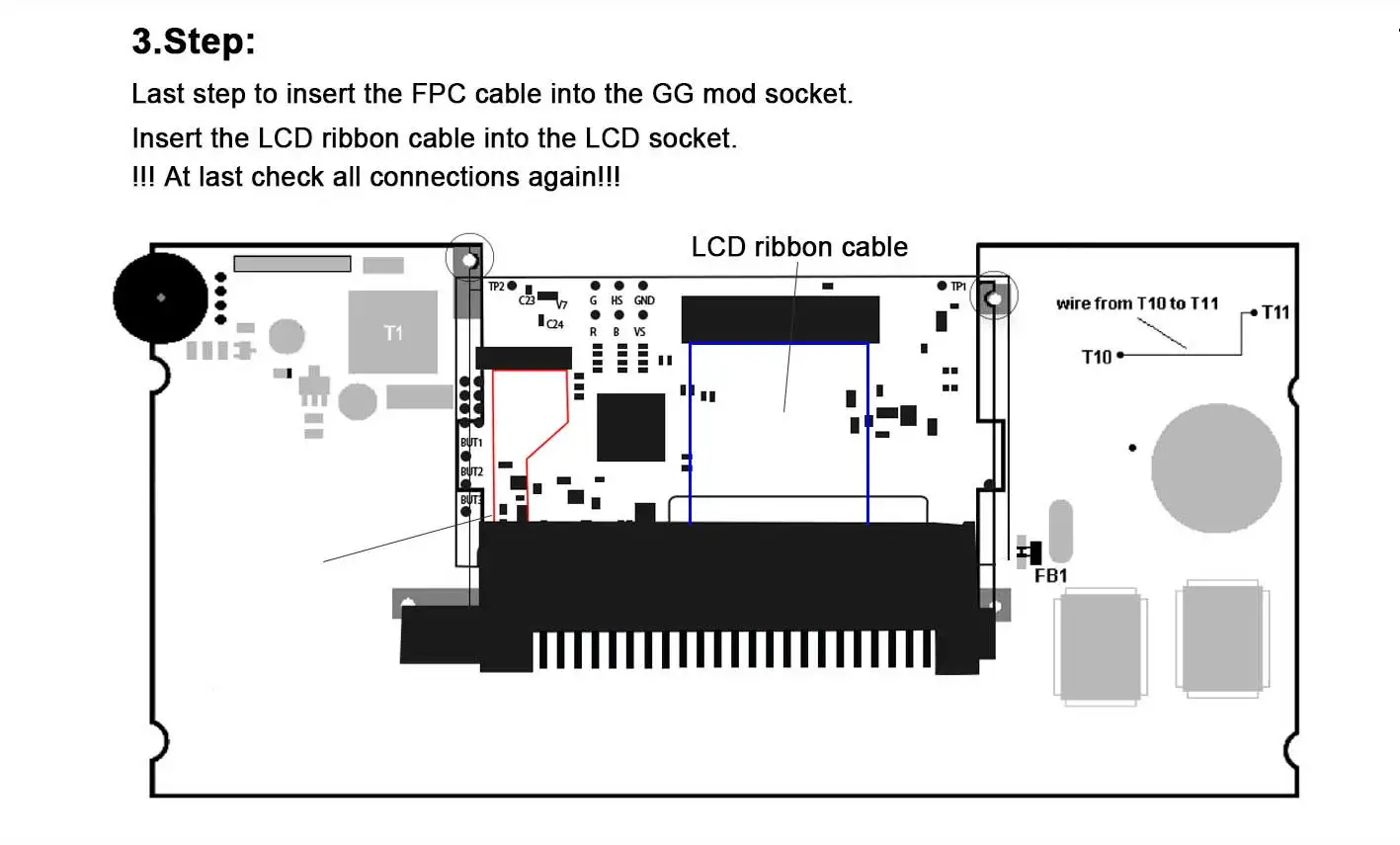

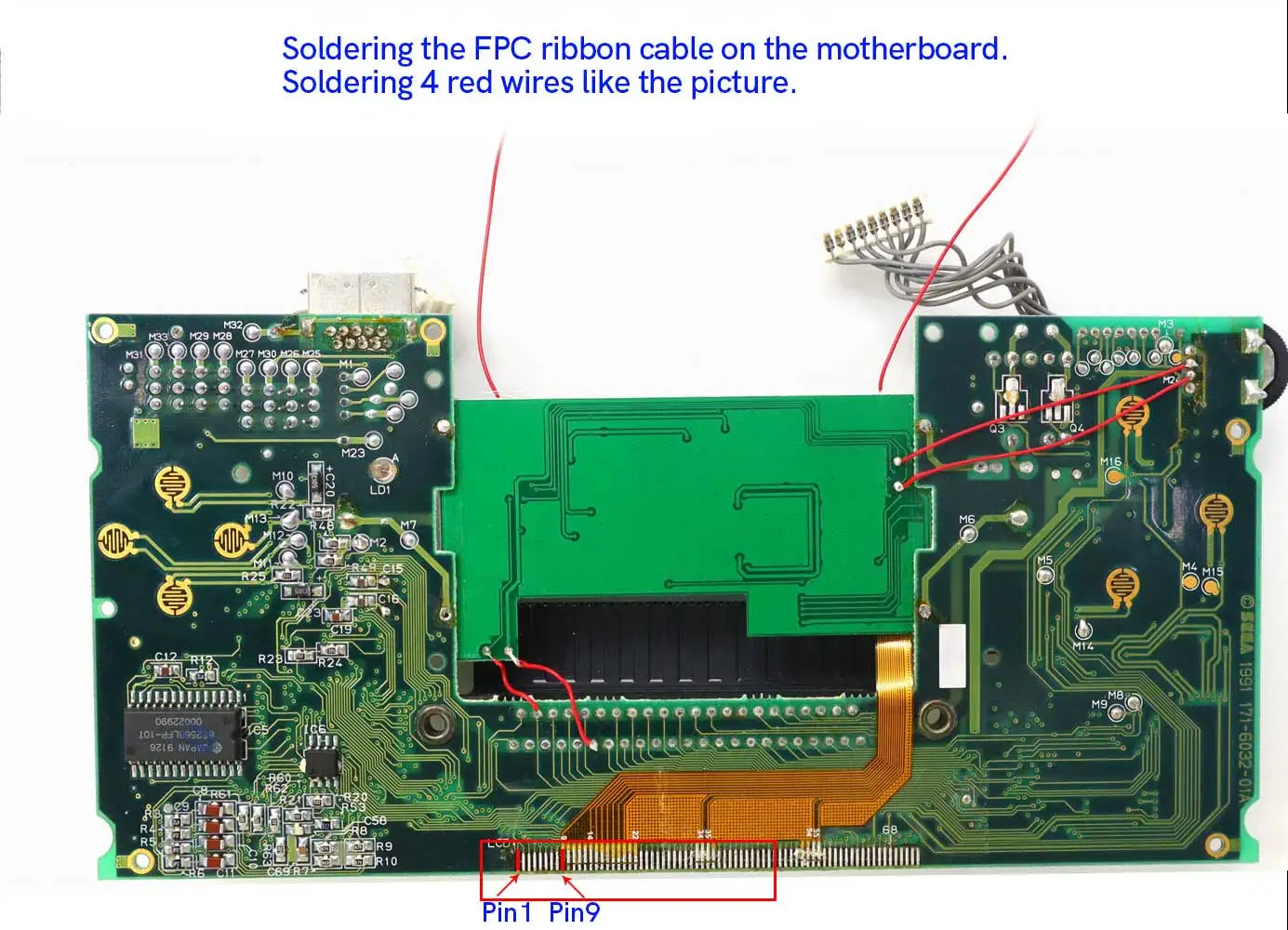

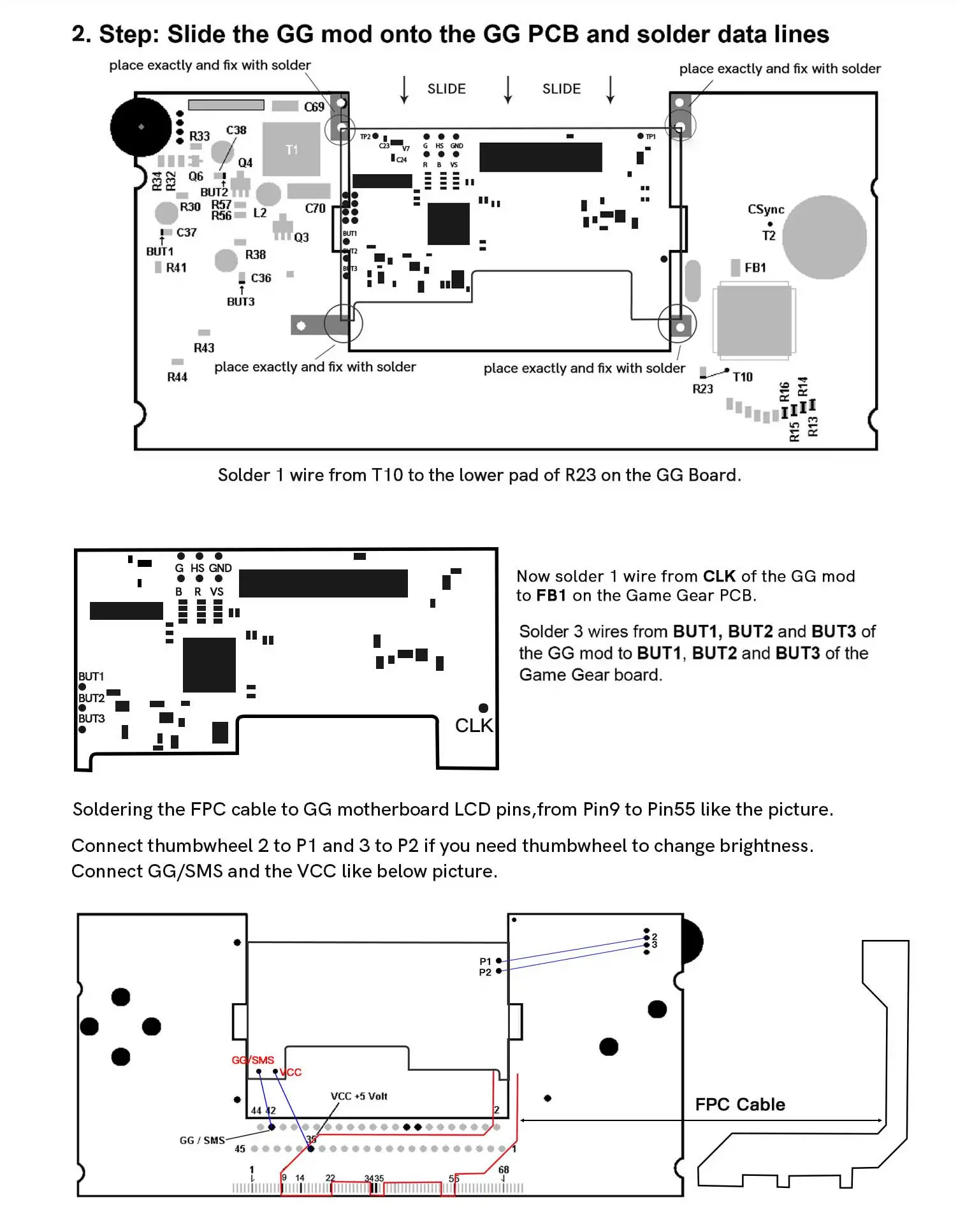

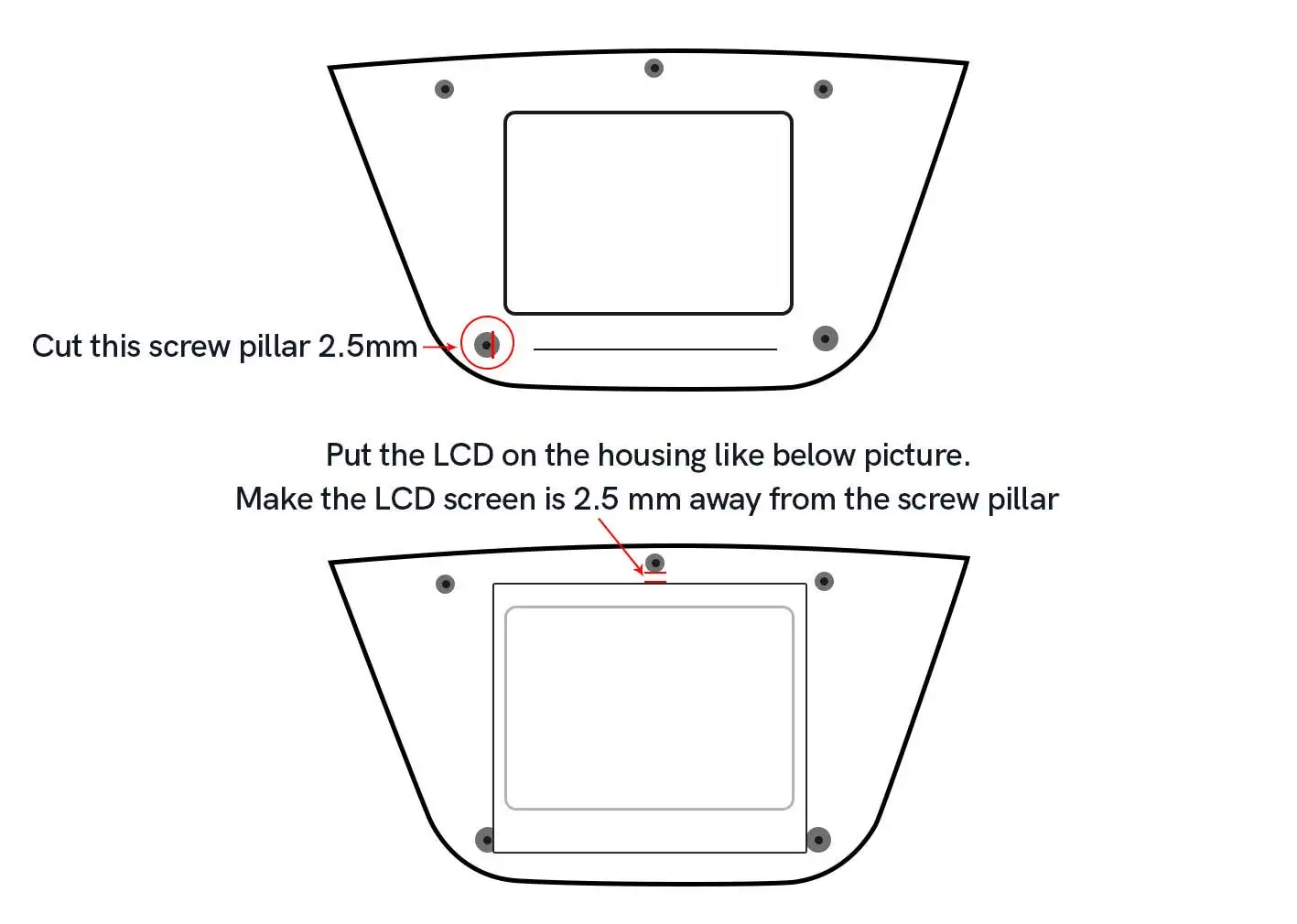

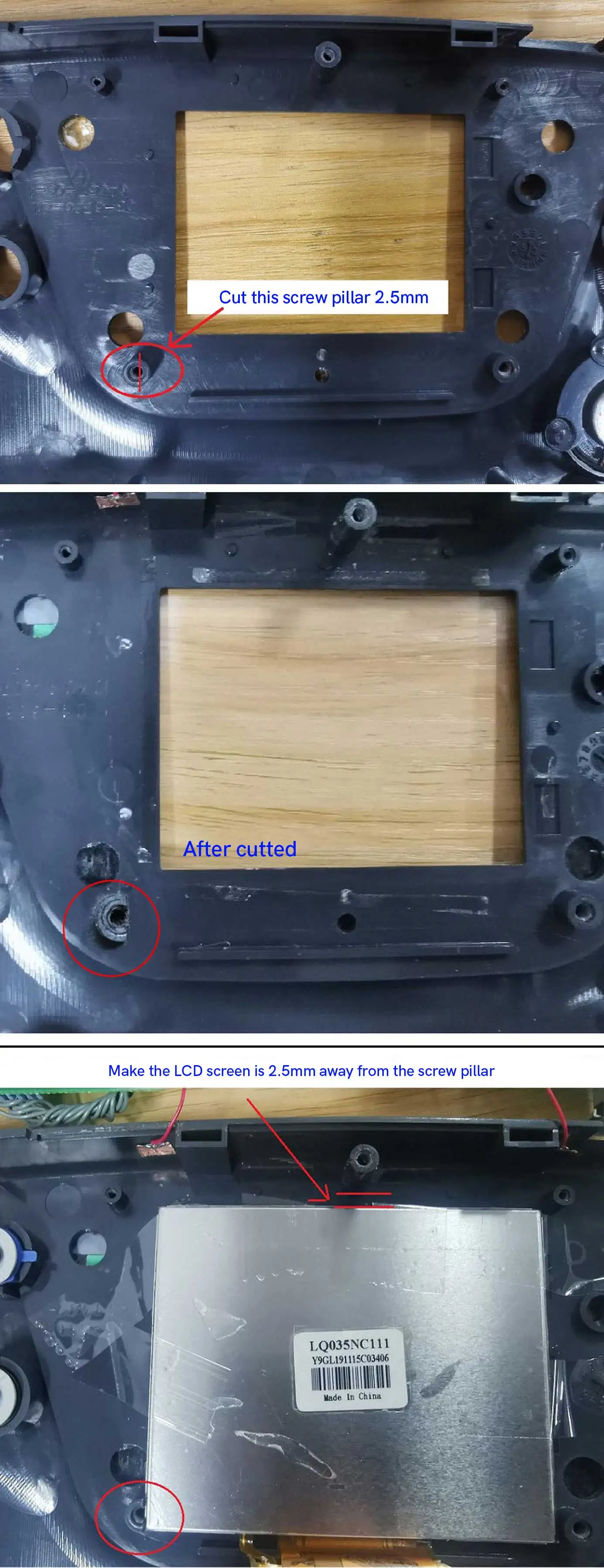

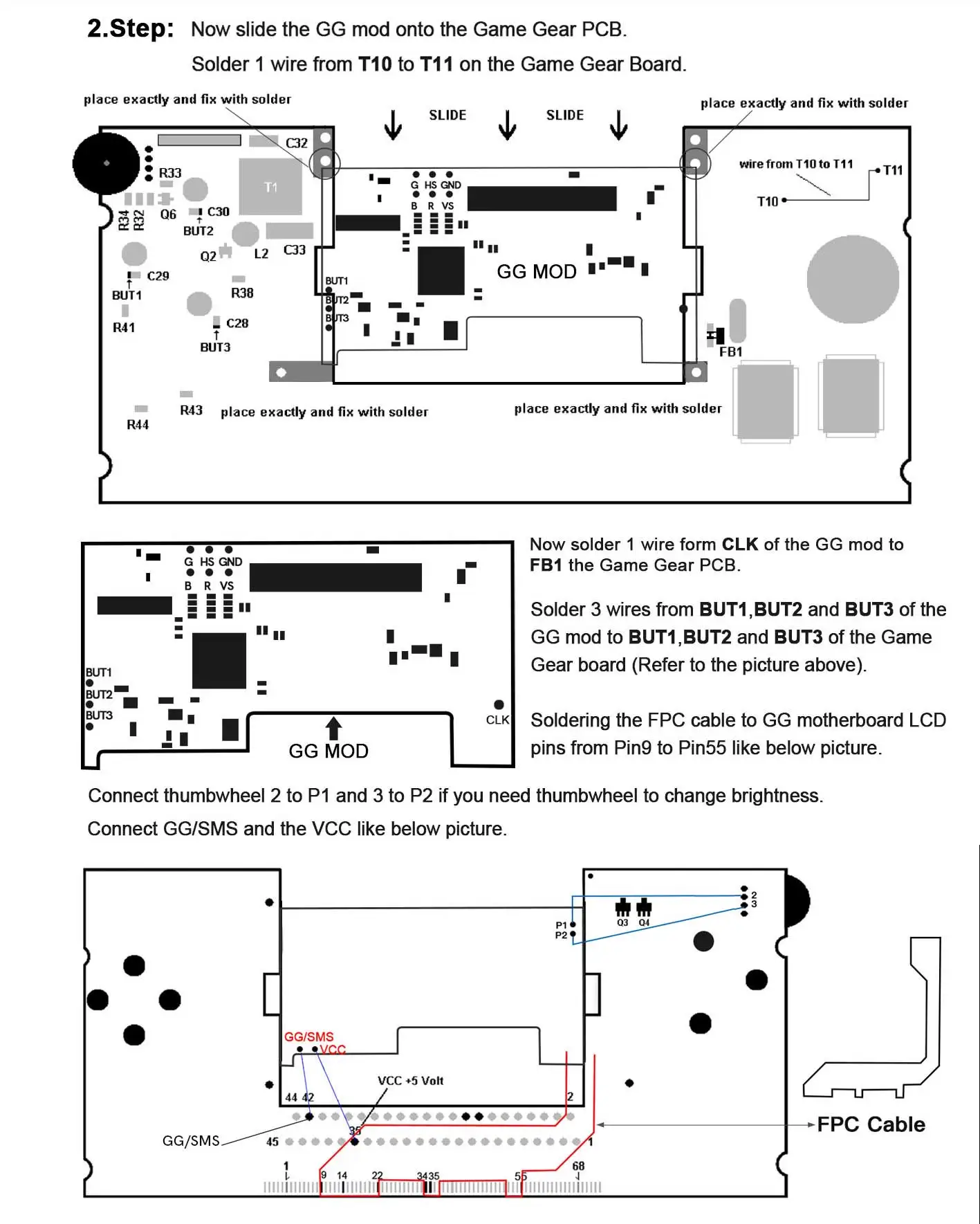

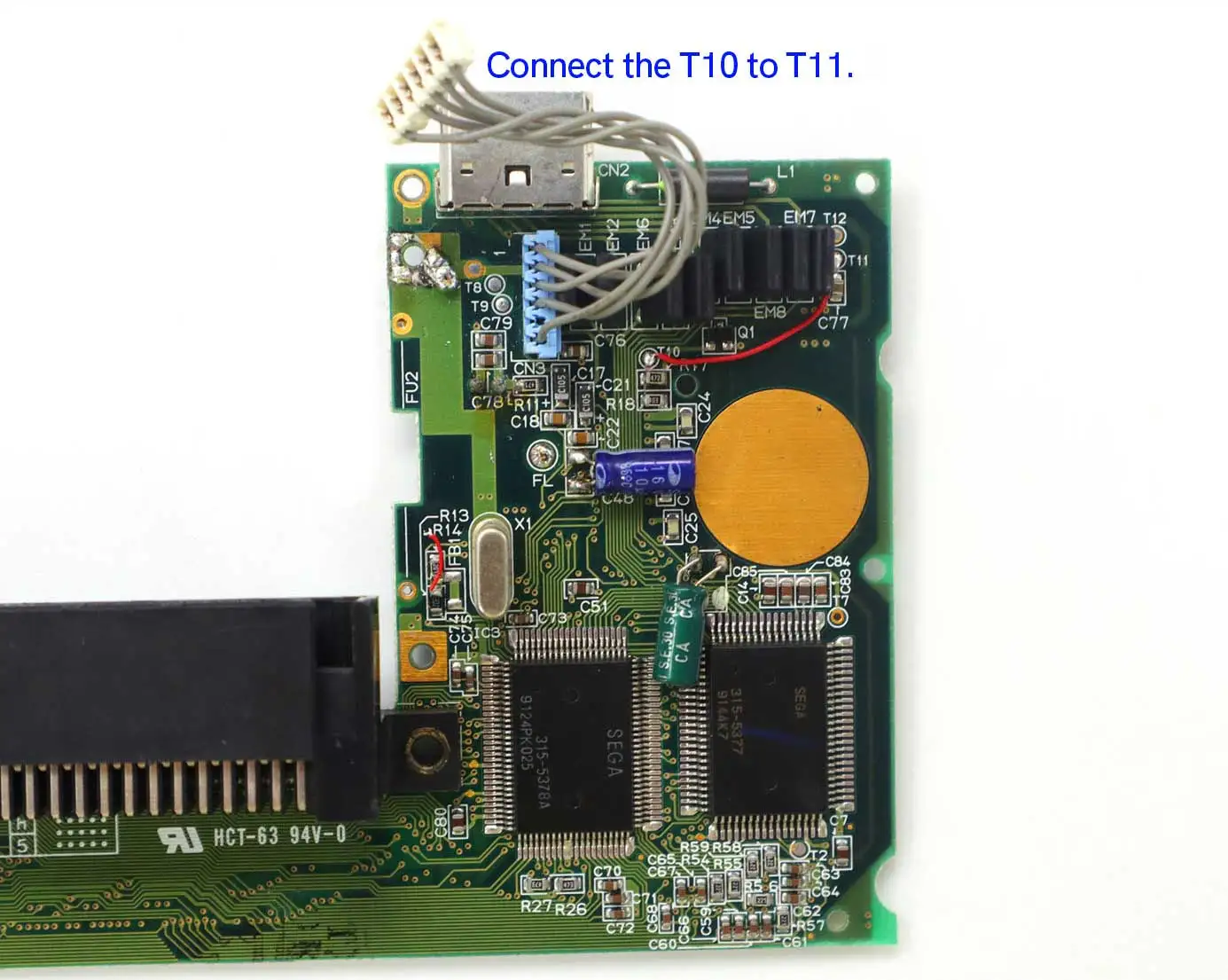

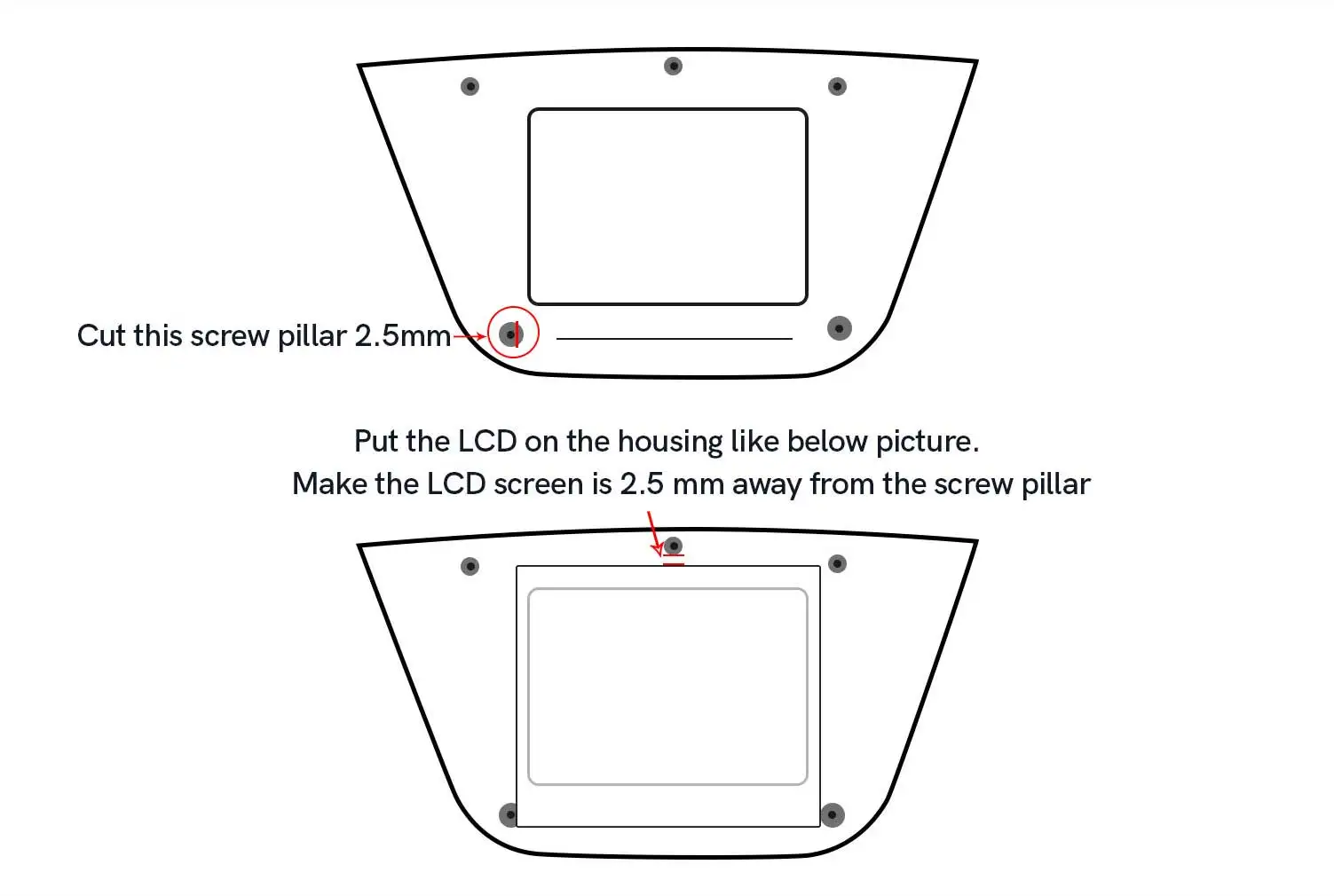

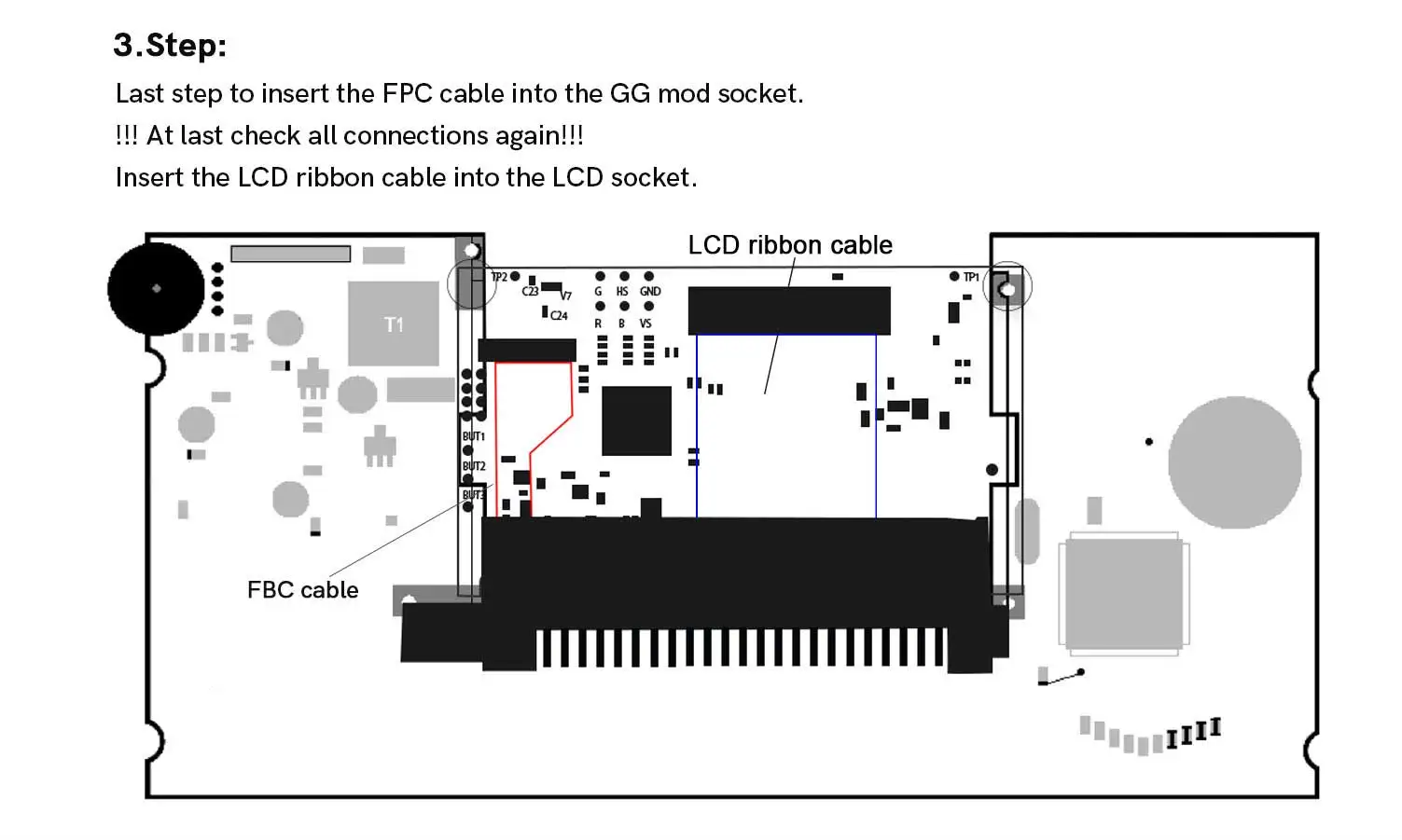

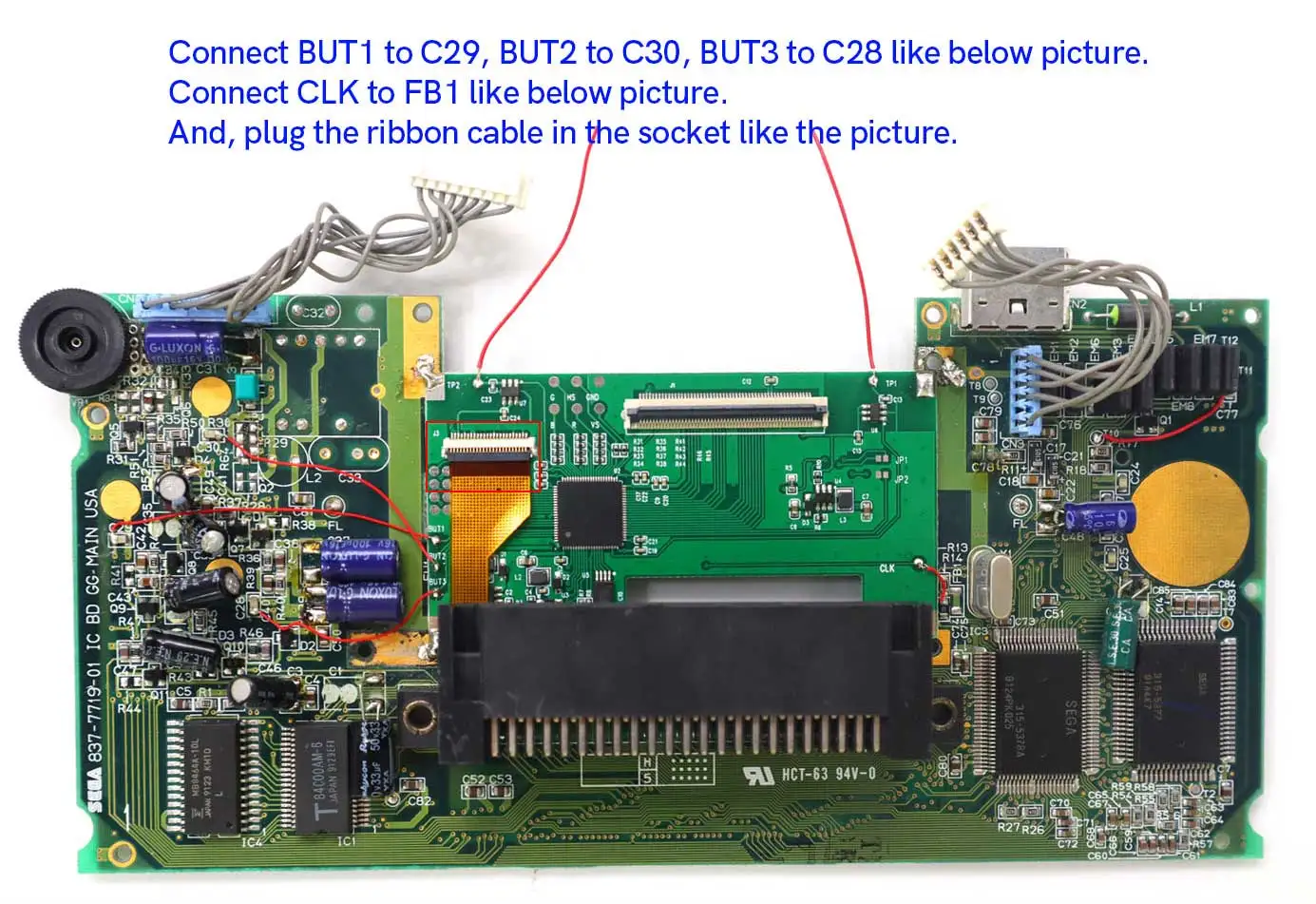

Installing instruction







=======================



Brand New Sega LCD Mod Kit Touch Version Module Replacement, GG High-Brightness 3.5-inch 320×240 Dot by Dot Full-Screen Display Easy Install Spare Parts Accessories x1
