New Sega Dreamcast Bluetooth Controller Adapter Internal Wireless Chip Module Mod Kit Replacement for DC PS3 PS4 PS5 Nintendo Switch Wii U Joy-con Xbox One Series S/X Wireless & Wired Controllers Accessories Free Shipping Description:

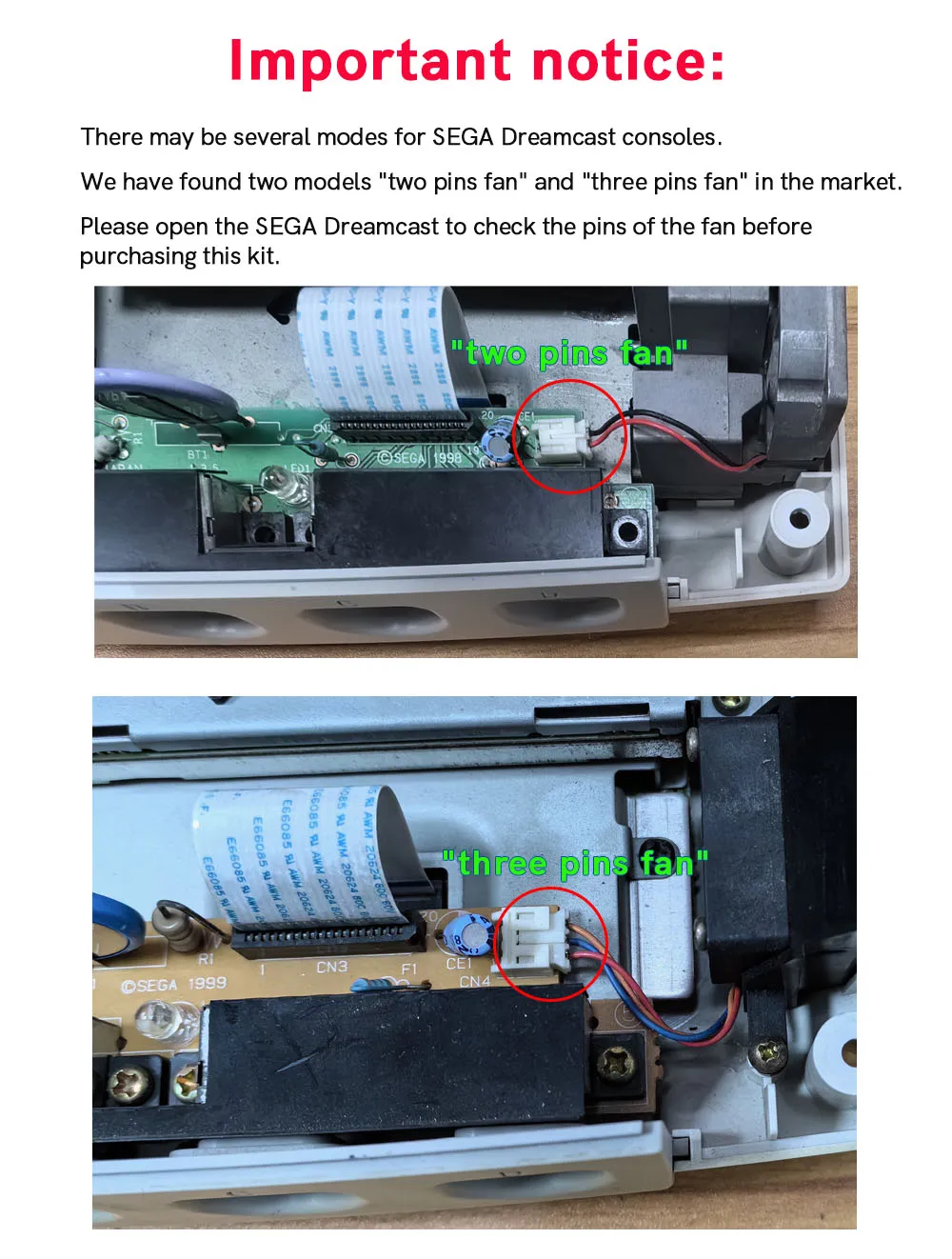

Important notice:
There may be several modes for SEGA Dreamcast consoles.
We have found two models  “two pins fan” and “three pins fan” in the market.

Currently our Bluetooth adapter can only fit “two pins fan” version console.
Please open the SEGA Dreamcast to check the pins of the fan before purchasing this kit.

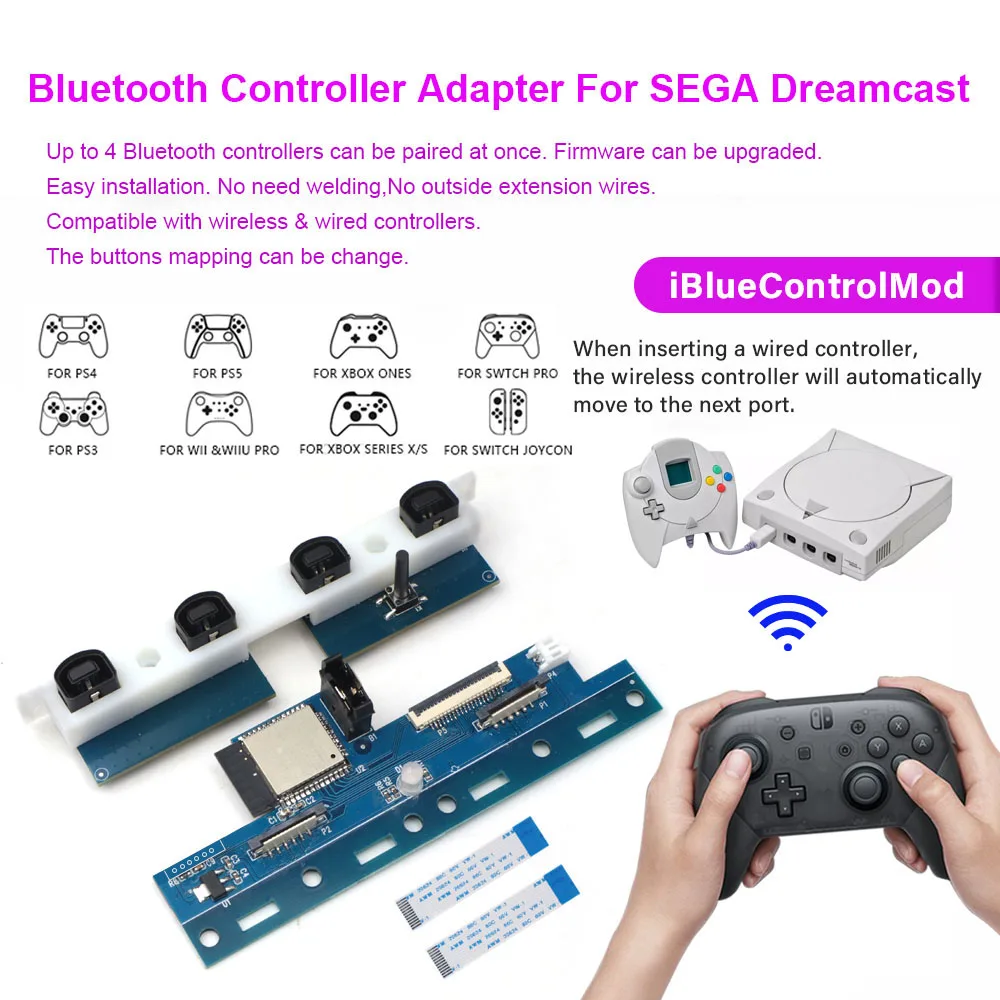

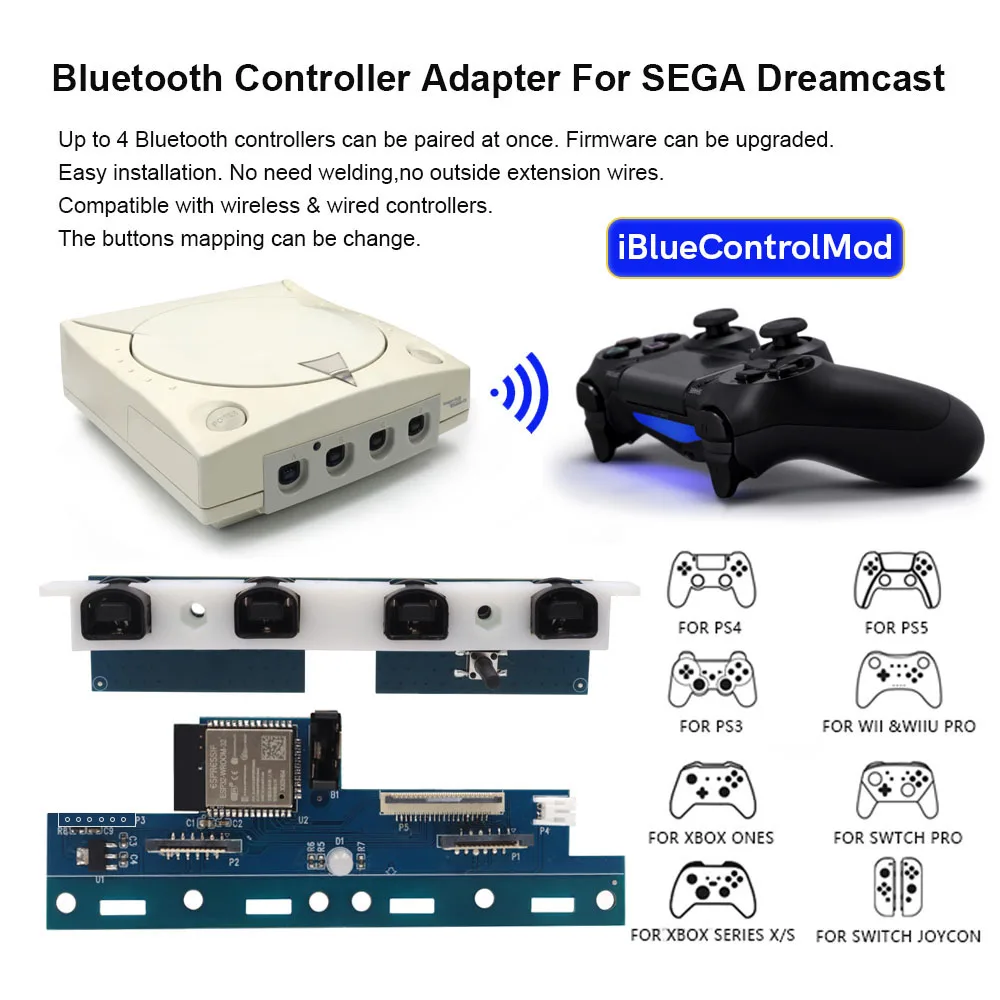

iBlueControlMod adapter is a high speed Bluetooth controller interface that opens retro consoles up to the plethora of modern controllers with latencies that even some wired adapters can’t manage. This new board allows for the use of up to 4 connected Bluetooth controllers, and can be mixed and matched with wired controllers on any of the ports for seamless operation.

Note: this kit not ‘BlueRetro mod’.  BlueRetro APP can’t use on this kit.
Don’t upgrade ‘BlueRetro firmware’ to this kit!  Otherwise, this kit will be damaged.



Features:

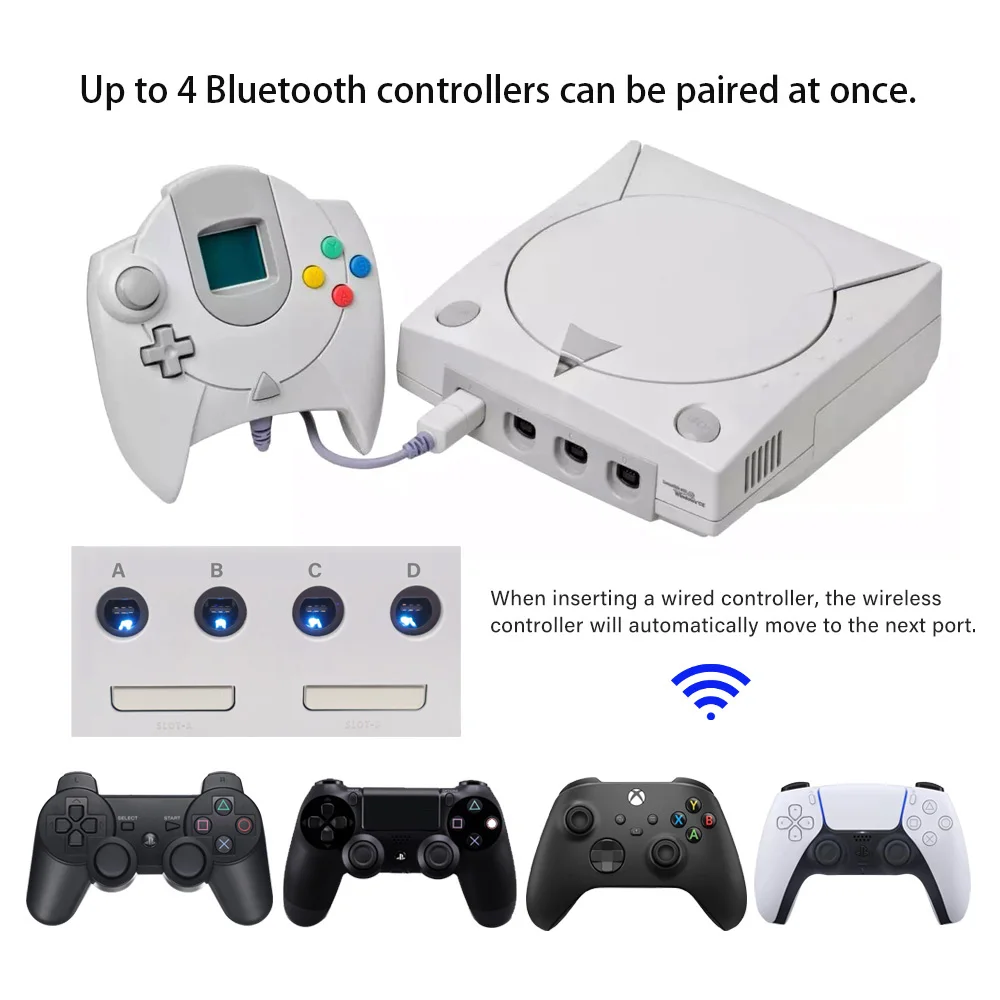

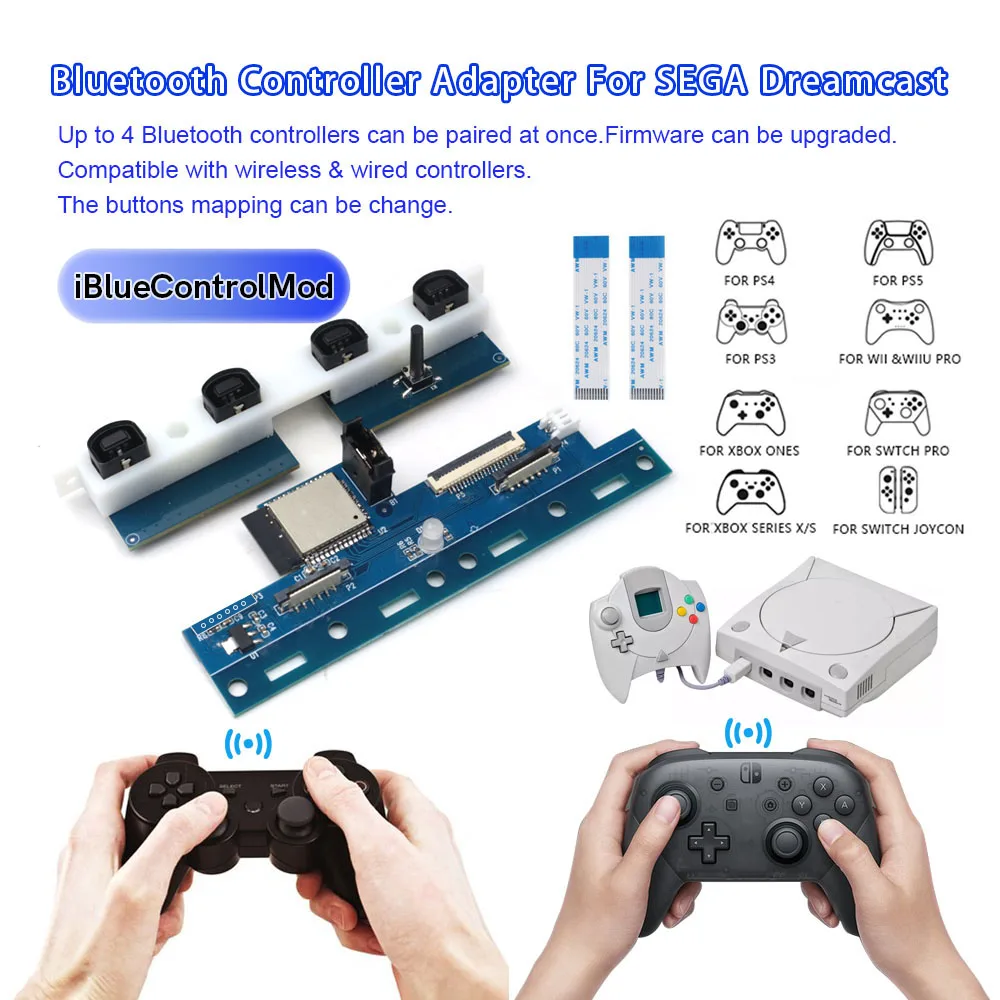

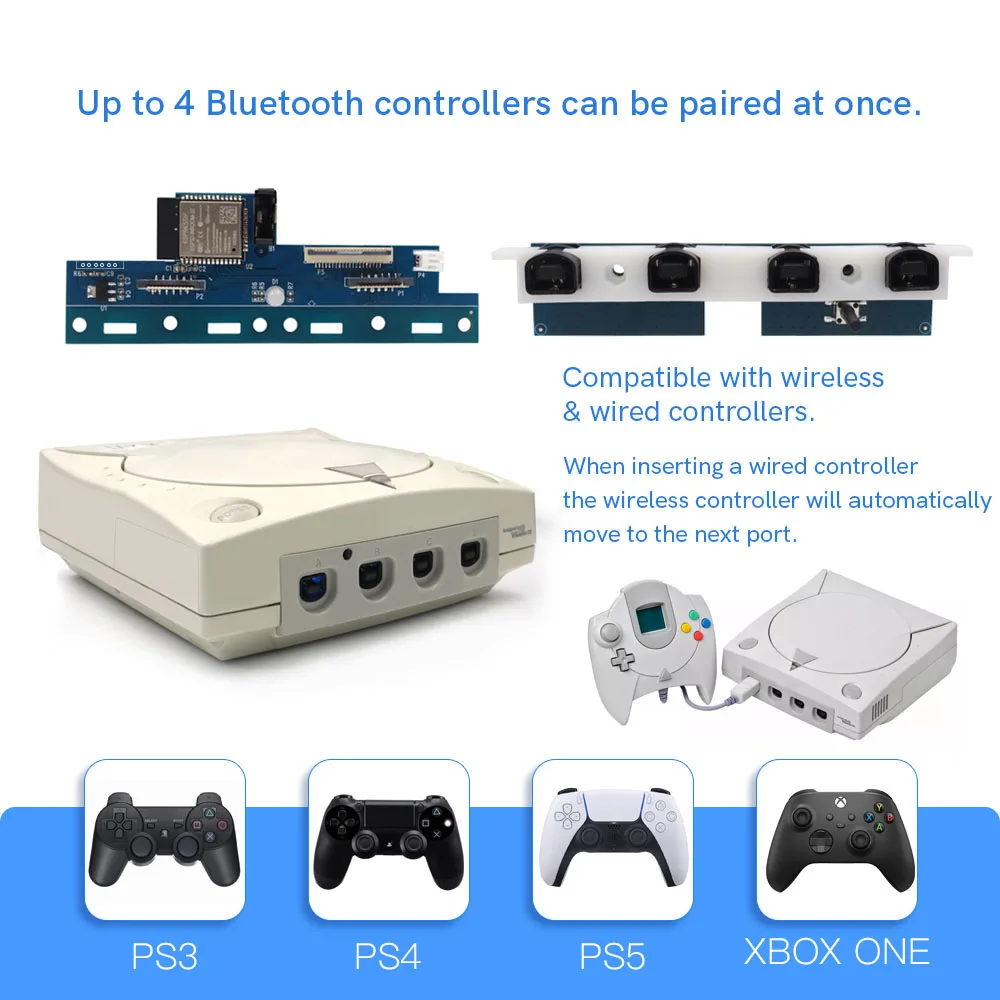

1.Up to 4 Bluetooth controllers can be paired at once.

2.No need welding, no need trimming,no outside extension wires.

3.Easy installation,good choice for green hands,just open shell and put the mod adapter inner machine to enable consoles connecting wireless joypads.

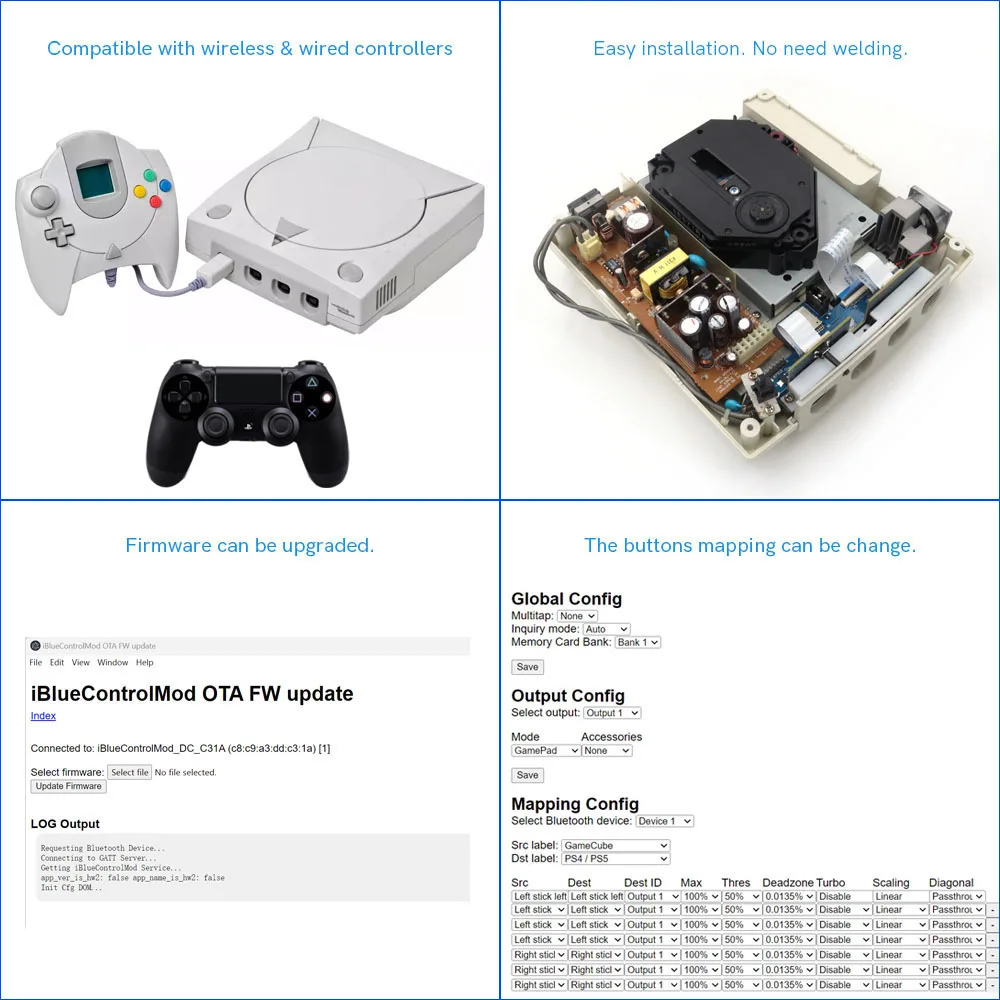

4.Easy firmware update tool that only requires a Bluetooth enabled device like a computer(incompatible phone).

5.Configurable button mapping using a applications software on a computer.

6.SEGA Dreamcast wired controllers are still available after updating this Bluetooth mod.

7.Built in LED indicator, make connecting more clear.

8.Replaceable socket for CR1220.

9.Simple installation.

Compatible Controllers:



Support PS3 / PS4 / PS5 / Xbox One S / Xbox Series X|S / Wii / Wii U Pro / Switch Pro/ Switch Joycon Wireless Controllers, etc.

Reset Button Usage:

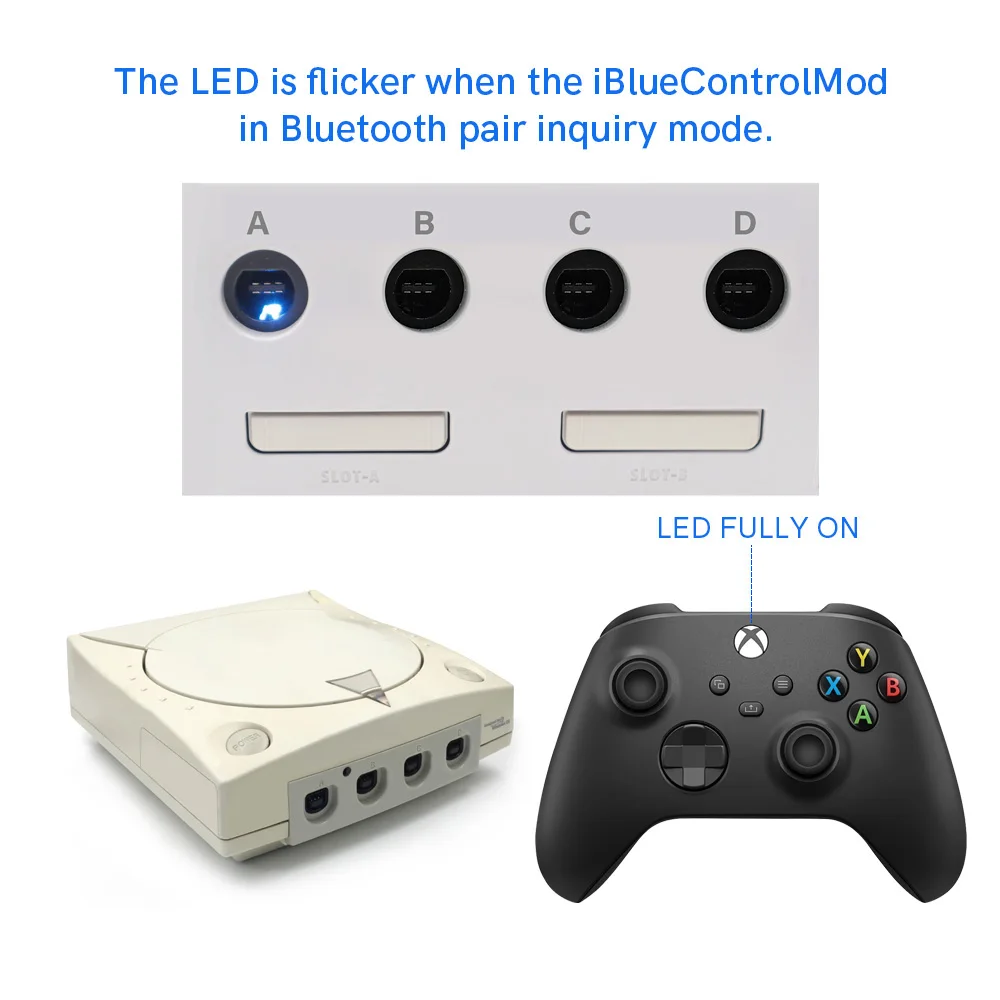

The reset button on the console has been converted to offer new functionality based on how long you hold the button down. While it is being pressed the front ports will light up to show which state you will be enabling.

1.Holding for 0-3 seconds will test whether all 4 ports are working properly.

In this state all four front port LEDs will be solid on.



2.Holding for 4-6 seconds will disconnect all connected Bluetooth controllers

In this state all four front port LEDs will be slowly blinking.



3.Holding for 7-9 seconds will enable pairing mode

In this state all four front port LEDs will be blinking faster



4.Holding for 10 seconds or more will factory reset to the original firmware and remove any custom configs

In this state all four front port LEDs will be blinking rapidly.



5.Hold reset button while powering on the iBlueControlMod adapter will be in sleep mode and will not interfere with the console use this in the event that a peripheral is not working nicely with iBlueControlMod.

NOTE:  Please pairing the wireless controller first if the wireless controller never pairing with this iBlueControlMod before.— Power off the Dreamcast console and then power on it again,will enable the pairing mode. (Or, Holding the reset button for 7-9 seconds will also enable pairing mode.)



Include:

1x iBlueControl Mod adapter (include the battery)

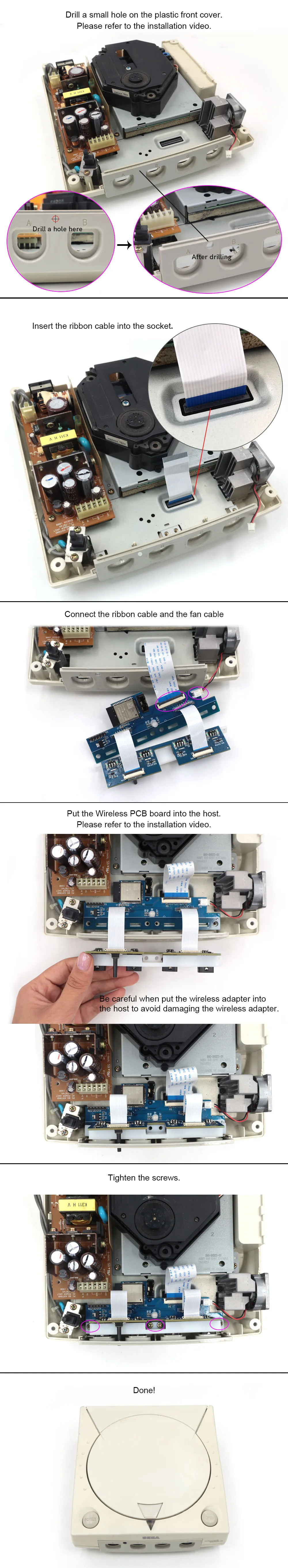

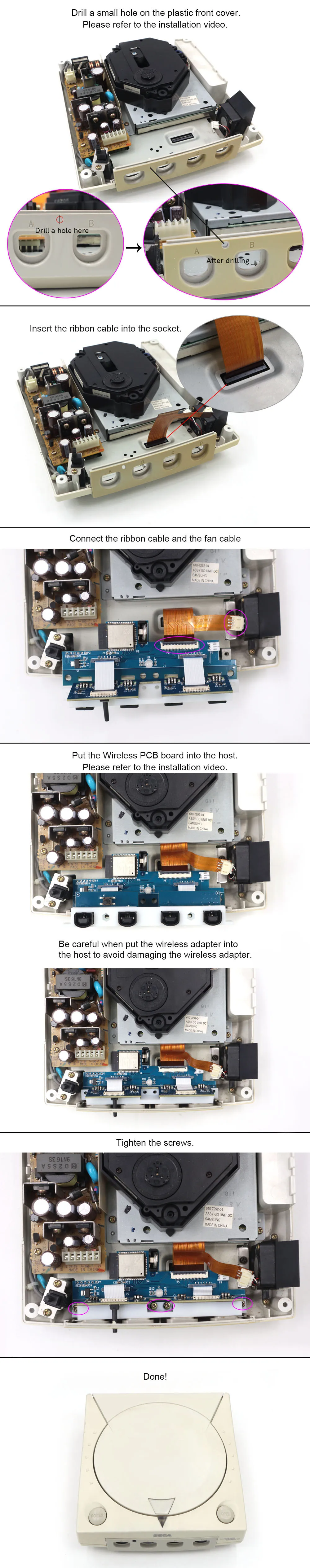

Installation:



2 pin version:



3 pin version:
