Nintendo Game Boy Advance HDMI Out Bluetooth Converter Dock V5 IPS Screen Mod Kit, HD 720P TV GBA Switch USB-C Station + Replacement Housing Case for PS5/PS4/Xbox One/Switch Pro Wireless Controllers

Nintendo Game Boy Advance HDMI Out Bluetooth Converter Dock V5 IPS Screen Mod Kit, HD 720P TV GBA Switch USB-C Station + Replacement Housing Case for PS5/PS4/Xbox One/Switch Pro Wireless Controllers Turns GBA Into a GBA Switch

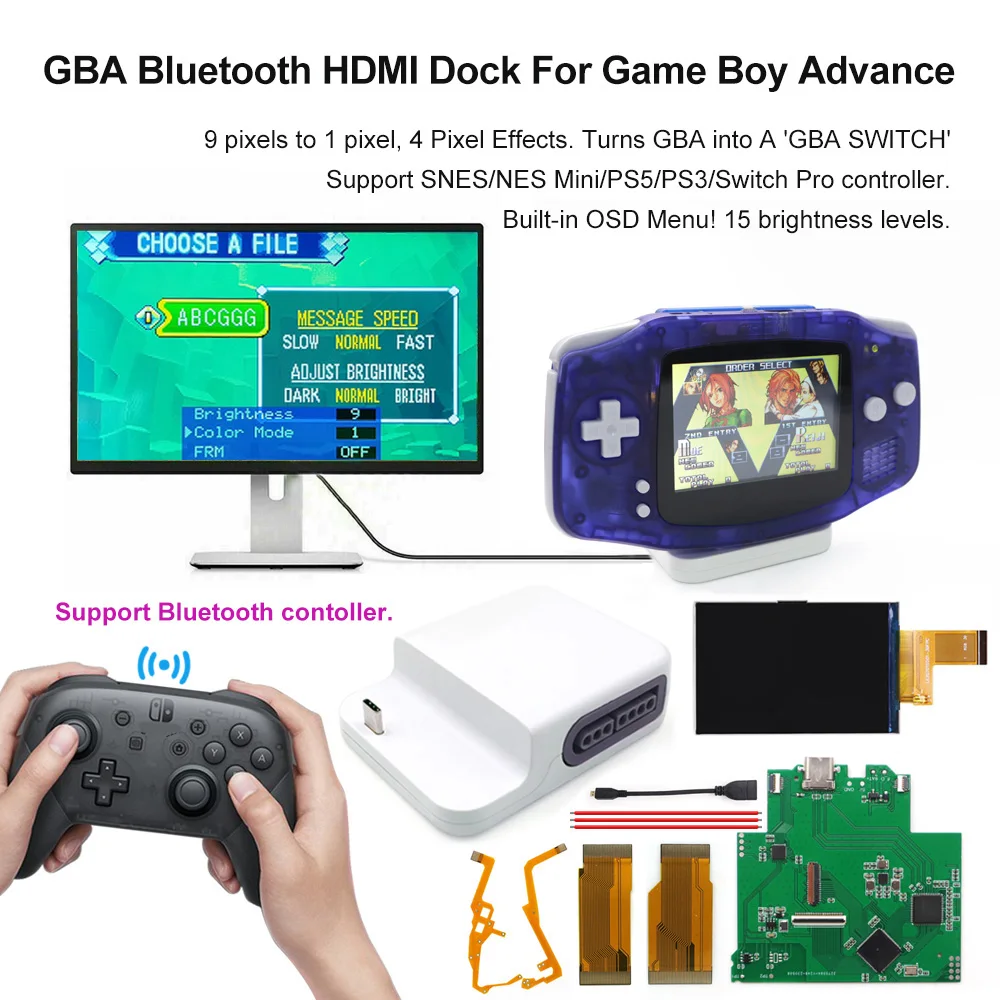

This kit allows the Game Boy Advance to be played by an external controller via a USB-C HDMI docking station. This kit slso allows you to play games on television. Once this mod is installed in the GBA, this essentially turns the GBA into a Switch like console.



Nintendo Game Boy Advance HDMI Out Bluetooth Converter Dock V5 IPS Screen Mod Kit, HD 720P TV GBA Switch USB-C Station + Replacement Housing Case for PS5/PS4/Xbox One/Switch Pro Wireless Controllers Specification:



1. 720P HDMI-Compatible Output.

2. HDMI-signal. ‘power supply’ and ‘controller signal’ all transmitted via USB-C (Type-c).

3. Turns GBA into A ‘GBA SWITCH’

4. The battery protection circuit has been embedded on the PCB board. No need to remove the batteries when plug the GBA in the Station Dock.

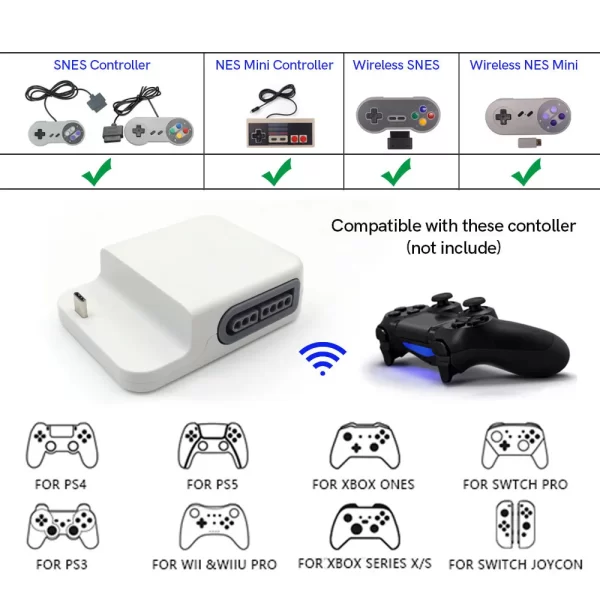

5. Support SNES controller, NES Mini controller.

6. Support Bluetooth contoller. Support PS3 / PS4 / PS5 / Xbox One S / Xbox Series X|S / Wii / Wii U Pro / Switch Pro/ Switch Joycon Wireless Controllers, etc.

7. Compatible USB-C host charger and ordinary USB charger.

8. 720×480 display resolution. HD IPS LCD. 9 pixels to 1 pixel. Integer scaling (Original GBA display resolution is 240×160).

9. Wide View angle up to 178 degree.

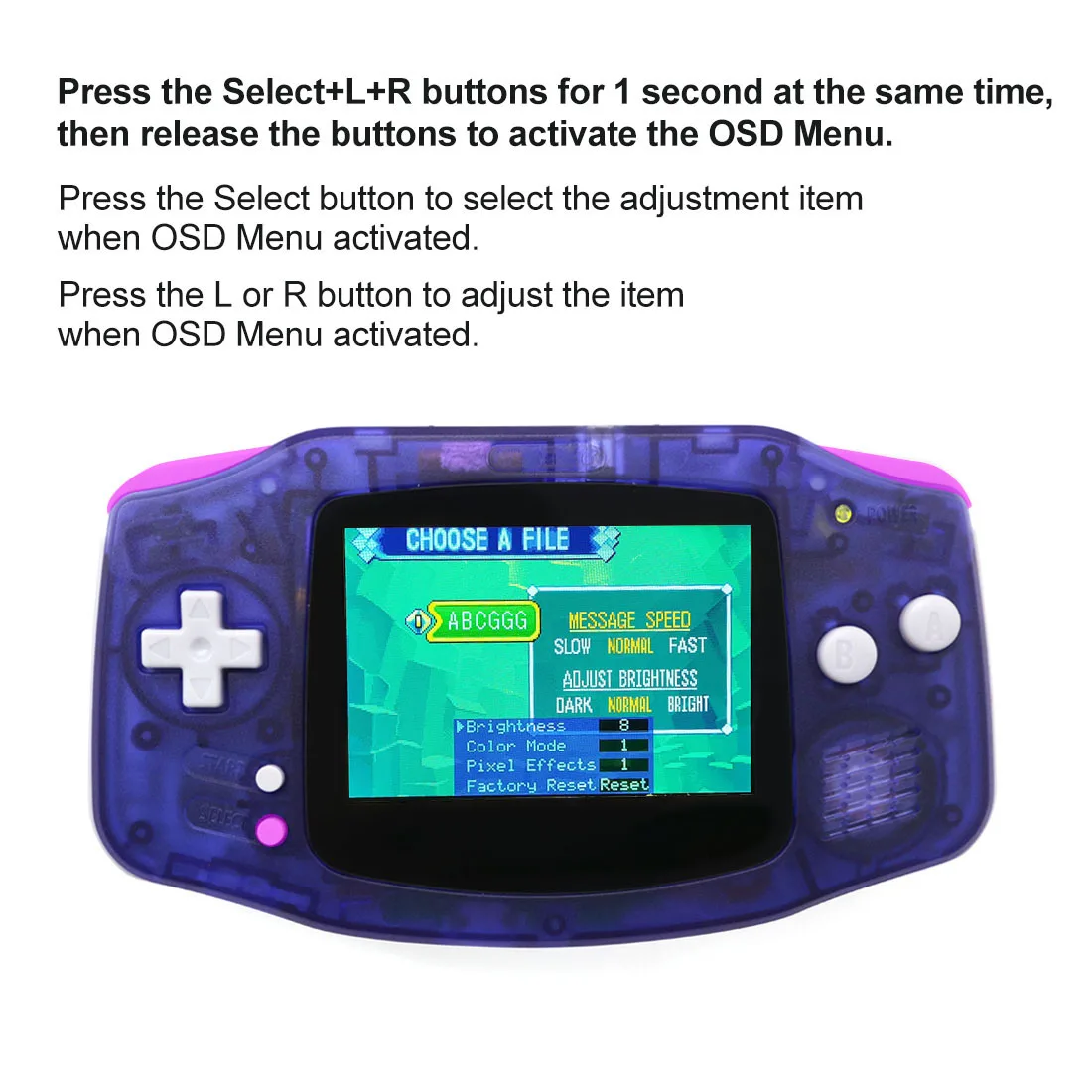

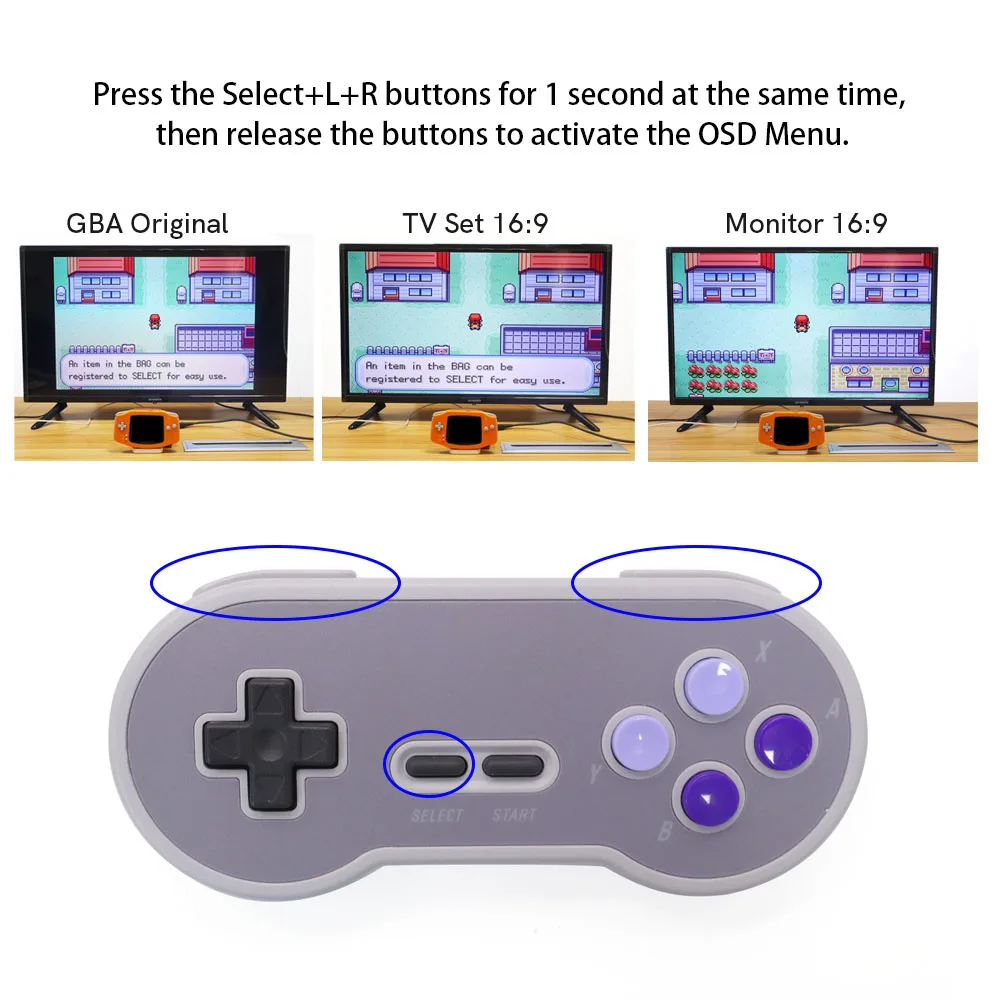

10. Built-in OSD Menu!

11. Retro pixel Effects: Normal, Retro pixel, Scanline 1, Scanline 2.

12. 15 brightness levels.

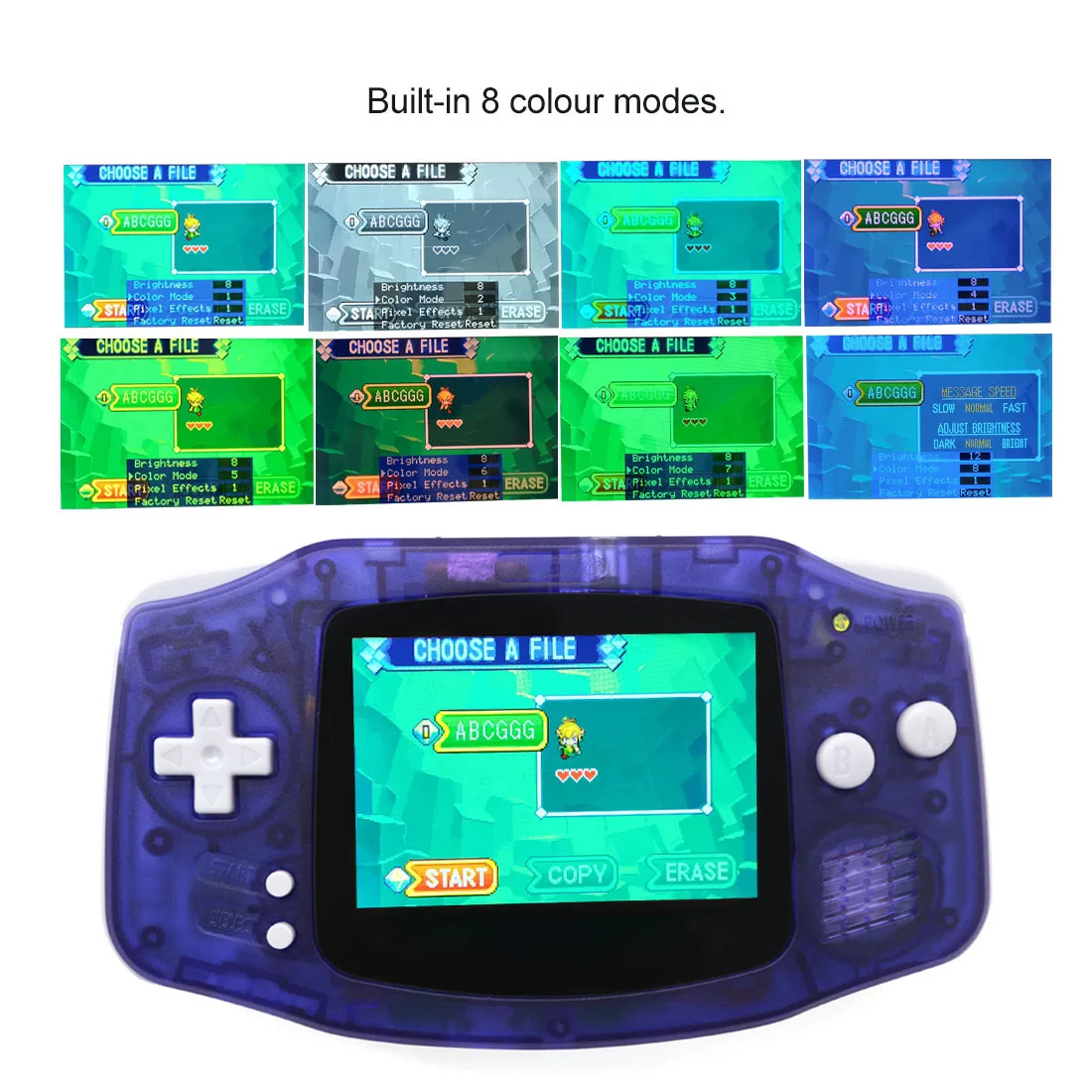

13. 8 color modes.

14. Compatible 32pin and 40pin motherboard.





The Bluetooth Button Usage:

1.Holding for 0-3 seconds will disconnect all connected Bluetooth controllers and enable pairing mode.

In this state all four front port LEDs will be slowly blinking.



2.Holding for 3 seconds or more will factory reset to the original firmware and remove any custom configs.

In this state all four front port LEDs will be blinking rapidly.



Note: This advertising doesn’t include GBA console, doesn’t include the controller.



Include:

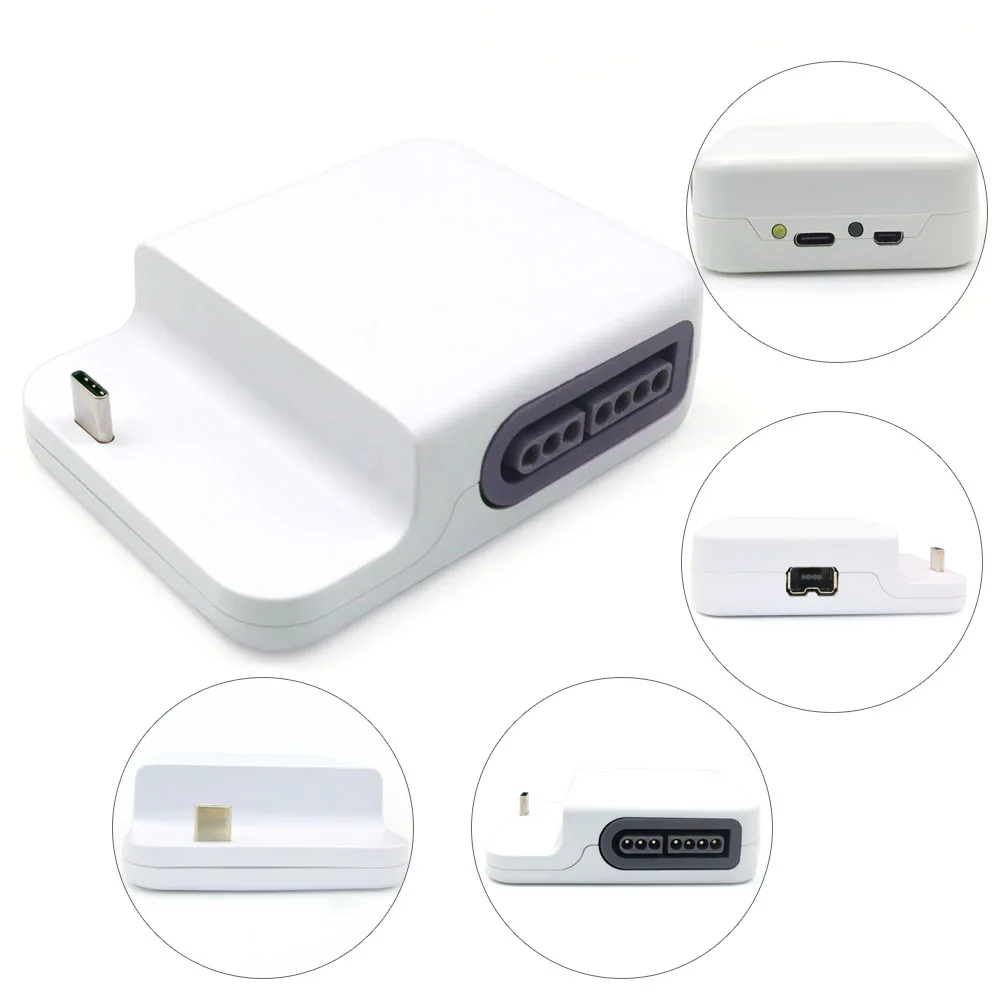

1x GBA HDMI Bluetooth Dock

1x IPS LCD,

1xAdapter pcb,

1x Glass Screen lens,

1xDouble-sided tape.

2x Screwdrivers,

3x Ribbion cable,

2x position stick.

3x wires

1x HDMI adapter cable

Nintendo Game Boy Advance HDMI Out Bluetooth Converter Dock V5 IPS Screen Mod Kit, HD 720P TV GBA Switch USB-C Station + Replacement Housing Case for PS5/PS4/Xbox One/Switch Pro Wireless Controllers x1
