Nintendo 64 Internal Digital HDMI TV Mod Kit Replacement, N64 Imbeded High Definition AV Video Output Converter Adapter Module, Built-in OSD Menu 3 TV Aspect Ratio, PCB Board + Mini HDMI Adapter + Ribbon Flex cable Accessories Free Shipping
- Origin: Mainland China
- Compatible Brand/Model: None
- Accessories Type: HDMI Converter
- With USB: No
- is_customized: Yes
- Model Number: HDMI Mod
- Fit for: N64 console
- Output: Digital-HDMI
- Imbeded: Yes
- Menu function: Yes
- TV Aspect Ratio: 3
- Color: 8 modes
Newest Imbeded Digital High Definition N64 HDMI TV kit Game Video PCB Mod with OSD Menu 8 color modes
Nintendo 64 Internal Digital HDMI TV Mod Kit Replacement, N64 Imbeded High Definition AV Video Output Converter Adapter Module, Built-in OSD Menu 3 TV Aspect Ratio, PCB Board + Mini HDMI Adapter + Ribbon Flex cable Accessories
Please note that: It requires soldering skills.
The console is not included.
This N64-HDMI Mod kit is compatible with all N64 models/regions; with the exception of ‘Pi_ka_chu’ models.

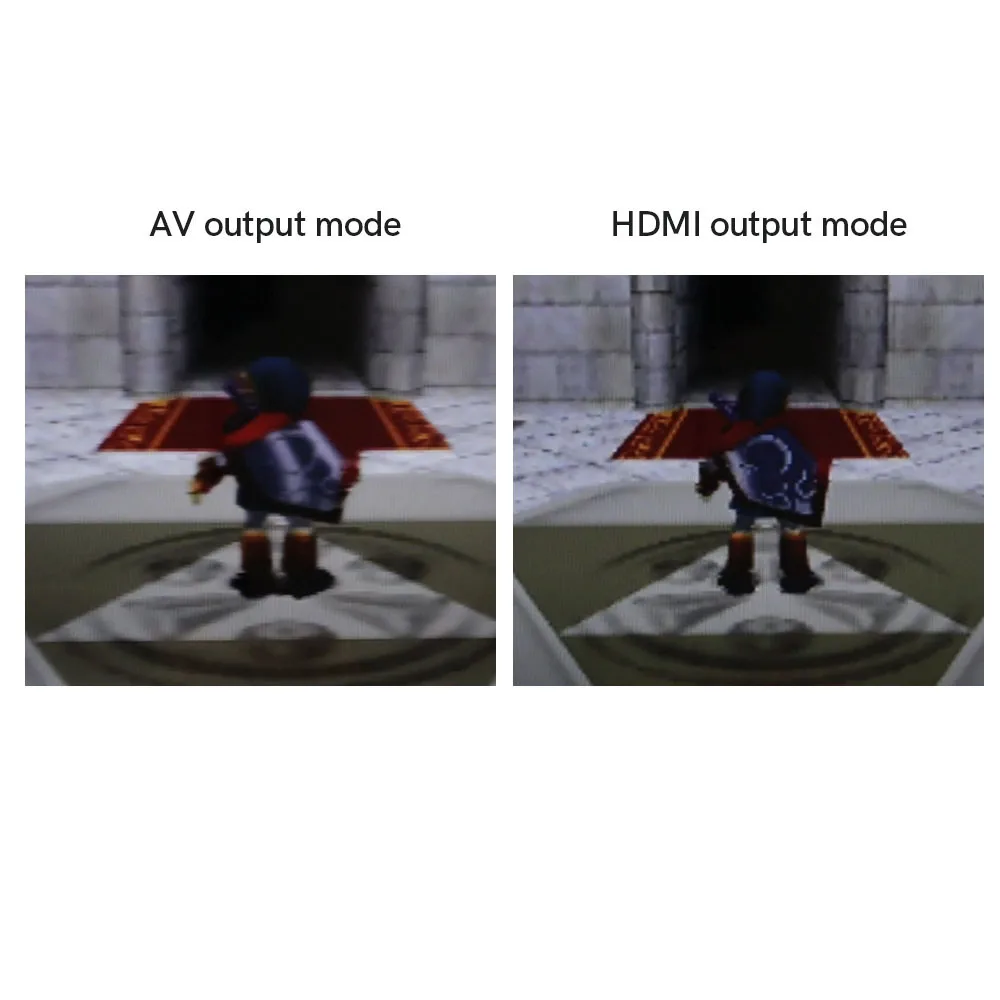

This N64-HDMI kit is a digital to digital HDMI output upgrade for the Nintendo 64.
The kit includes a PCB and Flex that must be soldered into the N64.
Make your N64 console output HDMI image.
1.HDMI-Compatible Output.

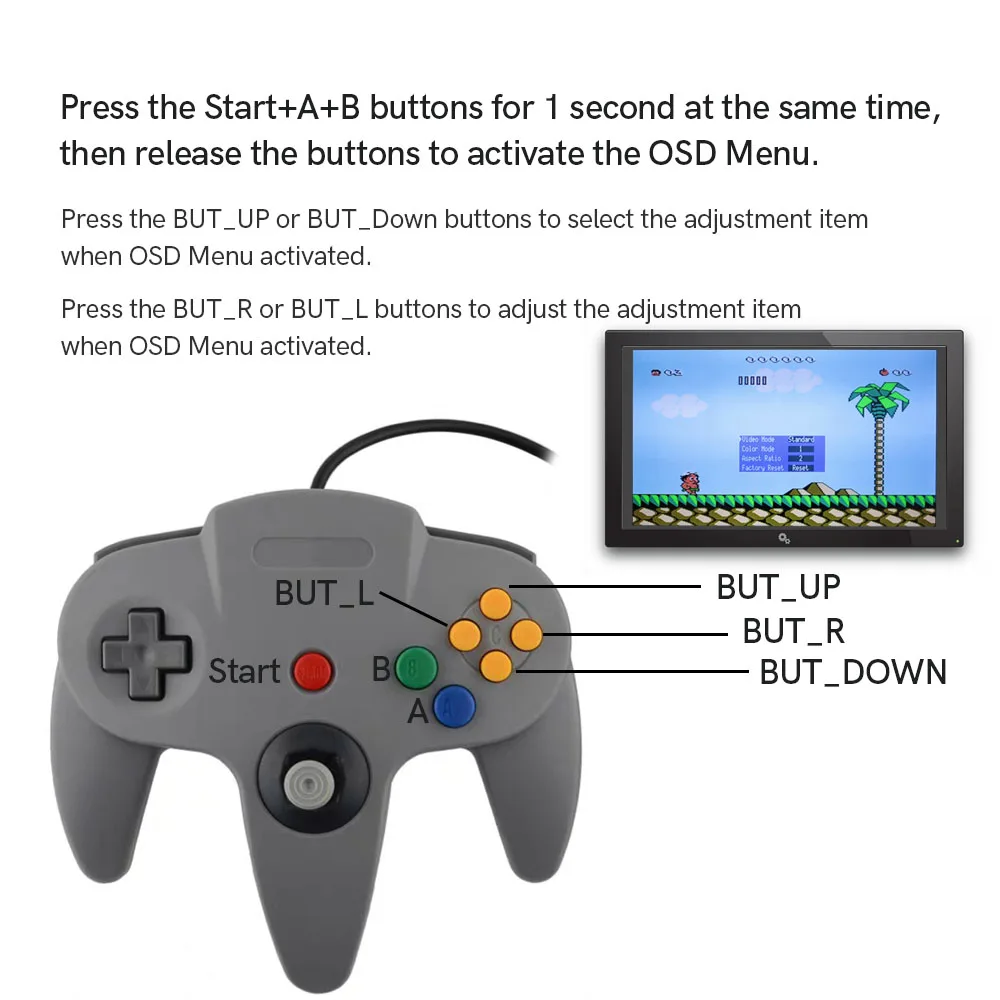

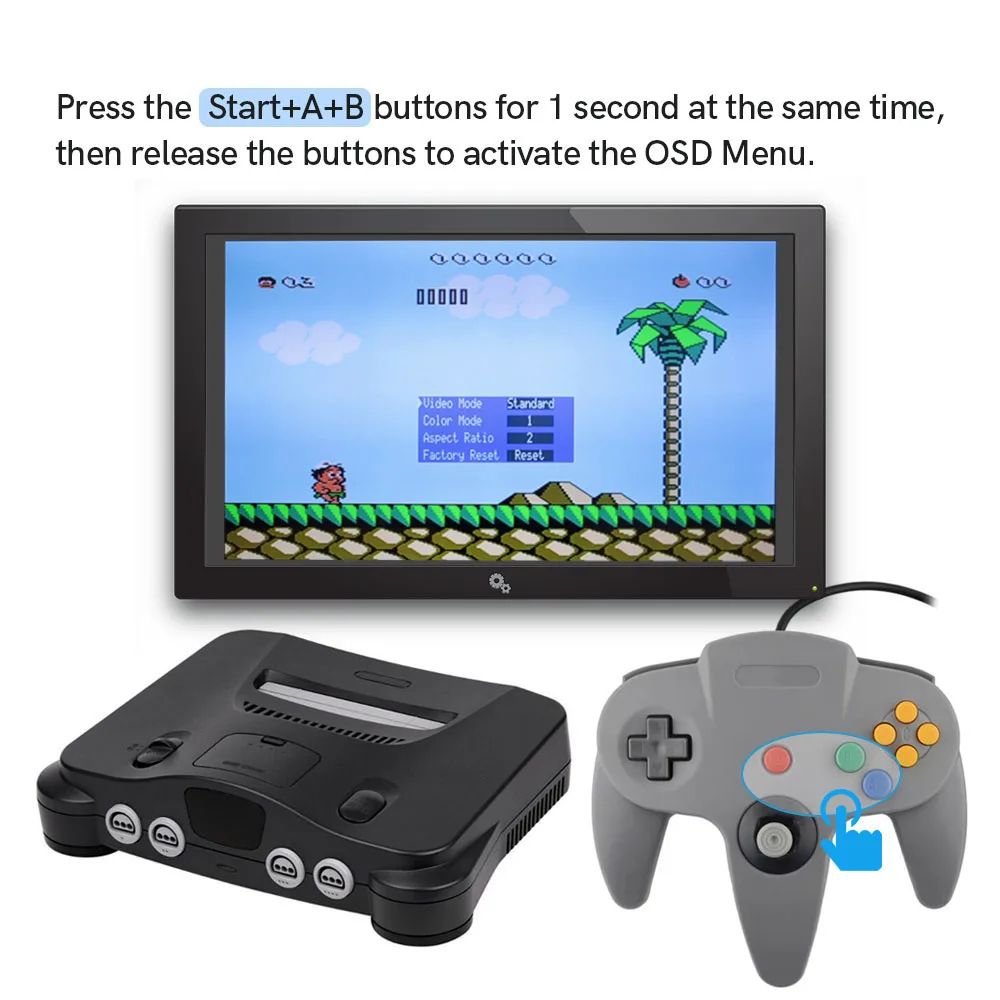

2. Built-in OSD Menu!

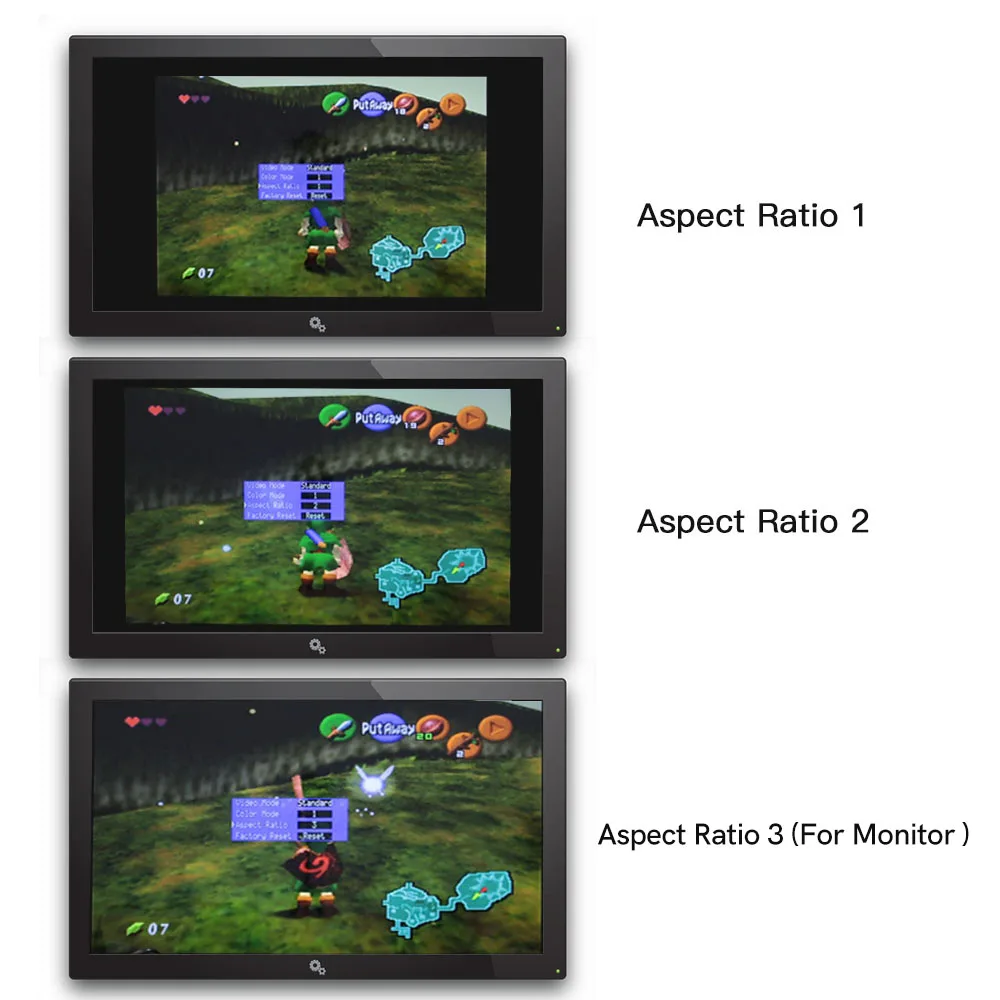

3. Built in 3 TV Aspect Ratio.
4. 8 color modes.

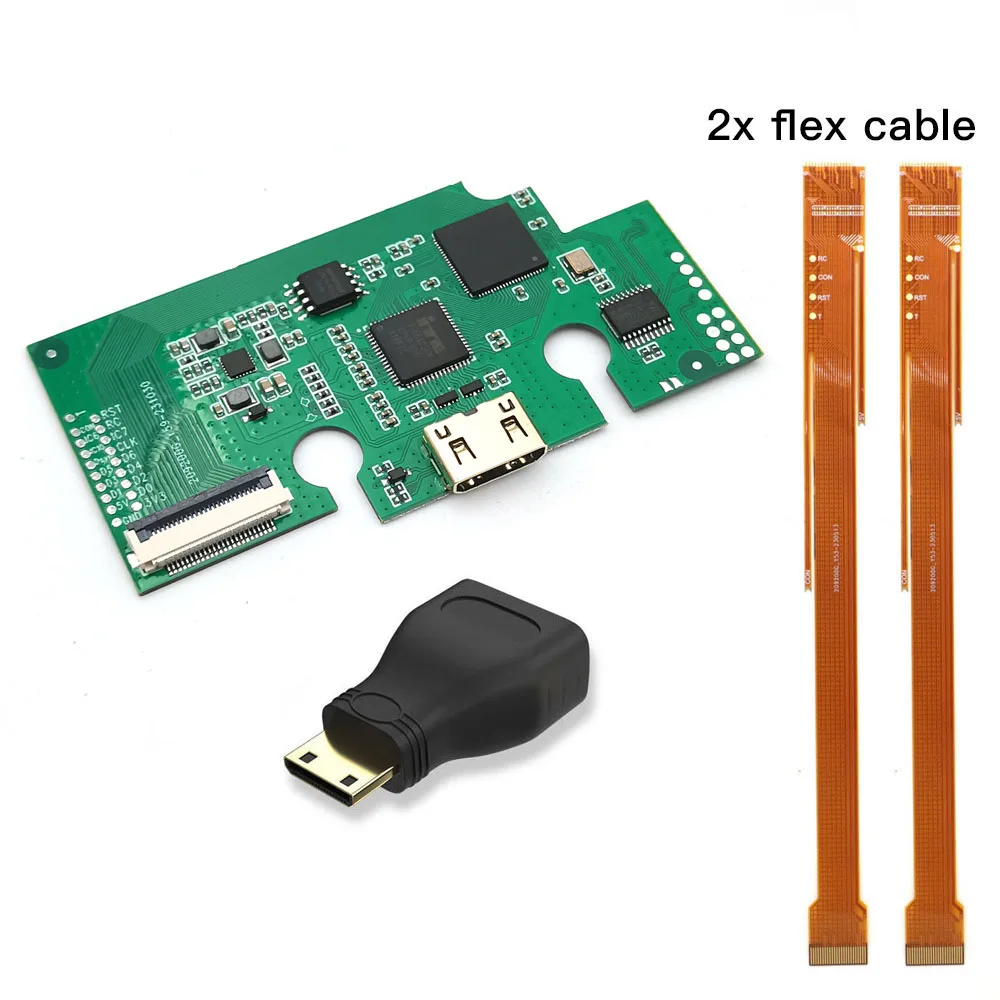

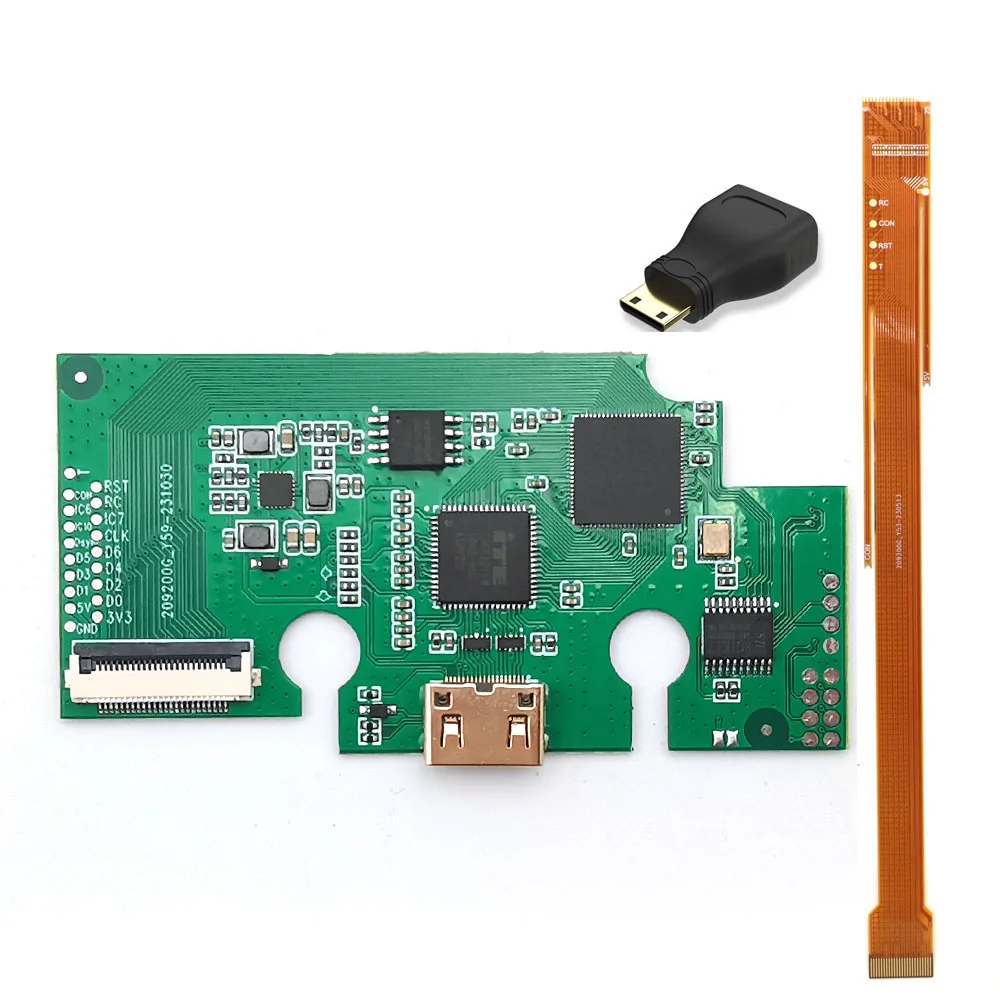

PCB kit only A Incudes：
1x PCB board
1x Ribbon cable
1x Mini HDMI adapter
PCB kit Driver A
1x PCB board
1x Ribbon cable
1x Mini HDMI adapter
1 set Screwdrivers
PCB kit only B Incudes：
1x PCB board
2x Ribbon cable
1x Mini HDMI adapter
PCB kit Driver B
1x PCB board
2x Ribbon cable
1x Mini HDMI adapter
1 set Screwdrivers
===============
The N64 original image resolution is 256×224 to 640×480. So, 720P HDMI
The 720P resolution is 1280×720.
1080P is 1920X1080
==========================
N64Digital is compatible with all N64 models/regions; with the exception of Pikachu models.

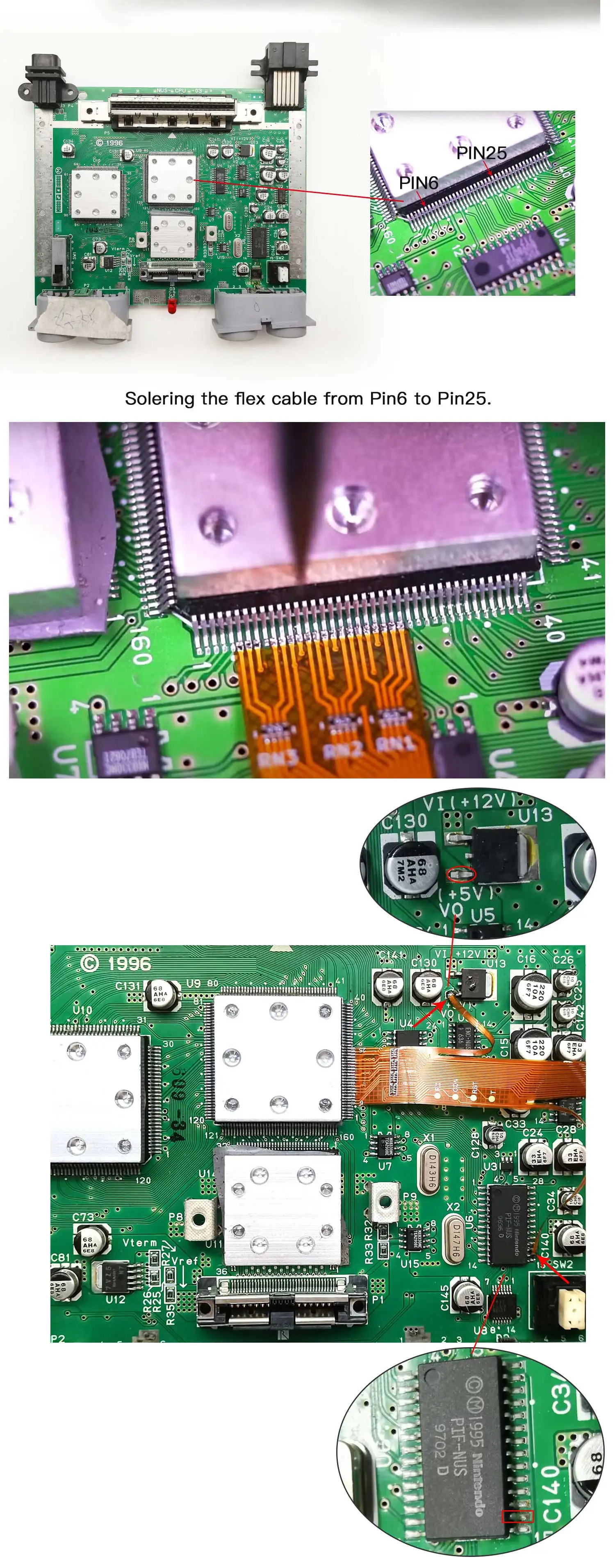

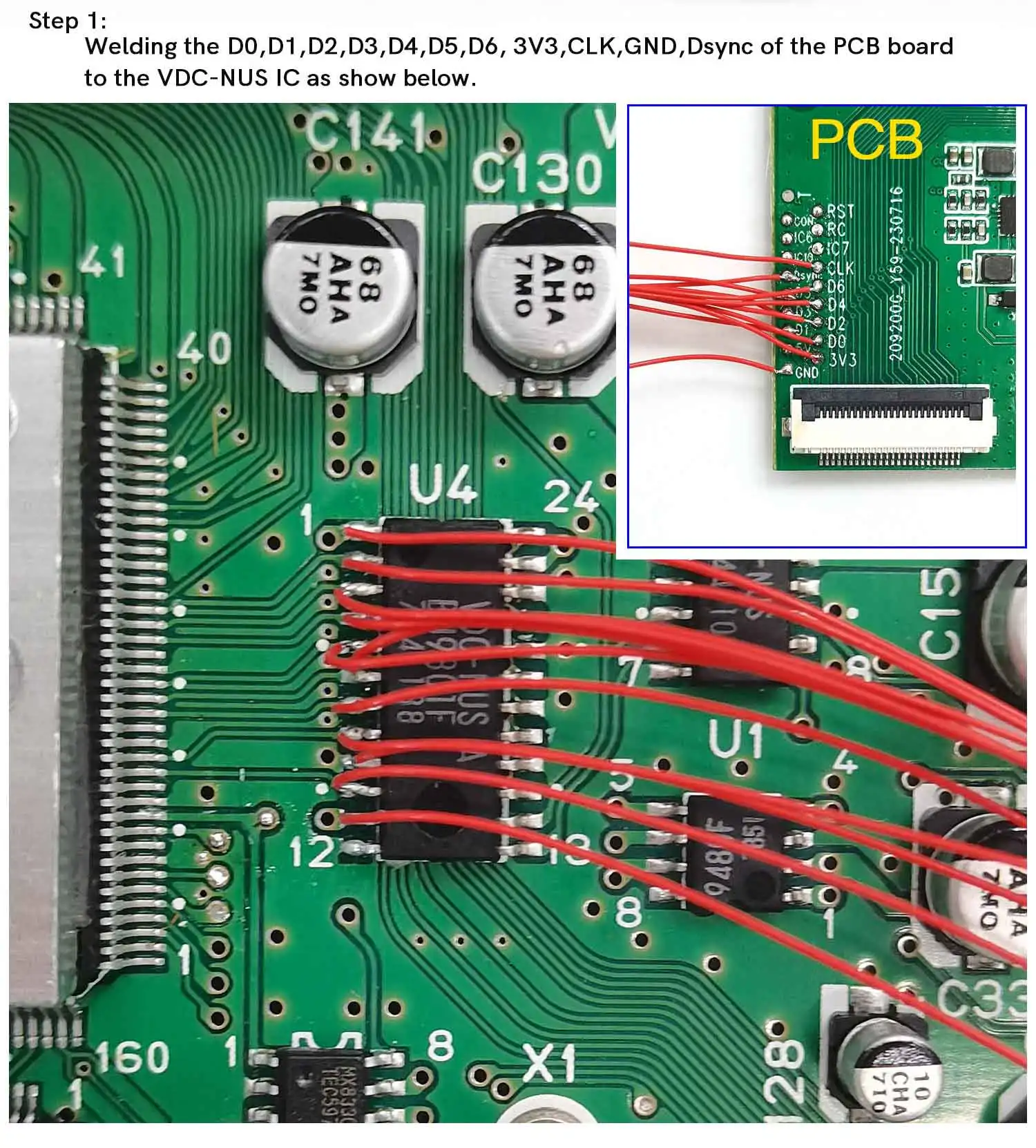

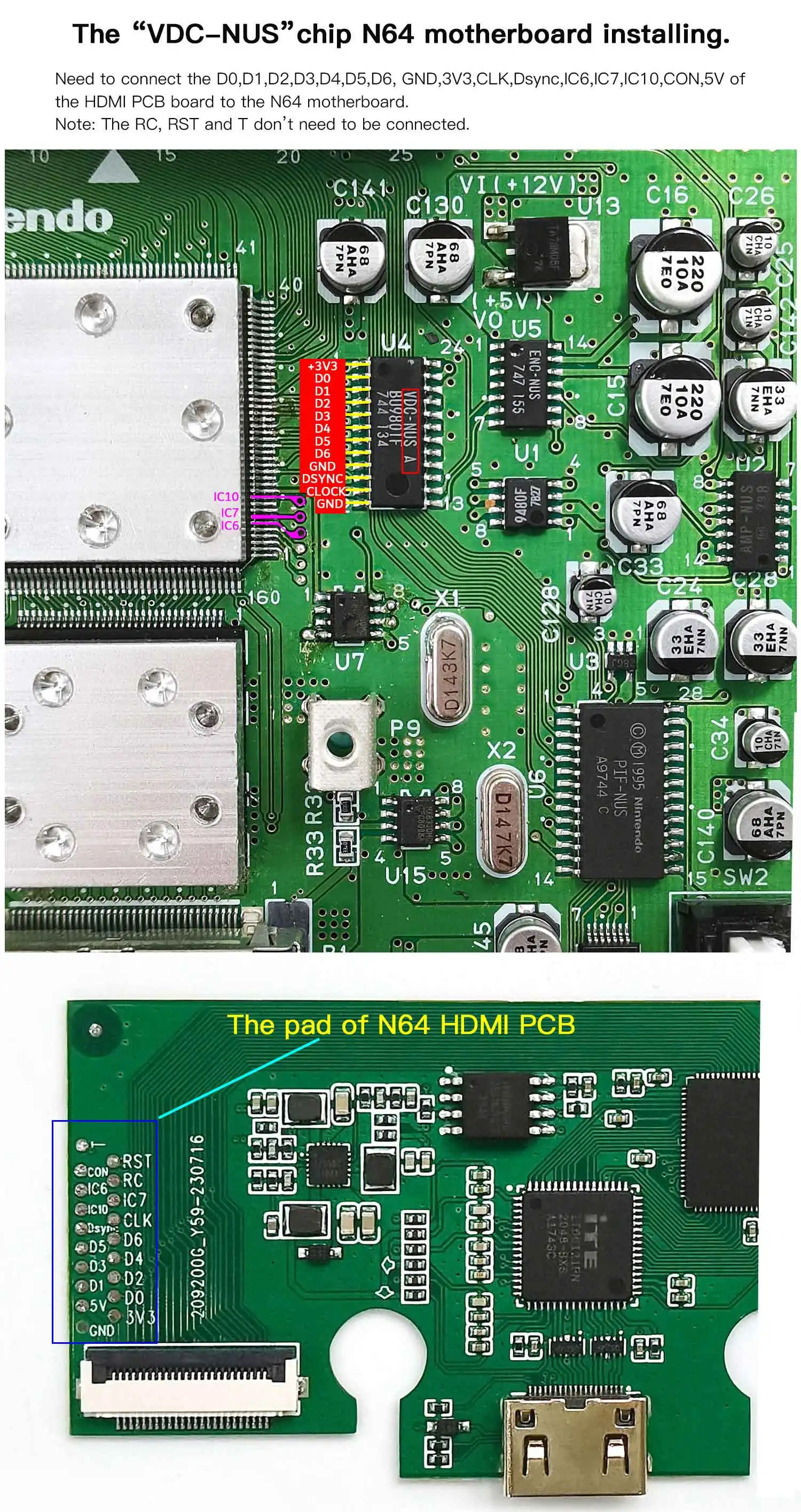

Align the flex on the RCP to pin 6.
Solder the flex cable.
Use a multimeter to confirm there is no continuity between adjacent pins. If a direct short is found, clear the bridge and check again.
==========================
The resolution of the N64 console is at most 640*480.
Whether the signal output is 720P (1280*720) or 1080P (1920*1080), they are all zoomed in based on the original signal (at most 640*480). The qualities of the output pictures are the same.
The Input signal resoulation limits the output quality.
In one word the qualities for 720P and 1080P are the same for N64 console.
Make sure there is no contact between adjacent pins. If it happened, please disconnect them.

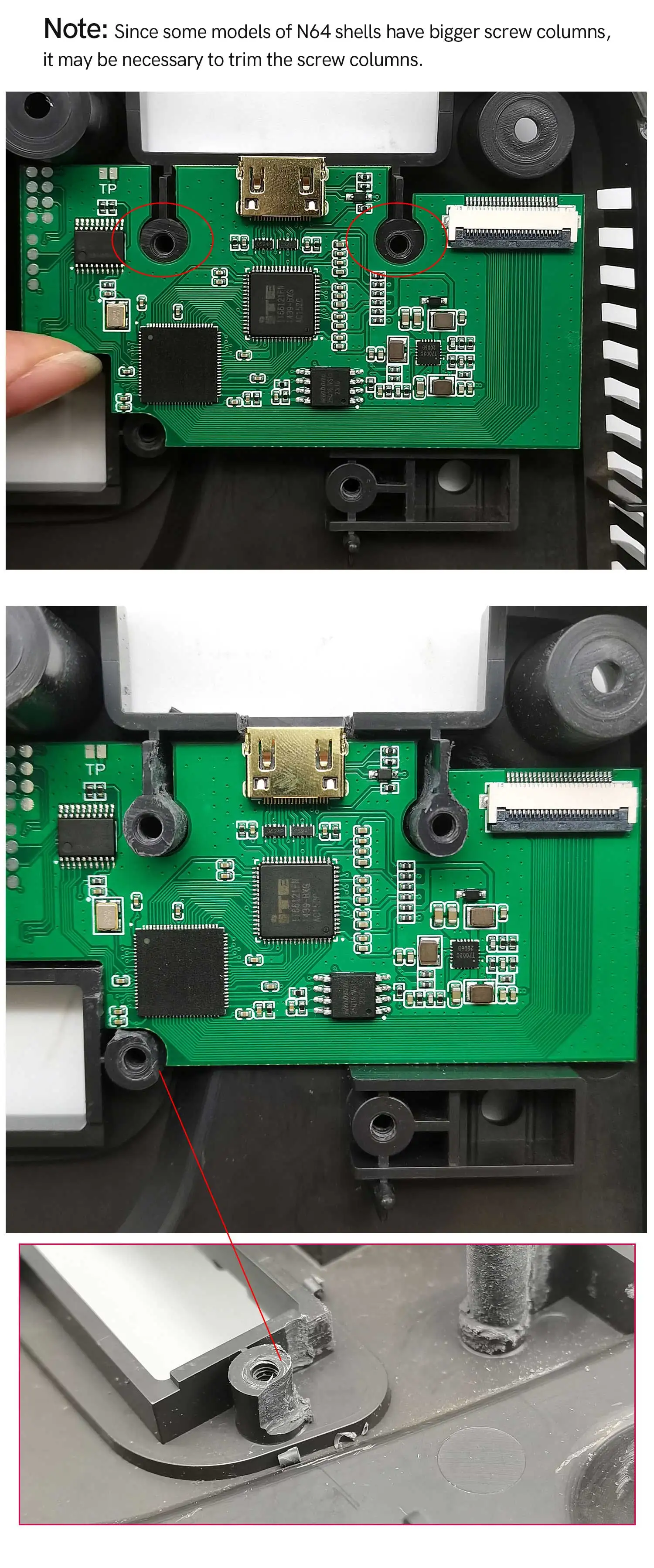

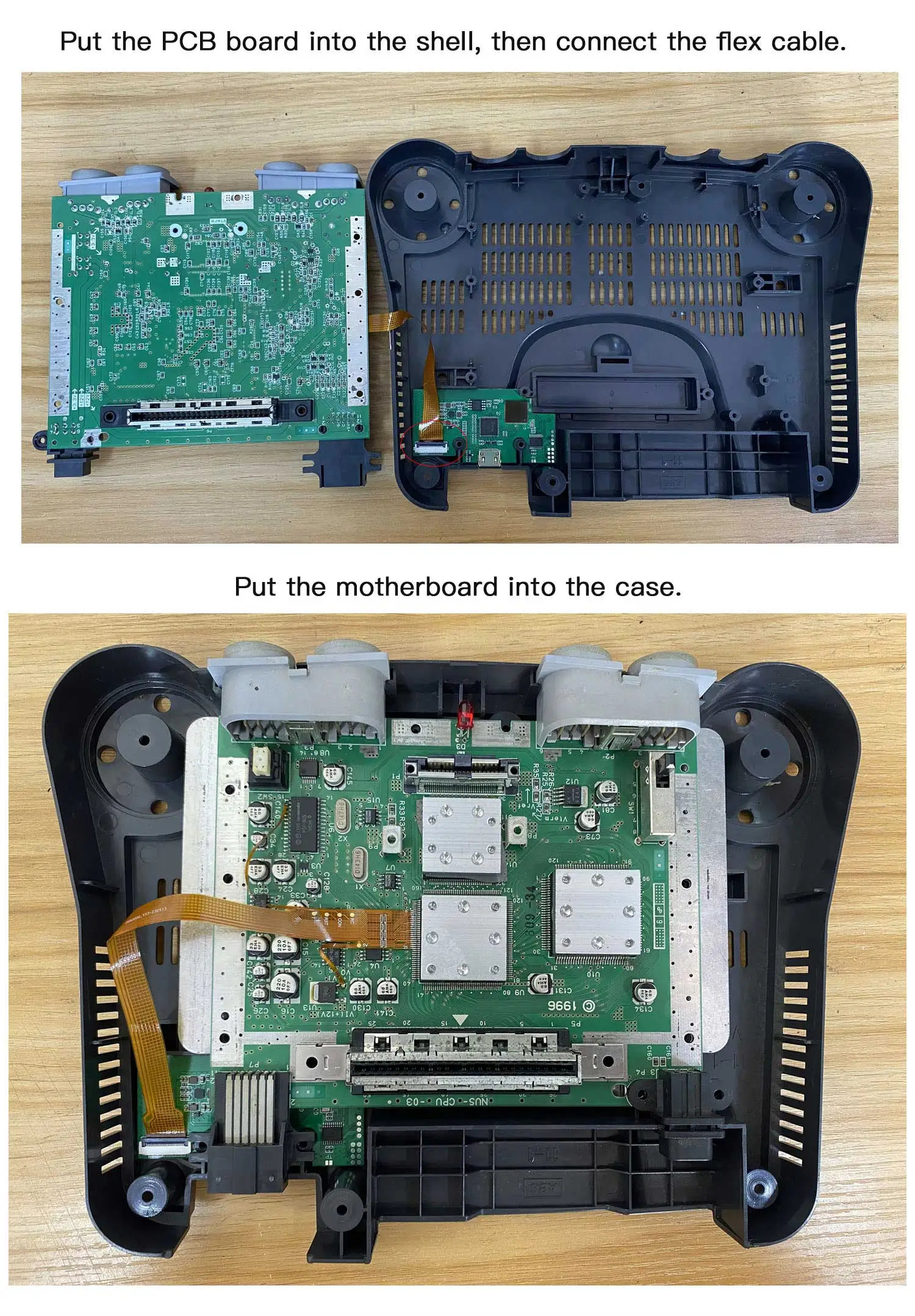

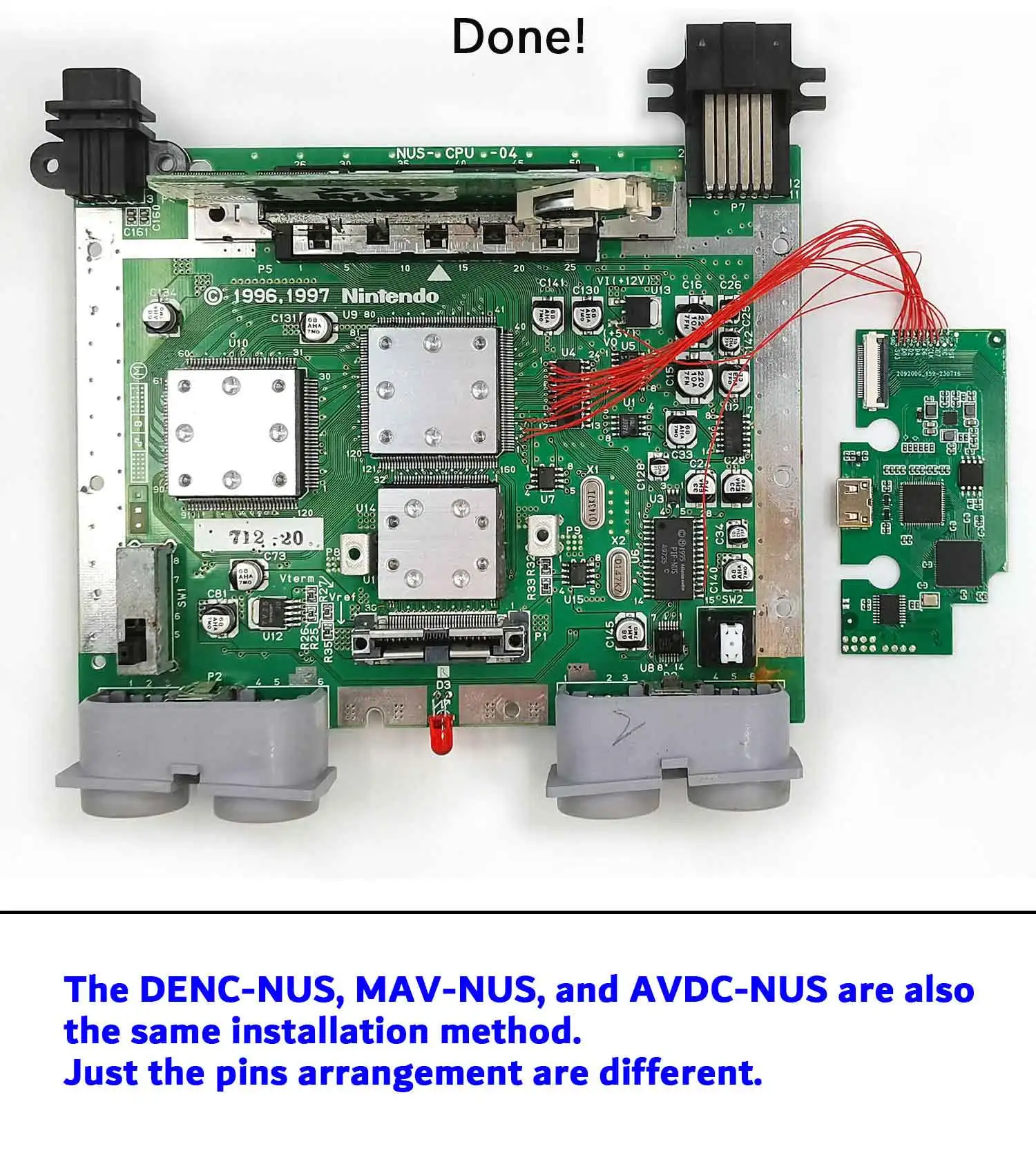

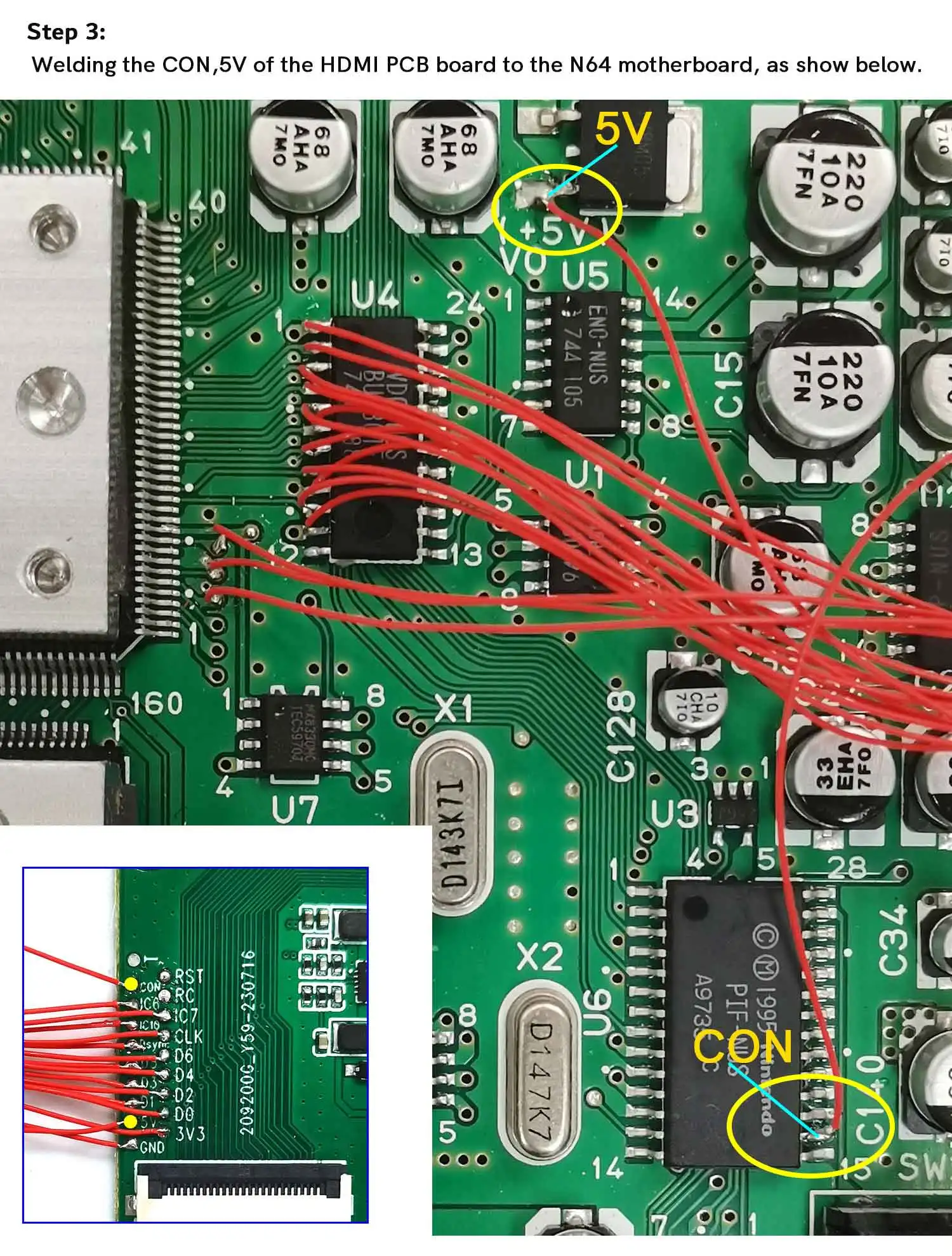

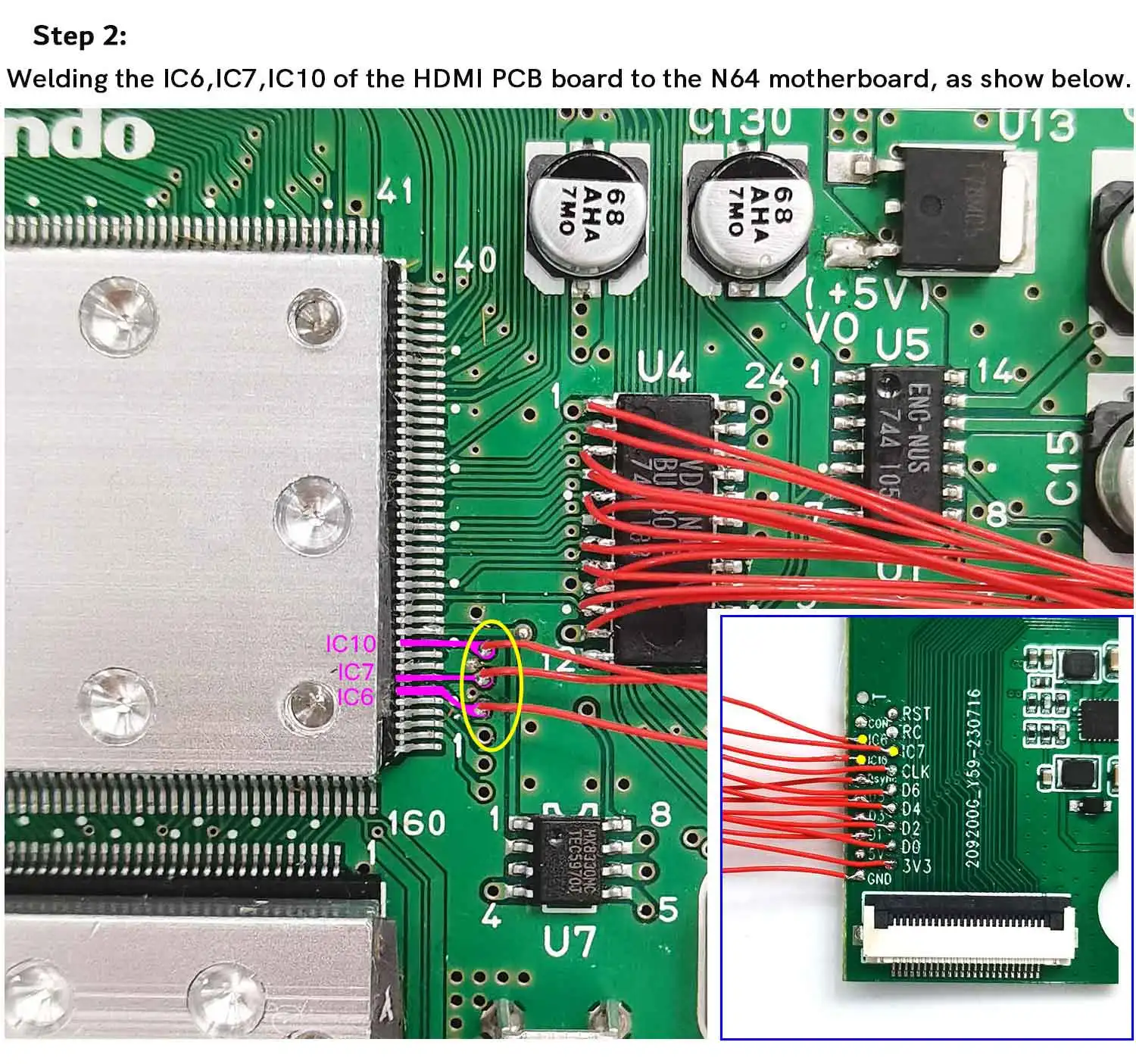

Installation Method 1:

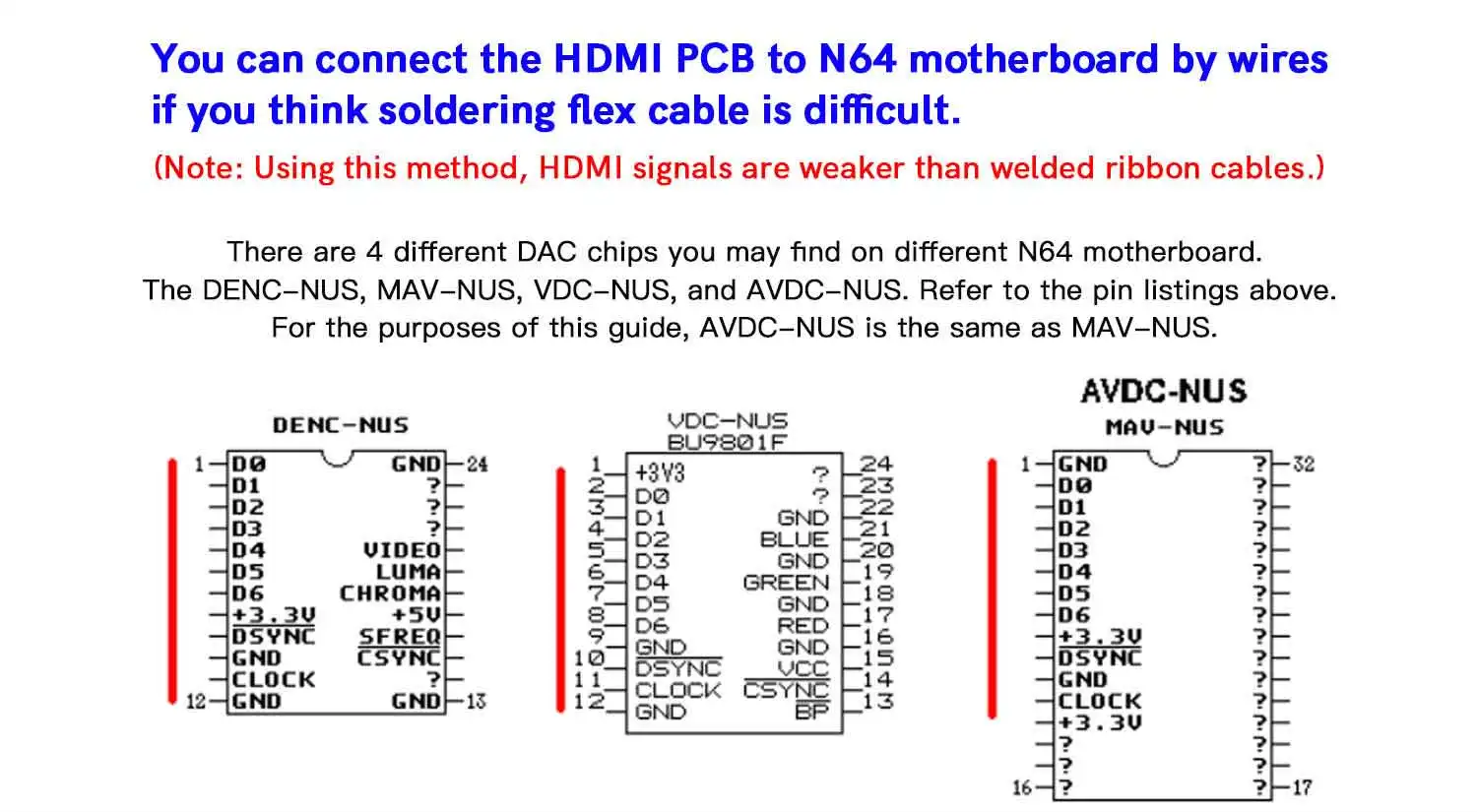

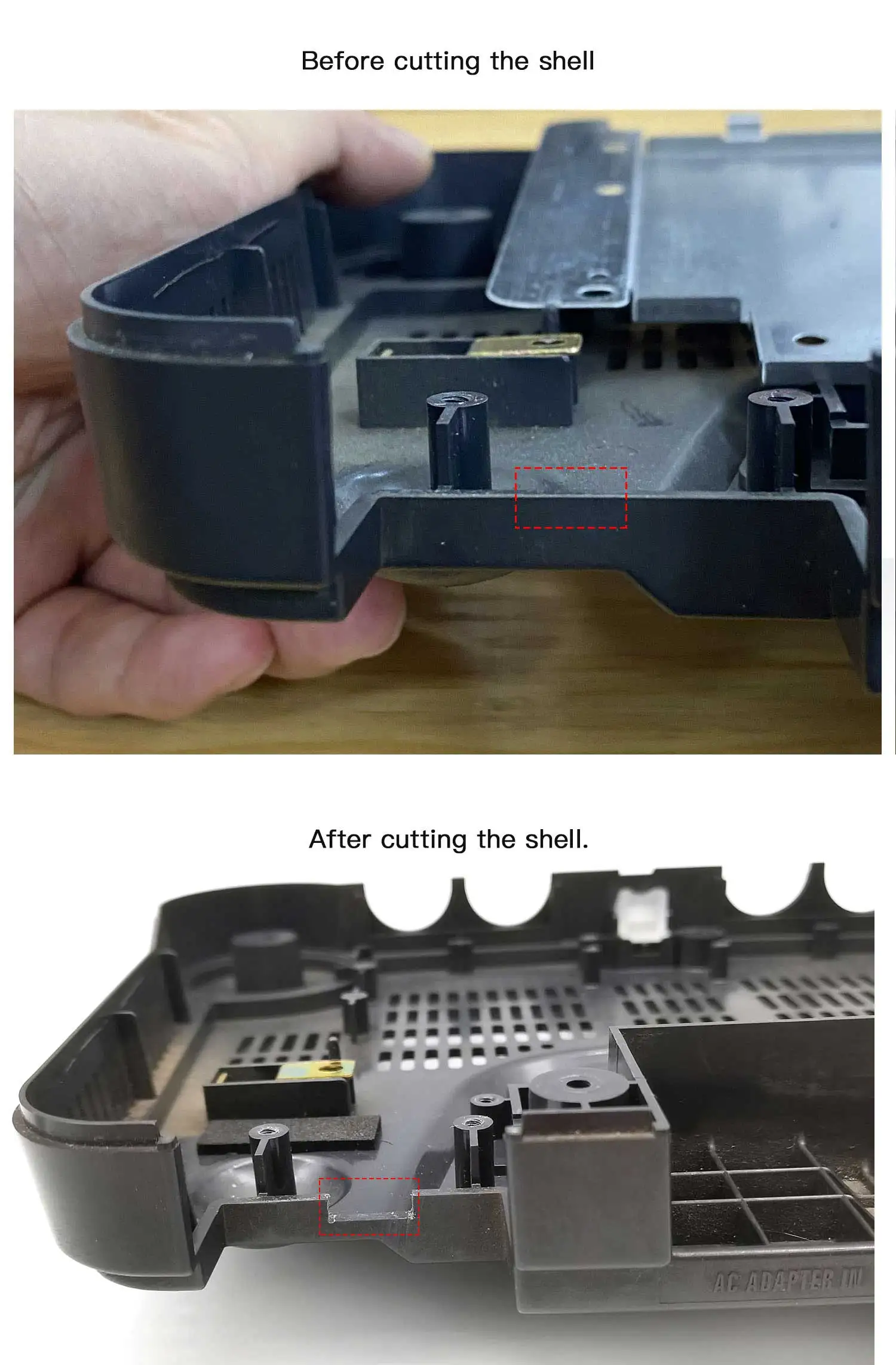

Installation Method 2 (Optional):
Nintendo 64 Internal Digital HDMI TV Mod Kit Replacement, N64 Imbeded High Definition AV Video Output Converter Adapter Module, Built-in OSD Menu 3 TV Aspect Ratio, PCB Board + Mini HDMI Adapter + Ribbon Flex cable Accessories x1
