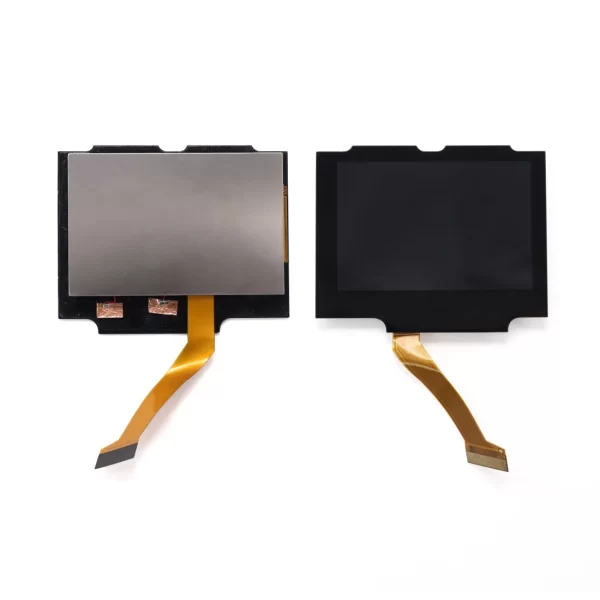

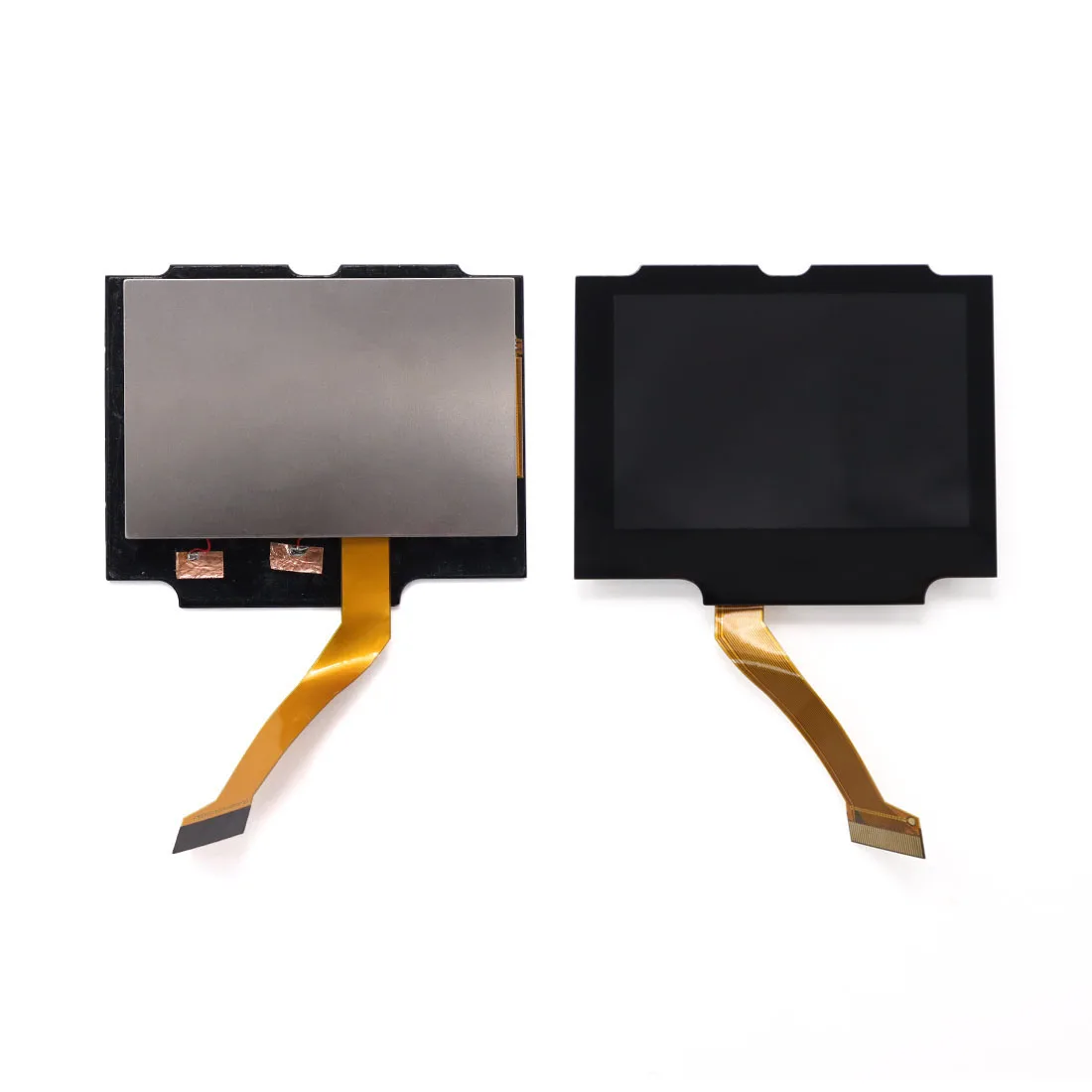

New GBA SP Easy Install IPS V5 Screen Pre-Laminated Backlight Mod Kit Replacement, for Nintendo Gameboy Advance SP Handheld Game Console, 720×480 Retro Pixel Real Drop in Same Size IPS LCD Glass Lens + Multi Color Housing Case

New GBA SP Easy Install IPS V5 Screen Pre-Laminated Backlight Mod Kit Replacement, for Nintendo Gameboy Advance SP Handheld Game Console, 720×480 Retro Pixel Real Drop in Same Size IPS LCD Glass Lens + Multi Color Housing Case Free Shipping





HISPEEDIDO Easy Install GBA IPS V5 Screen Pre-Laminated backlight Kits 720×480 Retro Pixel LCD For Gameboy Advance SP Console

New GBA SP Easy Install IPS V5 Screen Pre-Laminated Backlight Mod Kit Replacement, for Nintendo Gameboy Advance SP Handheld Game Console, 720×480 Retro Pixel Real Drop in Same Size IPS LCD Glass Lens + Multi Color Housing Case Description:

1. 720×480 display resolution. HD LCD. 9 pixels to 1 pixel. Integer scaling (The original GBA display resolution is 240×160).

2. Wide View angle up to 178 degree.

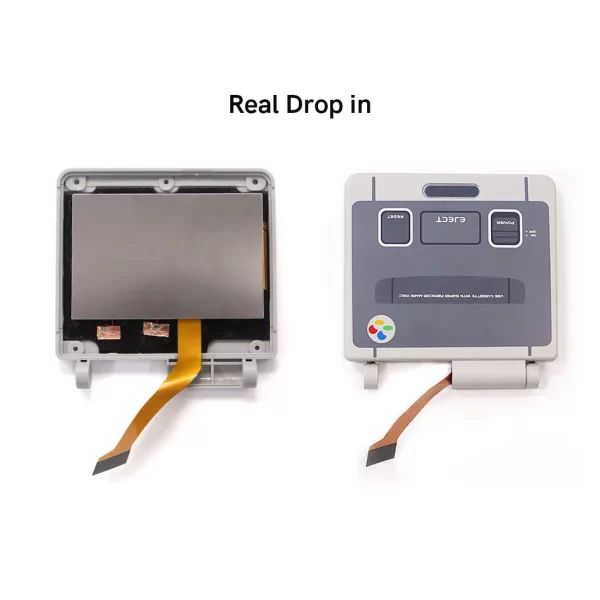

3. Real Drop in IPS LCD for GBA SP. No need to cutting the shell case. Easiest to install in the world.

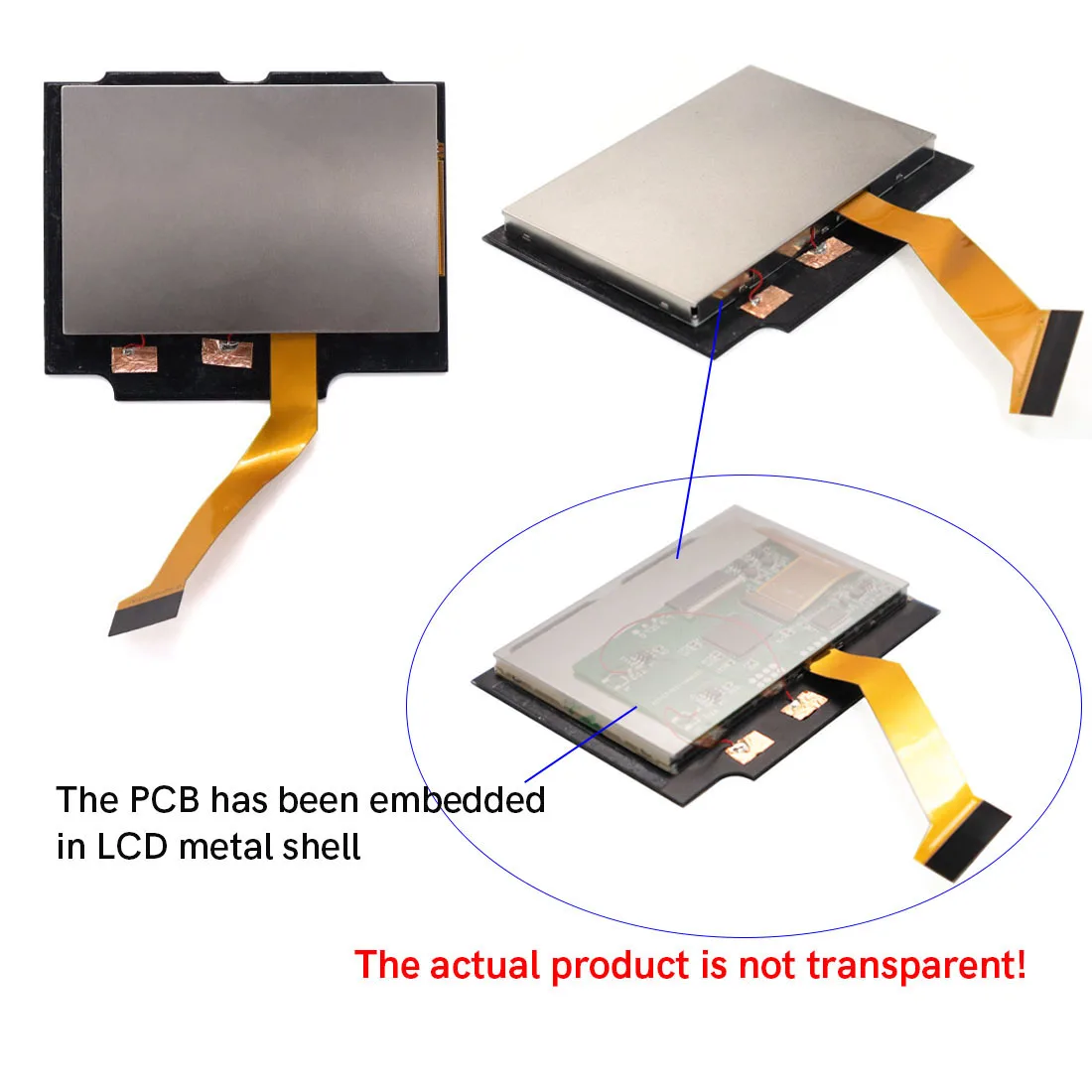

4. Pre Laminated Glass Screen

5. Same display size as the original LCD screen.

6. Built-in OSD Menu!

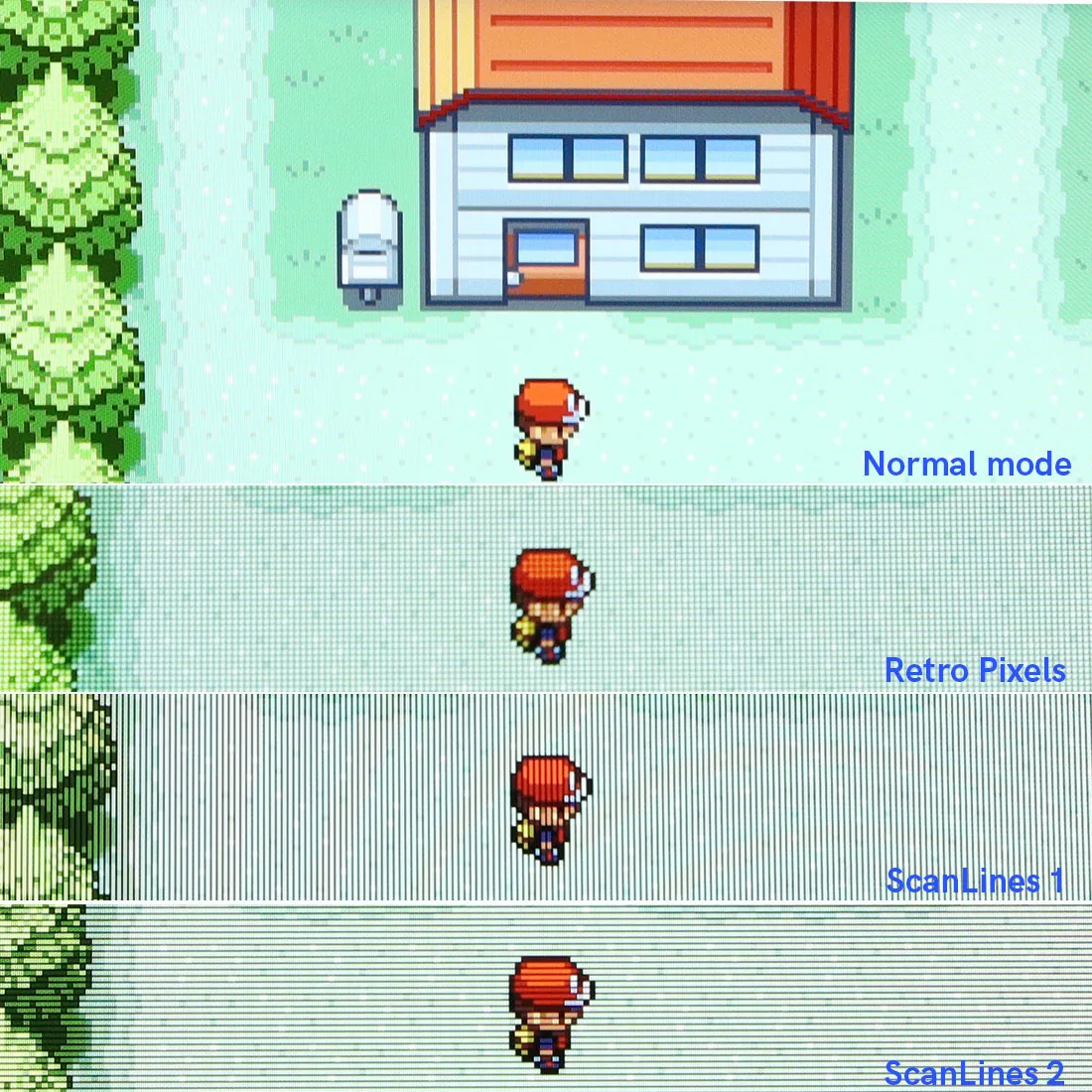

7. Retro pixel Effects: Normal, Retro pixel (like original AGS-101 LCD), Scanline 1, Scanline 2.

8. 15 brightness levels.

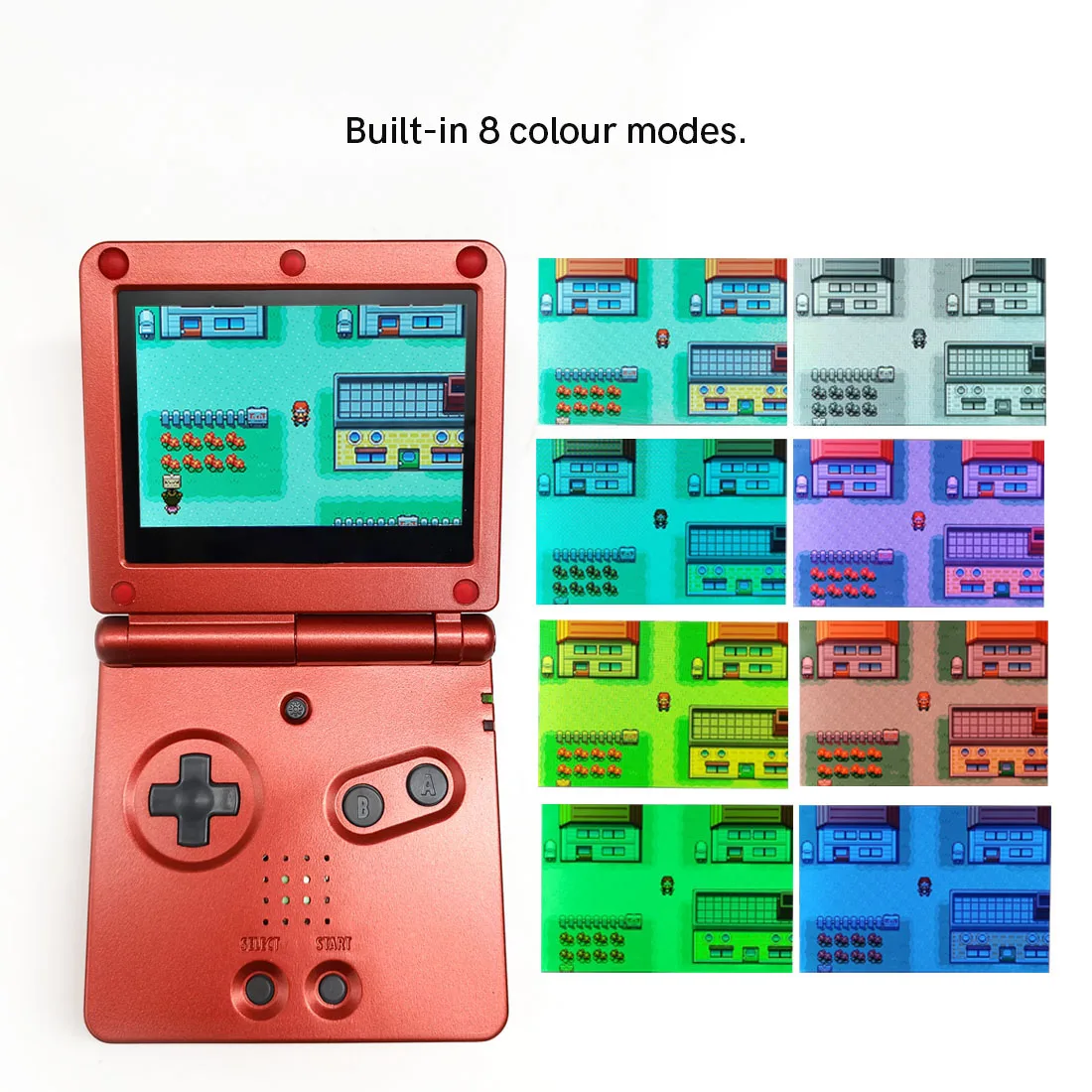

9. 8 color modes.

10. FRM On/OFF function(Frame blending On/OFF) is included. For some extremly few games, the image effect will be better when FRM turned on. For most games, No need to turn on FRM Function. The default FRM is OFF.

11. Touch Screen to change the brightness and change the color modes.

*You need to welding 1 wire to control the OSD Menu*

The ‘Brightness’ button can activate the OSD Menu after welding 1 wire.



Operation:

Short press the ‘Brightness’ button to change the brightness.

Press the ‘Brightness’ button 5 seconds to activate the OSD Menu.

Long press the button to select the adjustment item when OSD Menu activated.

Short press the button to adjust the item when OSD Menu activated.



Packing including :

1x IPS LCD, 2x Screwdrivers, 1x red wire.

Or:

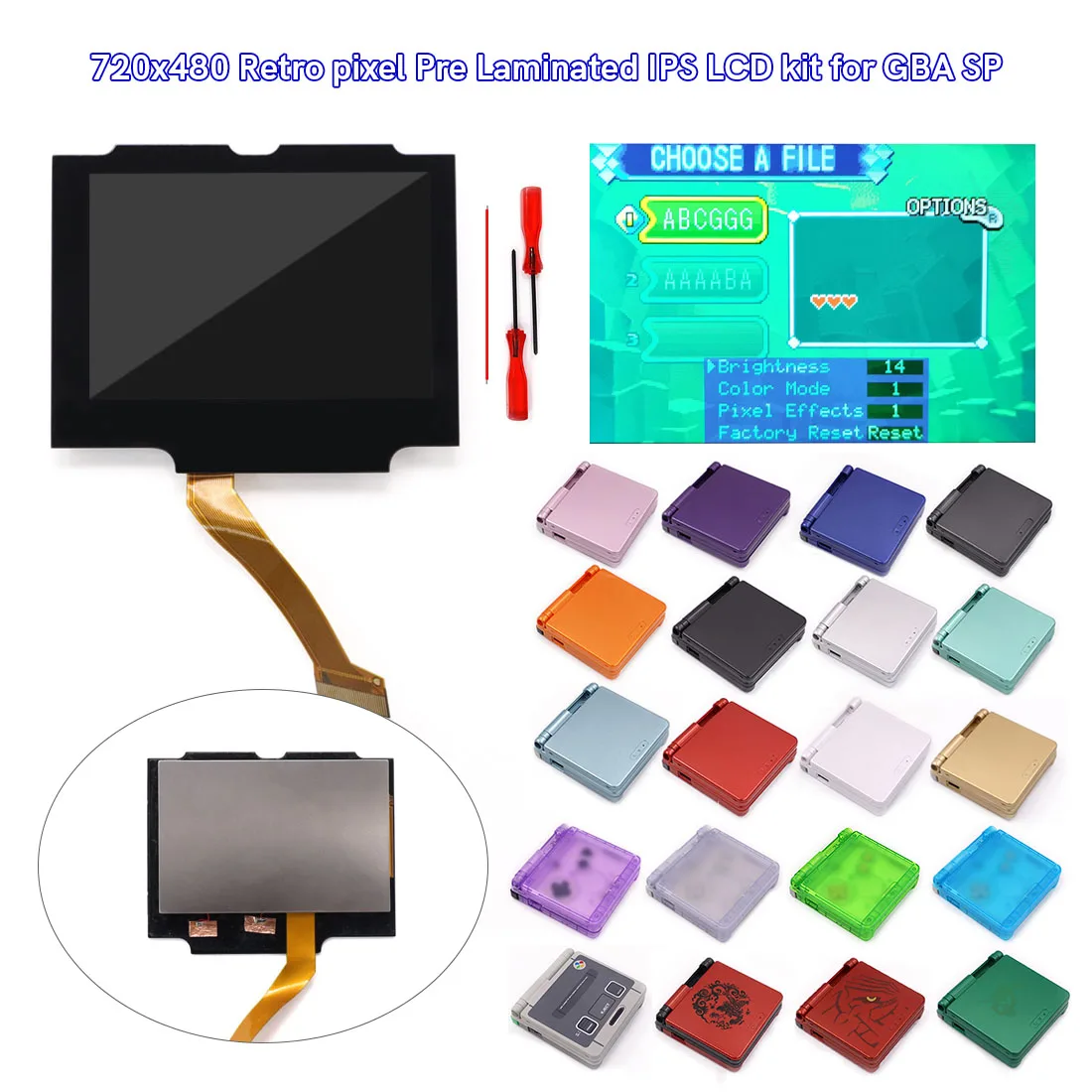

1x IPS LCD, 2x Screwdrivers, 1x red wire, . 1x Shell case, 1 set buttons, 1 set Rubber Pad, 1x Sticker label,1 set screws



New GBA SP Easy Install IPS V5 Screen Pre-Laminated Backlight Mod Kit Replacement, for Nintendo Gameboy Advance SP Handheld Game Console, 720×480 Retro Pixel Real Drop in Same Size IPS LCD Glass Lens + Multi Color Housing Case x1
