Laminated V5 IPS GBA SP Backlight Backlit LCD Replacement Mod Kits For Game Boy Advance SP NO NEED CUT Shell Case

$41.90 – $56.90

& Free Shipping
SKU: 3256804591596264 Categories: , Tags: , , , ,
,

Cheap GBA SP Laminated V5 IPS Backlight Backlit LCD Replacement Mod Kit For Nintendo GameBoy Advance SP Display Screen with NO NEED CUT Housing Shell Case Free Shipping

  • With USB: yes
  • Hign-concerned Chemical: None
  • Origin: Mainland China
  • Compatible Brand/Model: Nintendo
  • Compatible Nintendo Model: GameBoy Advance SP
  • Accessories Type: Chip/Modchip
  • Model Number: for
  • Electric: No

Cheap GBA SP Laminated V5 IPS Backlight Backlit LCD Replacement Mod Kit For Nintendo GameBoy Advance SP Display Screen with NO NEED CUT Housing Shell Case Free Shipping




Operation



Short press the button to adjust the item when OSD Menu activated.

Long press the button to select the adjustment item when OSD Menu activated.

Press the ‘Brightness’ button 5 seconds to activate the OSD Menu.

Short press the ‘Brightness’ button to change the brightness.



The ‘Brightness’ button can activate the OSD Menu after welding 1 wire.

*You need to welding 1 wire to control the OSD Menu*



Cheap GBA SP Laminated V5 IPS Backlight Backlit LCD Replacement Mod Kit For Nintendo GameBoy Advance SP Display Screen with NO NEED CUT Housing Shell Case Free Shipping Description



1. 720×480 display resolution. HD LCD.  9 pixels to 1 pixel. Integer scaling (The original GBA display resolution is 240×160).

2. Wide View angle up to 178 degree.

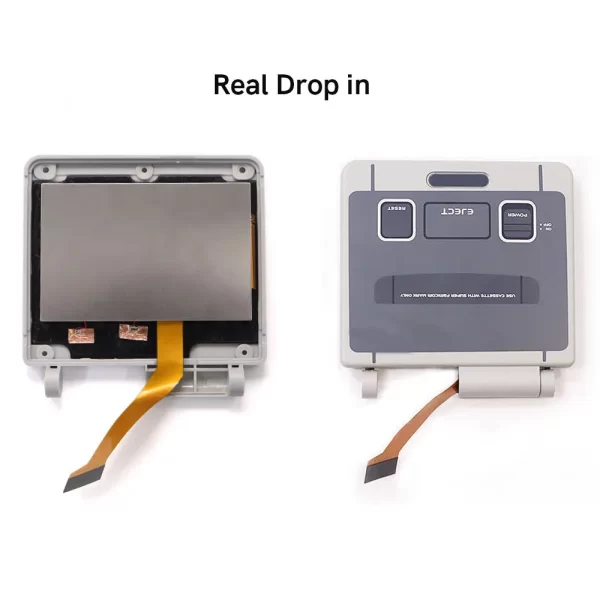

3. Real Drop in IPS LCD for . No need to cutting the shell case. Easiest to install in the world.

4. Pre Laminated Glass Screen

5. Built-in OSD Menu!

6. Effects: Normal, (like original AGS-101 LCD), Scanline 1, Scanline 2.

7. 15 brightness levels.

8. 8 color modes.

9. Touch Screen to change the brightness and change the color modes.

10. FRM On/OFF function(Frame blending On/OFF) is included. For some extremly few games, the image effect will be better when FRM turned on. For most games, No need to turn on FRM Function. The default FRM is OFF.



The firmware of this kit was upgraded on August 26, 2024.



New firmware has added the following function:



12.Add Desaturation function!



13.Add ‘Touch Shourtcut ON/OFF’ function!Set ‘Touch Shourtcut’ OFF to avoid auto cycling colour modes.







And the Glass screen lens have the LOGO.

15 brightness levels. Easy install.

No need to cutting the shell case. Just Drop the LCD into the shell case.

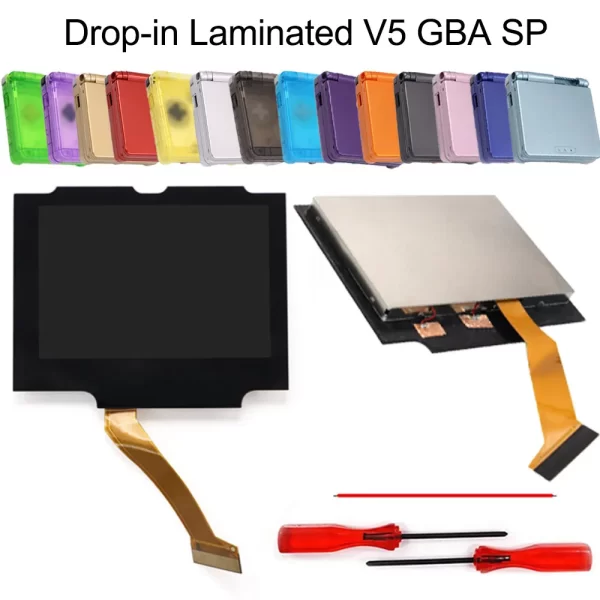

Drop In V5 720×480 Pre Laminated Retro Pixel IPS LCD For Backlight LCD For Gameboy Advance SP With Clear Shell Case.

Packing including



  • 1xIPS LCD, 2x Screwdrivers, 1x red wire, . 1x Shell case, 1 set buttons, 1 set Rubber Pad, 1x Sticker label,1 set screws,


Or:

  • 1x IPS LCD, 2x Screwdrivers, 1x red wire.






Cheap GBA SP Laminated V5 IPS Backlight Backlit LCD Replacement Mod Kit For Nintendo GameBoy Advance SP Display Screen with NO NEED CUT Housing Shell Case Free Shipping x1

Related Images:

color

Black, Clear Purple, Clear White, Glow Clear blue, gold, Gold zelda, lcd kits only, NES version, Pattern 1, Pattern 2, Pattern 3, Pattern 4, Pattern 5, Pattern 6, Pattern 7, Pattern 8, PURPLE, Red Pattern, SNES
