GBA V5 Laminated LCD Screen 3.0″ high-Brightness Drop in Screen IPS Mod Kit Replacement + Customized Housing Case Set + USB-C Rechargeable Battery, Gameboy Advance 720×480 HD Display Retro Pixel OSD Menu Glass Lens Accessories
- Origin: Mainland China
- Compatible Brand/Model: Nintendo
- Compatible Nintendo Model: GameBoy Advance
- Accessories Type: Chip/Modchip
- Model Number: for GBA
- Electric: Yes
Drop in 3.0″ V5 Laminated LCD display For GBA IPS backlight screen for Gameboy ADVANCE OSD menu UV printing Shell
Note: You don’t need to cut the shell if you buy the shell from us. Otherwise, you need to
cut the shell by yourself.
The Glass screen lens has the LOGO.
Integer Scaling. No any distortions.
GBA V5 Laminated LCD Screen 3.0″ high-Brightness Drop in Screen IPS Mod Kit Replacement + Customized Housing Case Set + USB-C Rechargeable Battery, Gameboy Advance 720×480 HD Display Retro Pixel OSD Menu Glass Lens Accessories Description:

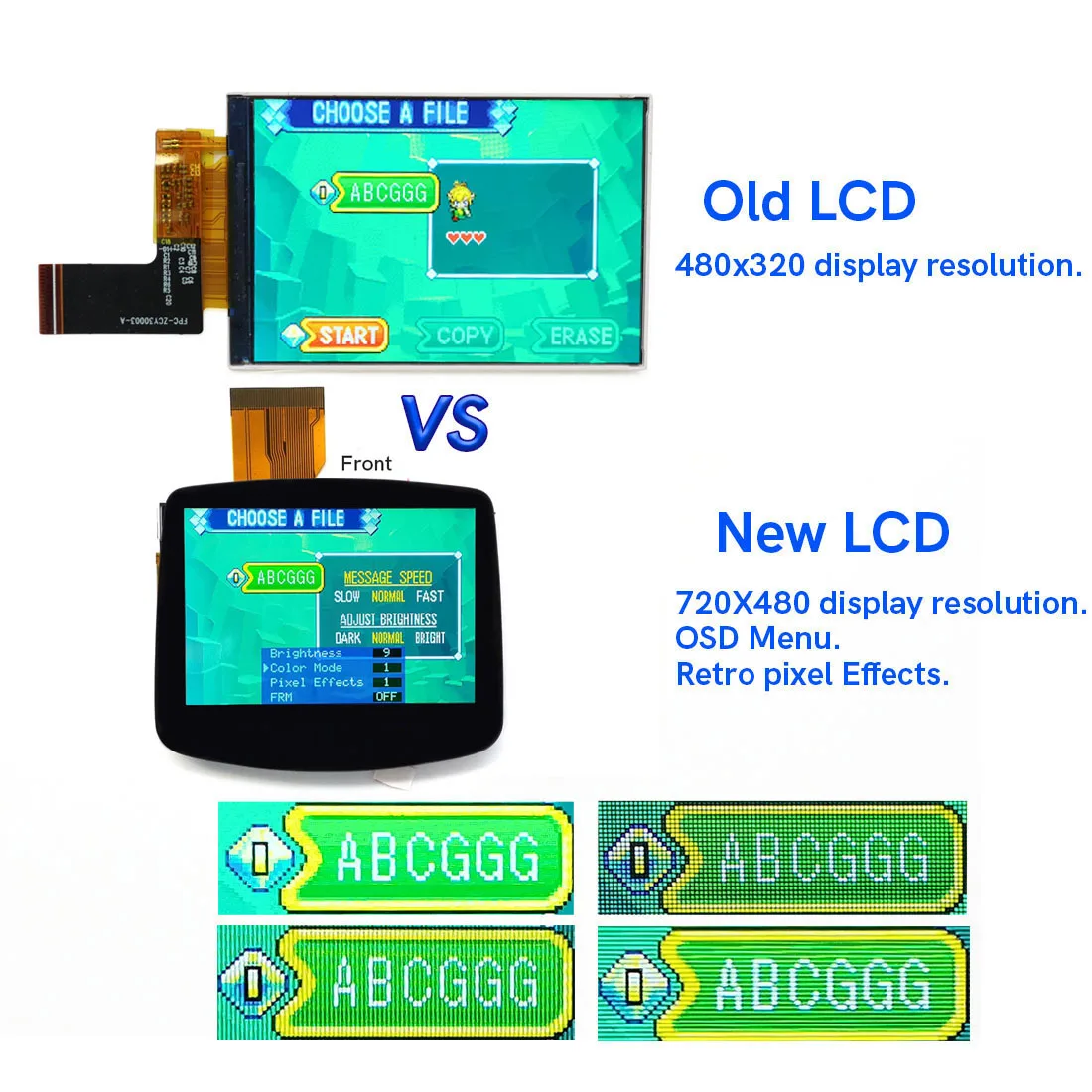

1. 720×480 display resolution.HD LCD. 9 pixels to 1 pixel. Integer scaling. No any distortions.
2. Wide View angle up to 178 degree.
3. Pre-Laminated Glass Screen.
4. The PCB has been embedded in the LCD metal shell.
5. Built-in OSD Menu!

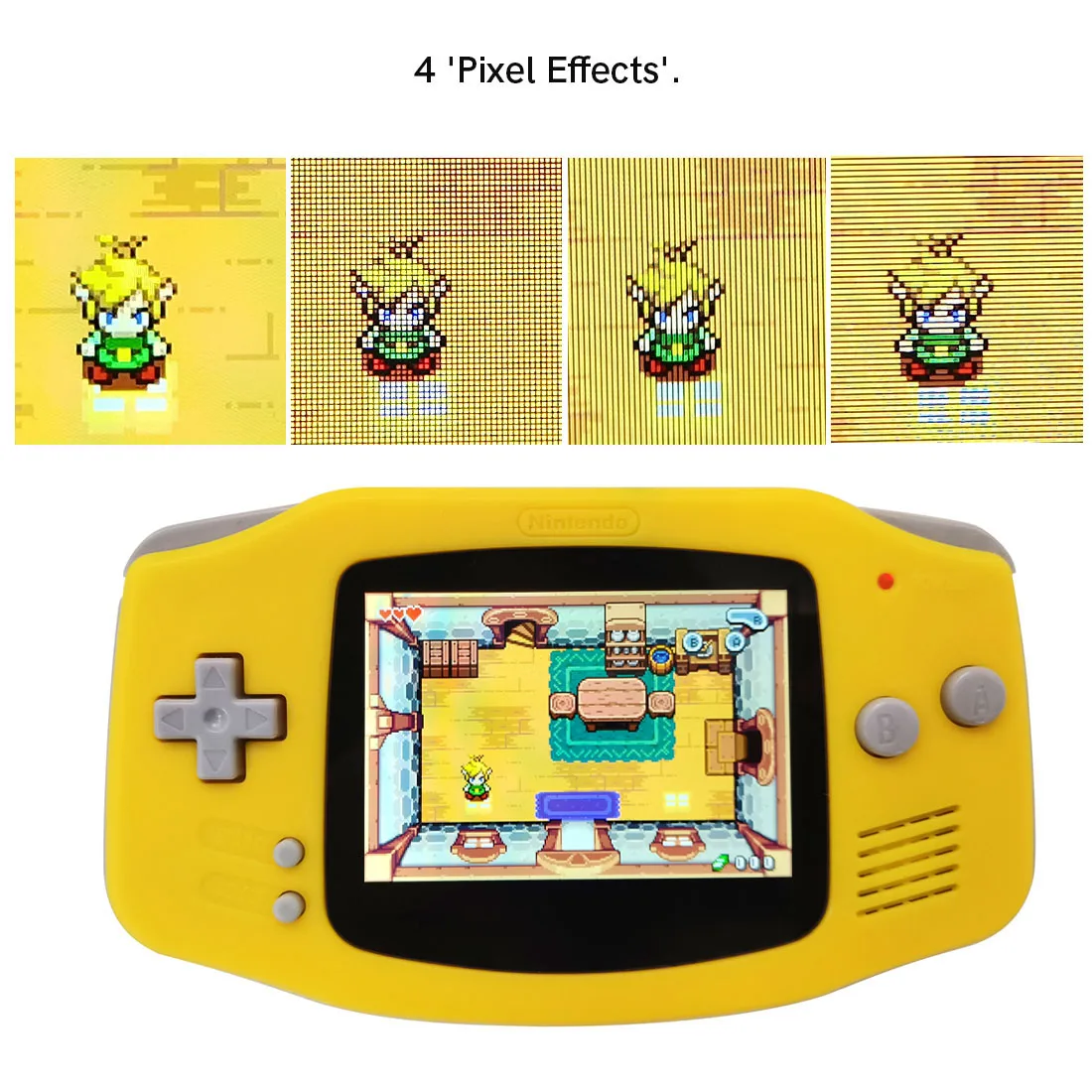

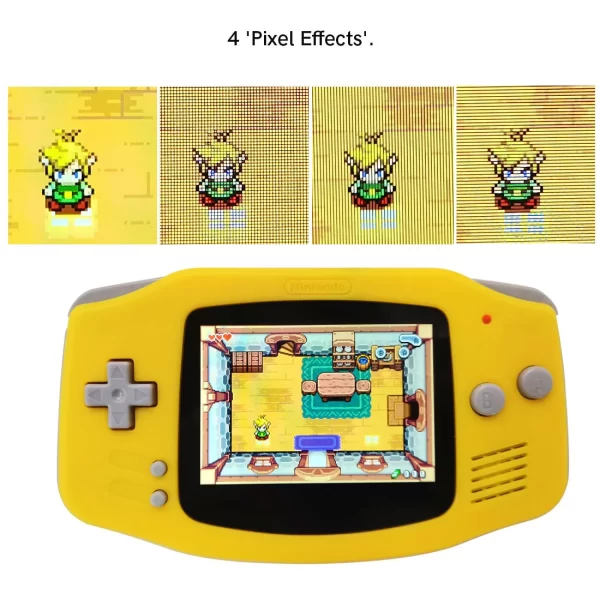

6. Retro pixel Effects: Normal, Retro pixel (like original AGS-101 LCD), Scanline 1 and Scanline 2.
7. 15 brightness levels.

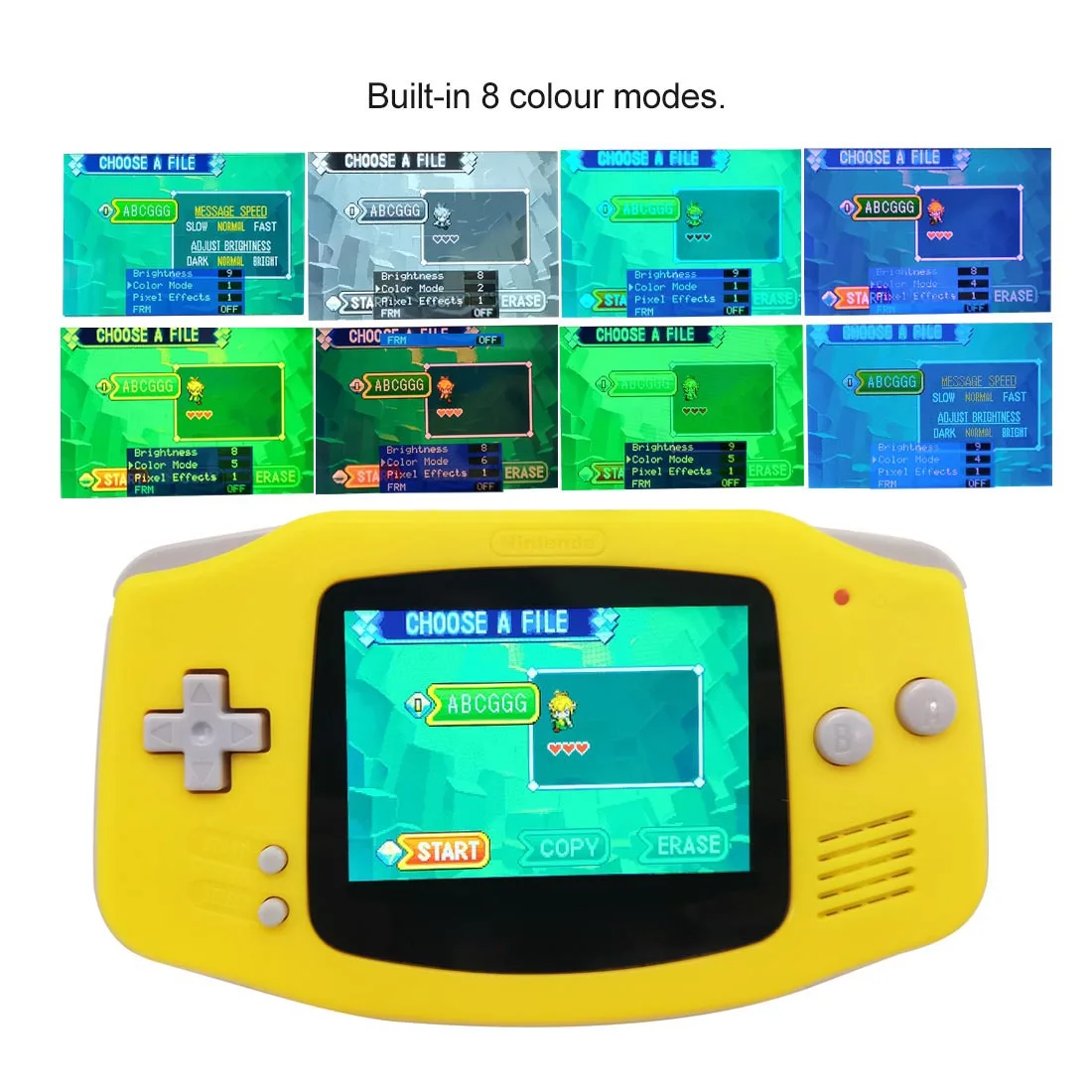

8. 8 color modes.
9. FRM On/OFF function(Frame blending On/OFF) is included. For some extremly few games, the image effect will be better when FRM turned on. For most games, No need to turn on FRM Function. The default FRM is OFF.
10. Touch Screen to change the brightness and the color modes.
11. Compatible 32 pin and 40 pin motherboard.

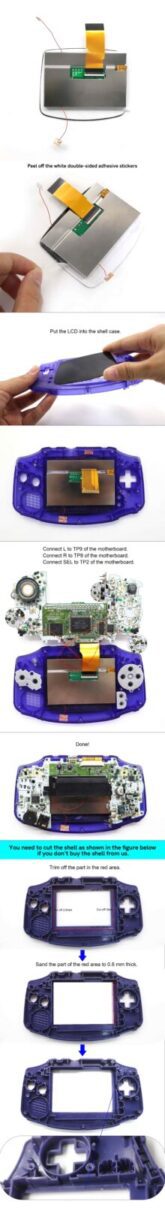

*You need to welding 3 wires to control the OSD Menu*
New firmware has added the following function:

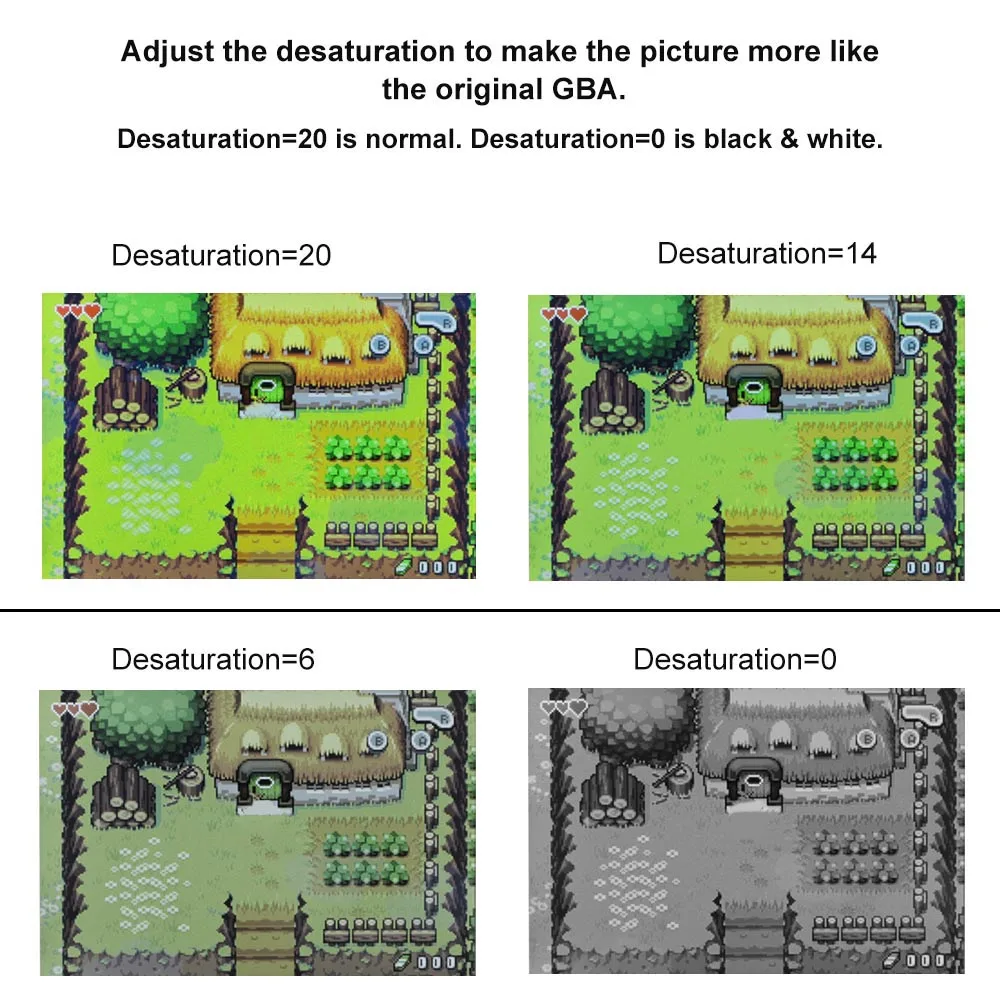

12.Add Desaturation function!
13.Add ‘Touch Shourtcut ON/OFF’ function!Set ‘Touch Shourtcut’ OFF to avoid auto cycling colour modes.
OSD Menu Operation:
-Press the Select+L+R buttons for 1 second at the same time, then release the buttons to activate the OSD Menu.
-Press the Select button to select the adjustment item when OSD Menu activated.
-Press the L or R button to adjust the item when OSD Menu activated.
You don’t need to do any welding if you don’t want the OSD menu!
1x Pre-Laminated IPS LCD, 2x Screwdrivers, 3x red wires, 2x ribbon cables
Or:

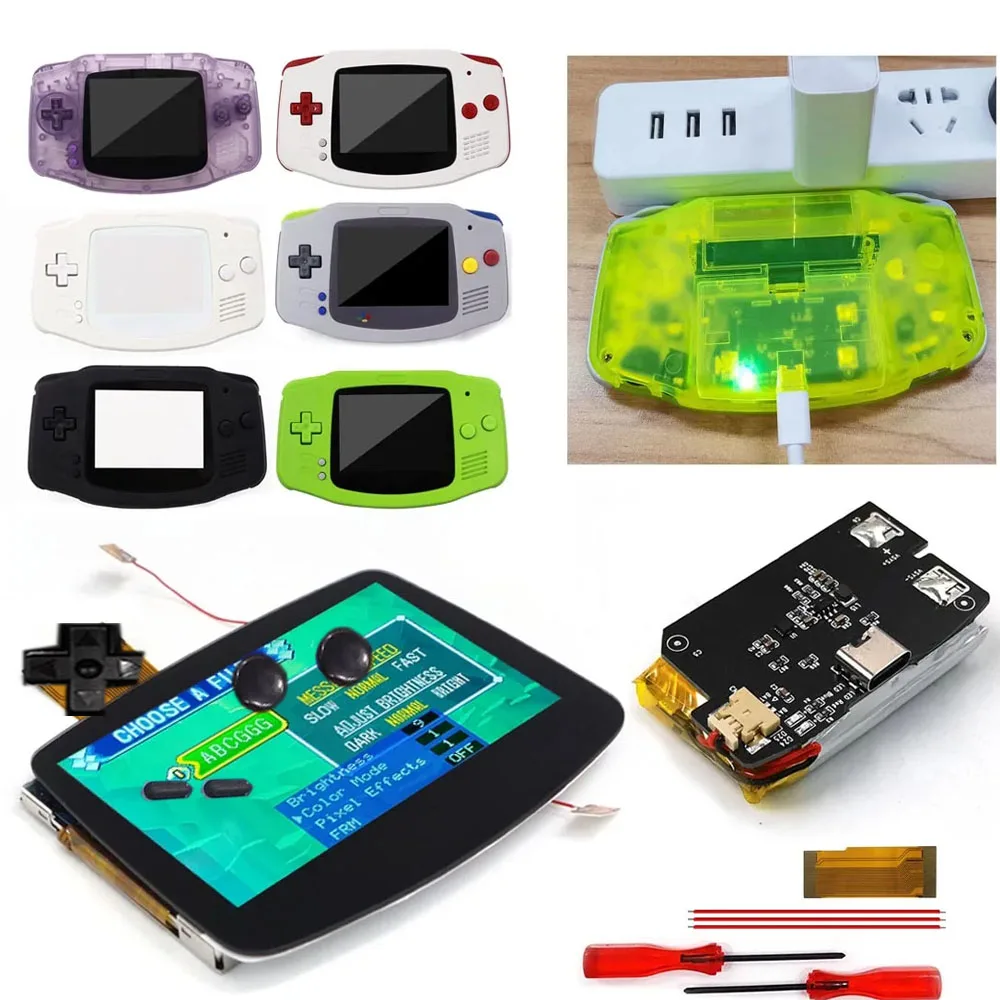

1x Pre-Laminated IPS LCD, 2x Screwdrivers, 3x red wires, 2x ribbon cables, 1x UV printed shell case,
1 set buttons,1 set Rubber Pad, 1x Sticker label, 1 set screws, 1x 1800mah battery
GBA V5 Laminated LCD Screen 3.0″ high-Brightness Drop in Screen IPS Mod Kit Replacement + Customized Housing Case Set + USB-C Rechargeable Battery, Gameboy Advance 720×480 HD Display Retro Pixel OSD Menu Glass Lens Accessories x1
