GBA SP IPS Laminated IPS LCD Mod Kit V5 3.0 inch Drop in HD Screen Replacement, for Nintendo GameBoy Advance SP Handheld Console, Custom DIY Clear Housing Case Shell Set, 720×480 Display Retro Pixel 9 to 1 OSD Menu Accessories

$345.10 – $388.36

& Free Shipping
SKU: 3256807060667300 Categories: , Tags: , , , , , , , , , , , ,
,

GBA SP IPS Laminated IPS LCD Mod Kit V5 3.0 inch Drop in HD Screen Replacement, for Nintendo GameBoy Advance SP Handheld Console, Custom DIY Clear Housing Case Shell Set, 720×480 Display Retro Pixel 9 to 1 OSD Menu Accessories

  • Origin: Mainland China
  • Compatible Brand/Model: Nintendo
  • Compatible Nintendo Model: GameBoy Advance SP
  • Accessories Type: Chip/Modchip
  • Model Number: for

The mainboard of the console, hinges and battery are not included. The is  with the logo.


720×480 display resolution. HD IPS LCD. 9 pixels to 1 pixel. Much better than 640*480 of other suppilers, No picture distort.



GBA SP IPS Laminated IPS LCD Mod Kit V5 3.0 inch Drop in HD Screen Replacement, for Nintendo GameBoy Advance SP Handheld Console, Custom DIY Clear Housing Case Shell Set, 720×480 Display Retro Pixel 9 to 1 OSD Menu Accessories Specification



1. 720×480 display resolution. HD IPS LCD.  9 pixels to 1 pixel.
2. Wide View angle up to 178 degree.

3. Real Drop in IPS LCD for GBA SP. No need to cutting the shell case. Easiest to install in the world.4.

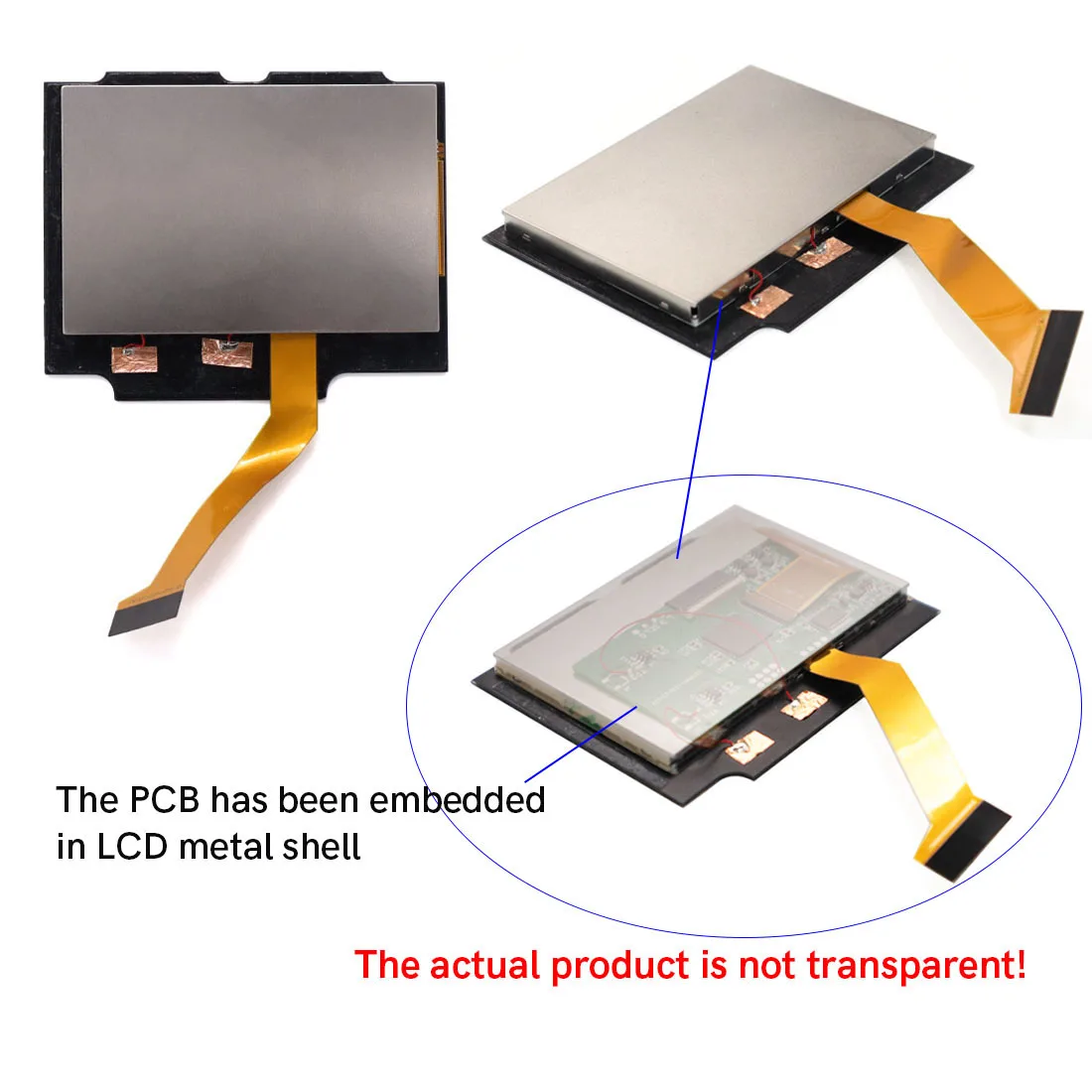

Pre Laminated Glass Screen.
5. Same display size as the original LCD screen.
6. Built-in OSD Menu!

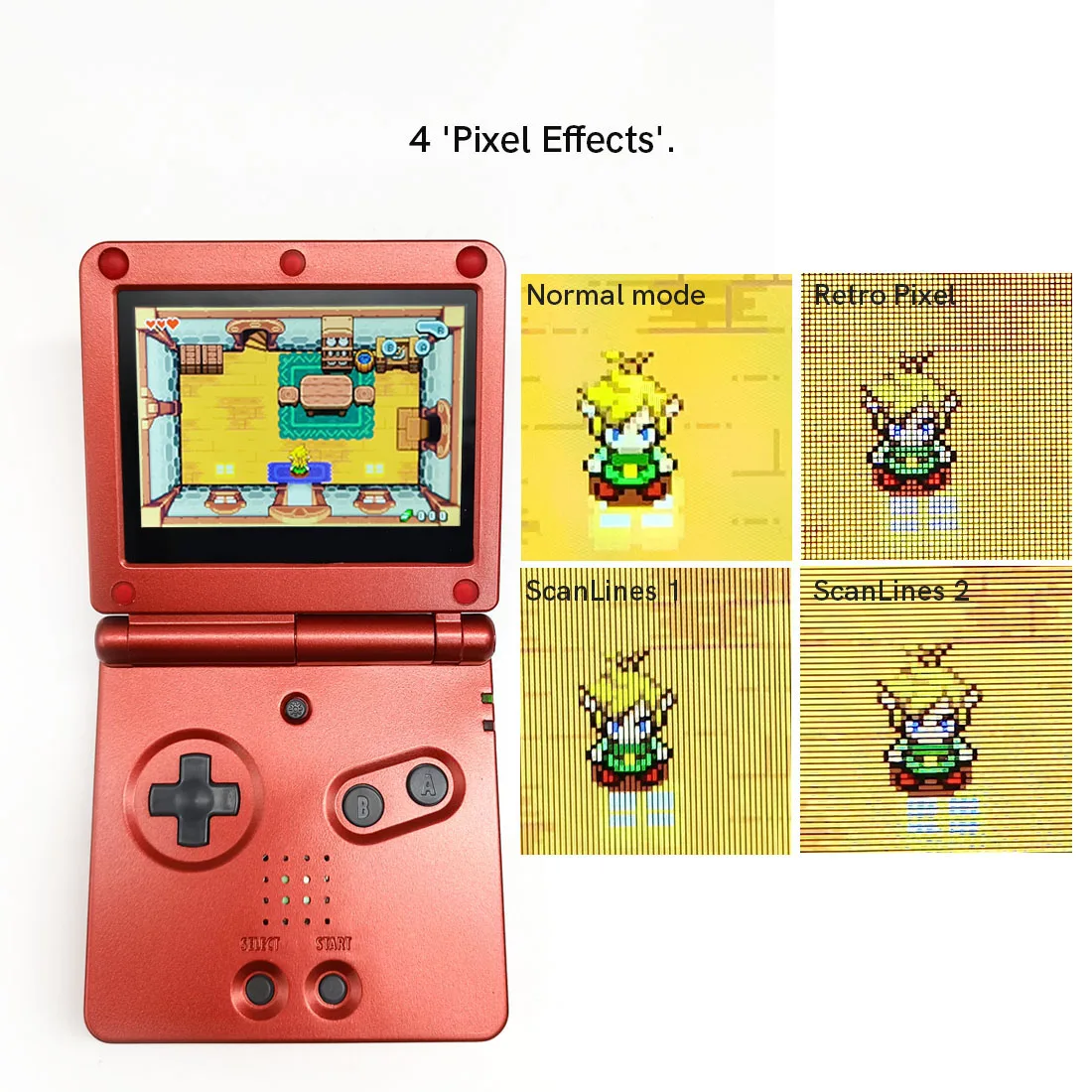

7. Retro pixel Effects:  Normal, Retro pixel, Scanline 1, Scanline 2.
8. 15 brightness levels.

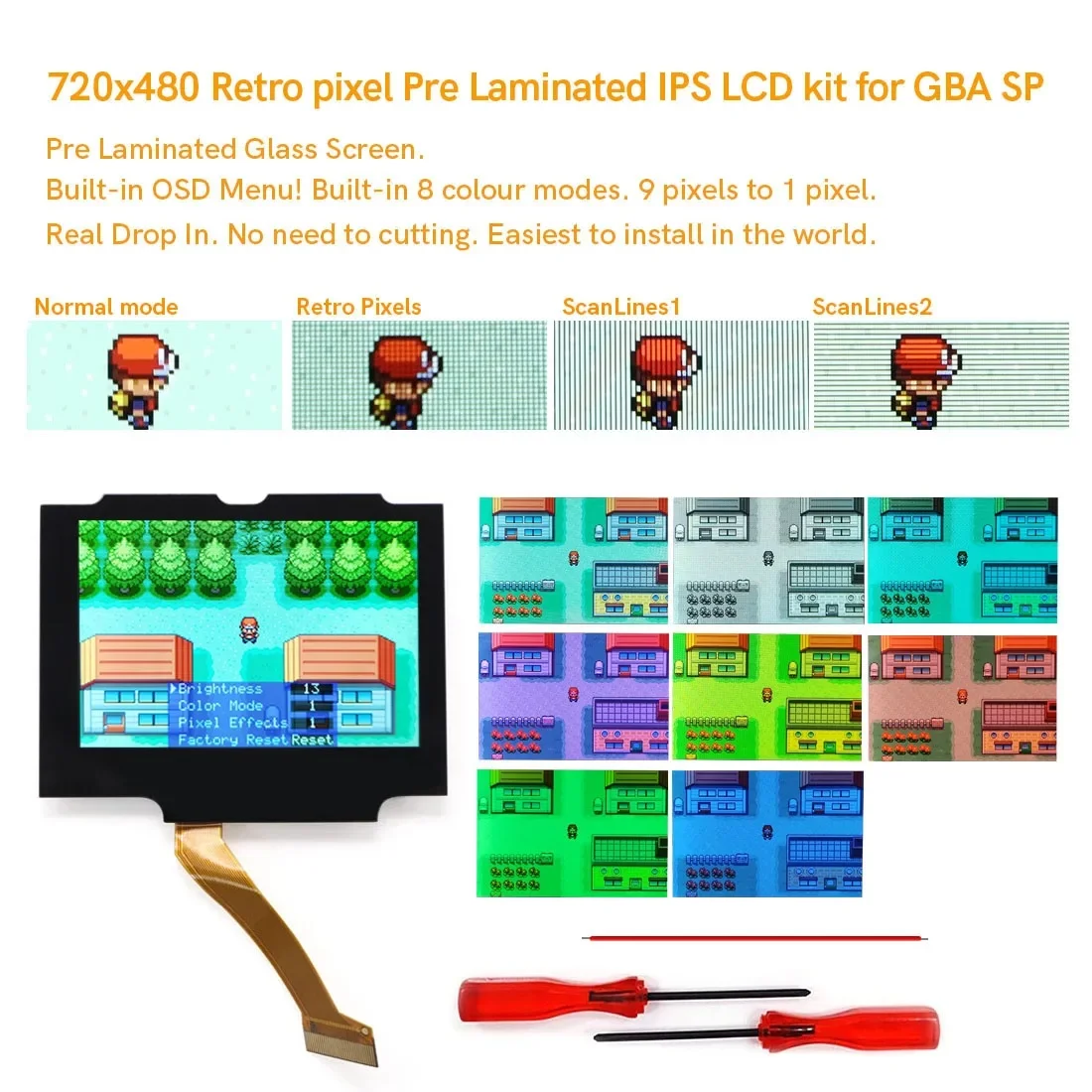

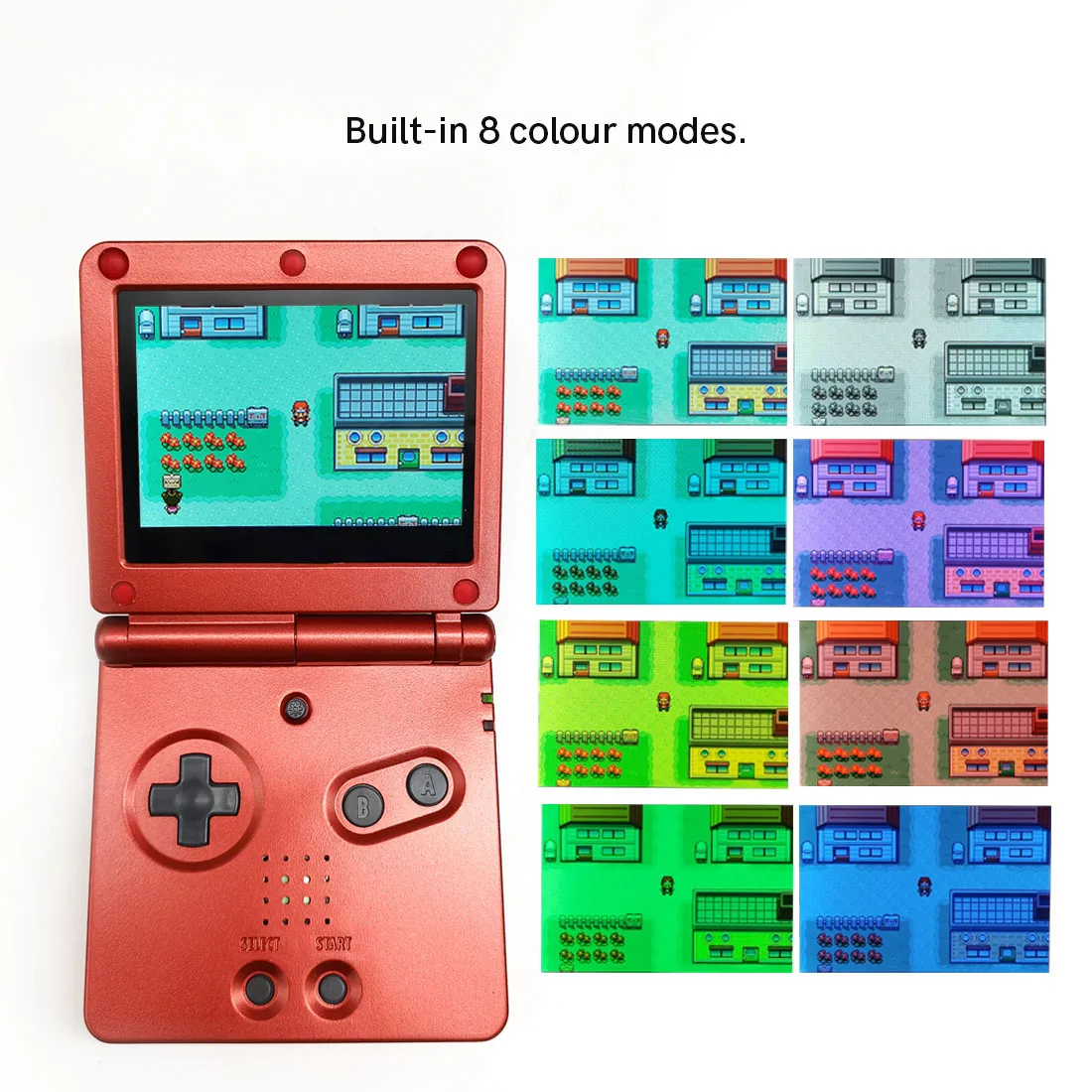

9.  8 color modes.
10. Touch Screen to change the brightness and change the color modes.


11.FRM On/OFF function(Frame blending On/OFF) is included. For some extremly few games, the image effect will be better when FRM turned on. For most games, No need to turn on FRM Function. The default FRM is OFF.

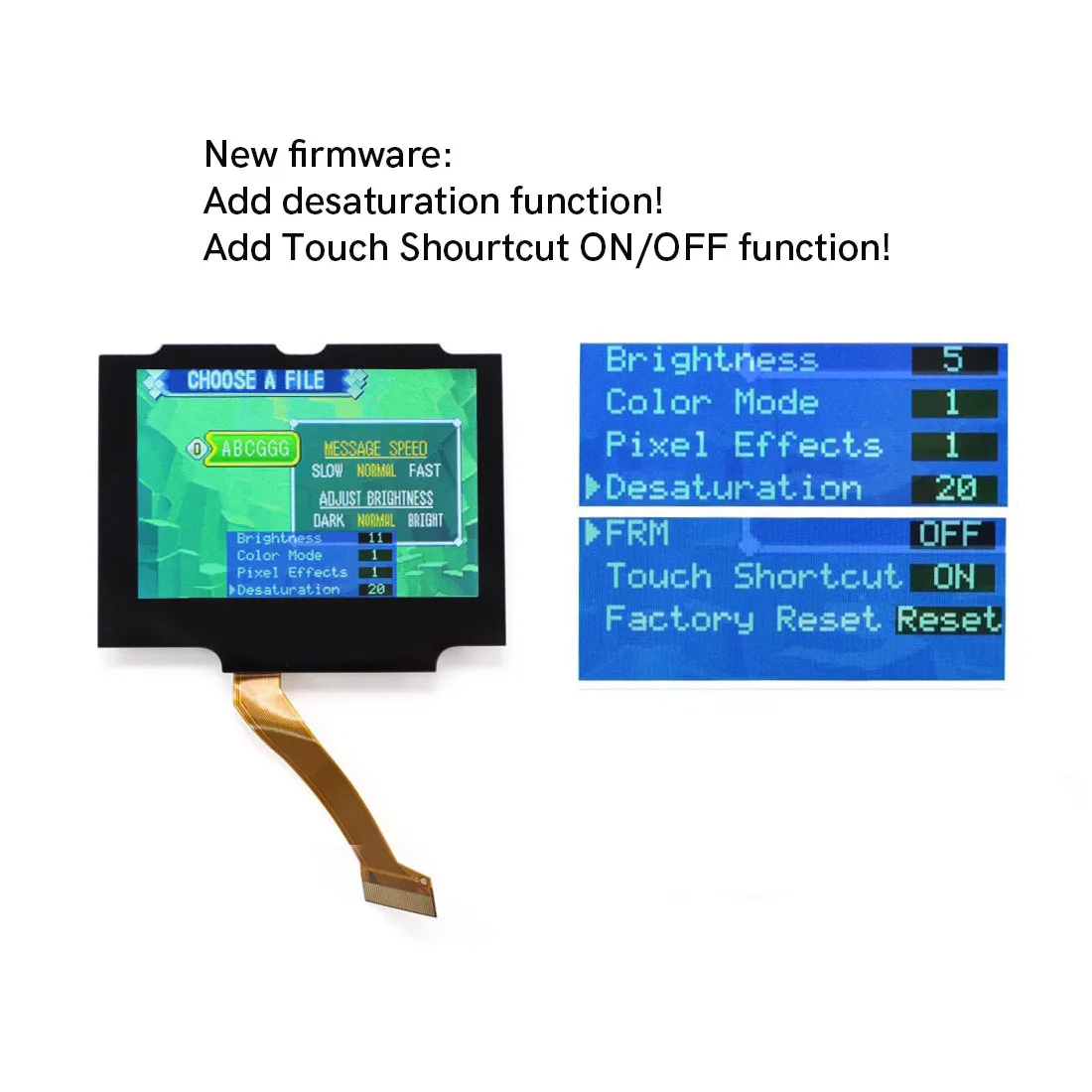

New firmware has added the following function:

12.Add Desaturation function!



13.Add ‘Touch Shourtcut ON/OFF’ function! Set ‘Touch Shourtcut’ OFF to avoid auto cycling colour modes.

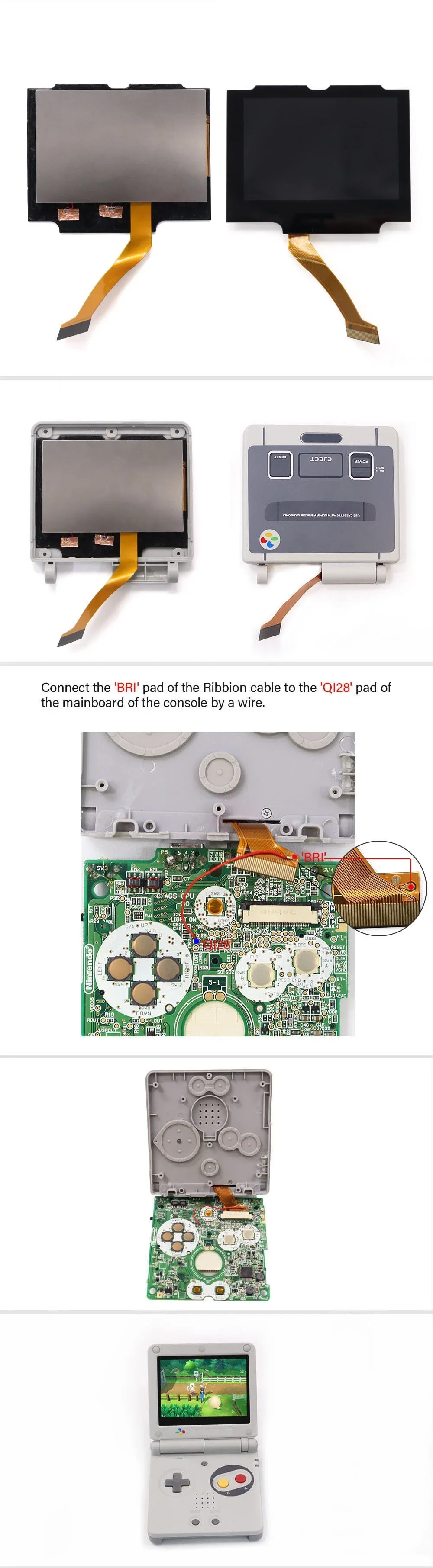

*You need weld 1 red wire to control the OSD Menu*

The ‘Brightness’ button can activate the OSD Menu after welding.

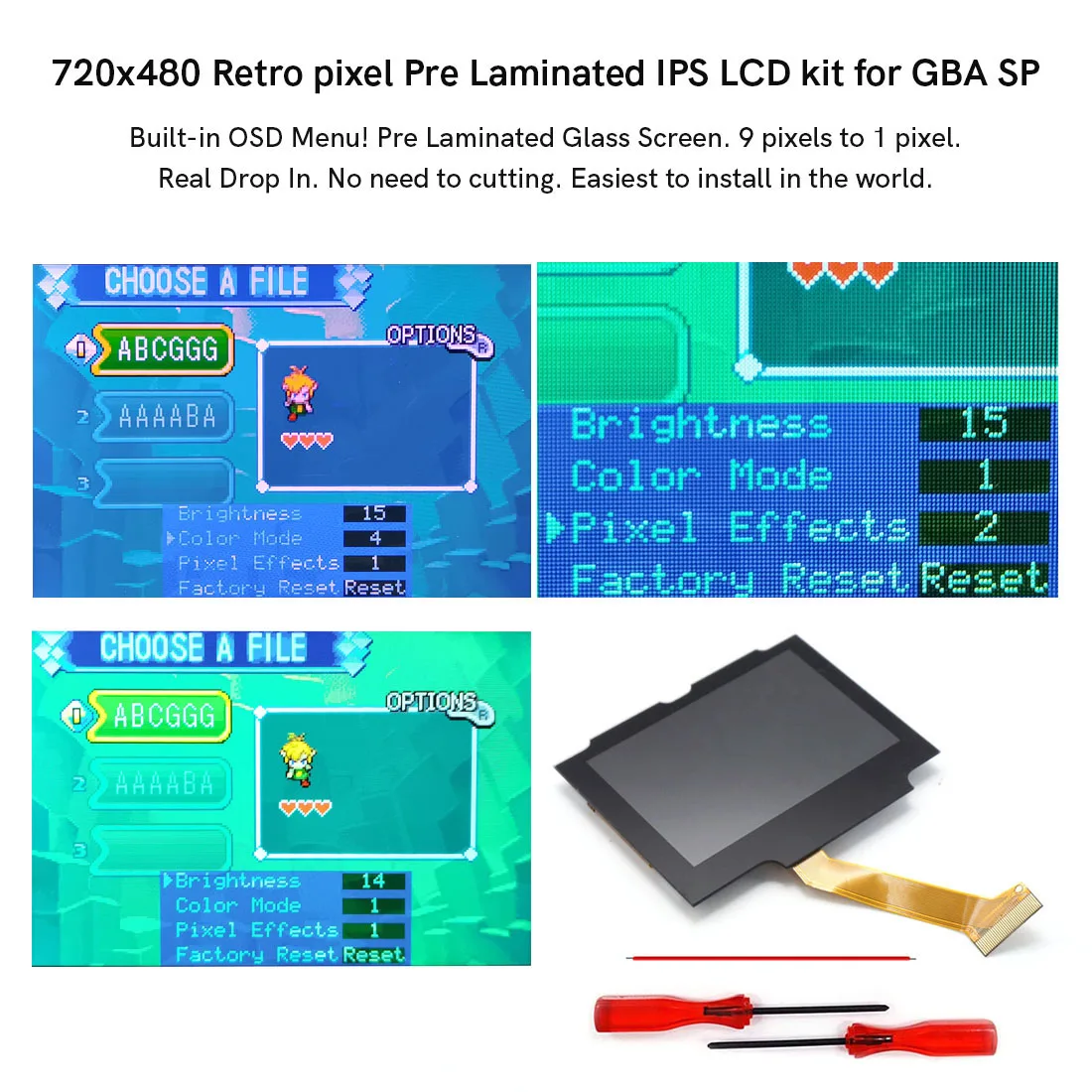

Menu Operation:

Short press the ‘Brightness’ button to change the brightness.

Press the ‘Brightness’ button 5 seconds to activate the OSD Menu.

Long press the button to select the adjustment item when OSD Menu activated.

Short press the button to adjust the item when OSD Menu activated.




Packing including :

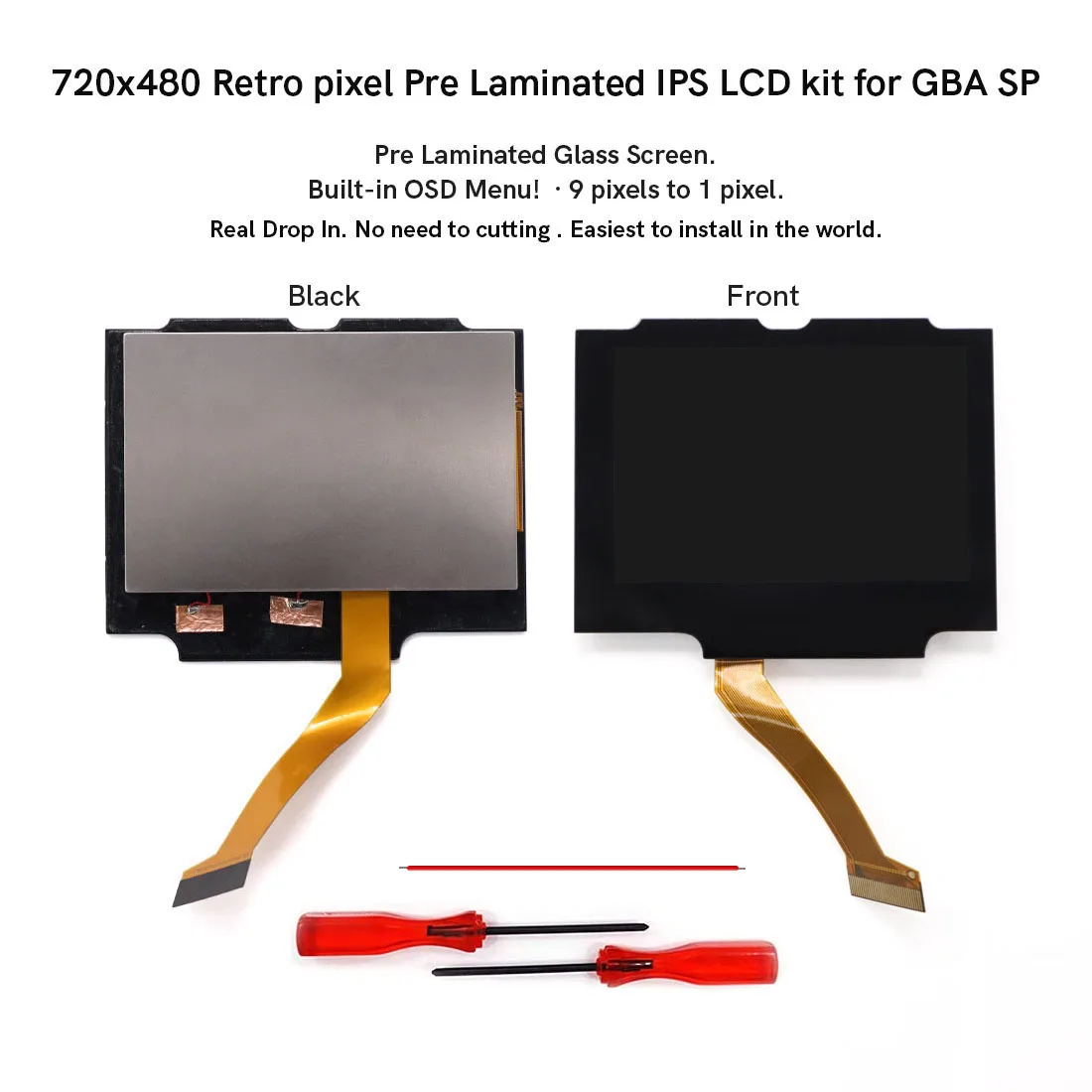

1x IPS LCD, 2x Screwdrivers, 1x red wire.

Or:

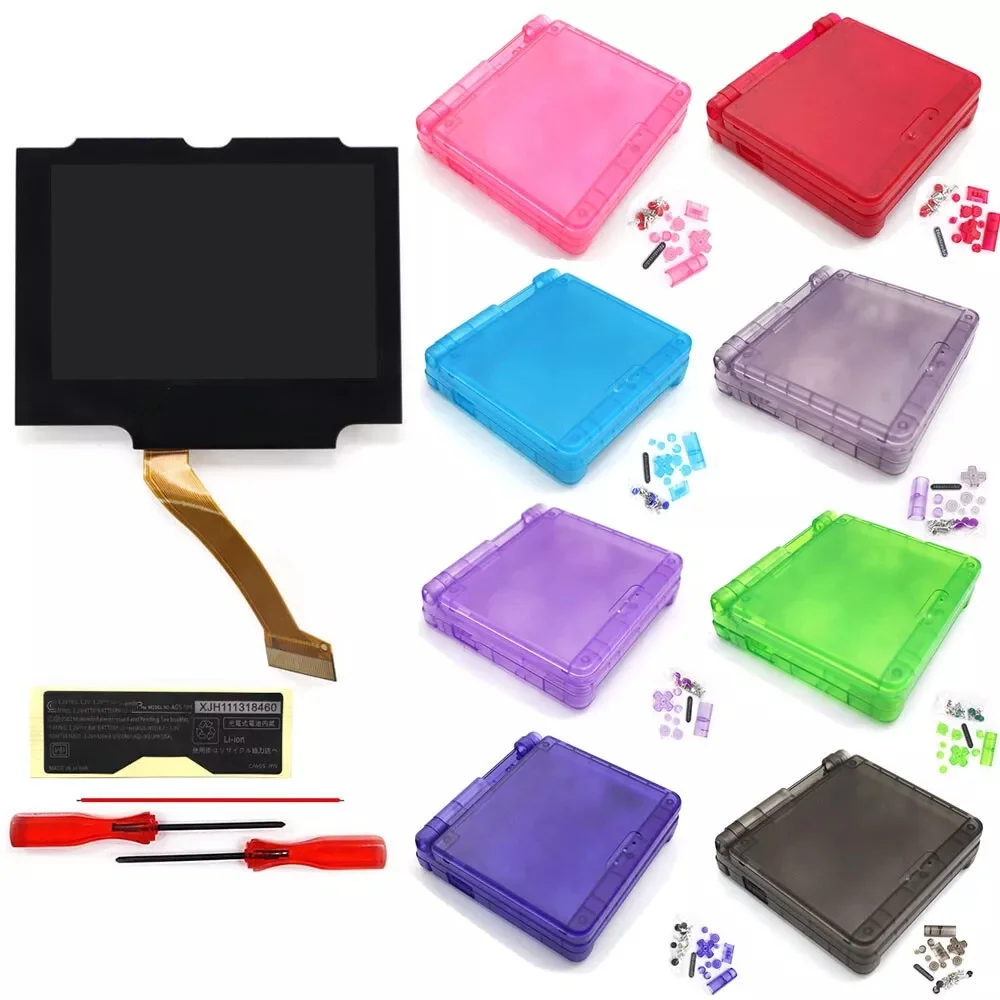

1x IPS LCD, 2x Screwdrivers, 1x red wire, . 1x Shell case, 1 set buttons, 1 set Rubber Pad, 1x Sticker label,1 set screws



IPS Laminated IPS LCD Mod Kit V5 3.0 inch Drop in HD Screen Replacement, for Nintendo GameBoy Advance SP Handheld Console, Custom DIY Clear Shell Set, 720×480 Display 9 to 1 OSD Menu Accessories x1

Related Images:

color

Clear Black, clear deep blue, clear deep purple, clear gold, Clear Green, Clear Orange, Clear Purple, Clear Red, Clear royal blue, Clear White, Glow Clear blue, Glow Clear green, Glow clear yellow, ONLY LCD KIT, White lens 1, White lens 2, White lens 3, White lens 4, White lens 5
