Gameboy Advance GBA V5 Laminated IPS LCD Mod Kit + 1800mAh Rechargable Type-C Lithium Battery + Pre-Cutting Housing Shell Case + Glass Screen Lens, Drop in Retro Pixel Backlight Screen Accessories + Repairing Tool Full Set

Brand V5 Laminated IPS Backlight LCD Kit With 1800mAh

Rechargeable Type-C Lithium Battery+Housing Shell For GBA Console

The shell is customized produced. It can perfectly fit the Hispeedido GBA V5

Laminated backlight LCD kit. No need trimming.

Integer Scaling. No any distortions.

Add FRM On/Off function ( Frame blending On/Off )

1. 720×480 display resolution.HD LCD.  9 pixels to 1 pixel. Integer scaling. No any distortions.

2. Wide View angle up to 178 degree.

3. Pre Laminated Glass Screen.

4. The PCB has been embedded in the LCD metal shell.

5. Built-in OSD Menu!

6.  Retro pixel Effects: Normal, Retro pixel (like original AGS-101), Scanline 1 and Scanline 2.

7. 15 brightness levels.

8. 8 color modes.

9.  FRM On/OFF function(Frame blending  On/OFF) is included.  For  some extremly few games,

the image effect will be better when FRM  turned on. For most games, No need to turn on FRM

Function. The default FRM is OFF.

10. Touch Screen to change the brightness and the color modes.

11. Compatibles 32 pin and 40 pin motherboard.

OSD Menu Operation:

-Press the Select+L+R buttons for 1 second at the same time, then release the buttons to

activate the OSD Menu.

-Press the Select button to select the adjustment item when OSD Menu activated.

-Press the L or R button to adjust the item when OSD Menu activated.

You don’t need to do any welding if you don’t want the OSD menu!

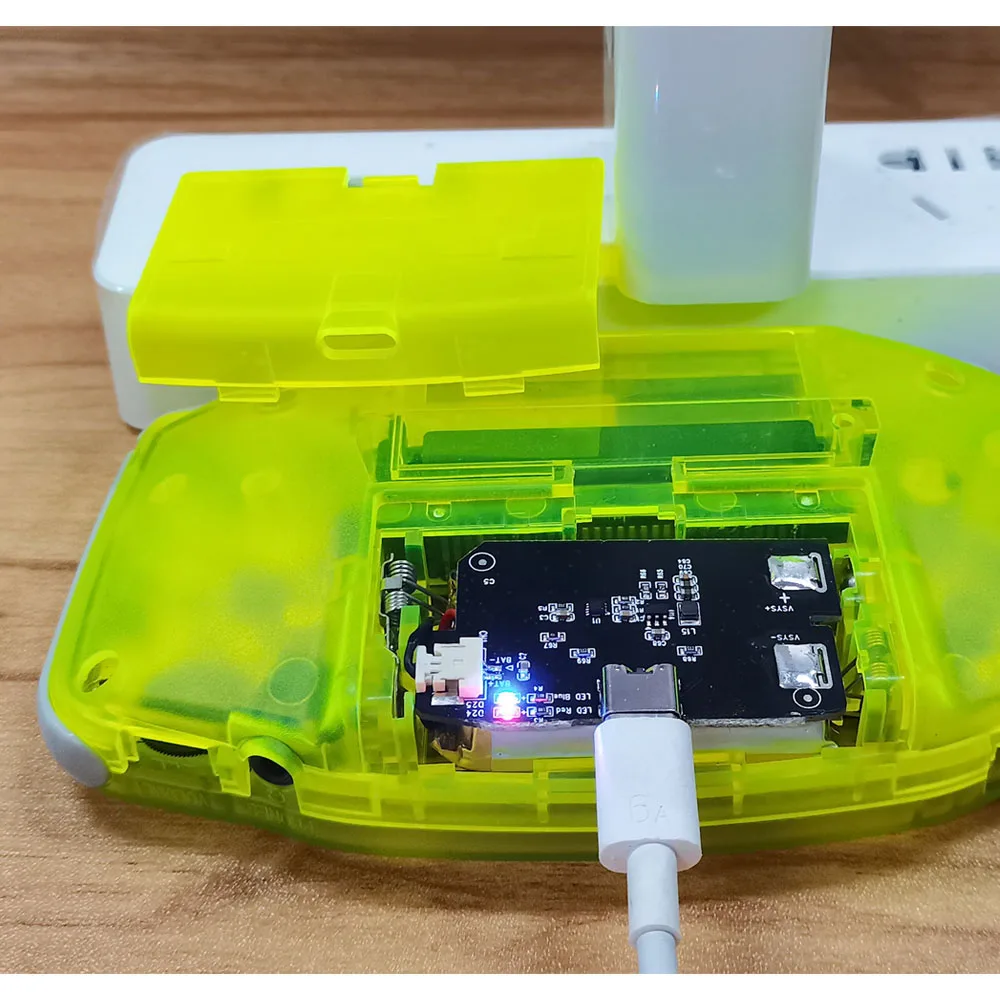

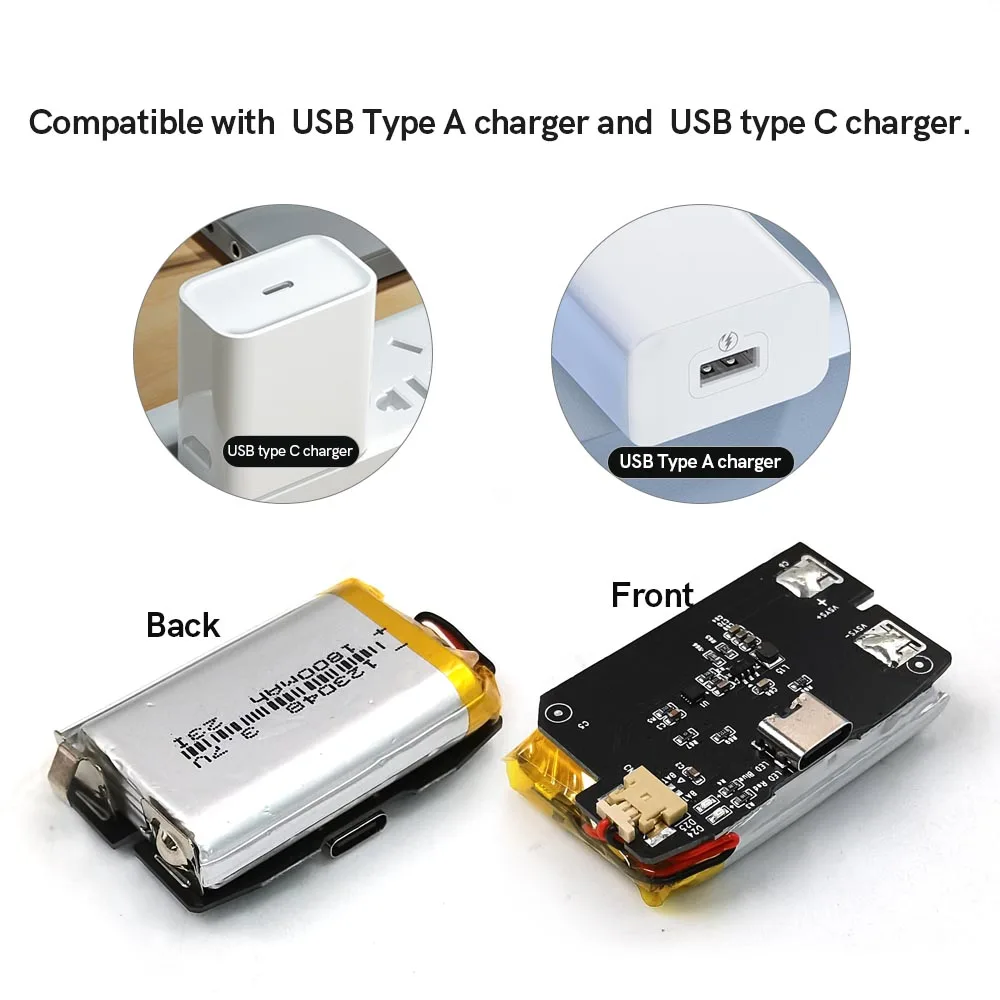

1 lossless to achieve lithium battery power supply for GBA.

2. With the exclusive Type-C battery back cover, (more colors will be sold in future)

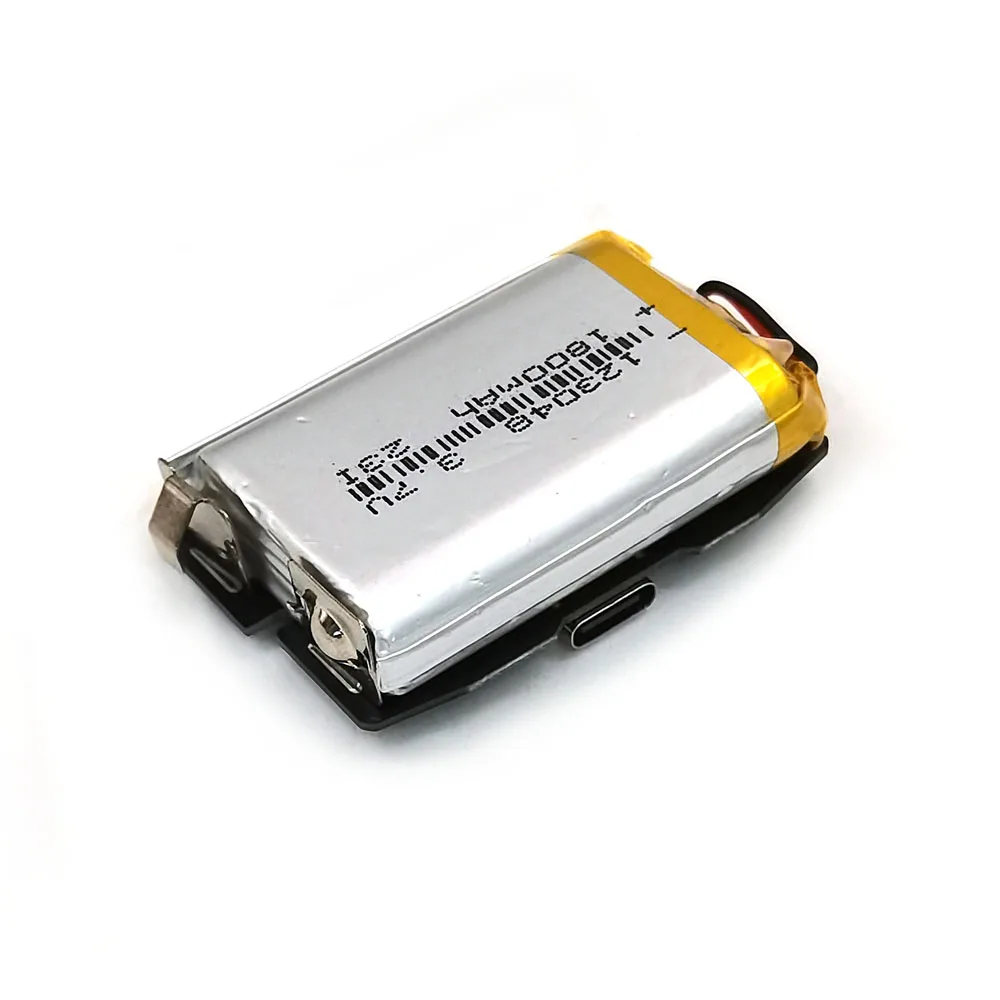

3. 1800mAh The actual capacity has no false label. Using the genuine game cartridges with medium

brightness on the IPS screen, it can be used at least 12 hours until the power light goes to red light.

4. Uses TI battery management chip. No heat sink required.

5. Over Voltage protection, Over Current protection, Short circuit protection.



1x Pre-Laminated IPS LCD

2x Screwdrivers

3x red wires

2x ribbon cables

1x Shell case

1 set buttons

1 set Rubber Pad

1x Sticker label

1 set screws

1x Battery
