GameBoy Advance GBA 3.0 Inch V5 Laminated LCD Drop in Backlight Screen Mod Kit + Customized Housing Shell Set + 1800mah Rechargable USB-C Rechargable Lithium Battery, OSD Menu 720×480 HD Display 178 Degree Replacement Parts Free Shipping
- Origin: Mainland China
- Compatible Brand/Model: Nintendo
- Compatible Nintendo Model: GameBoy Advance
- Accessories Type: Motherboard
- Model Number: For GBA console
- Electric: Yes
- is_customized: Yes
- Battery cover: with Type C port
- Shell: Customised to fit GBA V5 Laminated LCD
- Trimming: No Need
- LCD: 3.0 inch 720*480
- OSD Menu: Yes
- Battery capacity: Real 1800mah

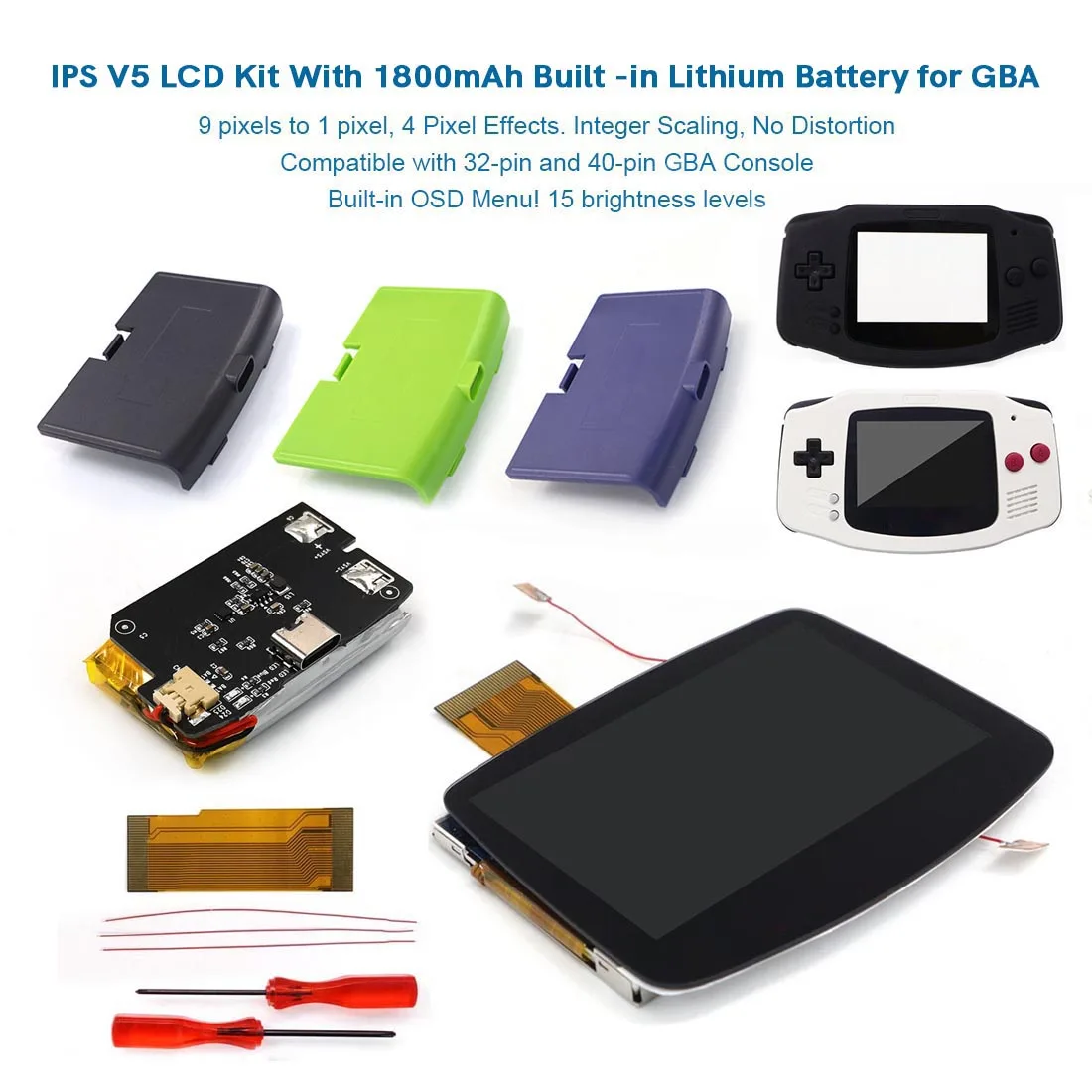

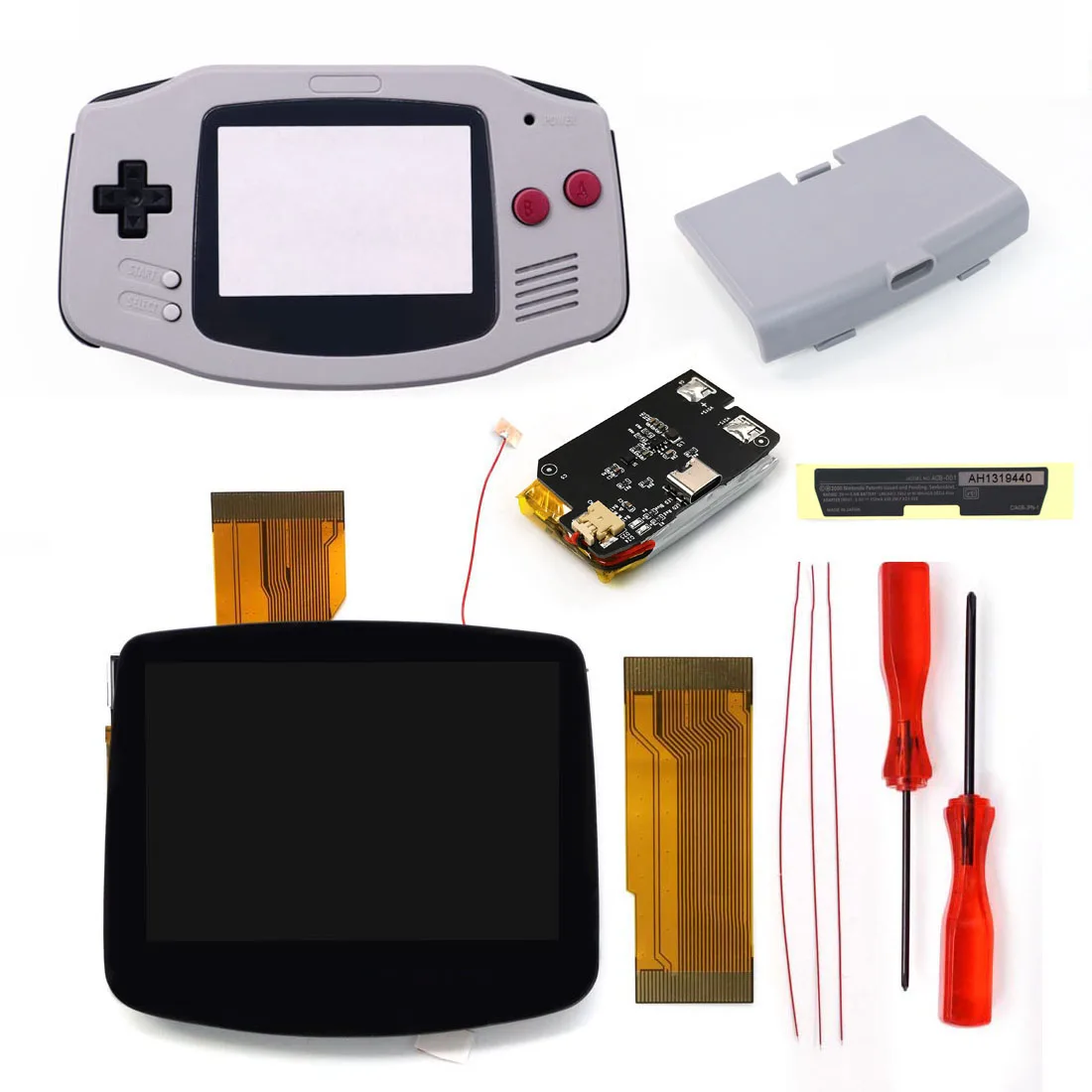

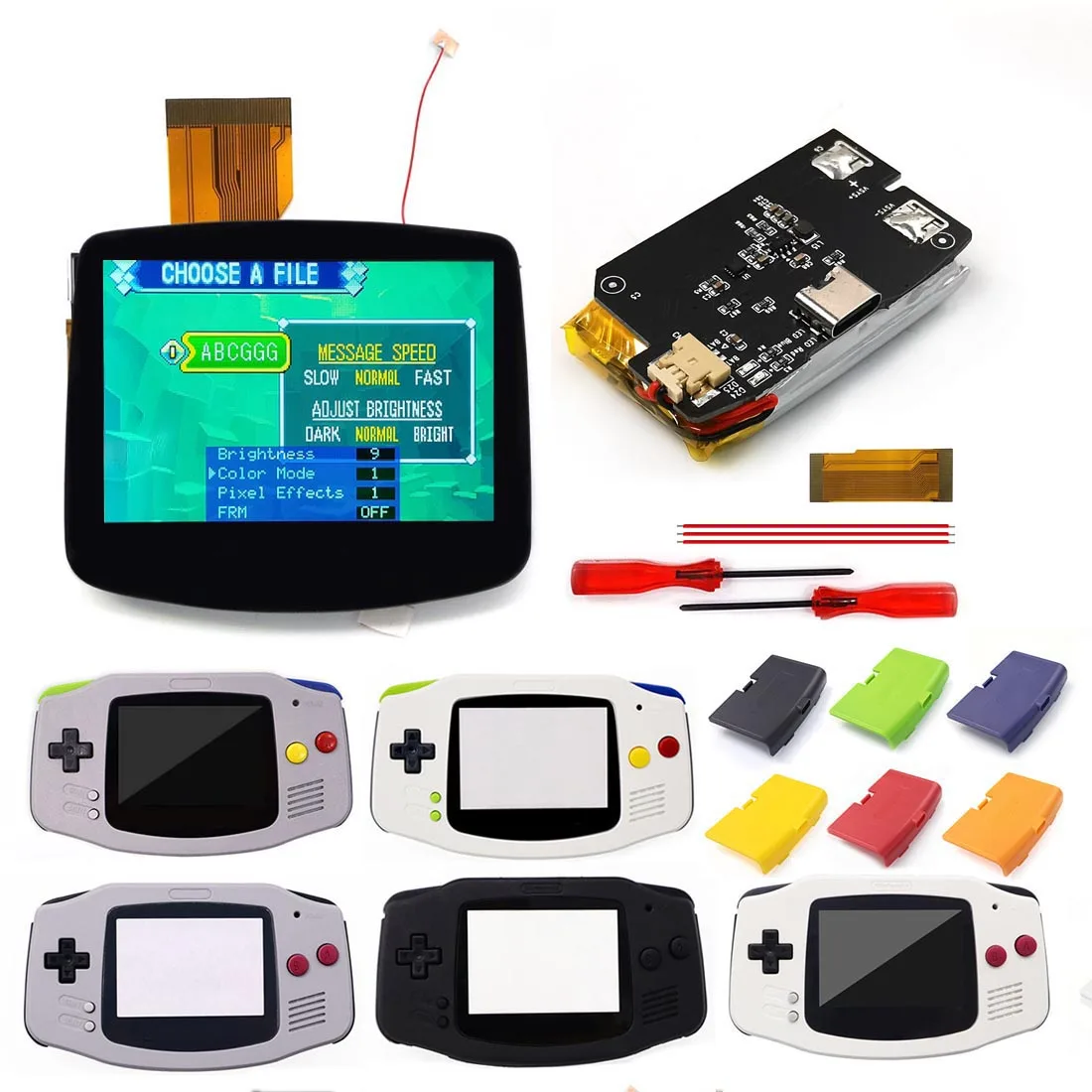

Drop in 3.0 inch GBA V5 Laminated Backlight LCD kit screen display Customized Shell 1800mah Rechargable Type C Lithium Battery
The GBA console is not included. The glass screen is with logo.
The shell is customised produced. It can perfectly fit the Hispeedido GBA V5 Laminated backlight LCD kit. No need trimming.
The battery cover has the USB Type C slot.
40pin and 32 pin flex cables are included.
The firmware of this kit was upgraded on August 26, 2024.
New firmware has added the following function:

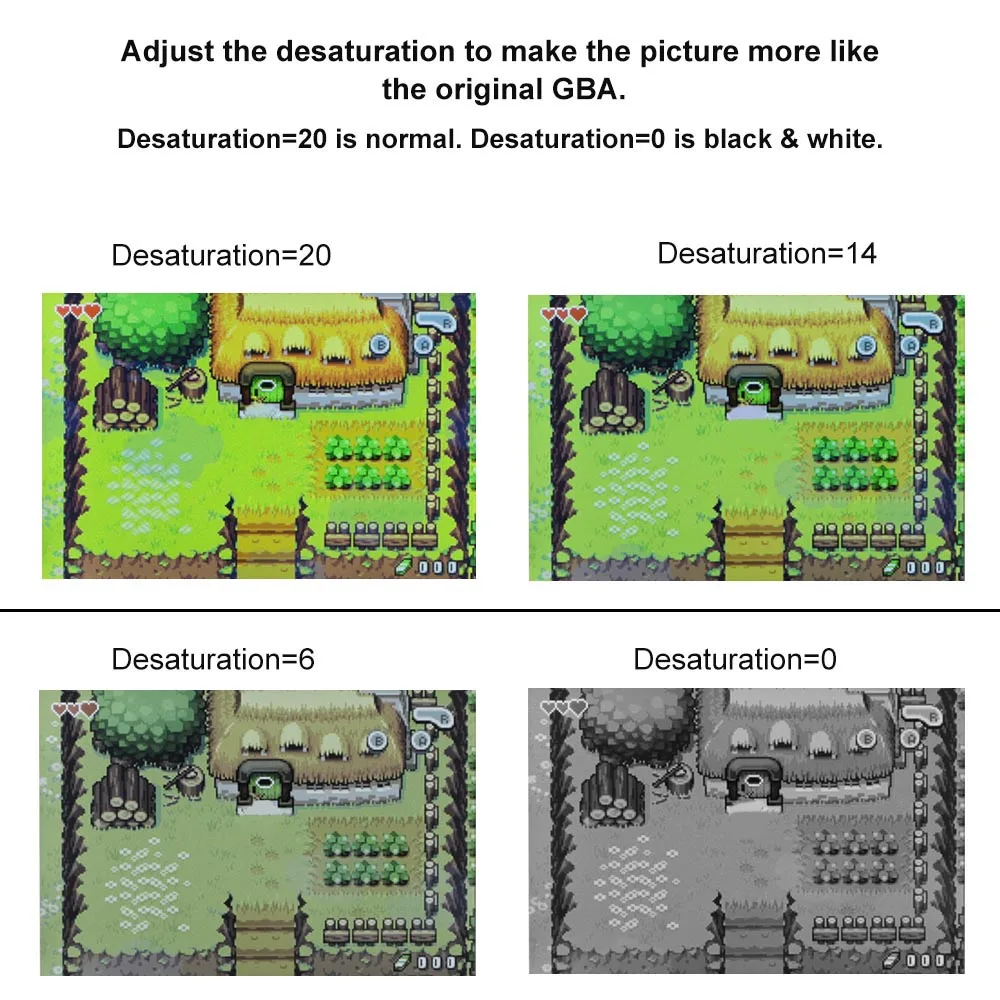

1. Add Desaturation function!
2. Add ‘Touch Shourtcut ON/OFF’ function!
Set ‘Touch Shourtcut’ OFF to avoid auto cycling colour modes.
GameBoy Advance GBA 3.0 Inch V5 Laminated LCD Drop in Backlight Screen Mod Kit + Customized Housing Shell Set + 1800mah Rechargable USB-C Rechargable Lithium Battery, OSD Menu 720×480 HD Display 178 Degree Replacement Parts Description:
1. 720×480 display resolution. HD LCD. 9 pixels to 1 pixel. Integer Scaling. No any distortions.
2. Wide View angle up to 178 degree.
3. Pre Laminated Glass Screen.
4. The PCB has been embedded in the LCD metal shell.
5. Built-in OSD Menu!

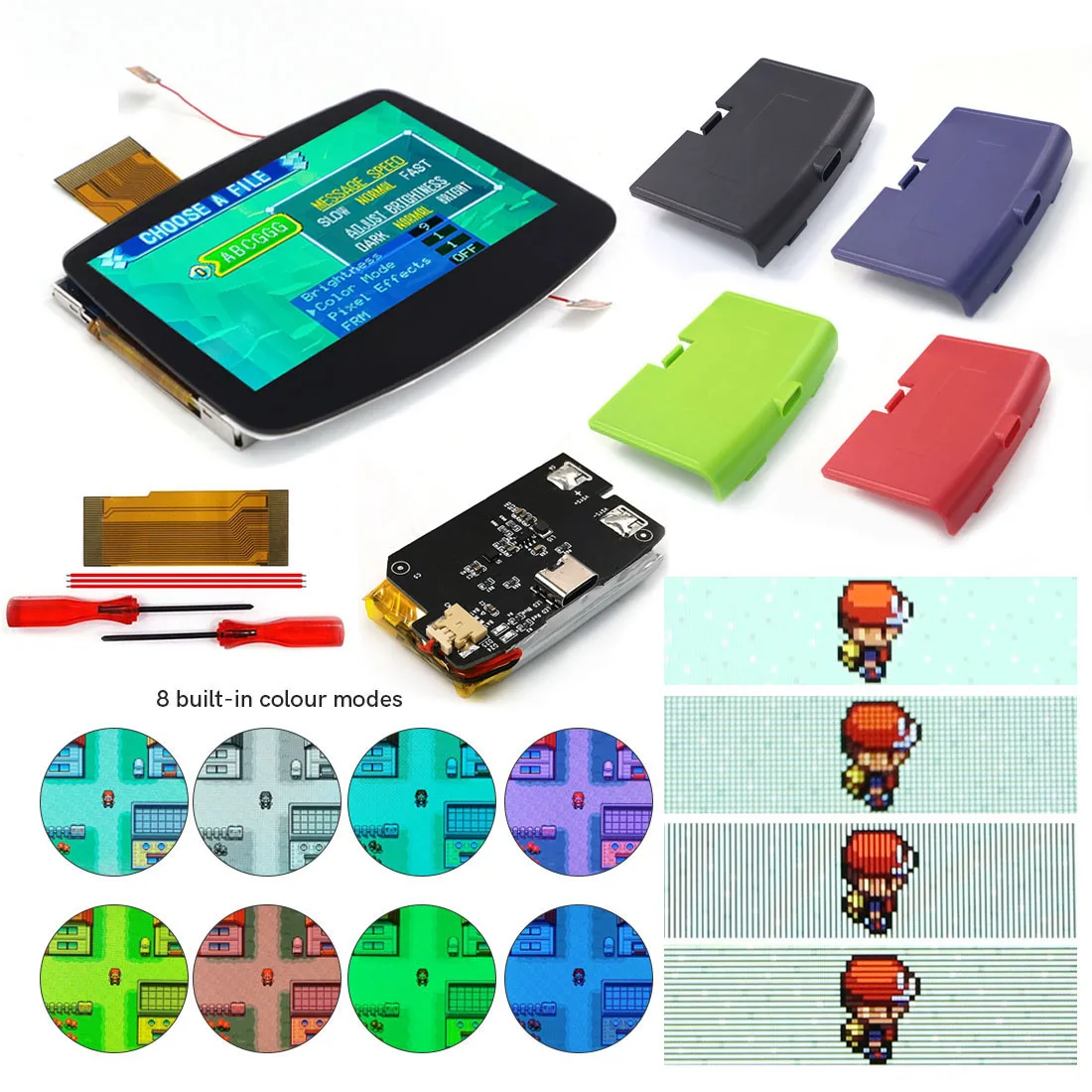

6. Retro pixel Effects: Normal, Retro pixel (like original AGS-101 LCD), Scanline 1, Scanline 2.
7. 15 brightness levels.
8. 8 color modes.
9. FRM On/OFF function(Frame blending On/OFF) is included. For some extremly few games, the image effect will be better when FRM turned on. For most games, No need to turn on FRM Function. The default FRM is OFF.
10. Touch Screen to change the brightness and the color modes.
11. Compatible with 32-pin and 40-pin GBA Console.
OSD Menu Operation:

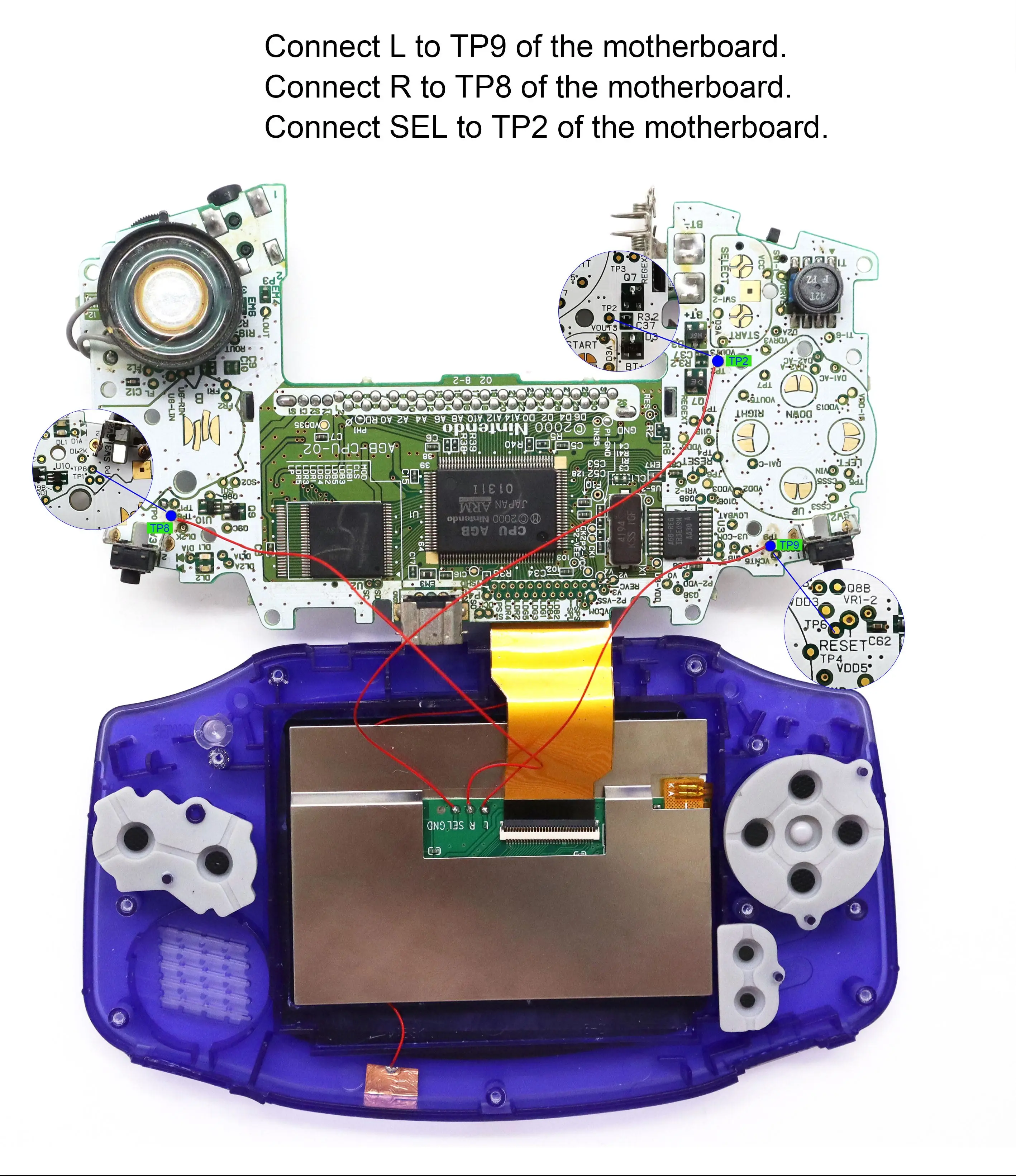

-Press the Select+L+R buttons for 1 second at the same time, then release the buttons to activate the OSD Menu.
-Press the Select button to select the adjustment item when OSD Menu activated.
-Press the L or R button to adjust the item when OSD Menu activated.
You don’t need to do any welding if you don’t want the OSD menu!

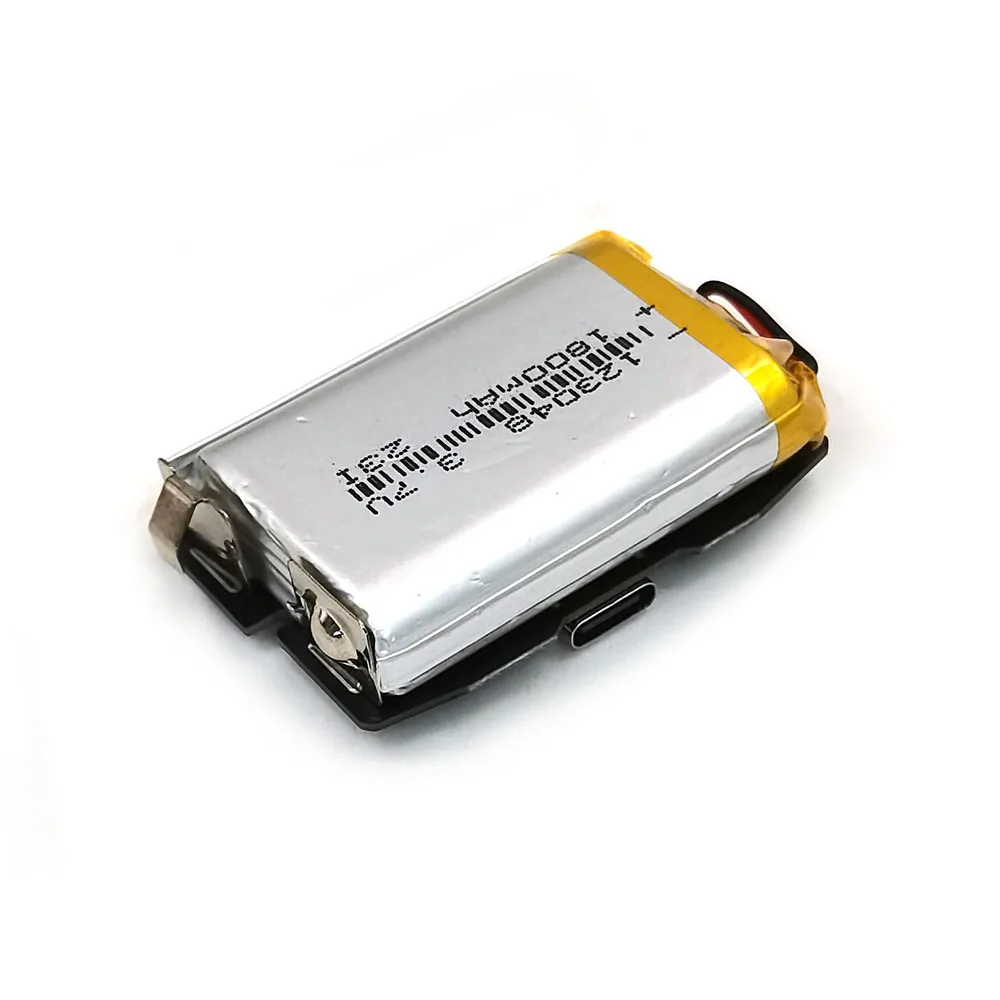

1800mah Rechargable Built-in Lithium Battery Features:
1. Real Capacity: 1800mah
2. Drop in the HISPEEDIDO GBA V5 Laminated shells. No need trimming.

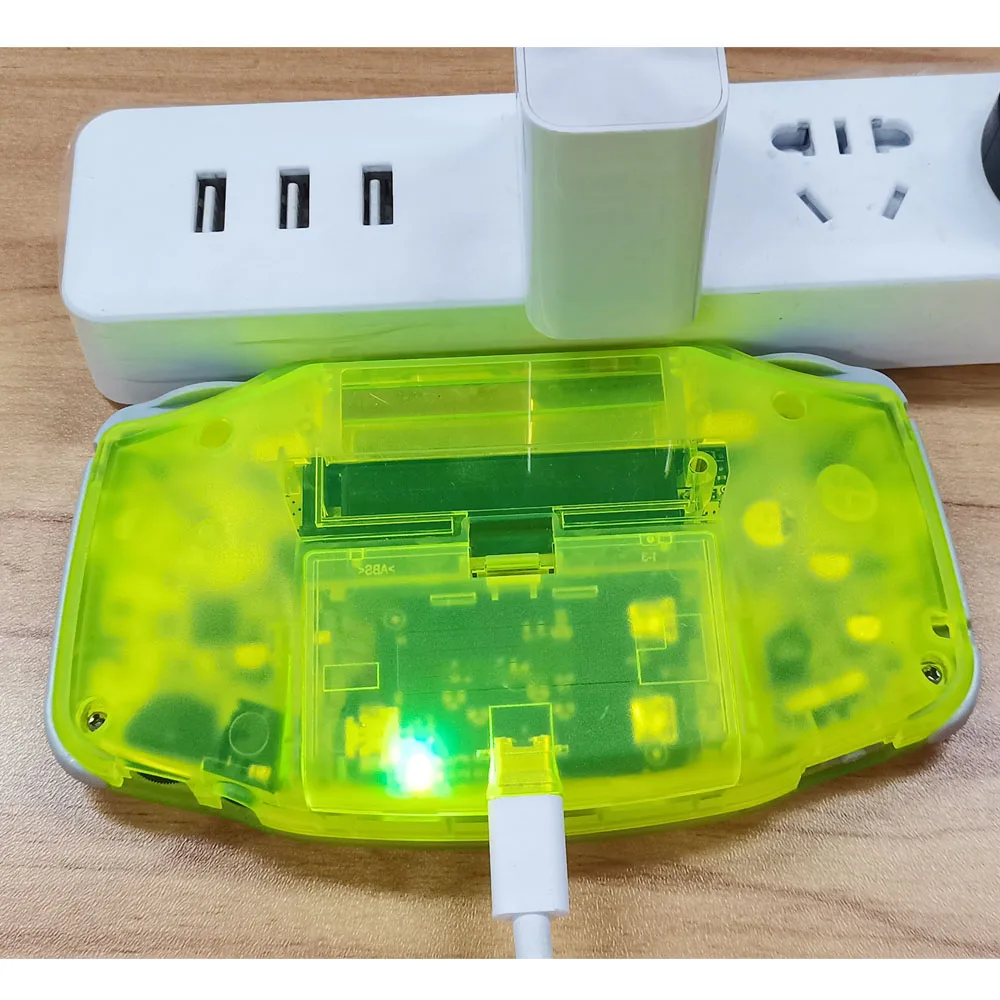

3. Type C port
4. TI Chip. No need cooling fin.
5. Over Voltage protection, Over Current protection, Short circuit protection.

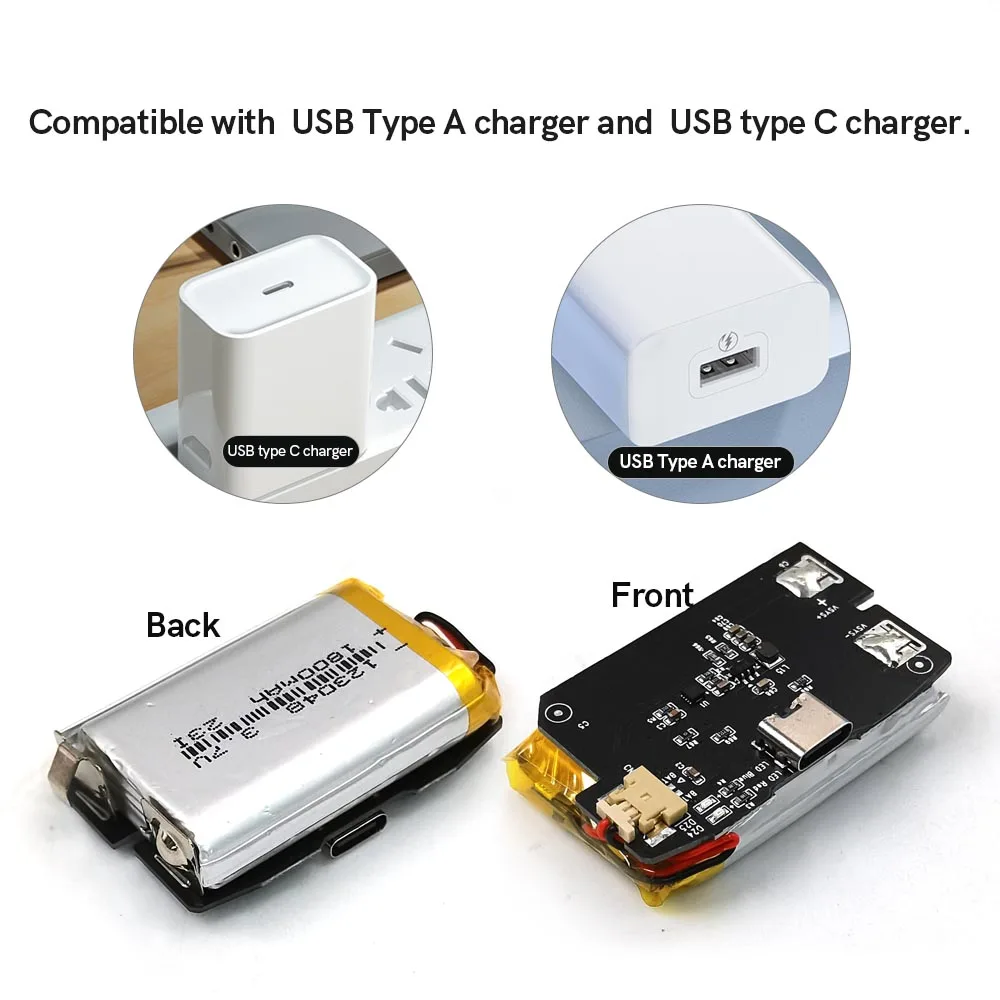

6. It can be compatible with USB Type A charger and USB type C charger.

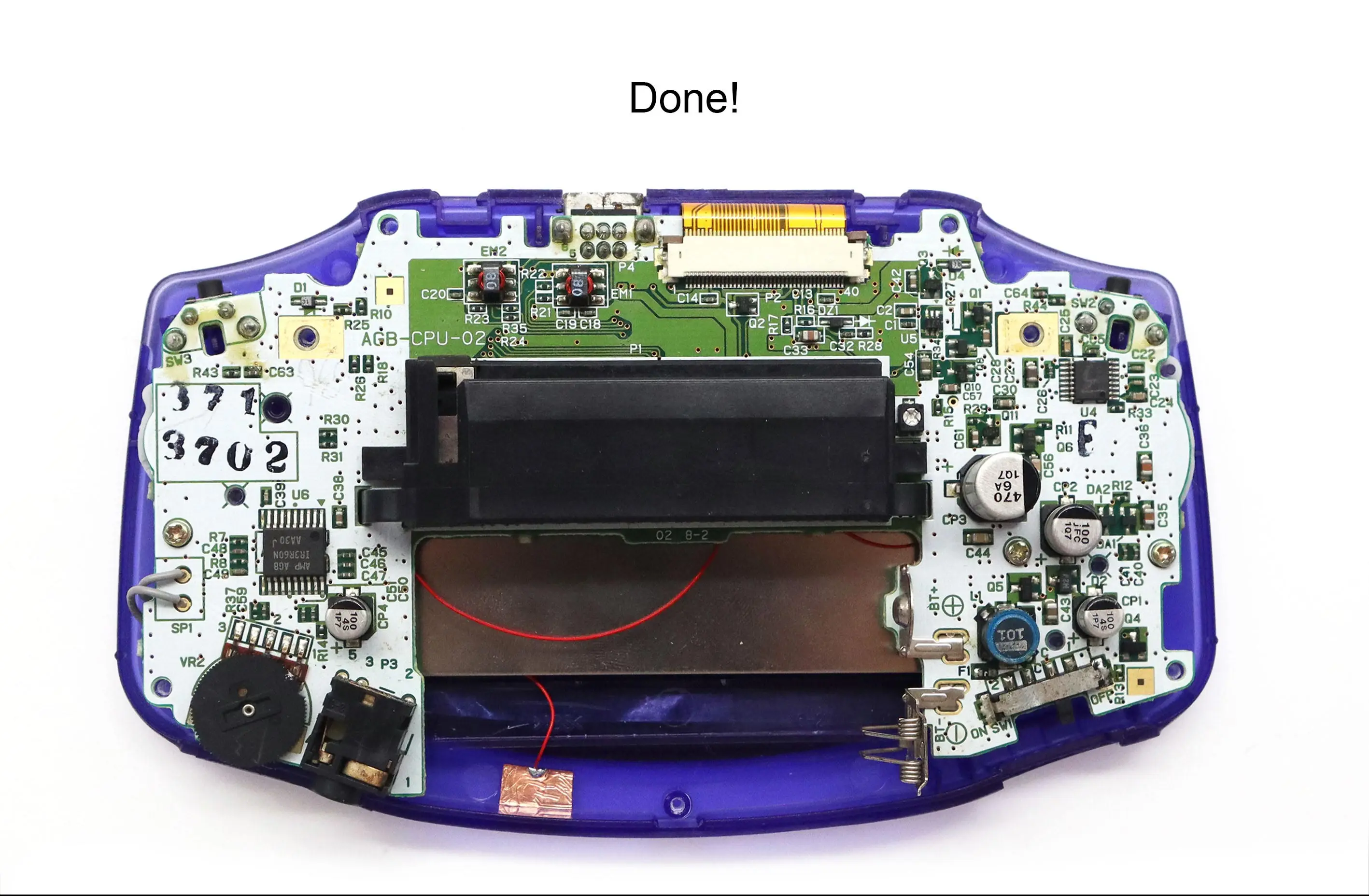

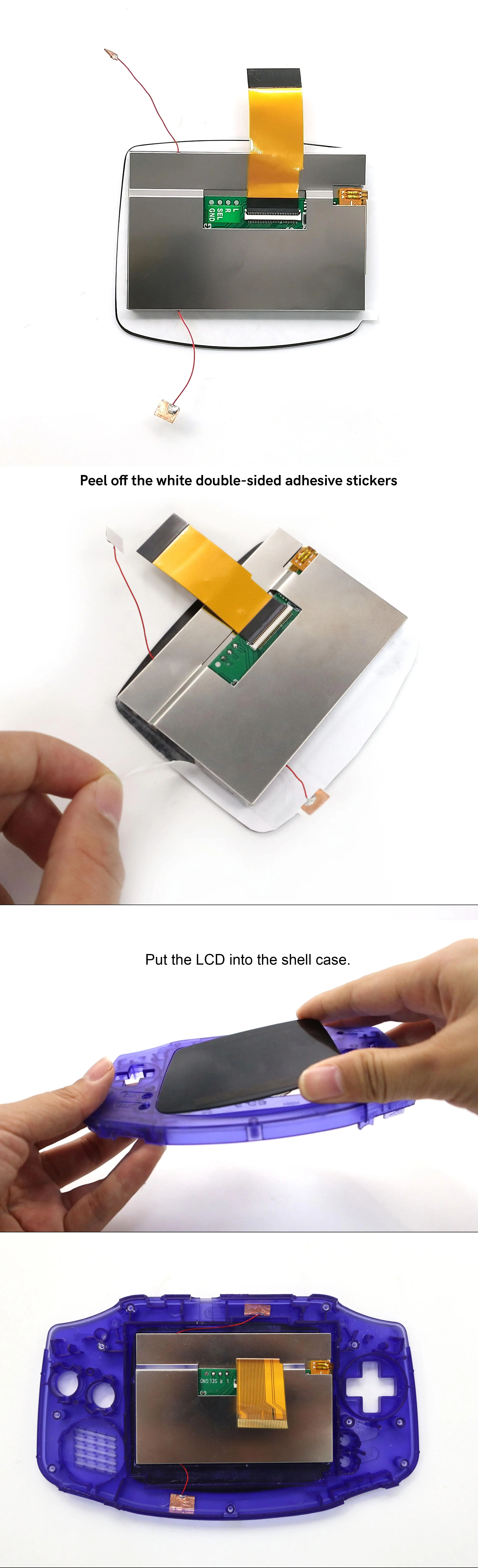

Installation guide:
GameBoy Advance GBA 3.0 Inch V5 Laminated LCD Drop in Backlight Screen Mod Kit + Customized Housing Shell Set + 1800mah Rechargable USB-C Rechargable Lithium Battery, OSD Menu 720×480 HD Display 178 Degree Replacement Parts x1
