Cheap GBA V5 Laminated IPS LCD Backlight KIT For Nintendo Gameboy Adavance Shell Built-In Rechargeable 1800mAh Lithium Battery Type-C Port Free Shipping

Cheap GBA V5 Laminated IPS LCD Backlight KIT For Nintendo Gameboy Adavance Shell Built-In Rechargeable 1800mAh Lithium Battery Type-C Port Free Shipping

There is a logo on the screen and housing

Doesn’t inclde motherboard

Note: we send this kit to you via two package

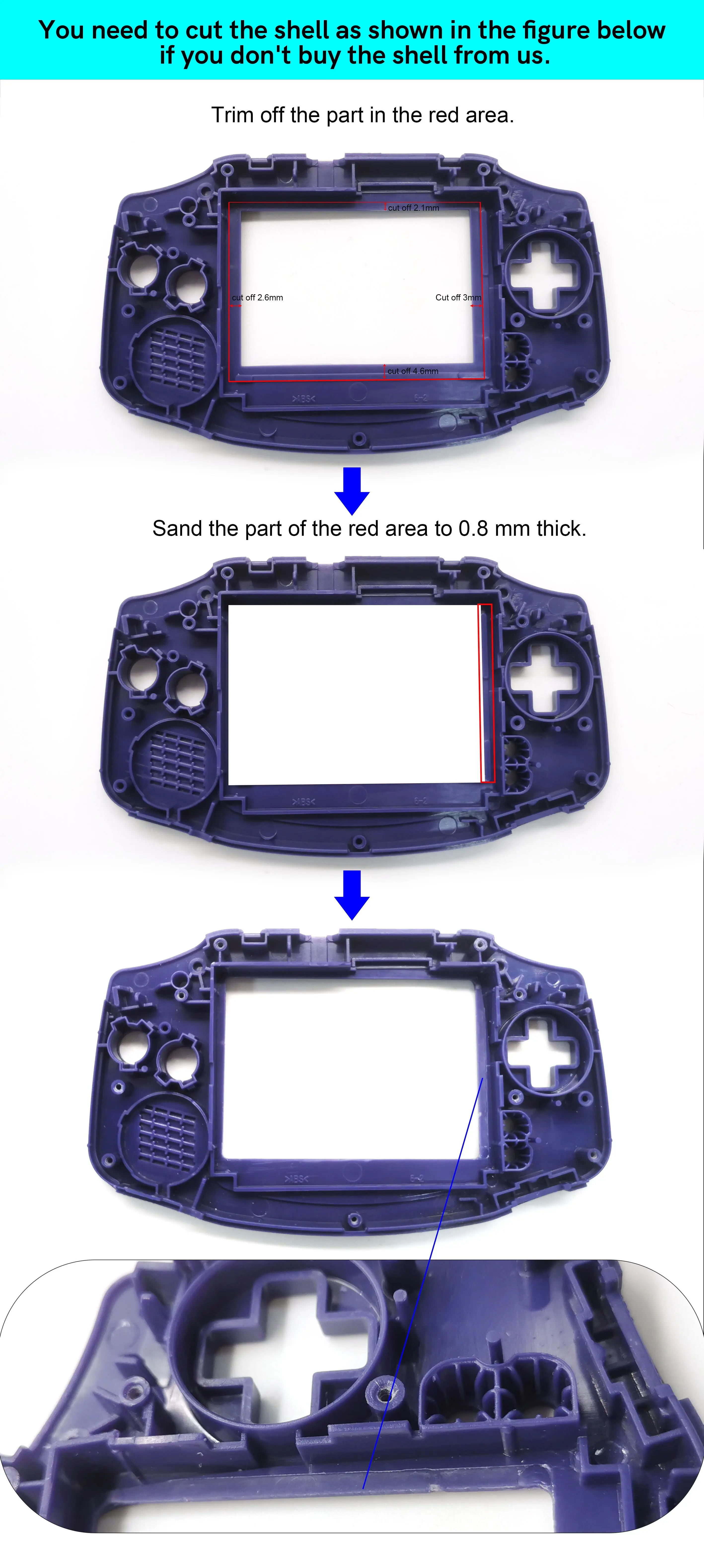

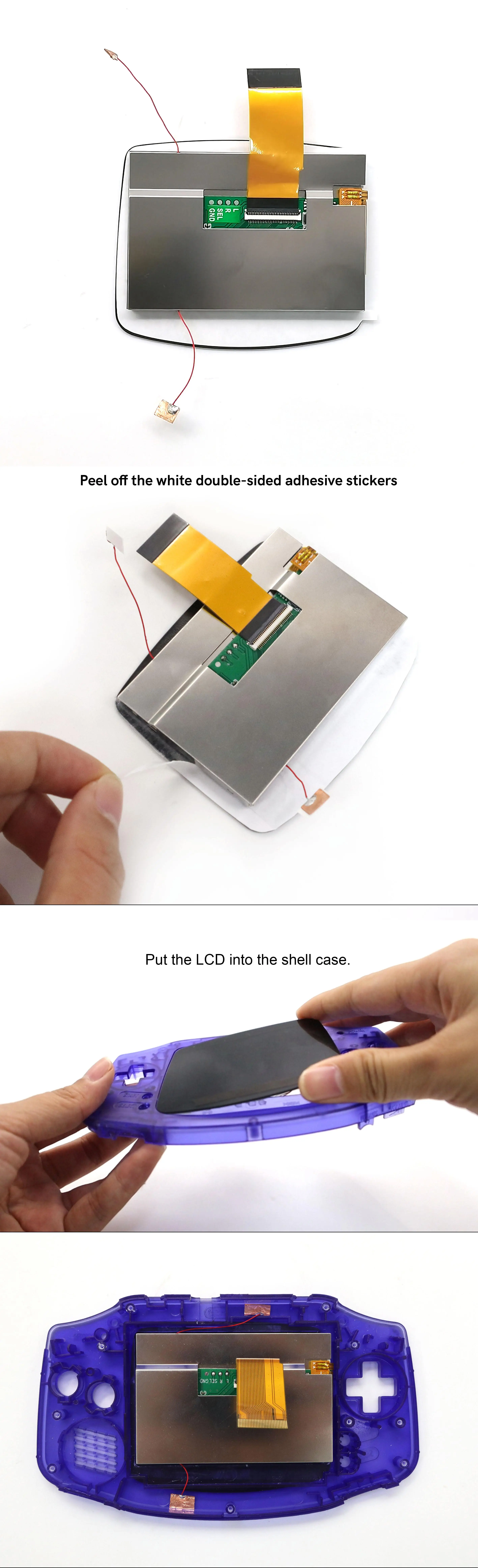

if you purchase the “Only LCD KIT “, then you will need to cut your own shell to install IPS LCD.

if You can buy the “LCD WIHT SHELL KIT “from this listing,then you don’t need to cut the shell by yourself.



Description:

1. 720×480 display resolution. HD LCD. 9 pixels to 1 pixel. Integer Scaling. No any distortions.

2. Wide View angle up to 178 degree.

3. Pre Laminated Glass Screen.

4. The PCB has been embedded in the LCD metal shell.

5. Built-in OSD Menu!

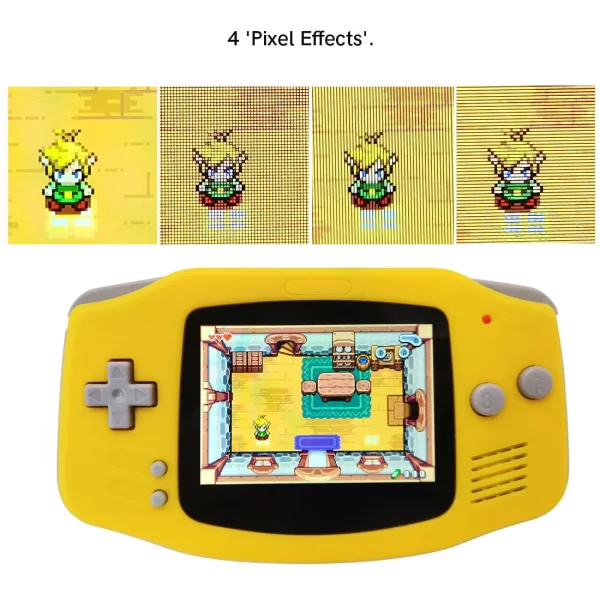

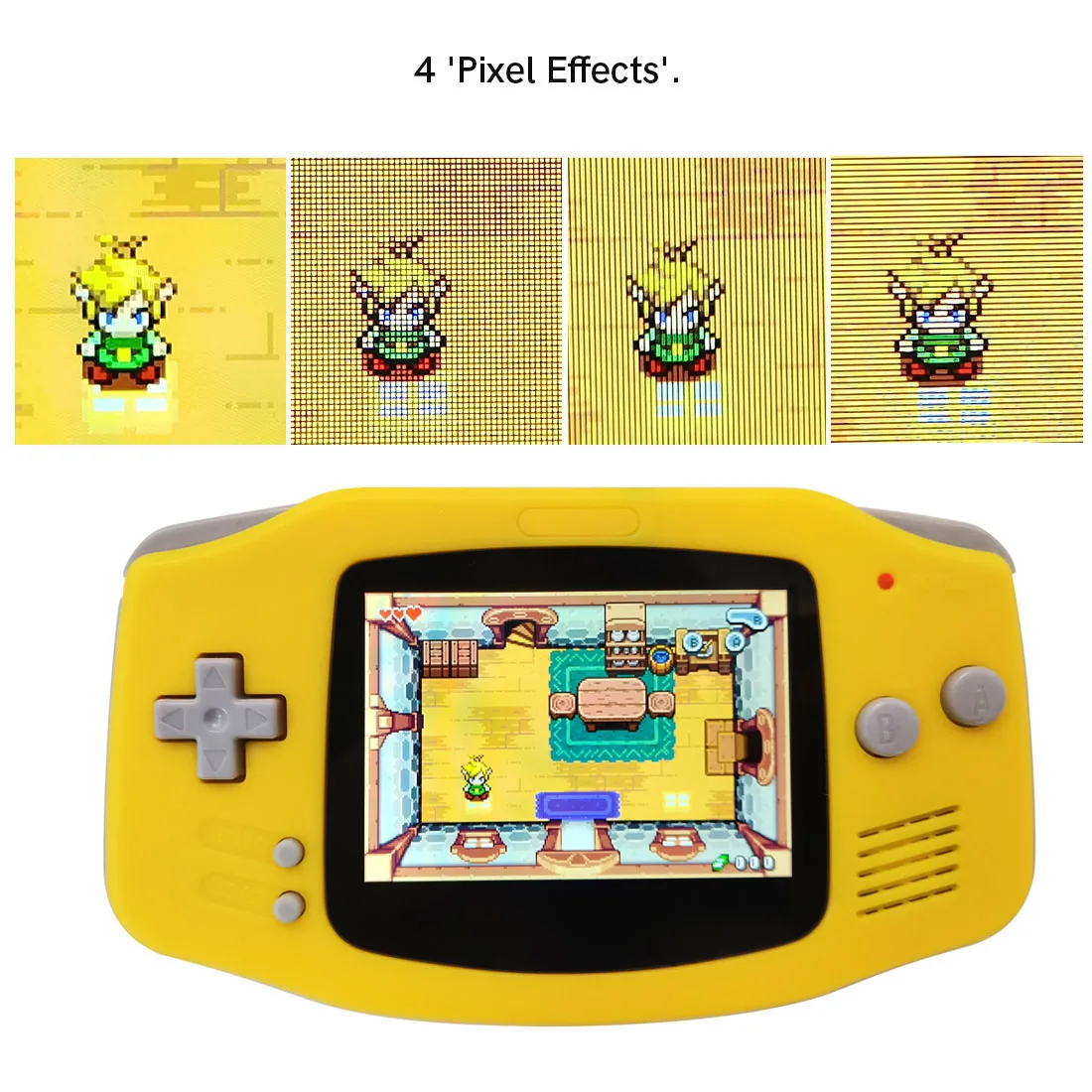

6. Retro pixel Effects: Normal, Retro pixel (like original AGS-101 LCD), Scanline 1, Scanline 2.

7. 15 brightness levels.

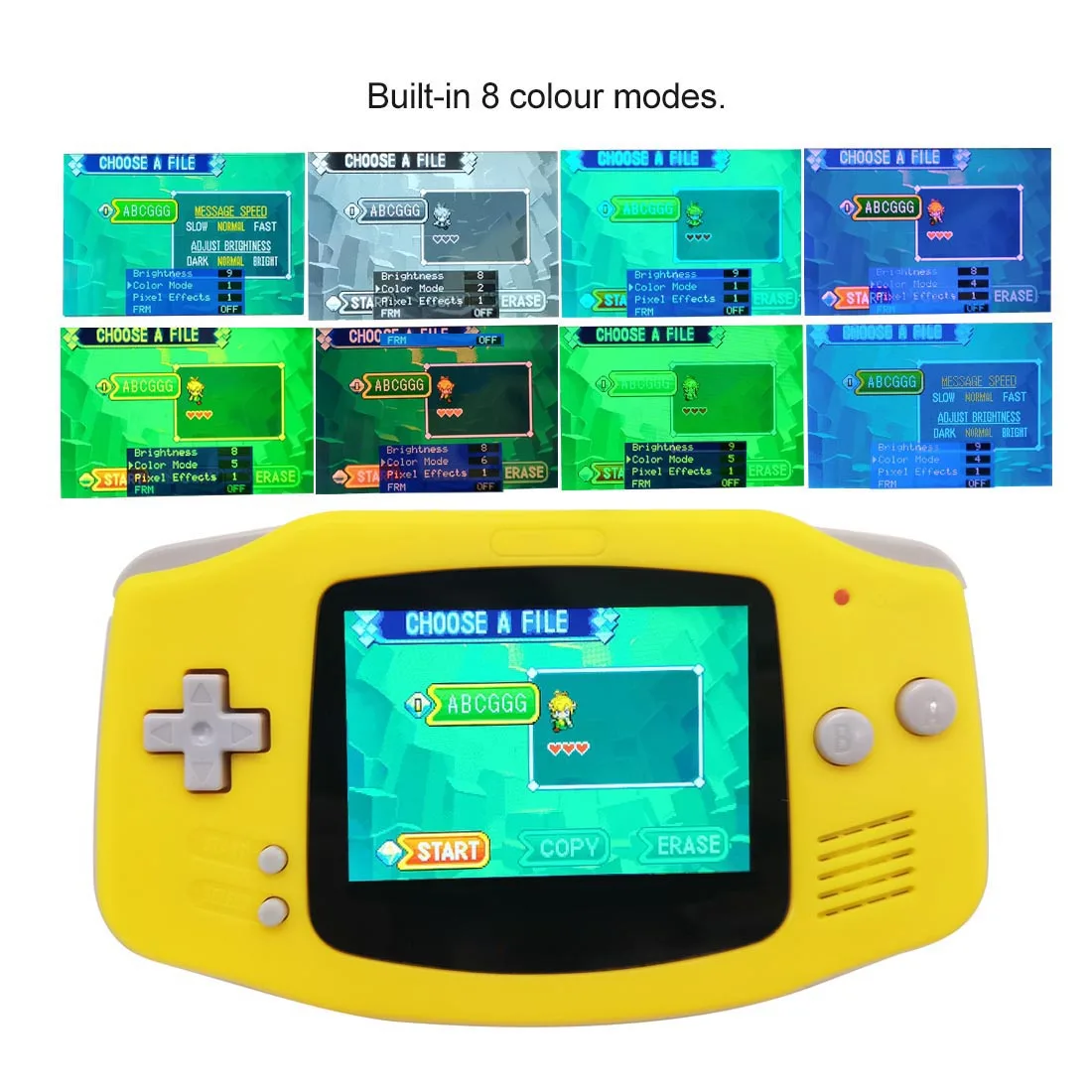

8. 8 color modes.

9. FRM On/OFF function(Frame blending  On/OFF) is included.  For some extremly few games,  the image effect will be better when FRM turned on. For most games, No need to turn on FRM Function. The default FRM is OFF.

10. Touch Screen to change the brightness and the color modes.

11. Compatible with 32-pin and 40-pin GBA Console.

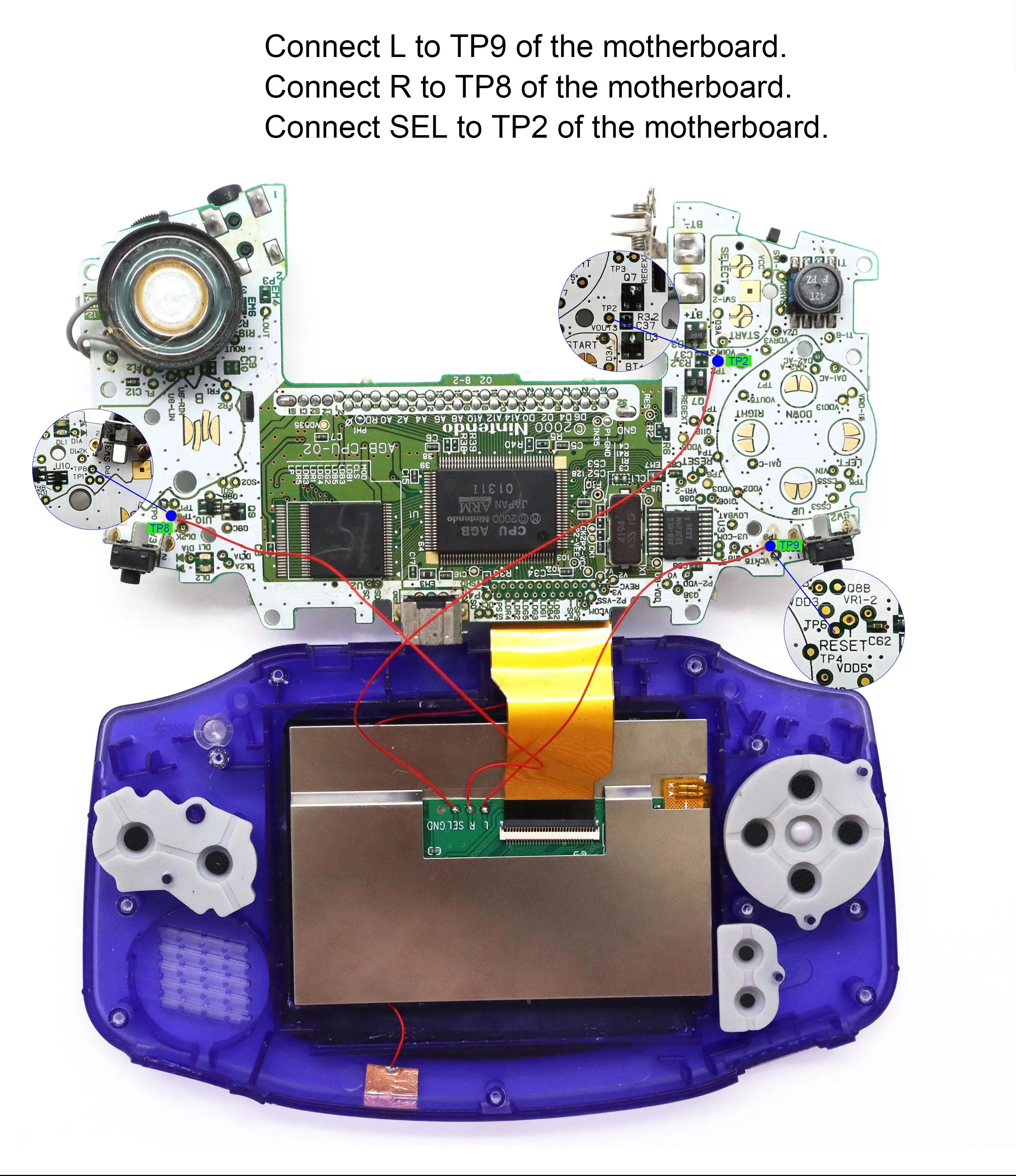

*You need to welding 3 wires to control the OSD Menu*

OSD Menu Operation:

Press the Select+L+R buttons for 1 second at the same time, then release the buttons to activate the OSD Menu.

Press the Select button to select the adjustment item when OSD Menu activated.

Press the L or R button to adjust the item when OSD Menu activated.

You don’t need to do any welding if you don’t want the OSD menu!

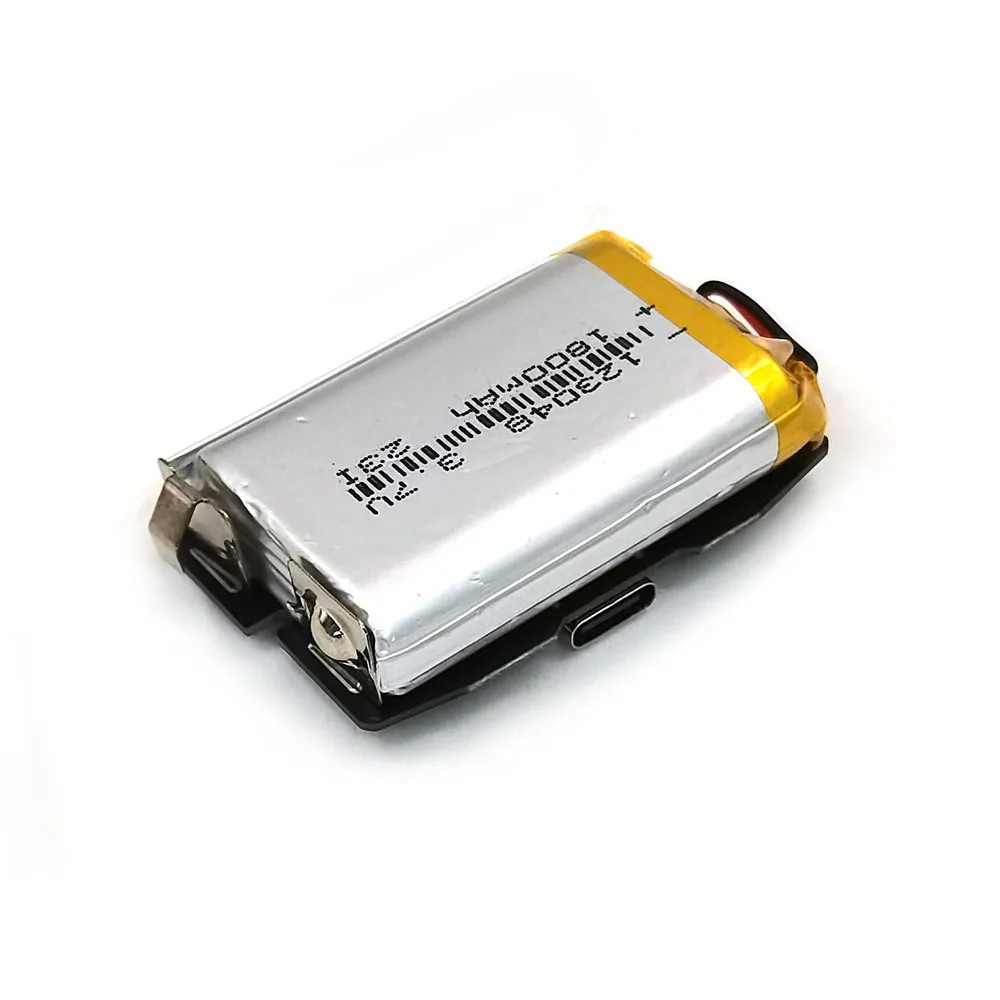

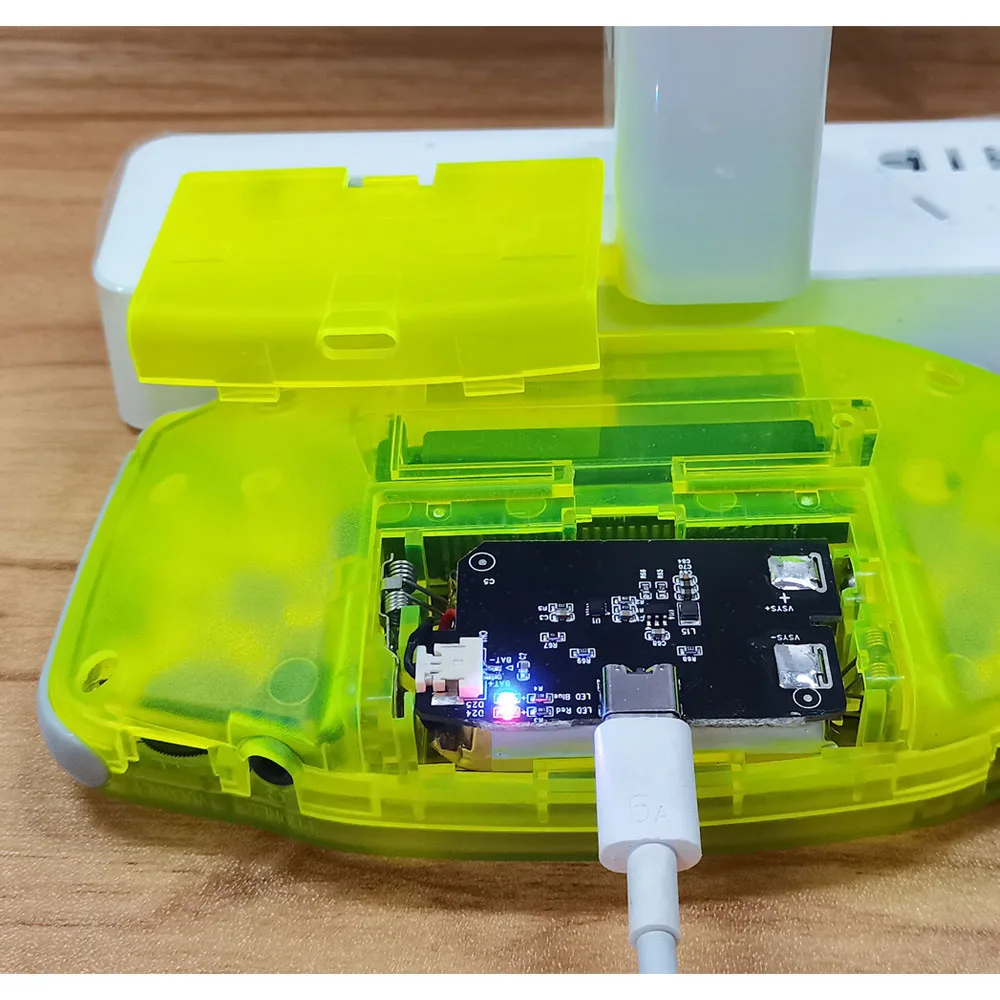

1800mah Rechargable Built-in Lithium Battery Features:



1. Real Capacity: 1800mah

2. Drop in the HISPEEDIDO GBA V5 Laminated shells. No need trimming.

3. Type C port

4. TI Chip. No need cooling fin.

5. Over Voltage protection, Over Current protection, Short circuit protection.

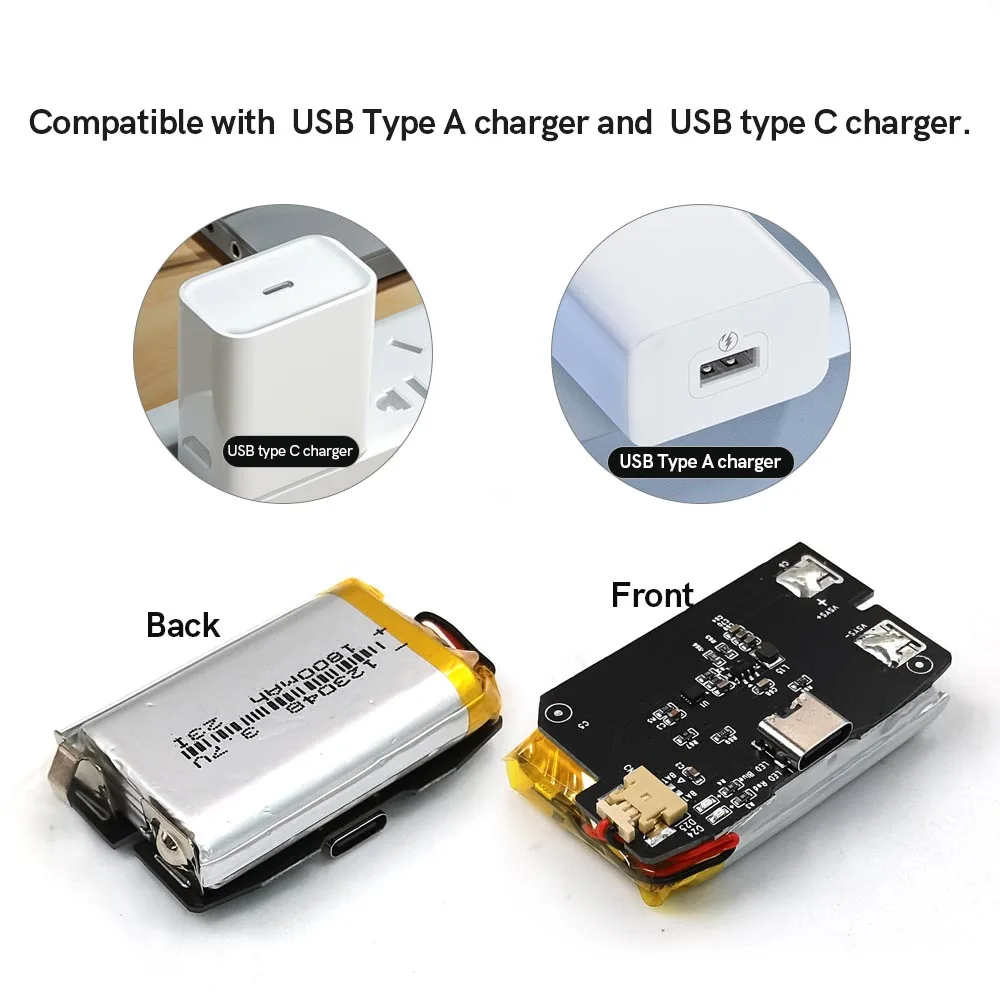

6. It can be compatible with USB Type A charger and USB type C charger.

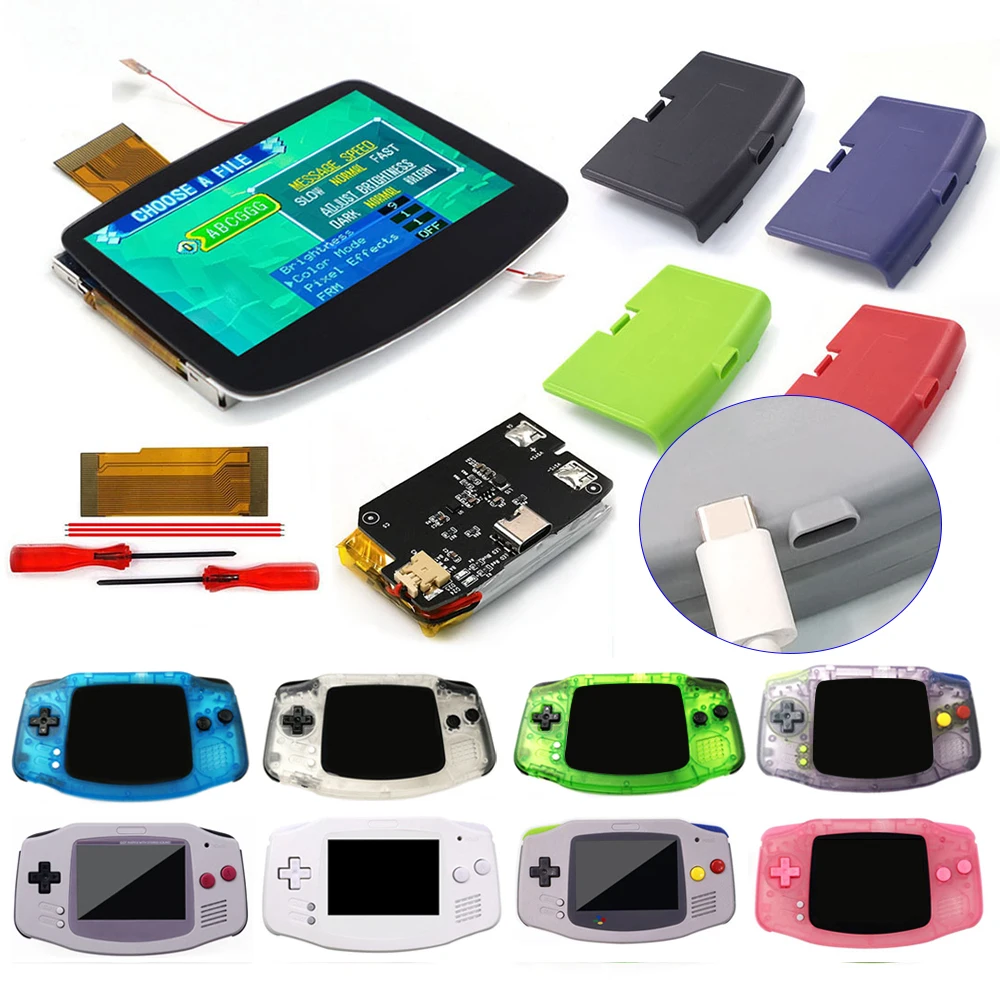

Packing including (Only LCD KIT) :

1x Pre Laminated IPS LCD,

2x Screwdrivers,

3x red wires,

2x ribbon cable.
