US SNES Bluetooth Controller Adapter Internal Wireless Chip Module Mod Kit Replacement Compatible with Sony S3 PS4 PS5 Nintendo Switch Wii U Joy-con Xbox One Series S/X Dual Wireless & Wired Controllers Accessories



iBlueControlMod US SNES Bluetooth Internal Adapter For US SNES Console fit Wireless Controller for PS3/PS4/PS5/Xbox One/Switch



US SNES Bluetooth Controller Adapter Internal Wireless Chip Module Mod Kit Replacement Compatible with Sony S3 PS4 PS5 Nintendo Switch Wii U Joy-con Xbox One Series S/X Dual Wireless & Wired Controllers Accessories Descriptions:



The console is not included.

Note 1: This kit can only be used with our aplications (iBlueControlMod config).

Note 2: this kit is not ‘BlueRetro mod’. BlueRetro APP can’t use on this kit.

Don’t upgrade ‘BlueRetro firmware’ to this kit! Otherwise, this kit will be damaged.

Important notice:

It can only fit US SNES consoles.

It can not fit European SNES consoles or Japanese Super Famicom.







Compatible Controllers:

Support PS3 / PS4 / PS5 / Xbox One S / Xbox Series X|S / Wii / Wii U Pro / Switch Pro/ Switch Joycon Wireless Controllers, etc.



Description：

iBlueControlMod adapter is a high speed Bluetooth
controller interface that opens retro consoles up to the plethora of modern
controllers with latencies that even some wired adapters can’t manage.

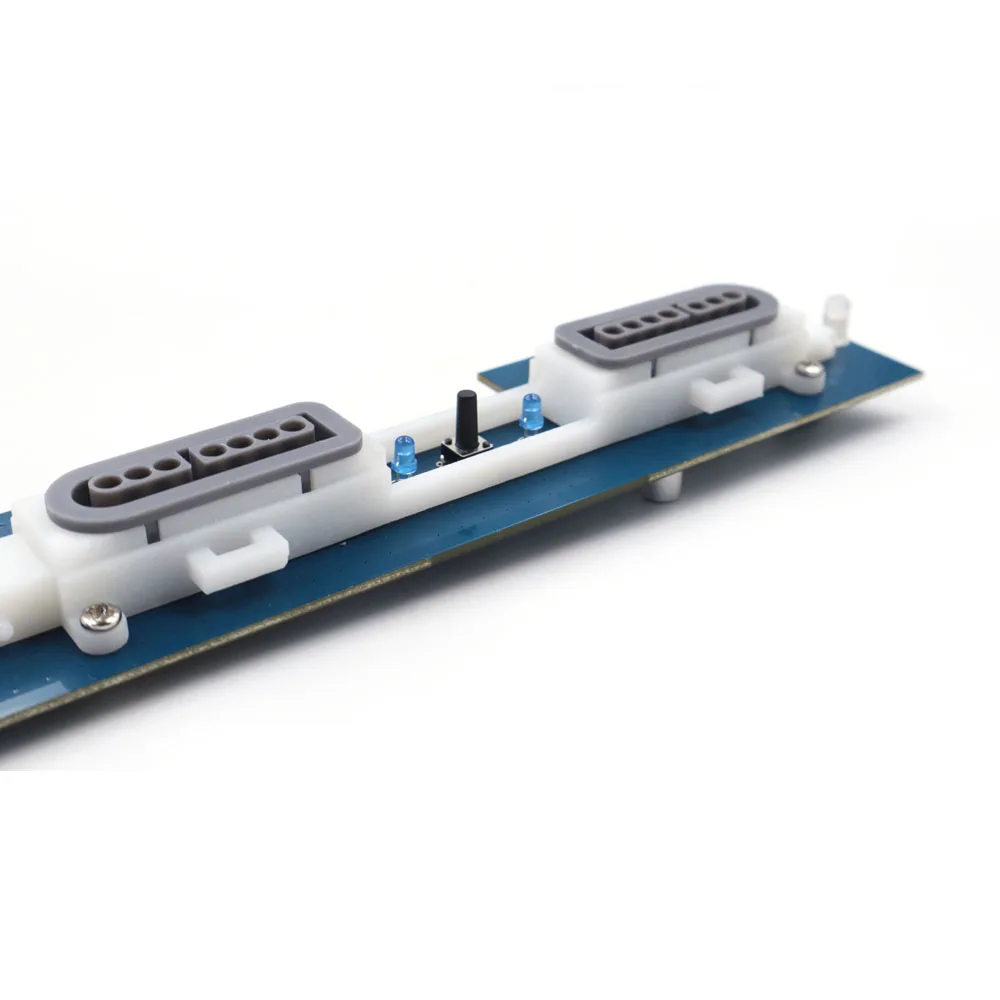

This new board allows for the use of up to 2 connected Bluetooth controllers,
and can be mixed and matched with wired controllers on any of the ports for seamless
operation.

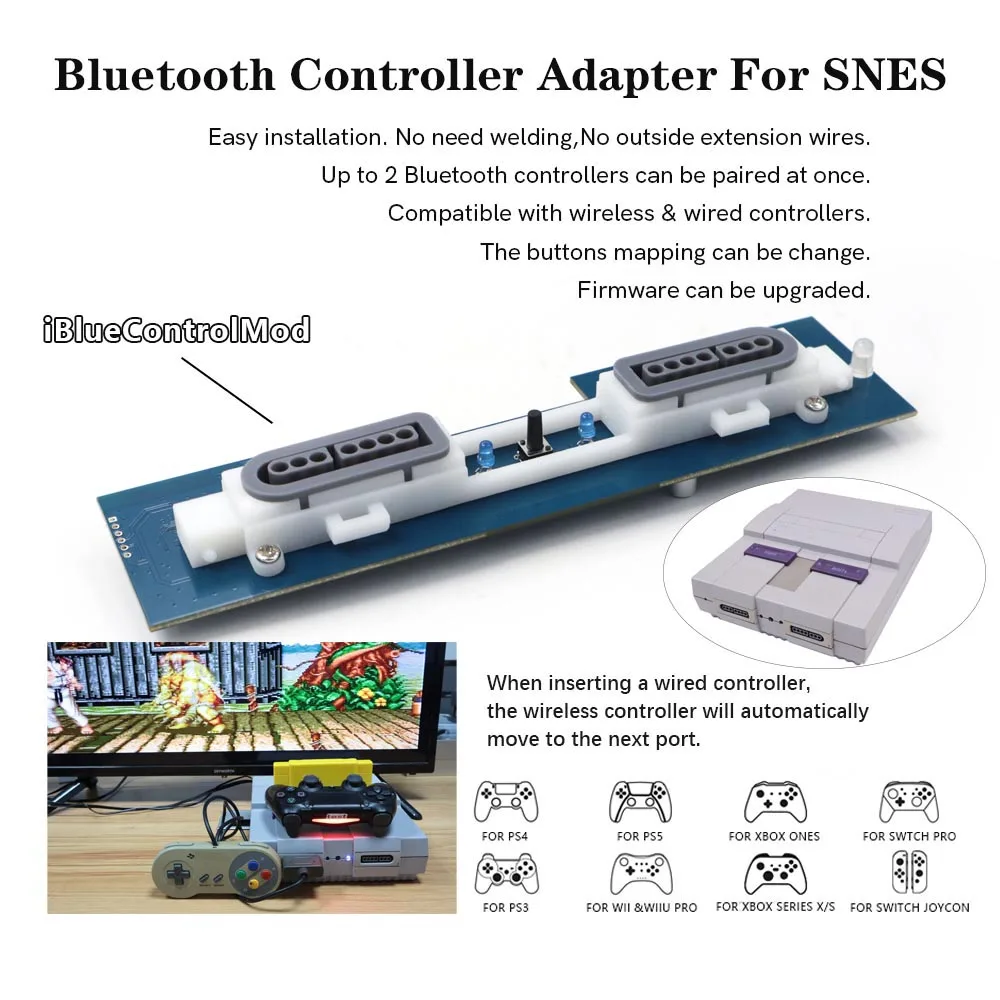

Brand New US SNES Bluetooth Controller Adapter Internal Wireless Chip Module Mod Kit Replacement Compatible with Sony S3 PS4 PS5 Nintendo Switch Wii U Joy-con Xbox One Series S/X Dual Wireless & Wired Controllers Accessories  Features:

1.Up to 2 Bluetooth controllers can be paired at once.

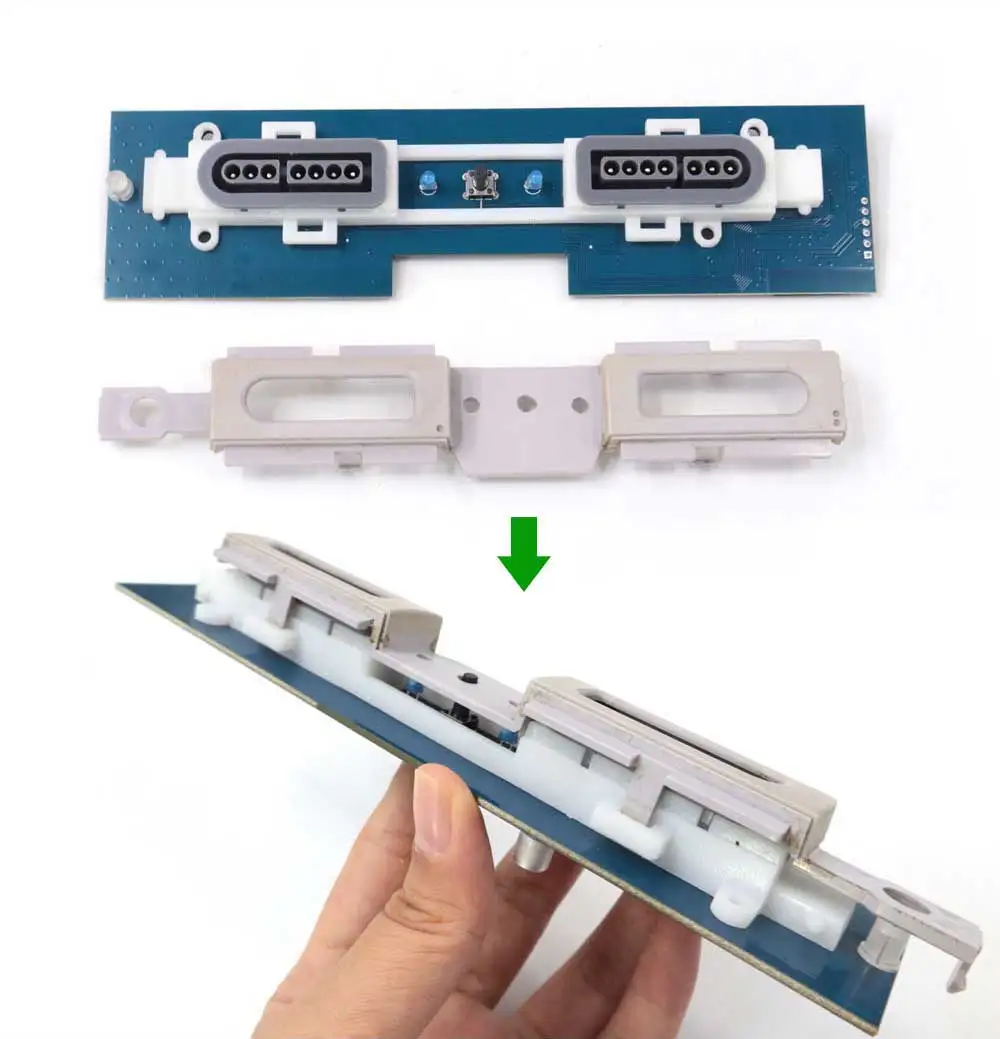

2.No need welding, no outside extension wires.

3.Easy installation, good choice for green hands, just open shell and
put the mod adapter inner machine to enable consoles connecting wireless
joypads.

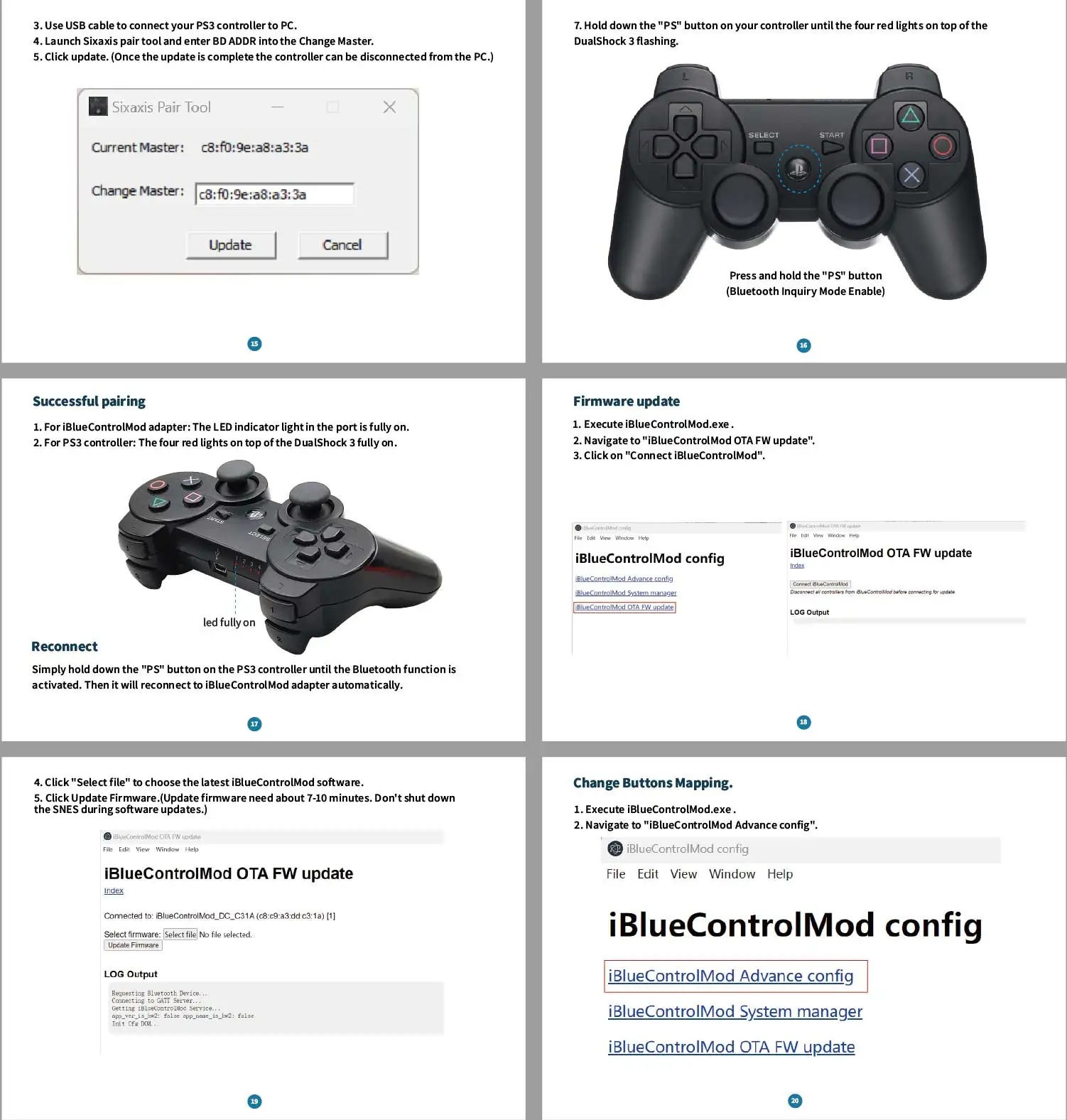

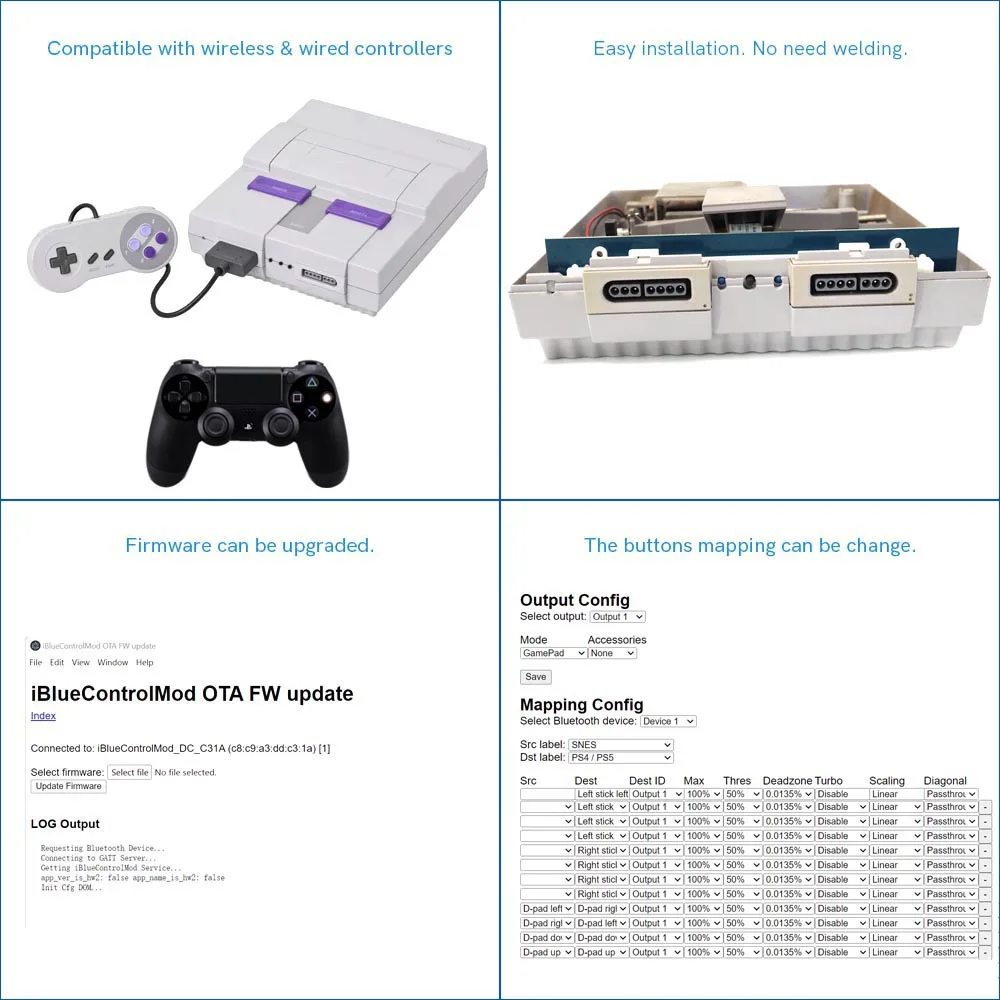

4.Easy firmware update tool that only requires a Bluetooth enabled
device like a computer (incompatible phone).

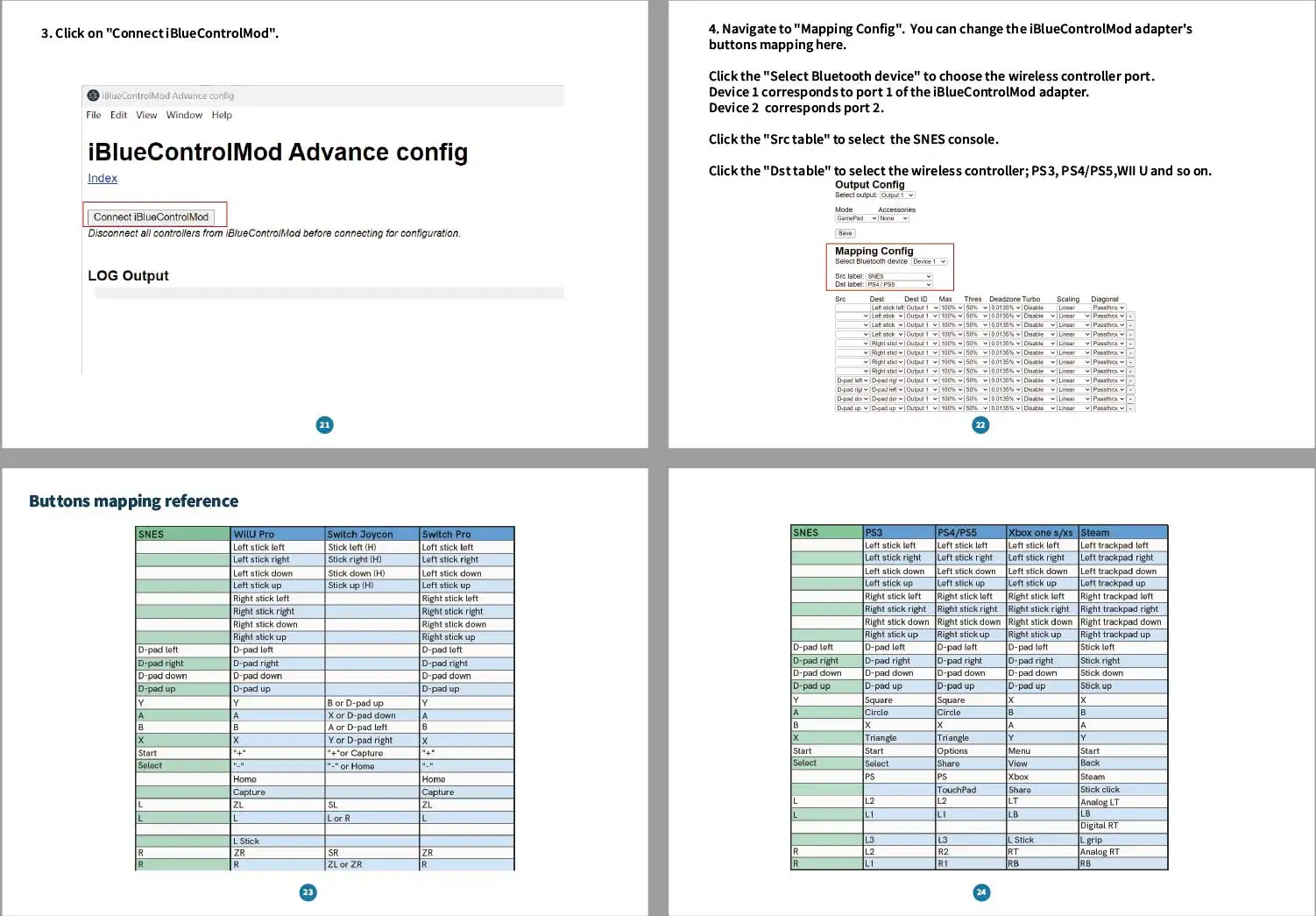

5.Configurable button mapping using a applications software on a
computer.

6.Dreamcast wired controllers are still available after updating this
Bluetooth
mod.

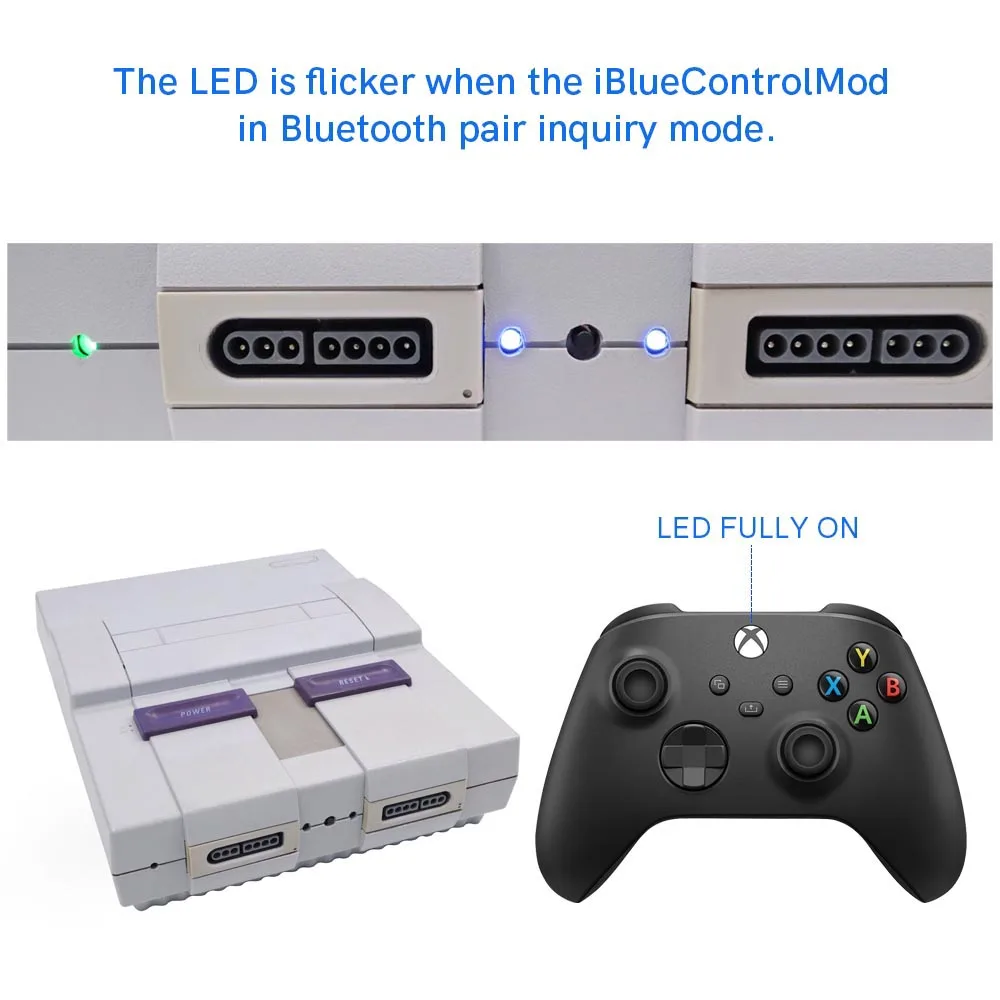

7.Built in LED indicator, make connecting more clear.

8.Simple installation.

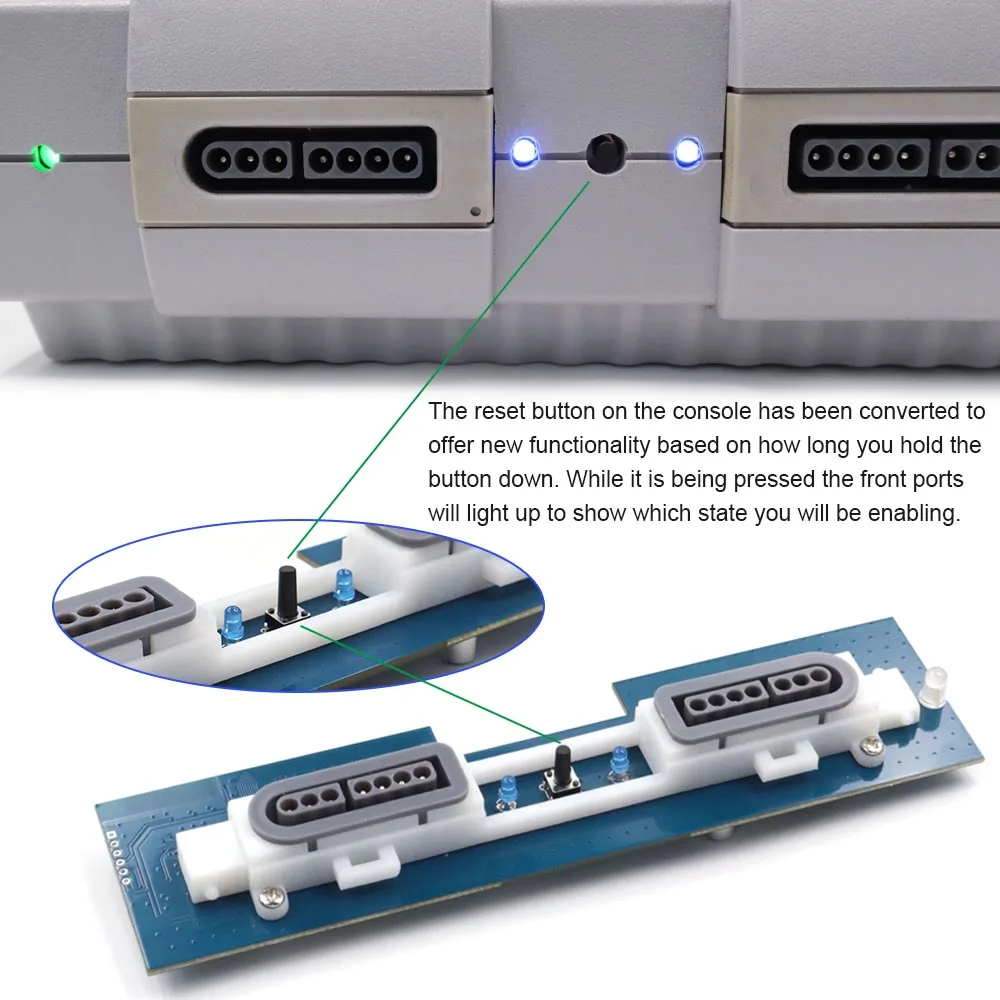

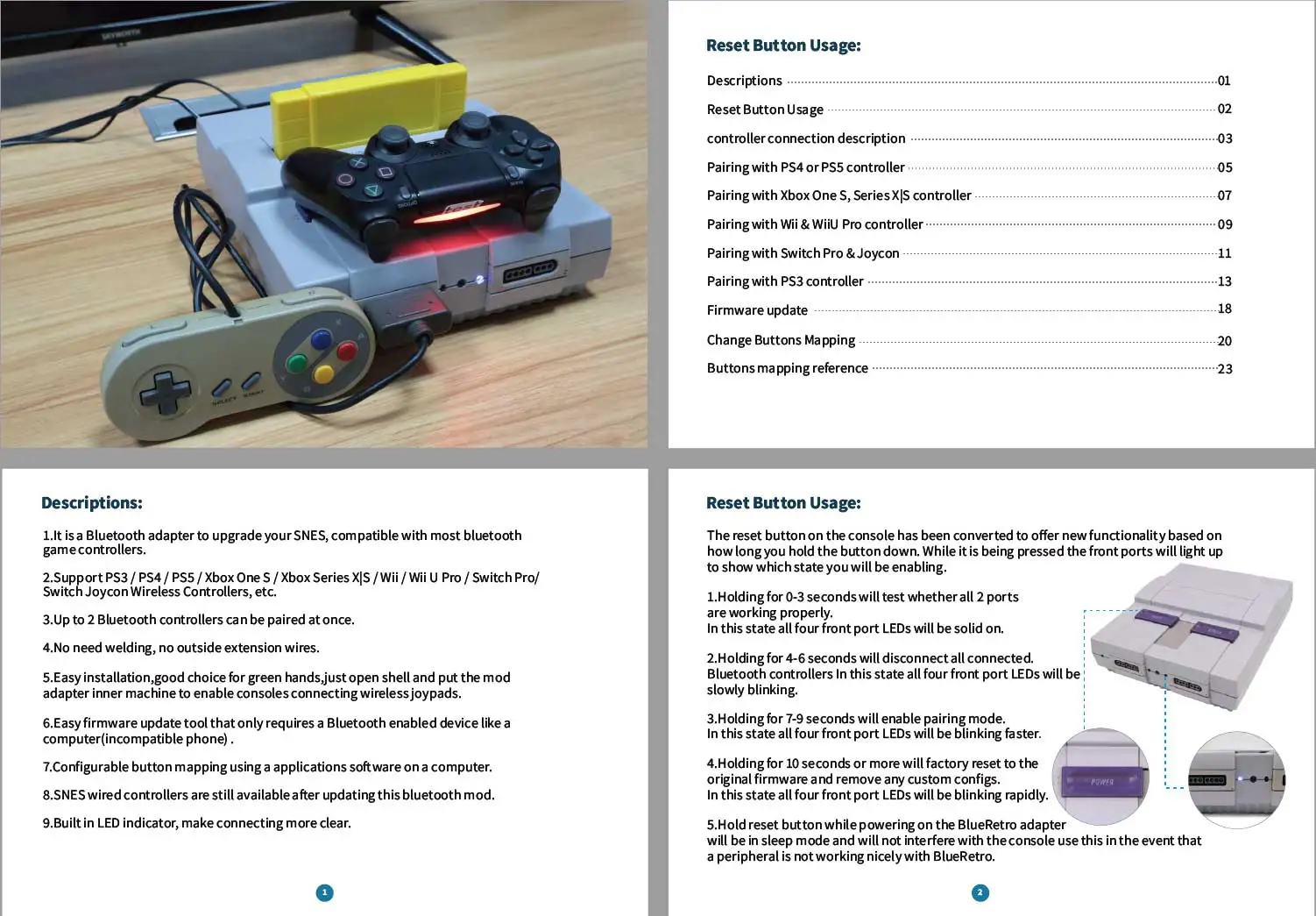

Reset Button Usage:

The reset button on the console has been
converted to offer new functionality based on how long you hold the button
down. While it is being pressed the front ports will light up to show which
state you will be enabling.

1.Holding for 0-3 seconds will test whether
all 4 ports are working properly.

In this state all four front port LEDs will
be solid on.



2.Holding for 4-6 seconds will disconnect
all connected Bluetooth controllers

In this state all four front port LEDs will
be slowly blinking.



3.Holding for 7-9 seconds will enable
pairing mode

In this state all four front port LEDs will
be blinking faster



4.Holding for 10 seconds or more will
factory reset to the original firmware and remove any custom configs

In this state all four front port LEDs will
be blinking rapidly.



5. Hold reset button while powering on the
iBlueControlMod
adapter will be in sleep mode and will not interfere with the console use this
in the event that a peripheral is not working nicely with iBlueControlMod.

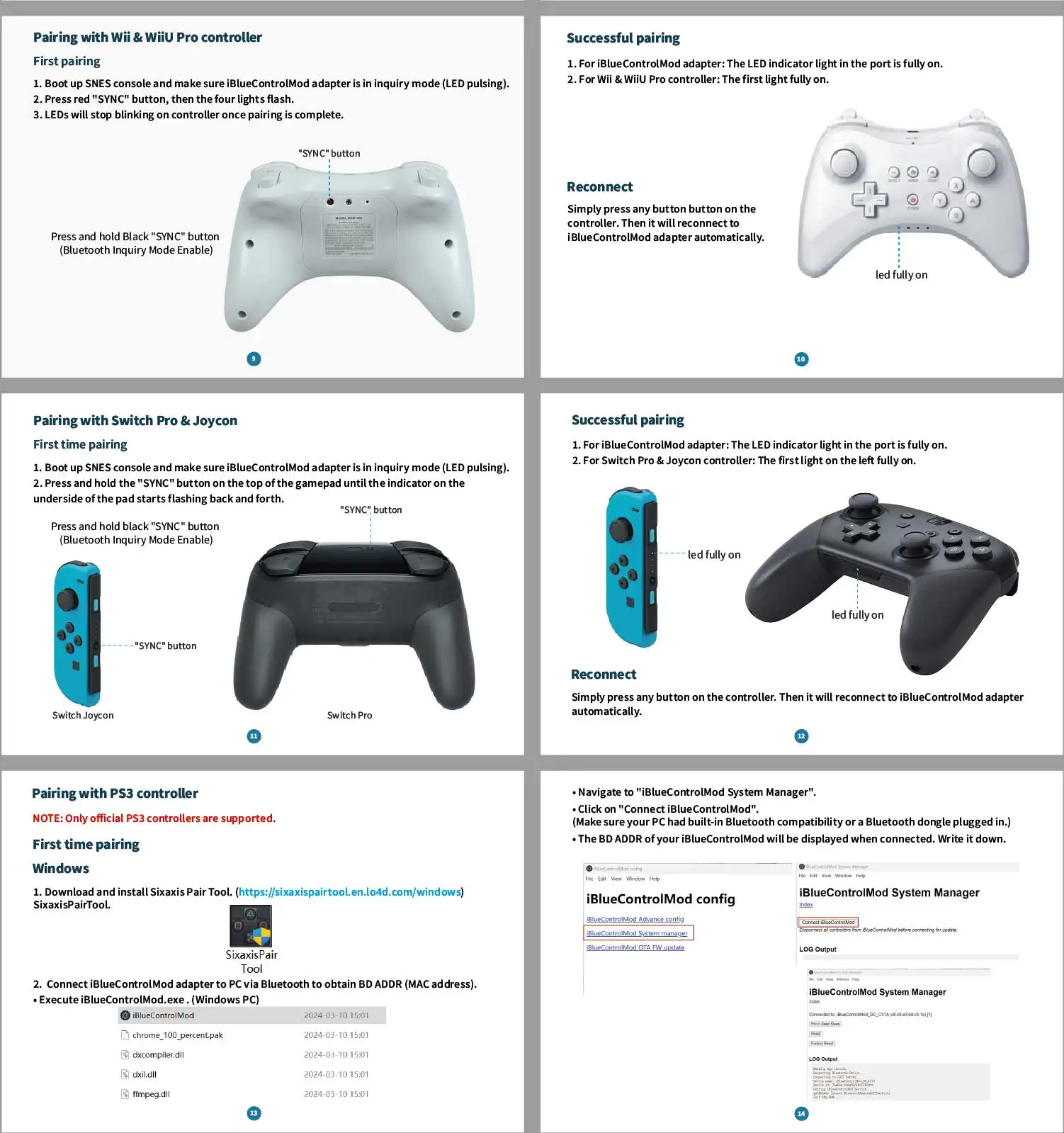

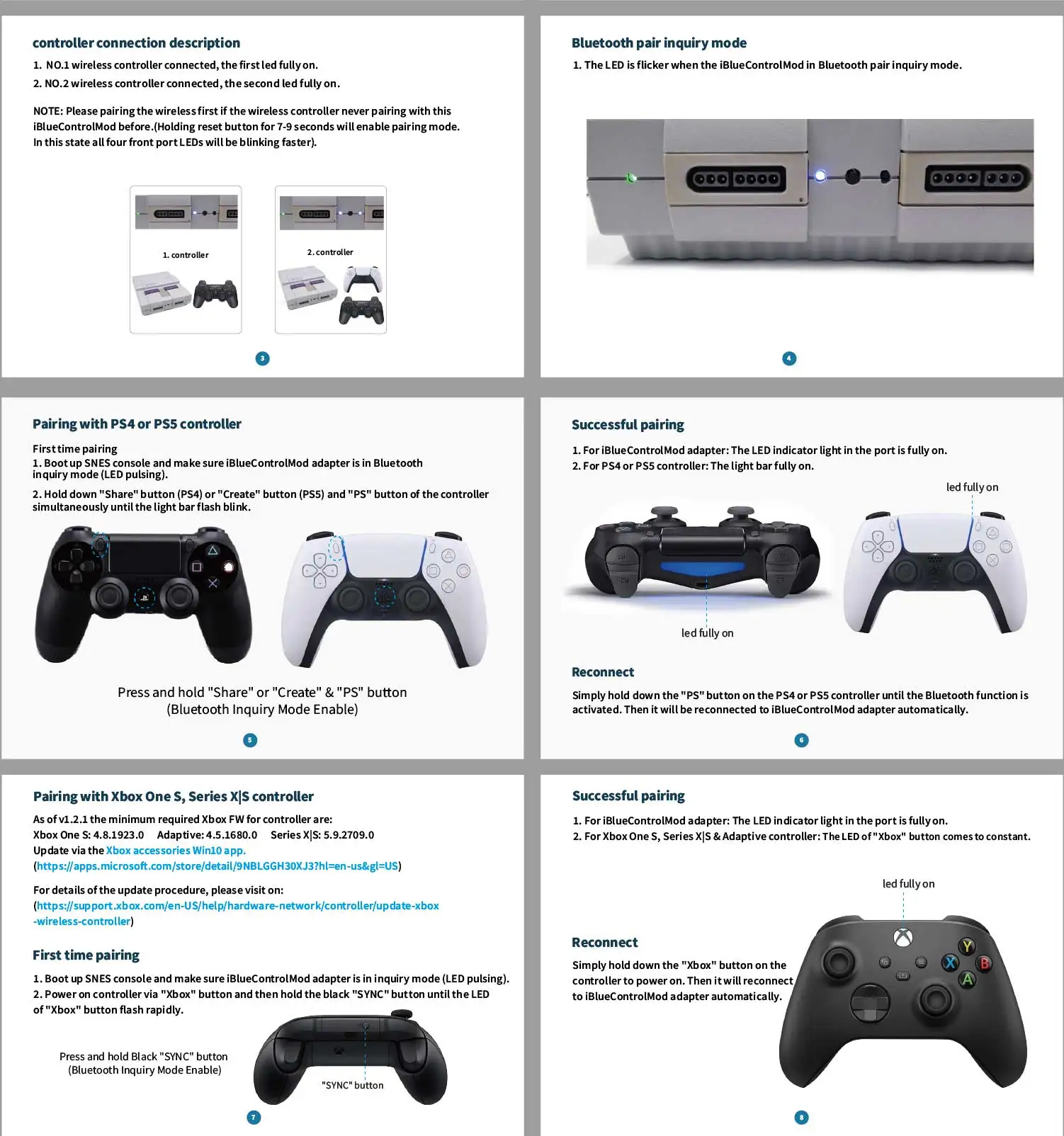

NOTE: Please pairing the wireless
controller first if the wireless controller never pairing with this
iBlueControlMod before.

— Power off the SNES console and then
power on it again, will enable the pairing mode. (Or, Holding the reset button
for 7-9 seconds will also enable pairing mode.)



Include:

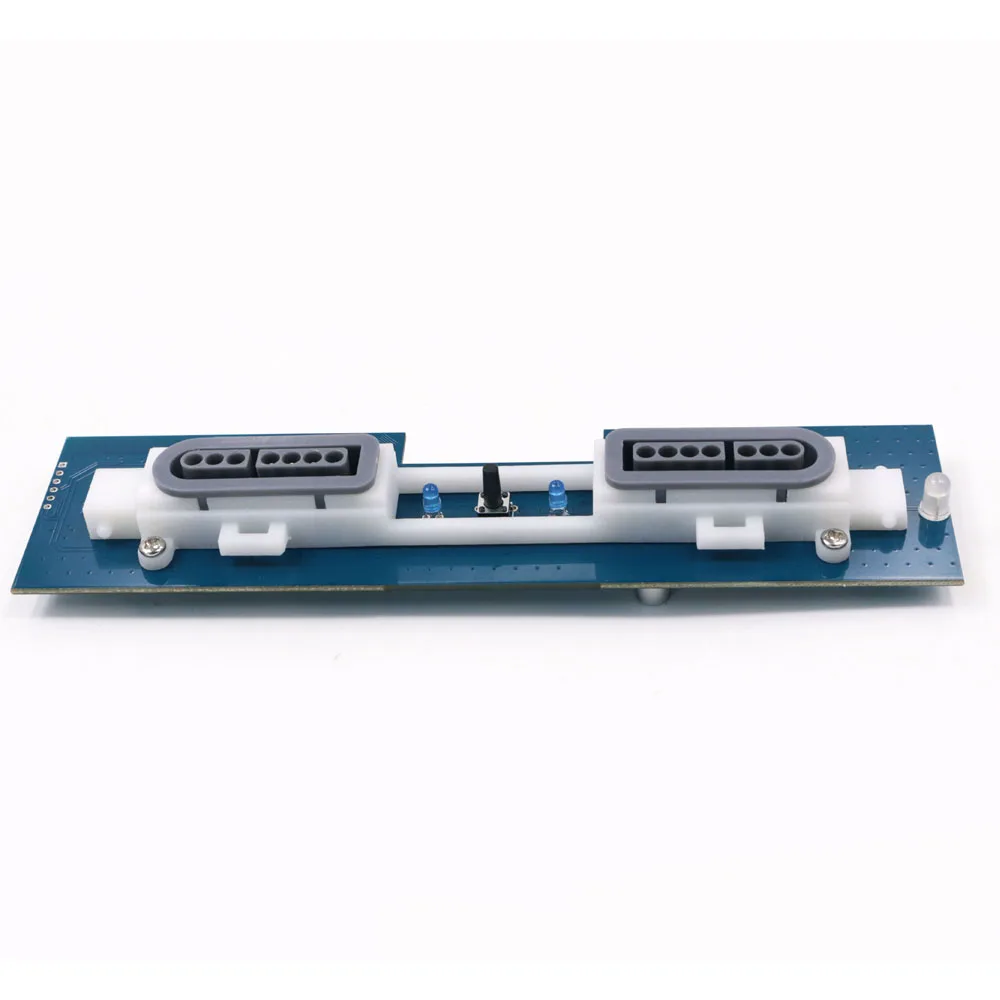

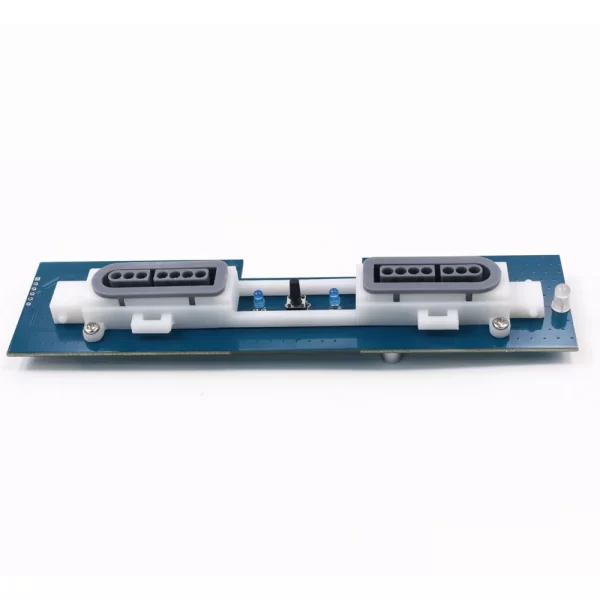

1x iBlueControlMod adapter for SNES .

1xSD Card (include iBlueControlMod
Applications and manual.)

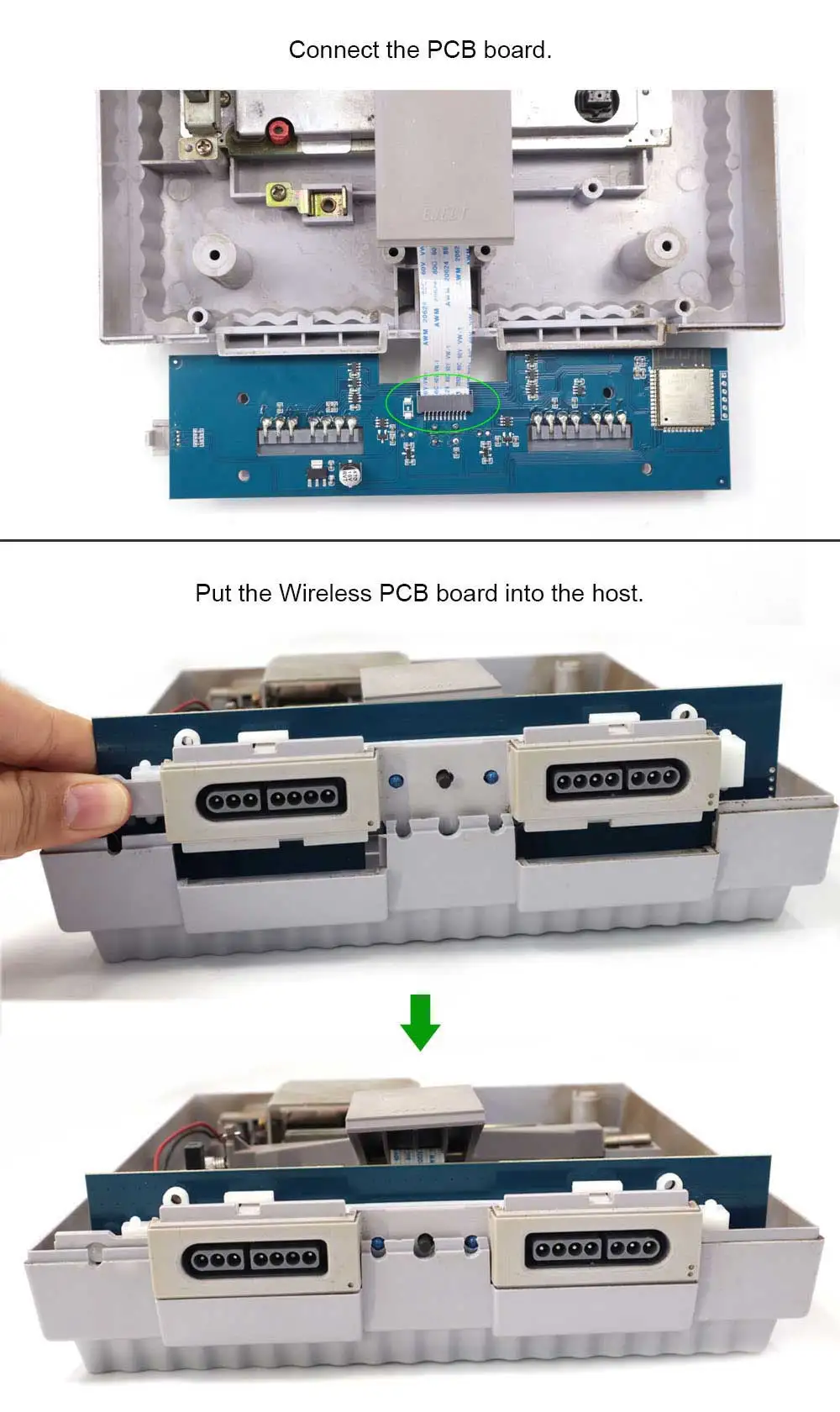

Installation guide







US SNES Bluetooth Controller Adapter Internal Wireless Chip Module Mod Kit Replacement Compatible with Sony S3 PS4 PS5 Nintendo Switch Wii U Joy-con Xbox One Series S/X Dual Wireless & Wired Controllers Accessories x1
