Best GBA V5 IPS Laminated Screen + 1800mAh Li-ion Battery + Pre-Cut Housing Shell Full Set, Gameboy Advance Drop in Retro Pixel Backlight LCD Display / Glass Screen Lens / USB-C Rechargeable Charging Mod Kit + Repair Tool Accessories Free Shipping

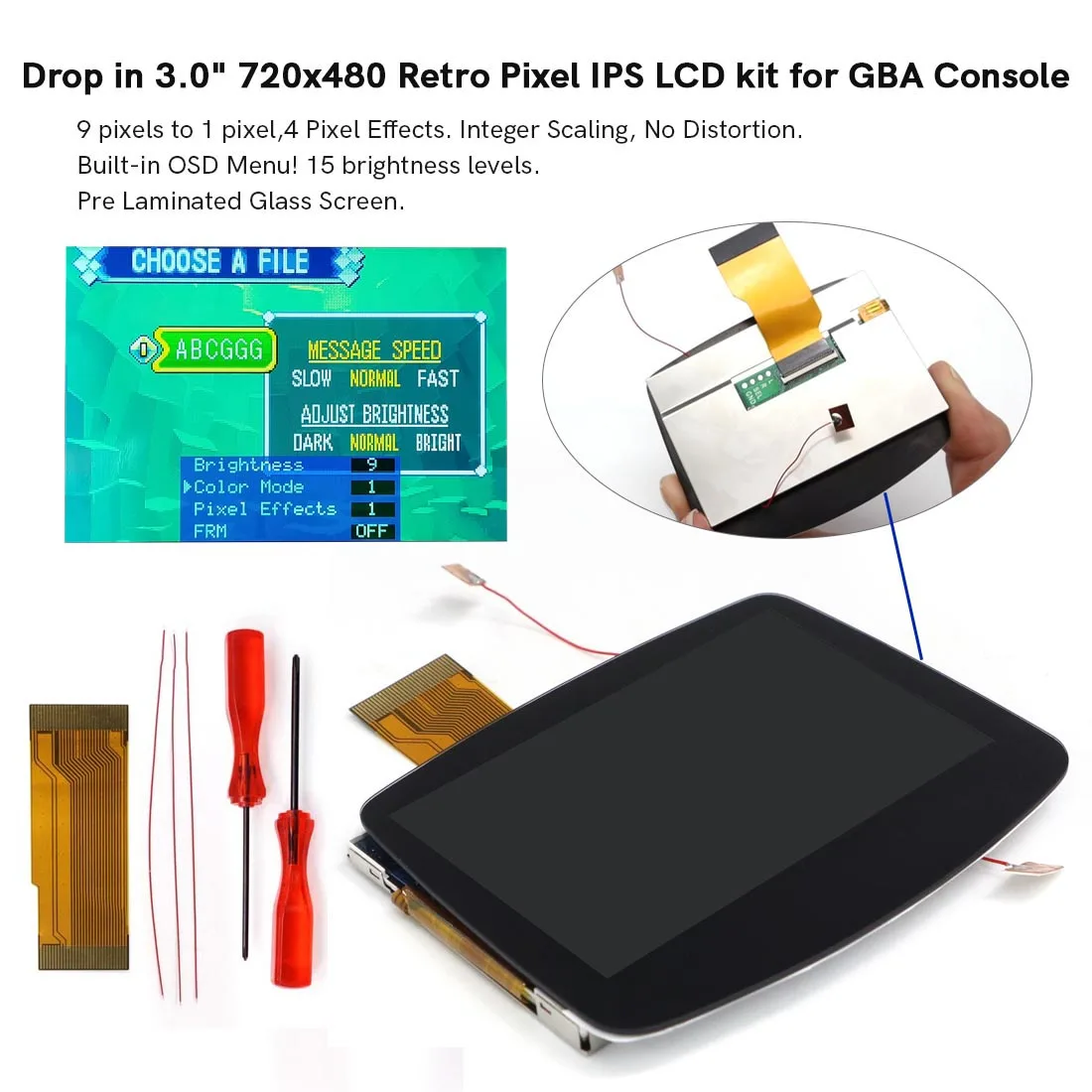

V5 Pre Laminated 720×480 Retro Pixel IPS LCD For GBA Console

Integer Scaling. No any distortions.

Note: You don’t need to cut the shell if you buy the shell from us. Otherwise, you need to cut the shell by yourself.

The Glass screen lens have the LOGO.

Add FRM On/OFF function(Frame blending  On/OFF).





Best GBA V5 IPS Laminated Screen + 1800mAh Li-ion Battery + Pre-Cut Housing Shell Full Set, Gameboy Advance Drop in Retro Pixel Backlight LCD Display / Glass Screen Lens / USB-C Rechargeable Charging Mod Kit Description:

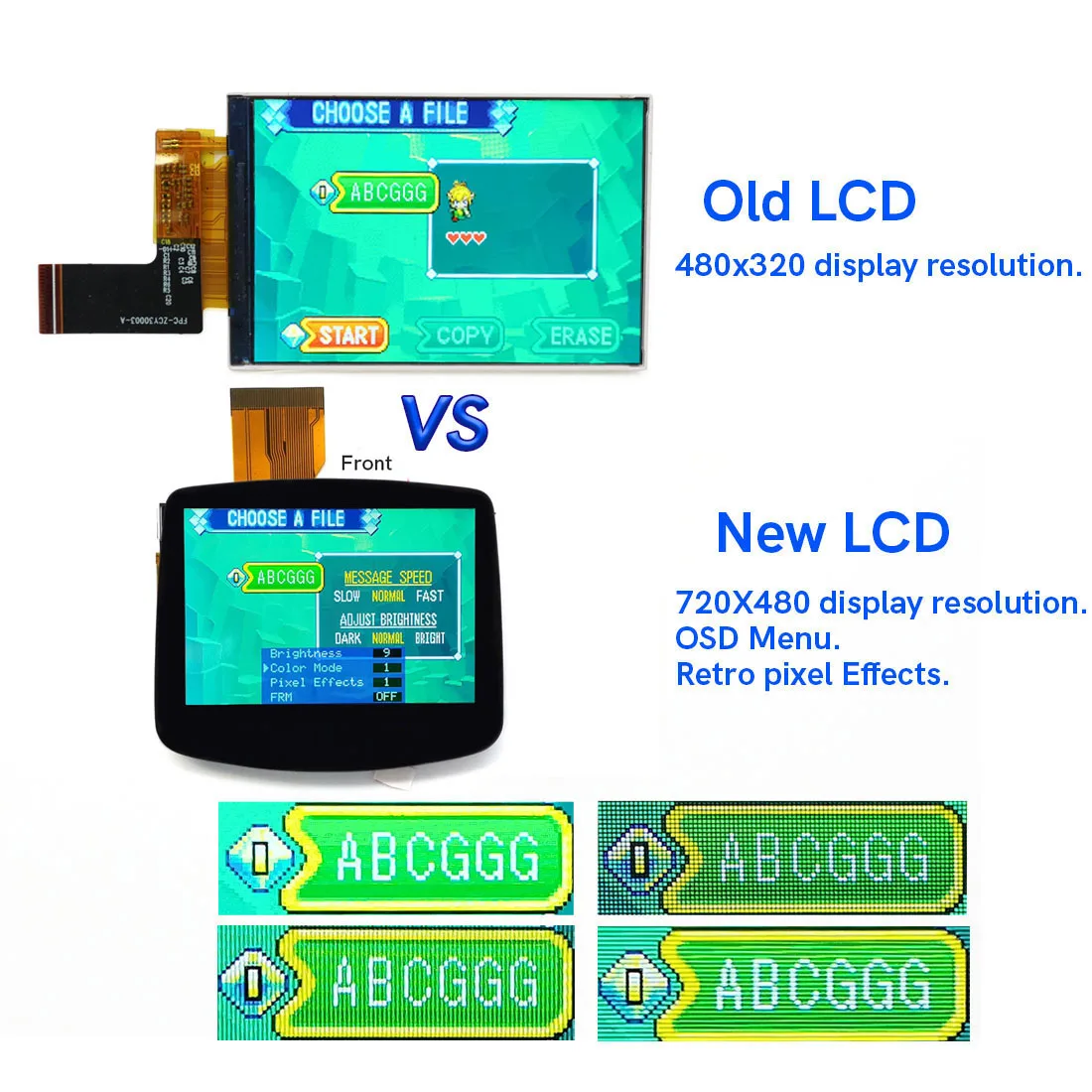

1. 720×480 display resolution. HD LCD.  9 pixels to 1 pixel. Integer scaling. No any distortions.

2. Wide View angle up to 178 degree.

3. Pre Laminated Glass Screen.

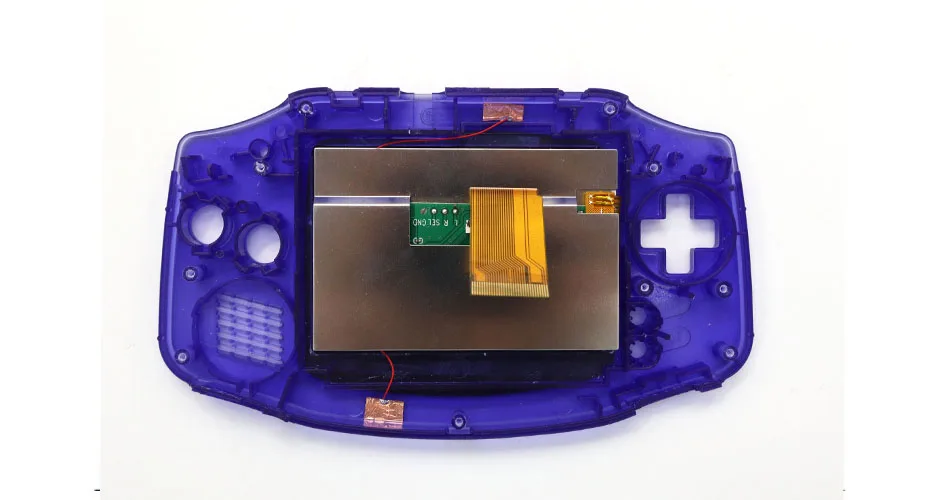

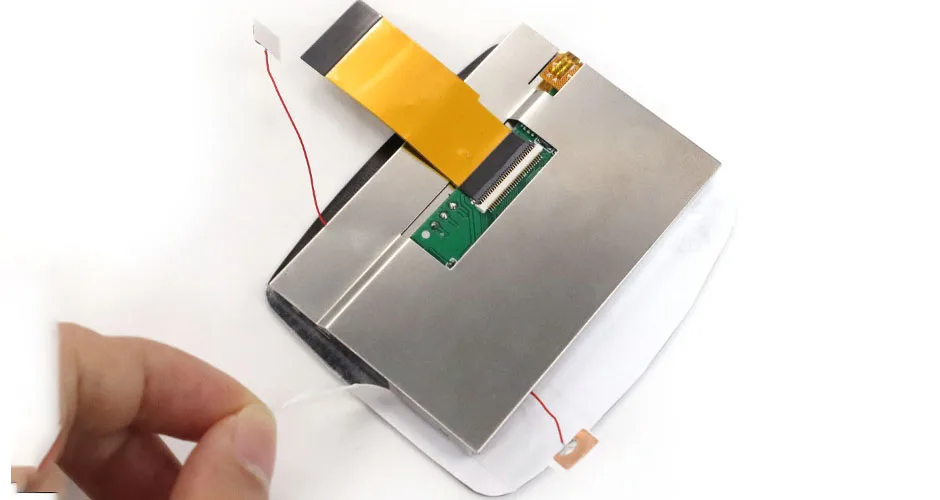

4. The PCB has been embedded in the LCD metal shell.

5. Built-in OSD Menu!

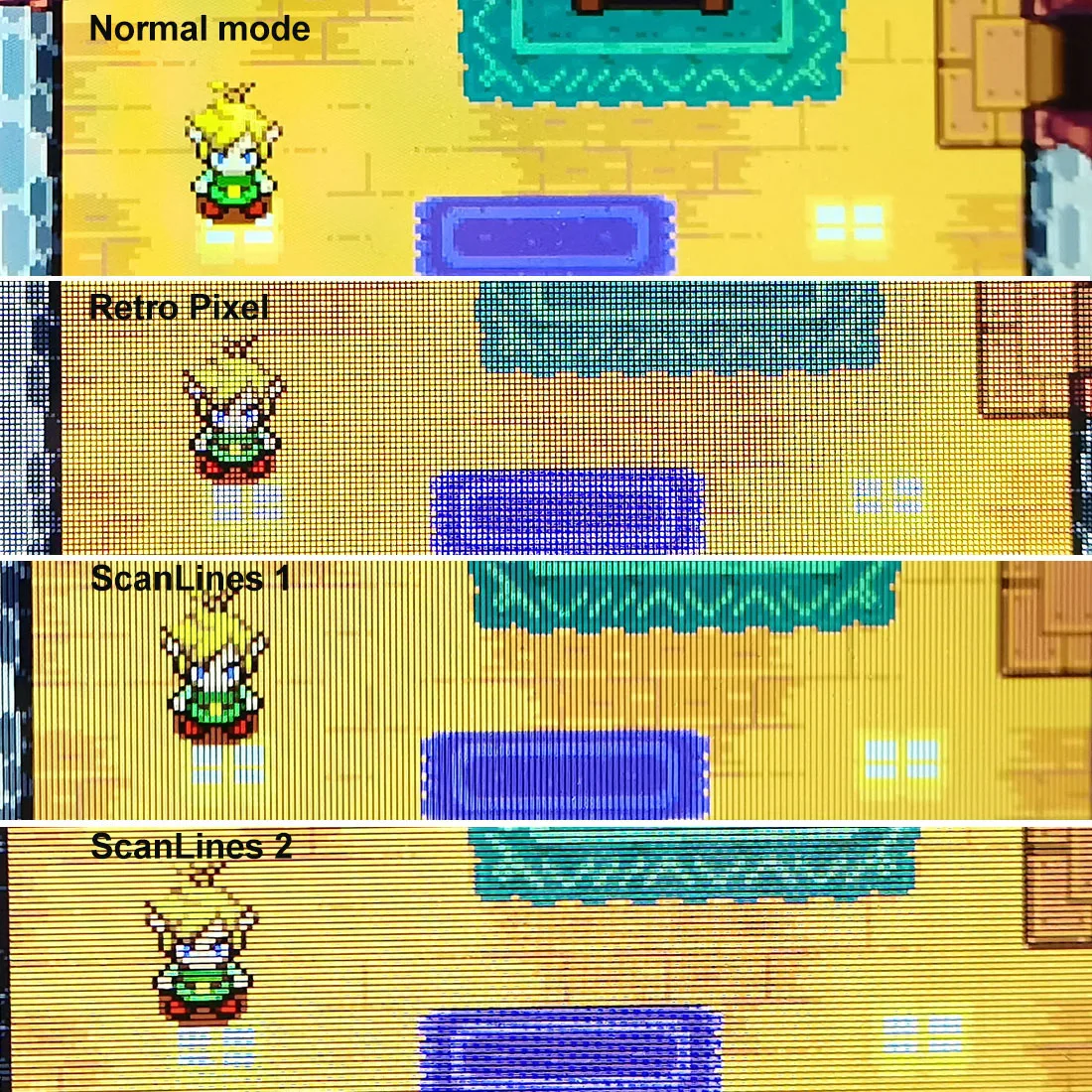

6.  Retro pixel Effects: Normal, Retro pixel (like original AGS-101 LCD), Scanline 1 and Scanline 2.

7. 15 brightness levels.

8. 8 color modes.

9.  FRM On/OFF function(Frame blending  On/OFF) is included.  For  some extremly few games,  the image effect will be better when FRM  turned on. For most games, No need to turn on FRM  Function. The default FRM is OFF.

10. Touch Screen to change the brightness and the color modes.

11. Compatible 32pin and 40pin motherboard.

The firmware of this kit was upgraded on August 26, 2024.



New firmware has added the following function:

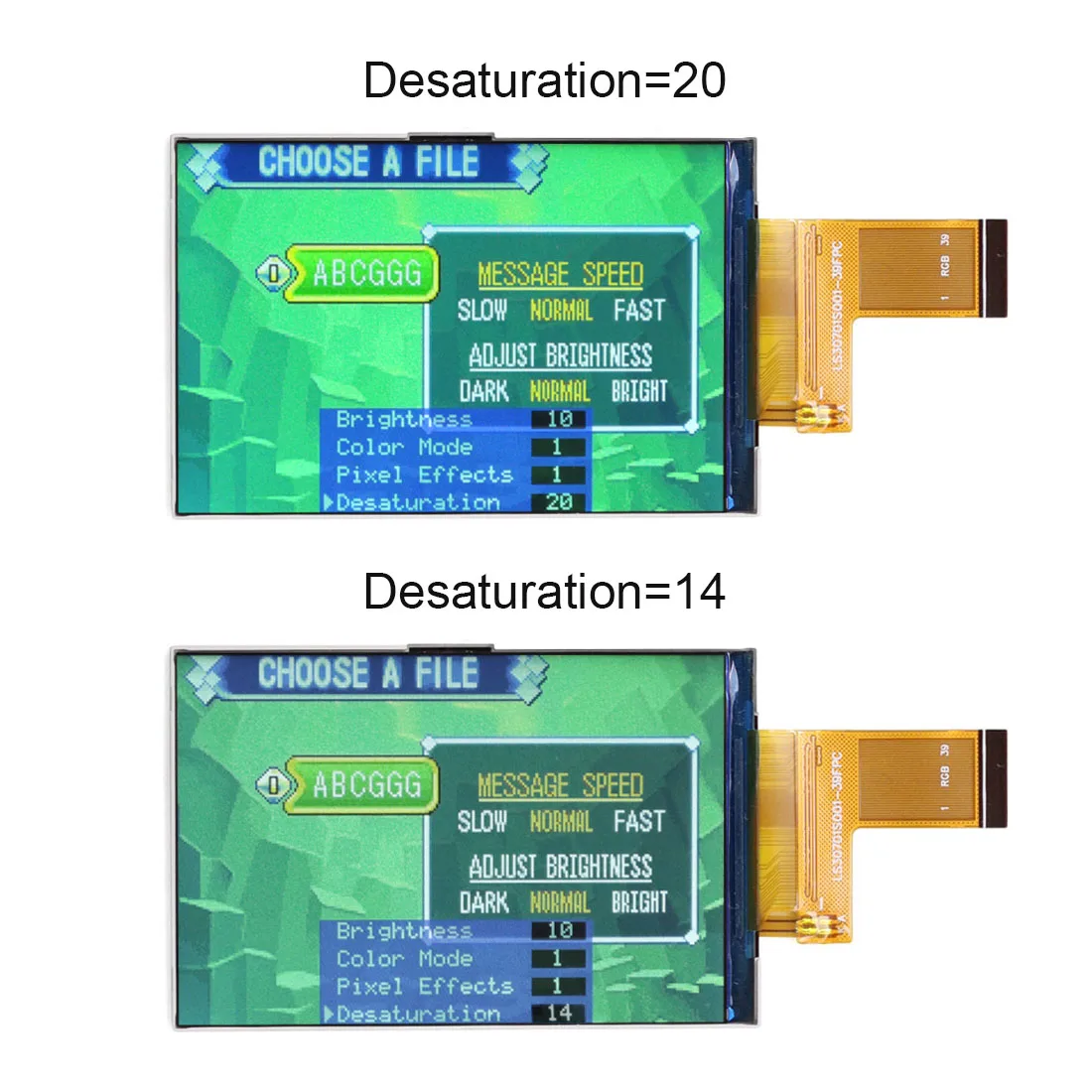

12.Add Desaturation function!



13.Add ‘Touch Shourtcut ON/OFF’ function!Set ‘Touch Shourtcut’ OFF to avoid auto cycling colour modes.

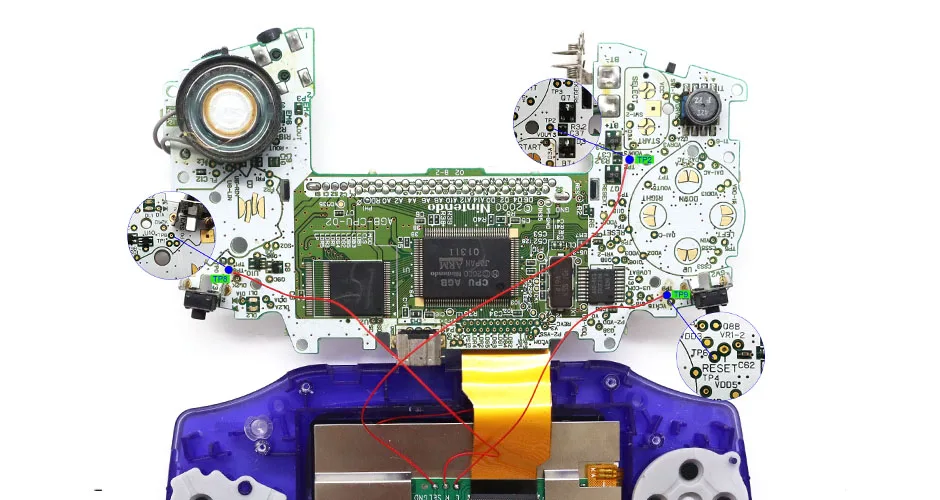

*You need to welding 3 wires to control the OSD Menu*

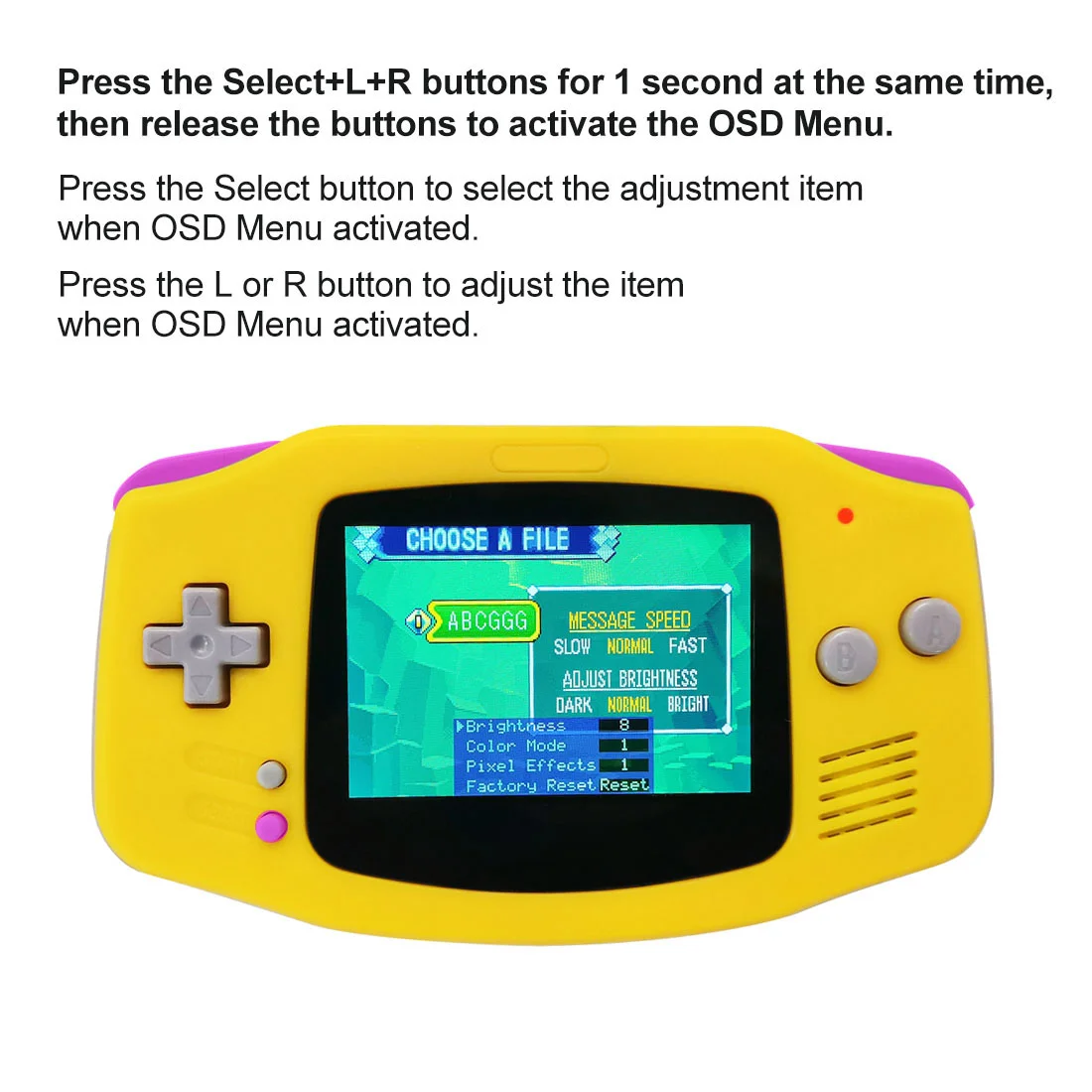

OSD Menu Operation:

-Press the Select+L+R buttons for 1 second at the same time, then release the buttons to activate the OSD Menu.

-Press the Select button to select the adjustment item when OSD Menu activated.

-Press the L or R button to adjust the item when OSD Menu activated.



You don’t need to do any welding if you don’t want the OSD menu!

Package includes

If you choose the ONLY PCB, you will get the below items.

1* PCB board

1*Wire

NOT INCLUDED THE BATTERY AND OTHERS.

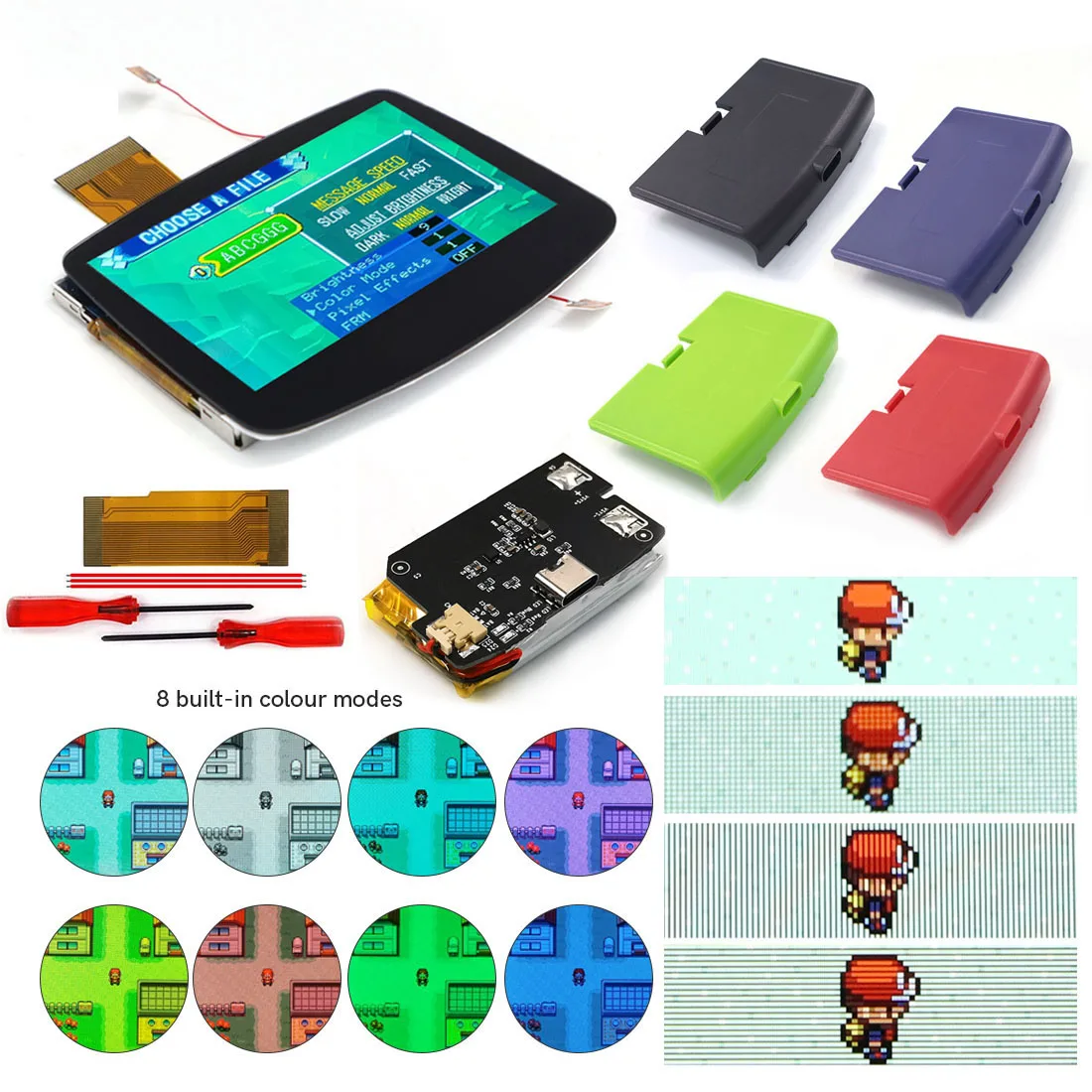

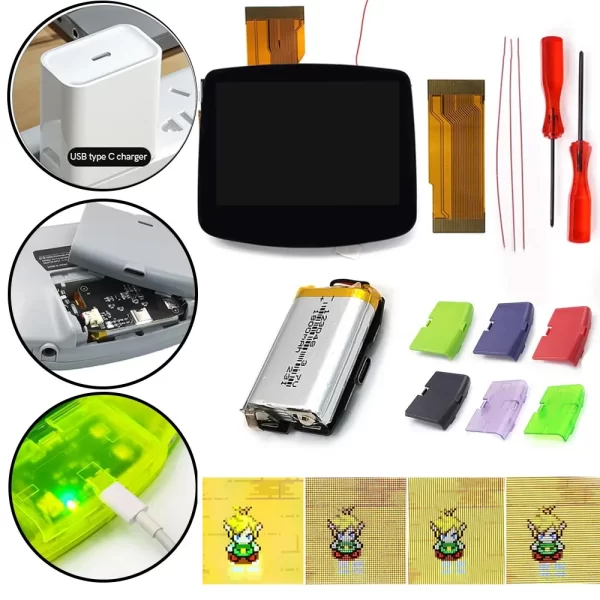

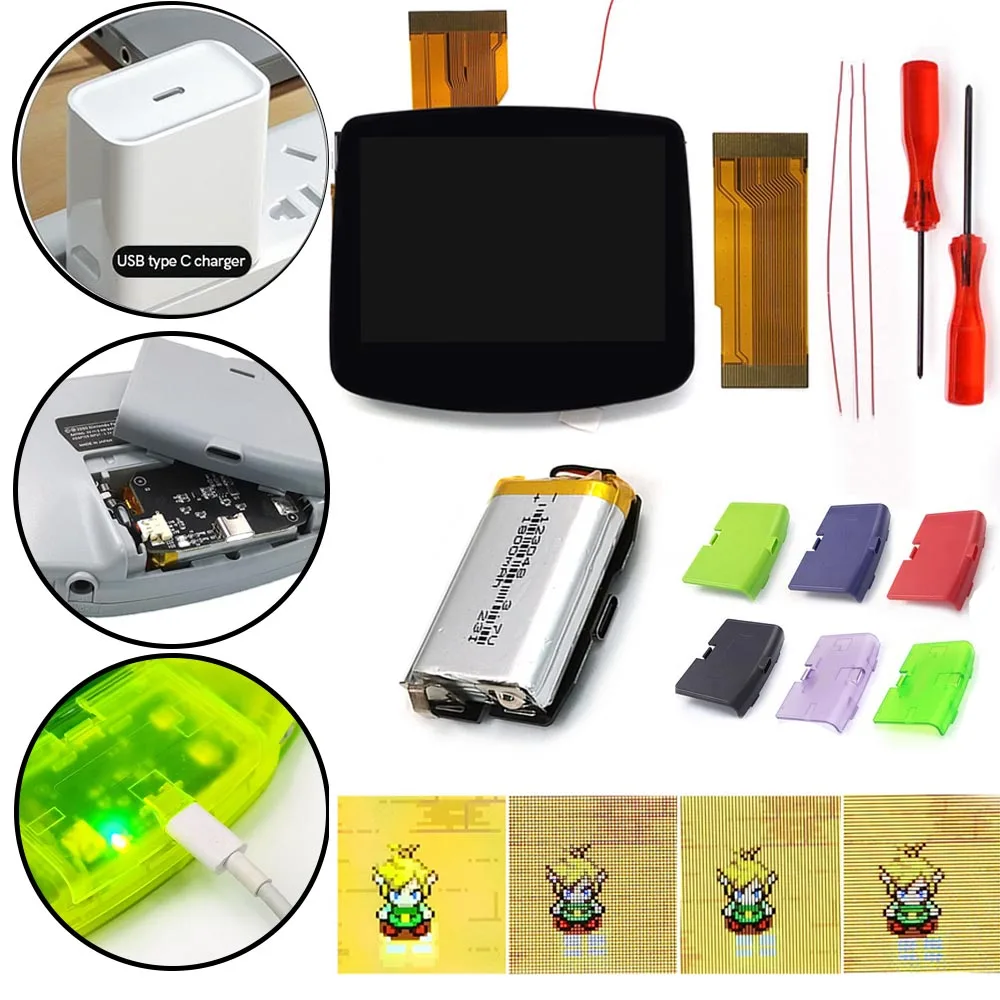

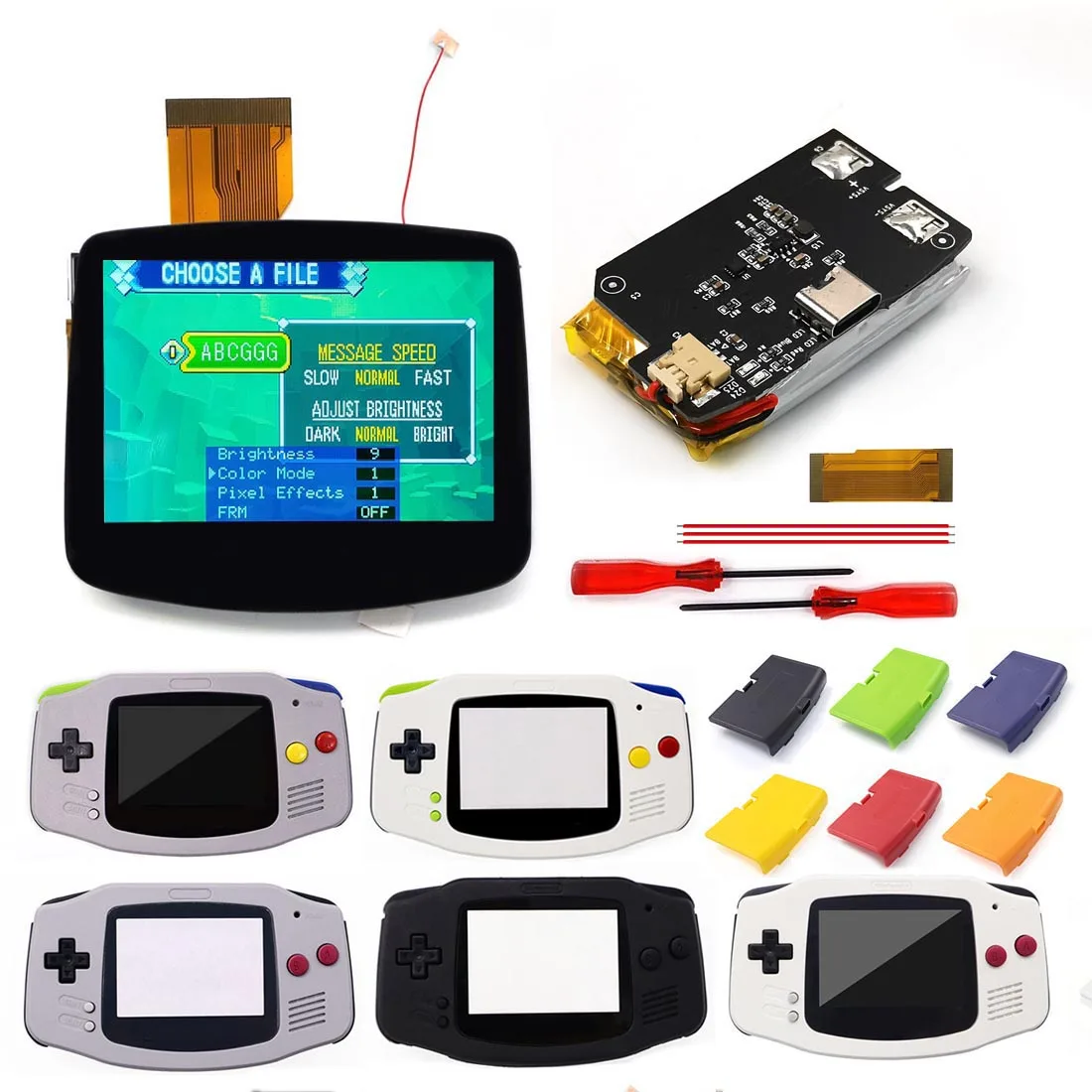

If you choose the kits,  you will get the following items.

1* V5 Pre-laminated screen(with lcd and pcb in one)

1* TYPE-C Rechargeable battery

1*TYPE-C wires

2*Screwdrivers

3*Wires

2*FPC cable

1*Shell

1*Button sets

1*Screws Set

1*Stickers



If you choose only LCD, you will get the following items.

1x Pre Laminated IPS LCD

2x Screwdrivers

3x red wires

2x ribbon cable

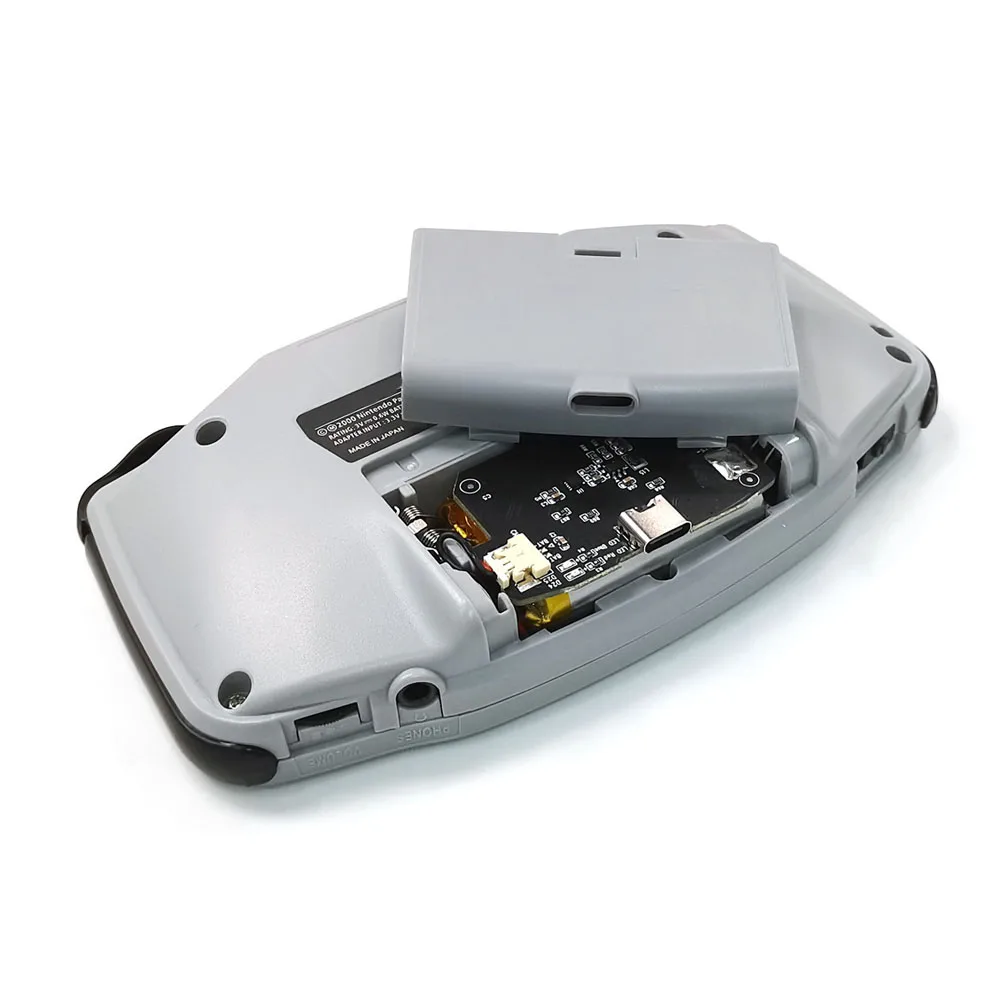

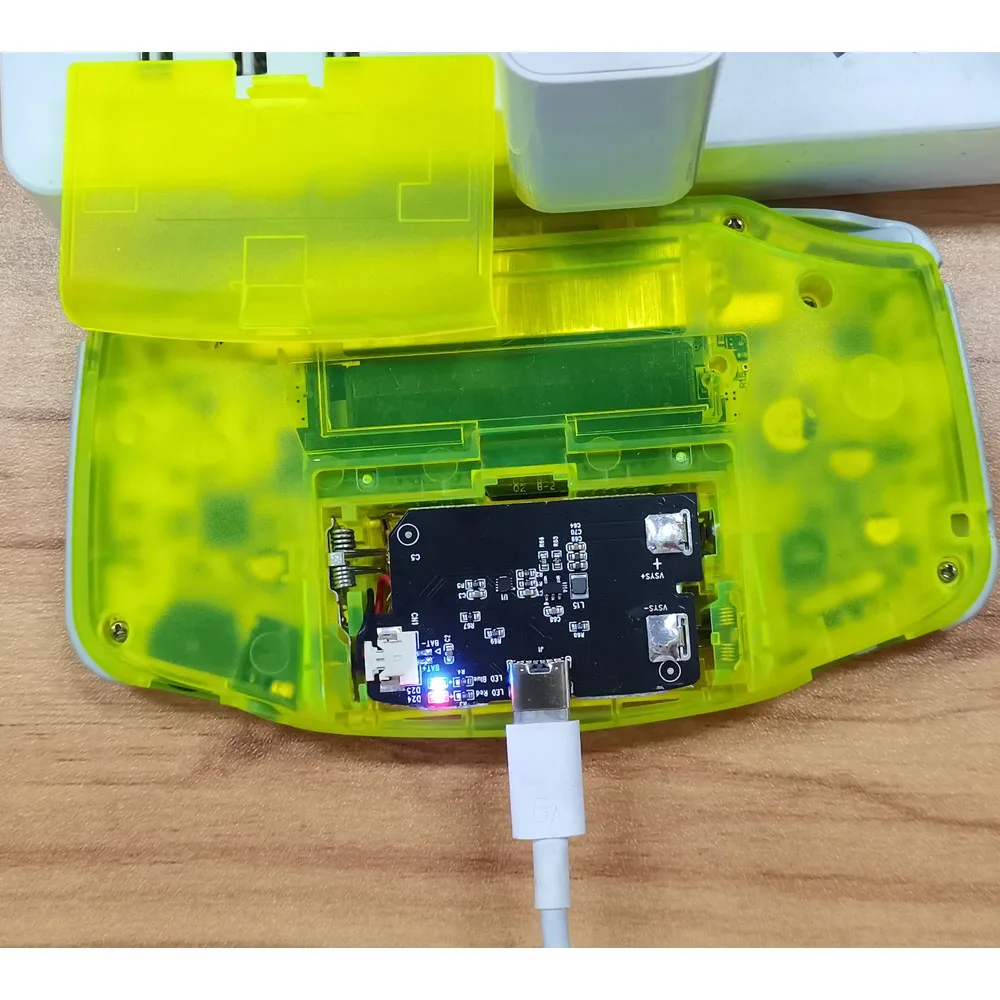

Battery informations

• Real Capacity:  1800mah

• Drop in the HISPEEDIDO GBA V5 Laminated shells. No need trimming.

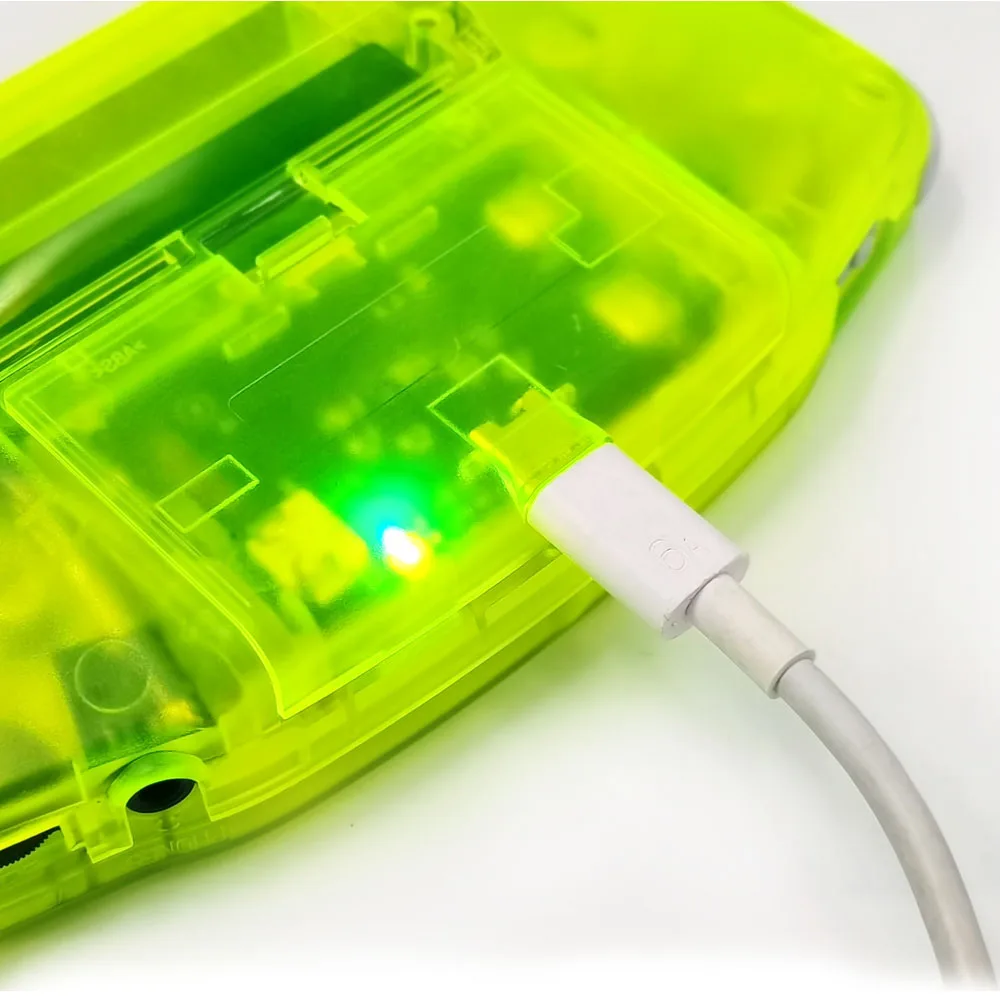

• Type-C port

• TI Chip. No need cooling fin.

• Over Voltage protection, Over Current protection, Short circuit protection.

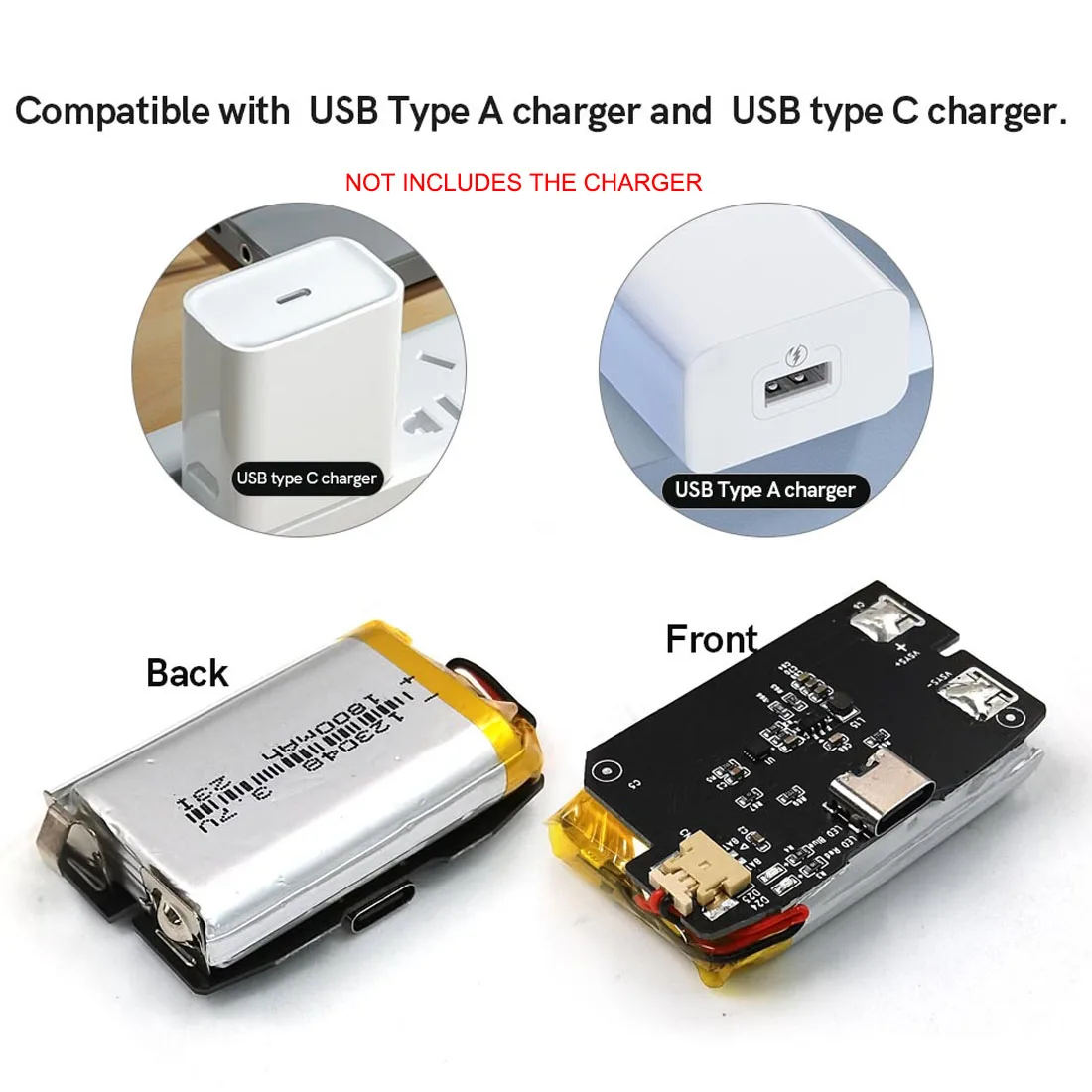

•  It can be compatible with  USB Type A charger and  USB type-C charger.

Note

● If the battery is bulging, please stop using immediately. Please prevent the battery from being squeezed or deformed.

● Please do not Pierce or scratch the battery with sharp objects. Otherwise the battery contents may burn or explode when exposed to air.

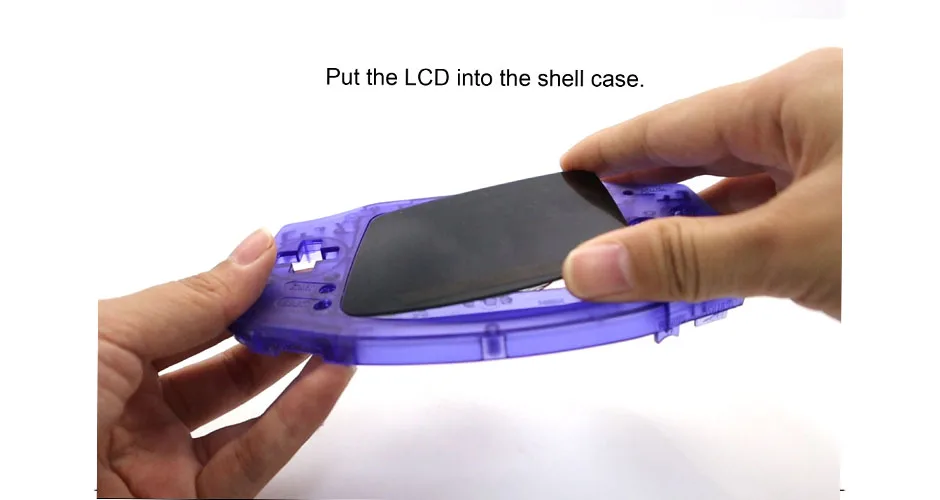

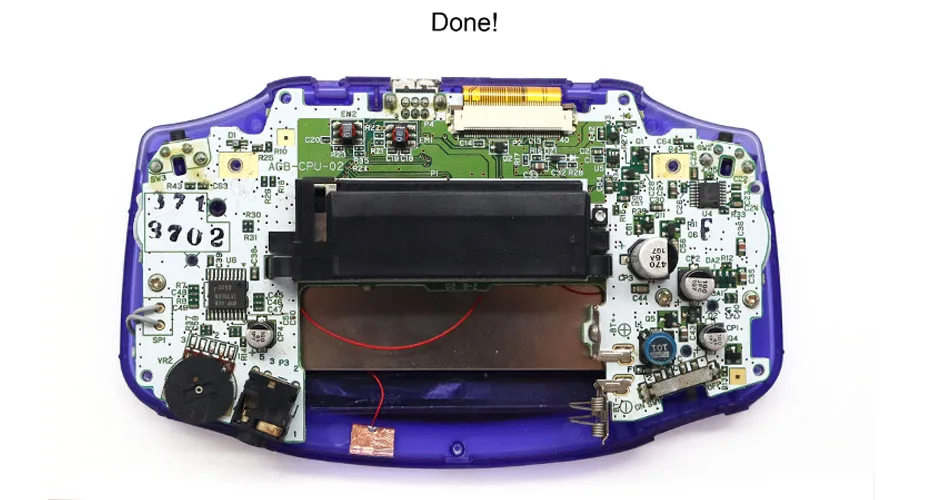

Instruction for Pre-laminated V5 LCD



Best GBA V5 IPS Laminated Screen + 1800mAh Li-ion Battery + Pre-Cut Housing Shell Full Set, Gameboy Advance Drop in Retro Pixel Backlight LCD Display / Glass Screen Lens / USB-C Rechargeable Charging Mod Kit x1
